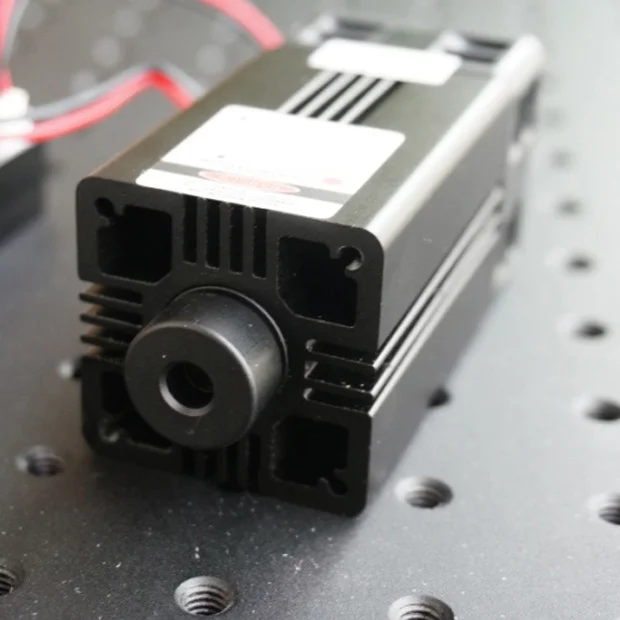

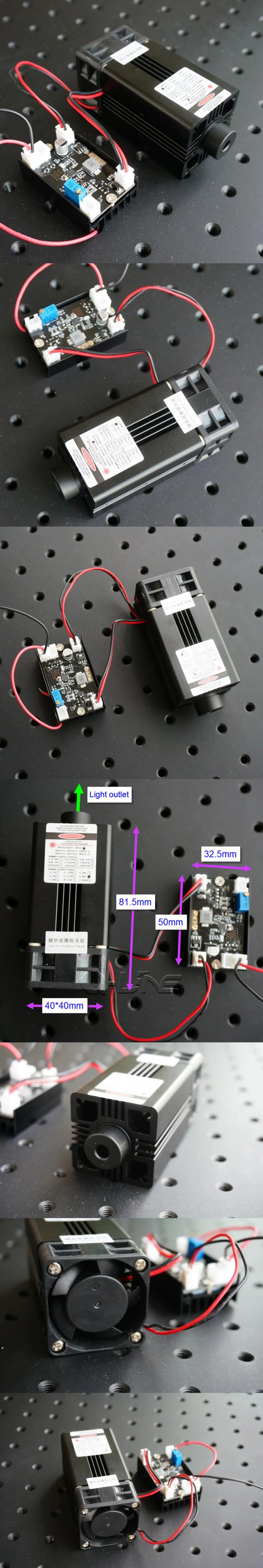

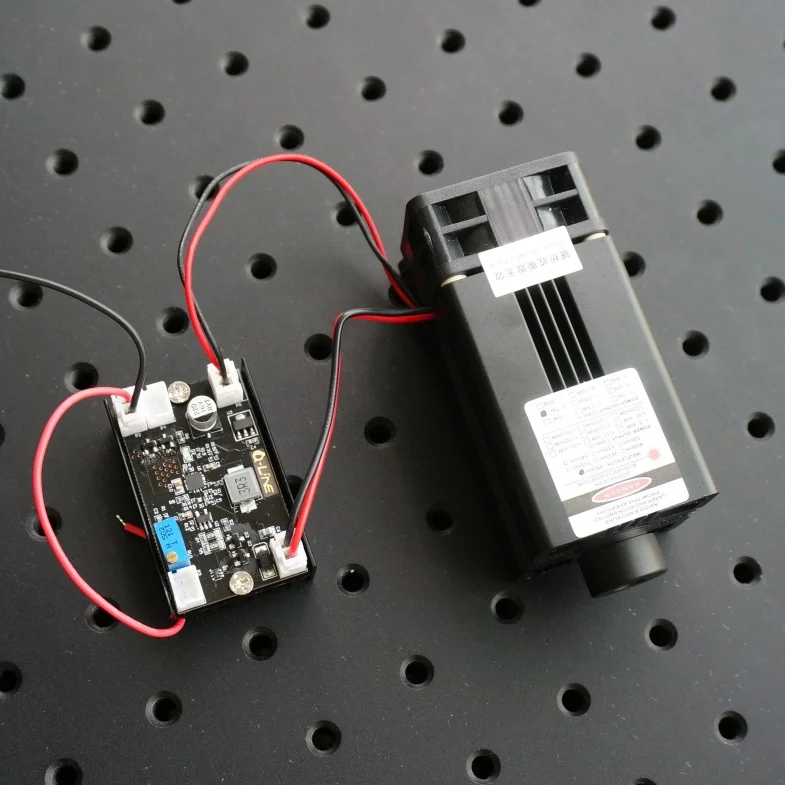

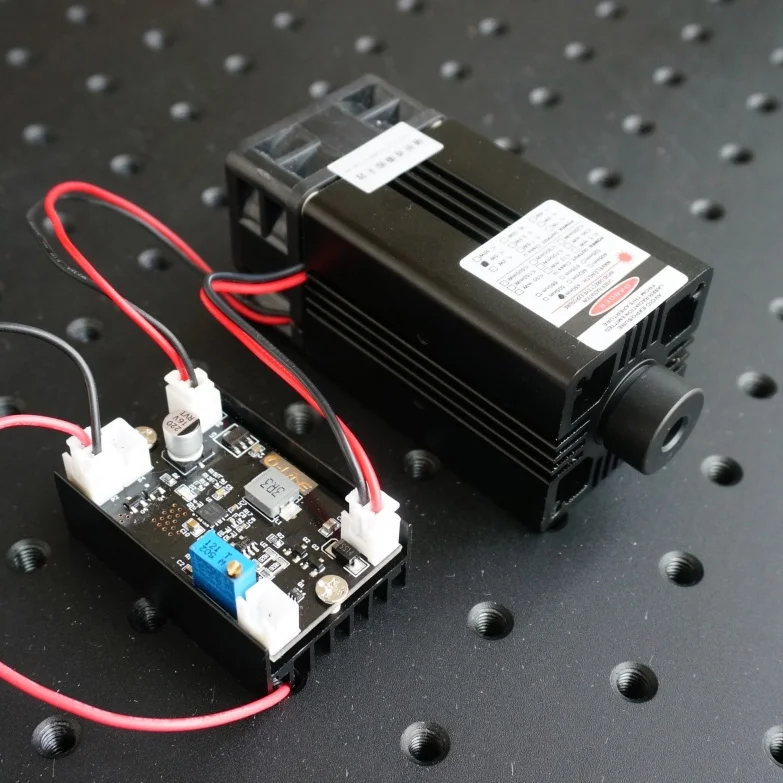

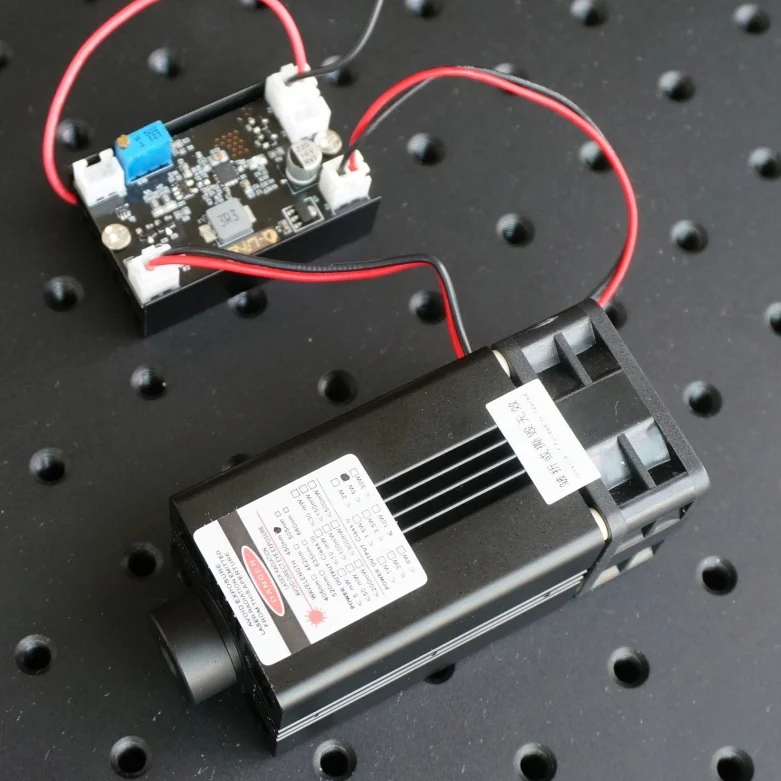

Strongest Green Laser Module 525nm 1000mW / 1500mW / 2000mW

To meet the needs of our customers, we have developed this super powerful 525nm green laser module. It adopts the optimized circuit design, cooling fan, and the best materials. The green laser is stable, bright, and long-distance, which can work continuously. The power of 1000mW / 1500mW / 2000mW is optional, and you can choose according to your needs. If you are looking for the strongest green laser module, this model will exceed your expectations!

Notes
1) The input voltage is 12V. Overvoltage will cause damage to the circuit and module.
2) If you have any technical questions, please contact us.

Technical Parameters
• Laser type: dot (green laser)

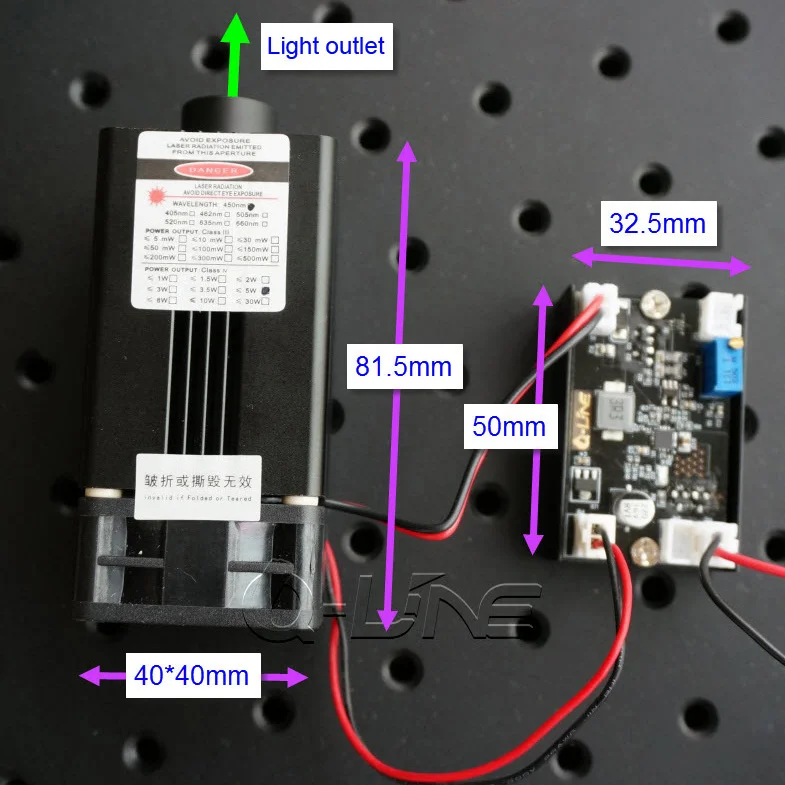

• Laser body size: 81.5mm x 40mm x 40mm
• Circuit board size: 50mm x 32.5mm x 16mm
• Output wavelength: 525nm (green)
• Output power: 1000mW / 1500mW / 2000mW

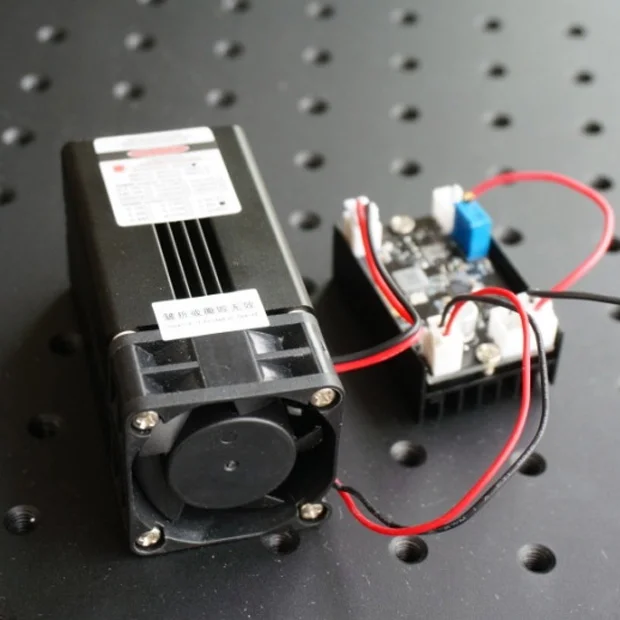

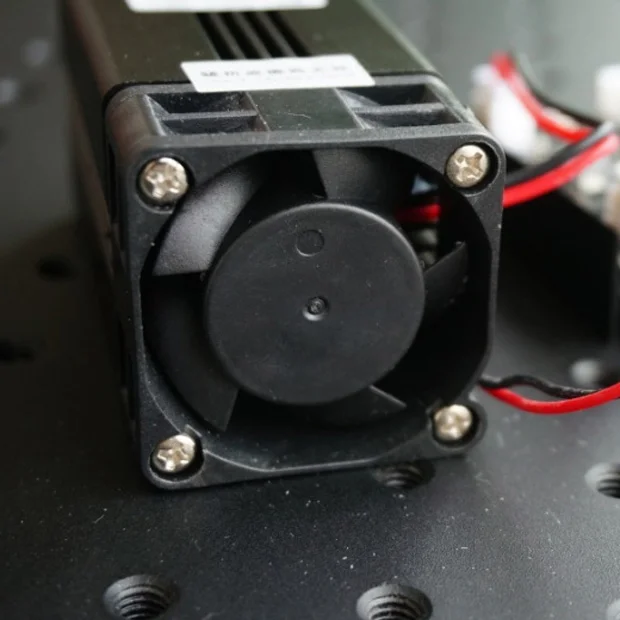

• Cooling method: cooling fan
• TTL control: available (0-5V)
• Housing material: aluminum
• Circuit control: constant current
• Reverse polarity protection: available
• Working voltage: DC=12V
• Working current: I<1.8A
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: -10℃～＋40℃
