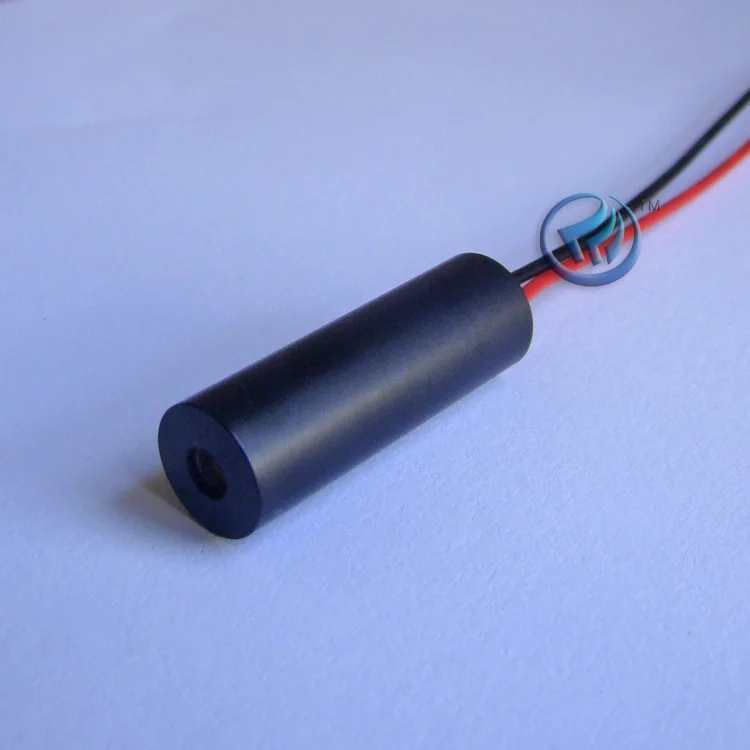

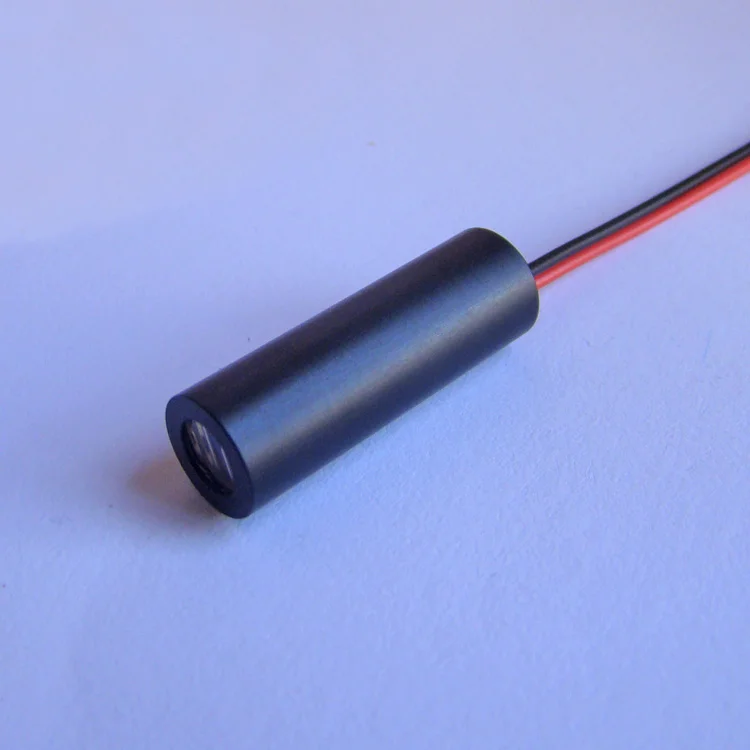

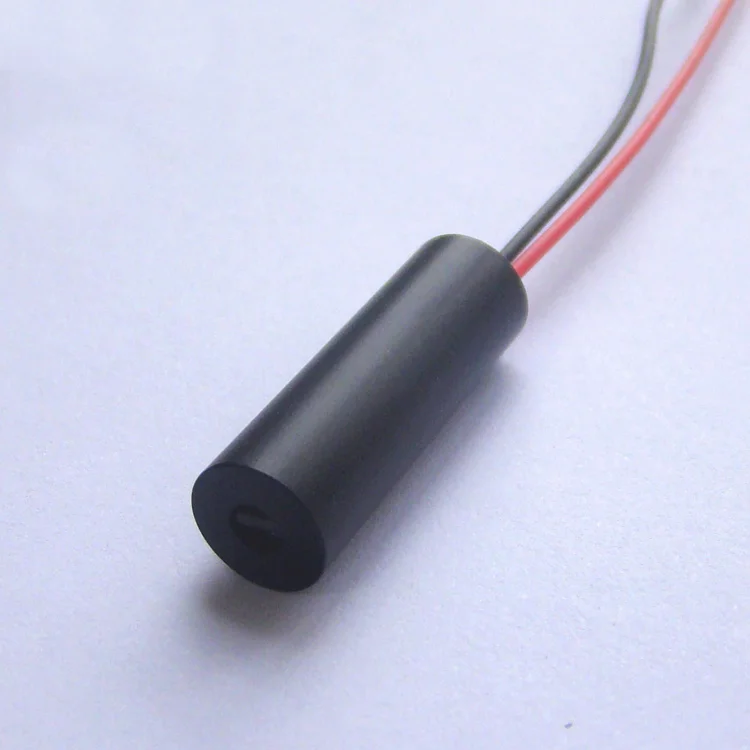

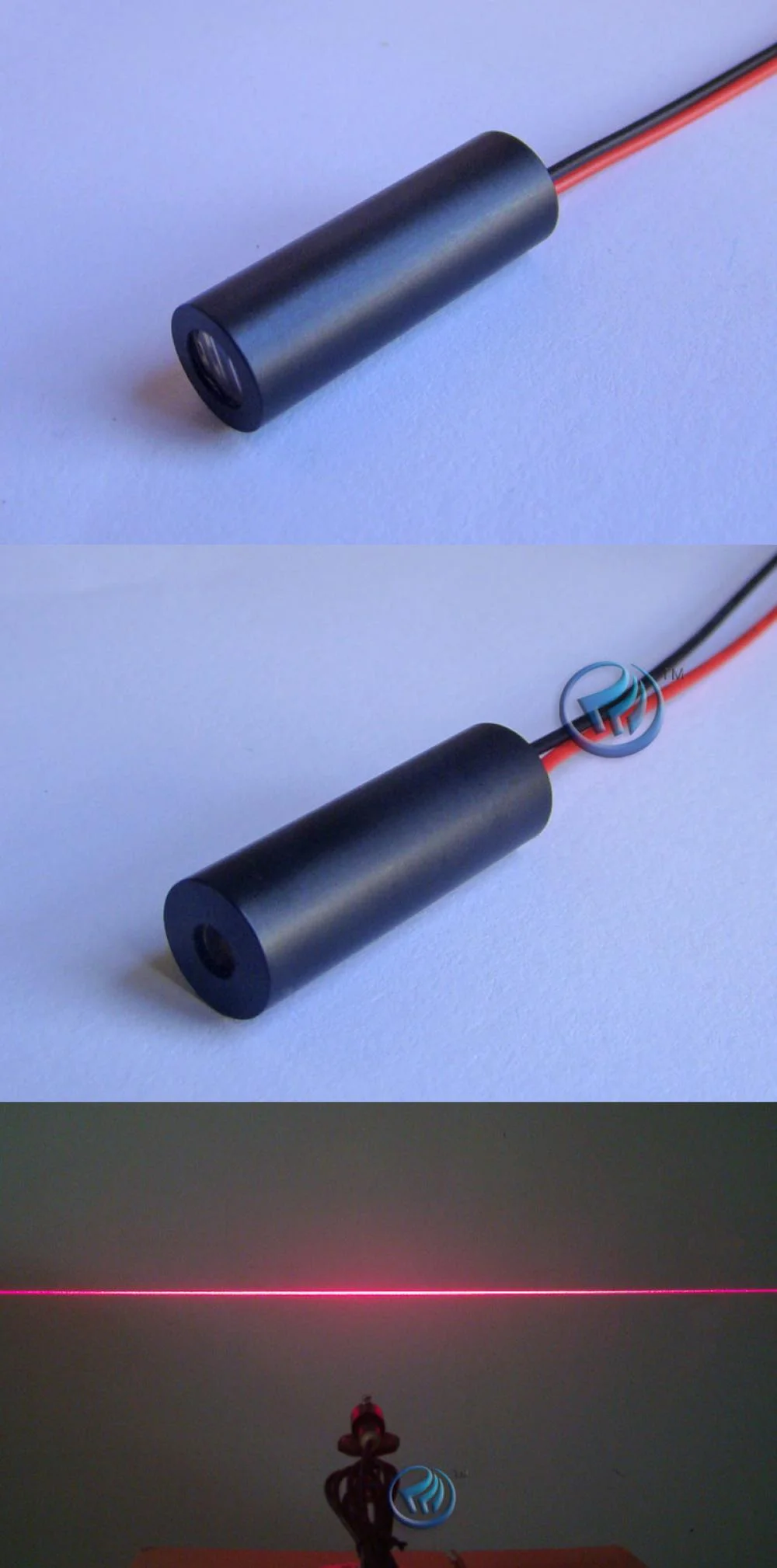

635nm Red Line Laser Module 50mW with Adjustable Focus

This laser module is one of our new products. It comes with small sizes, high stability, and good durability. The output power is optional, and the highest value is 50mW. If you are looking for a high-brightness red line laser module, this will be a reliable choice. For any questions, please contact us via email. We will reply to you as soon as possible.

Buying Tips
1) The default operating voltage is 3V. 5V/12V/24V is customizable.
2) The module size can be customized: Φ9×26mm, Φ10×22mm, Φ10×30mm, Φ12×30mm, Φ12×50mm (size customization is free). We will send Φ10×30mm by default.

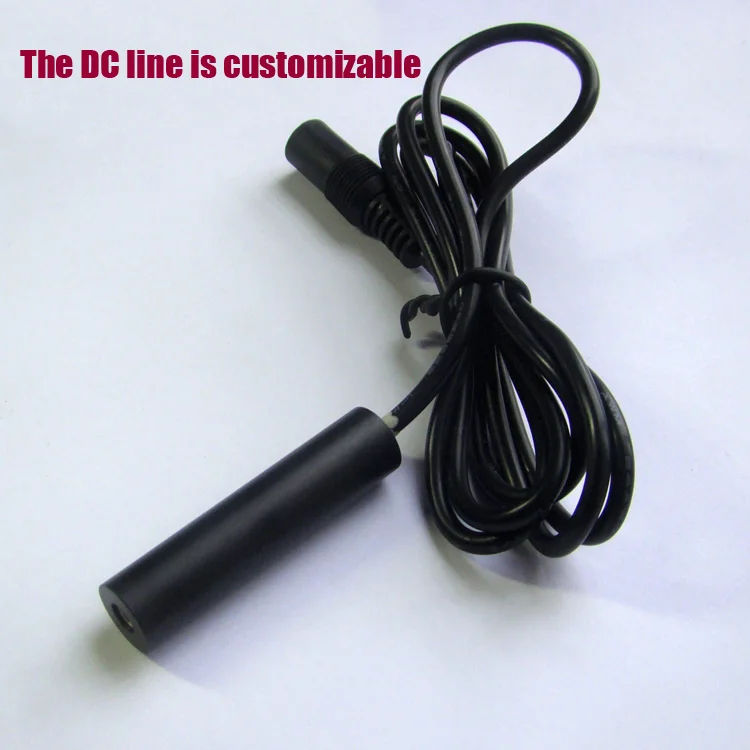

3) The DC line is customizable.
4) For product customizations, please contact us via info@lasersea.com before purchasing.

Specifications
• Wavelength: 635nm
• Laser shape: line
• Dimensions: Φ10 x 30 mm
• Power: 1mW / 5mW / 10mW / 30mW / 50mW
• Focus: adjustable/fixed (optional)
• Useful life: > 8000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Operating voltage: DC= 3V (2 x AAA batteries)
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
