High Power 658nm/660nm Red Laser Module Dot/Line/Cross

Product Details

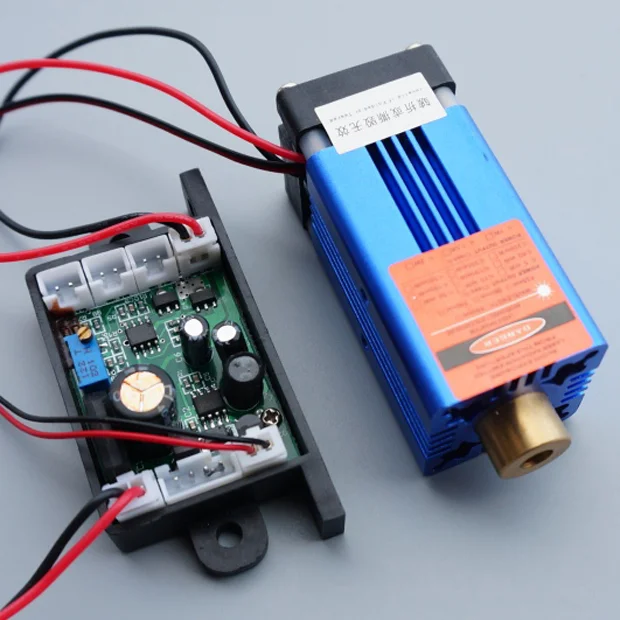

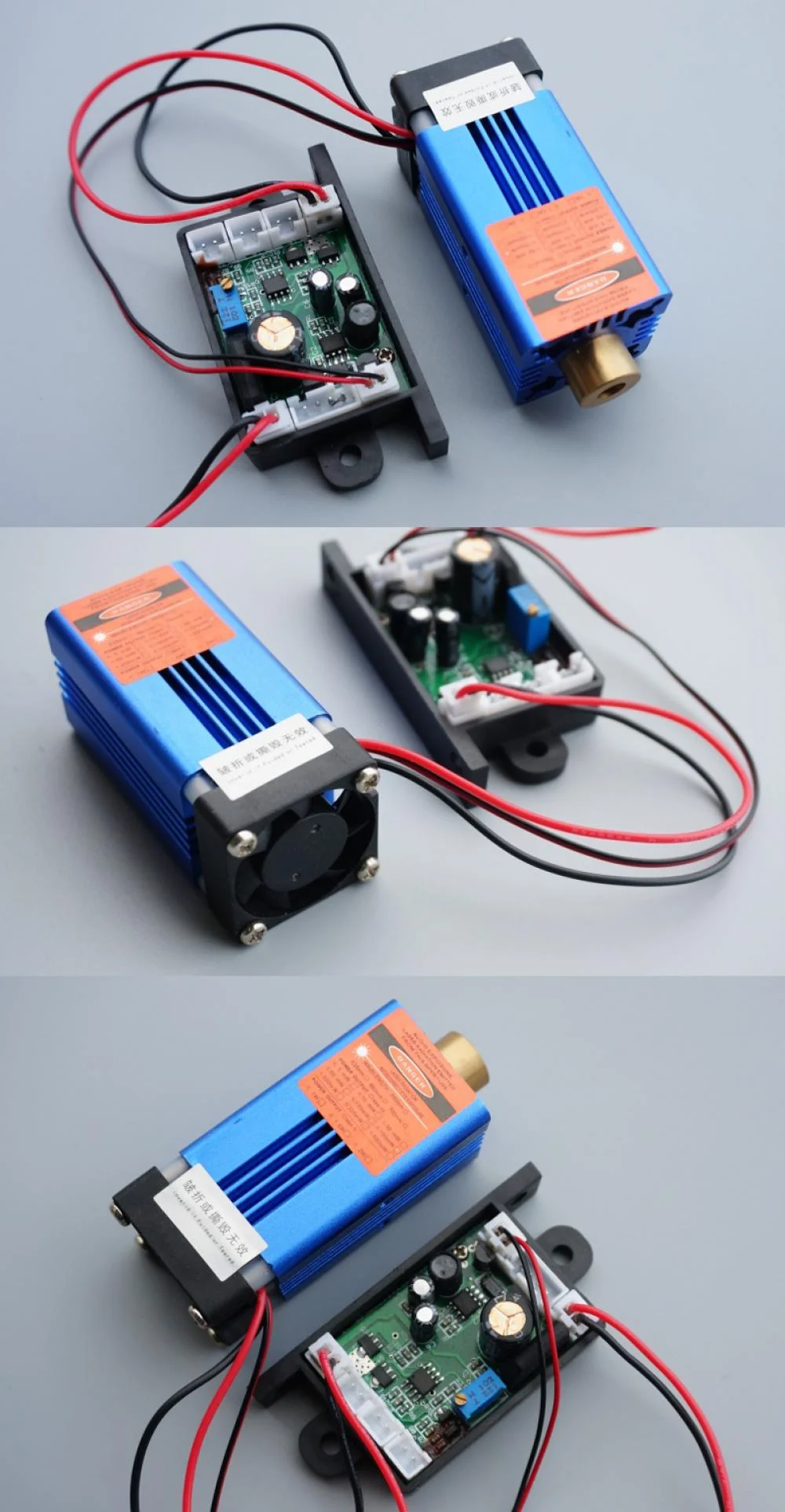

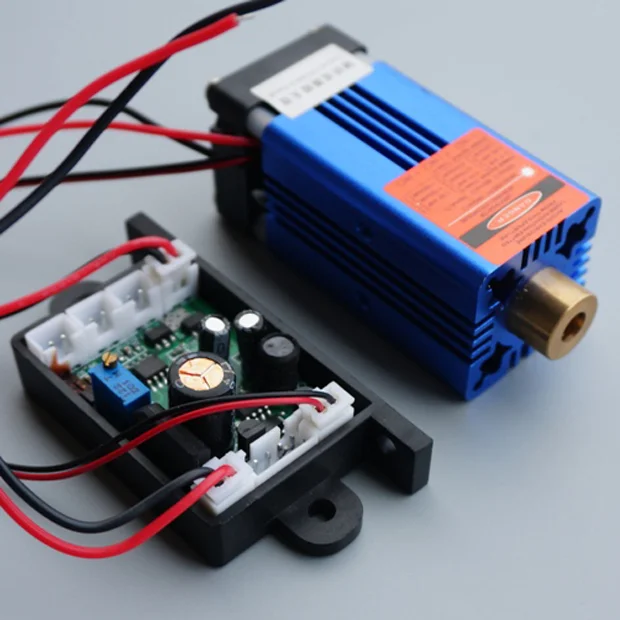

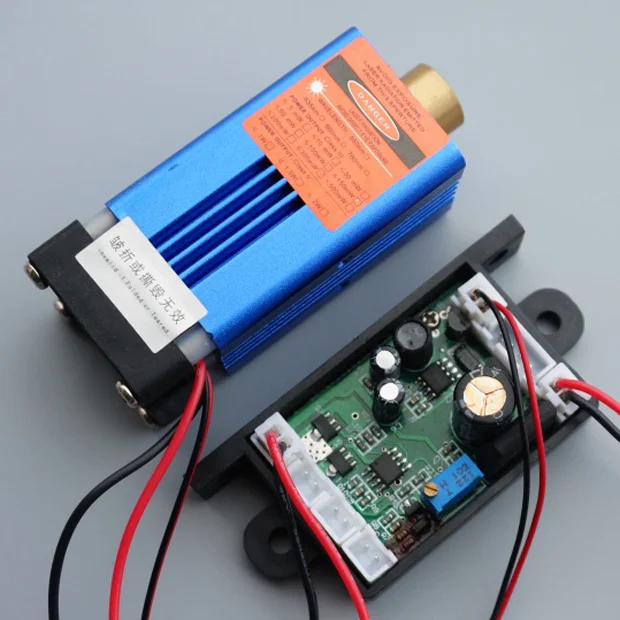

This red laser module adopts an imported Mitsubishi laser diode with good durability and high stability. It can work continuously for a long time, with a multi-channel design and uniform wall thickness for heat dissipation. With the high concentricity beam, this high-power laser can easily ignite matches and burn plastics. Three different laser types are optional: dot, line, or cross, and it is very suitable for professional laser experiments.

Specifications
• Laser wavelength: 658-660nm (red)
• Output power: 100mW / 250mW
• Housing material: aerospace aluminum
• Surface treatment: surface oxidation, blue rubber paint
• Laser type: dot / line / cross
• Circuit control: constant current circuit
• Cooling method: fan cooling
• Reverse polarity protection: available
• Overcurrent protection: available
• Overheating protection: available
• Electrostatic protection: available
• Circuit control: 12V step-down constant current

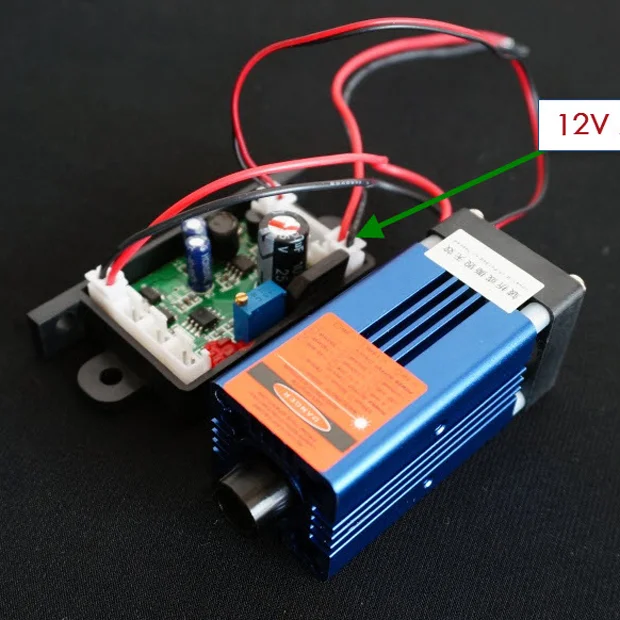

• Operating voltage: DC = 12V
• Operating current: < 320mA
• Working temperature: 0℃ - 40℃
• Storage temperature: -10℃ - 40℃

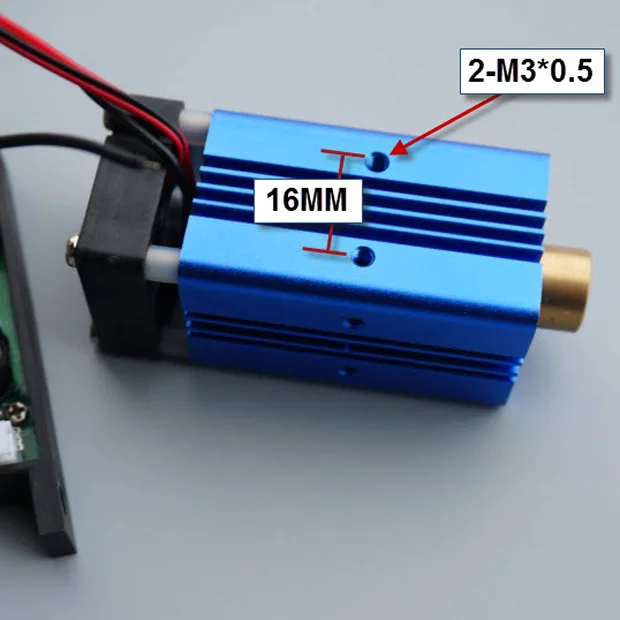

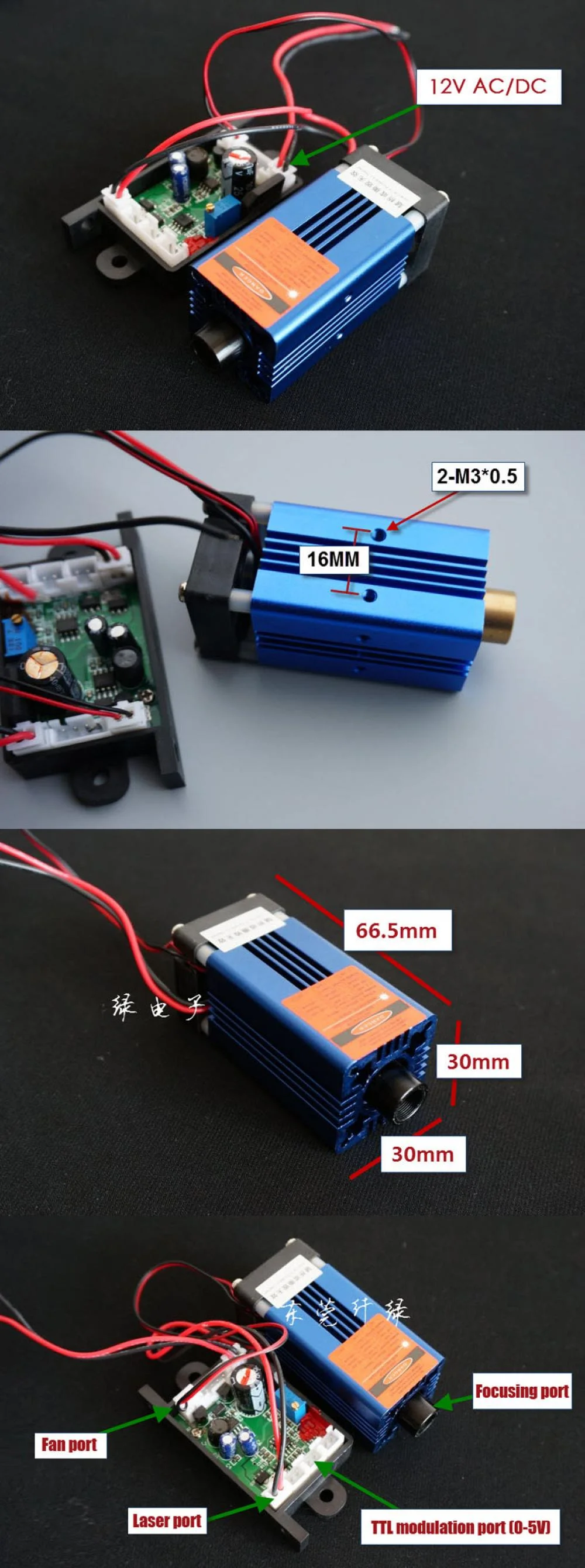

• Module size: 66.5mm x 30mm x 30mm
• Circuit board size: 62mm x 35.5mm x 20mm
