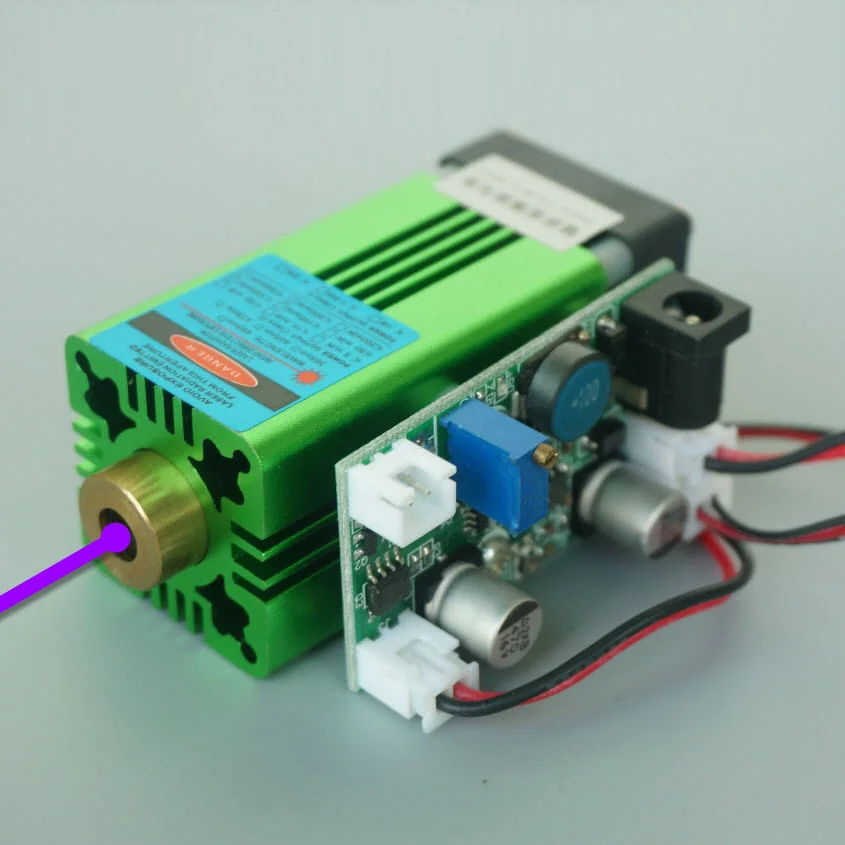

Ultra-Powerful Violet Laser Module 405nm 1000mW with TTL

For product customization and wholesale, please contact us by mail. We will reply to you as soon as possible.

Product Details

This industrial-grade laser module comes with a cooling fan and the TTL modulation, which can work 24 hours a day. 100mW / 150mW / 200mW / 300mW / 800mW / 1000mW is optional - you can choose according to your needs.

Notes
1) The input voltage is 12V. Overvoltage will cause damage to the circuit and module.
2) If you have any technical questions, please contact us.

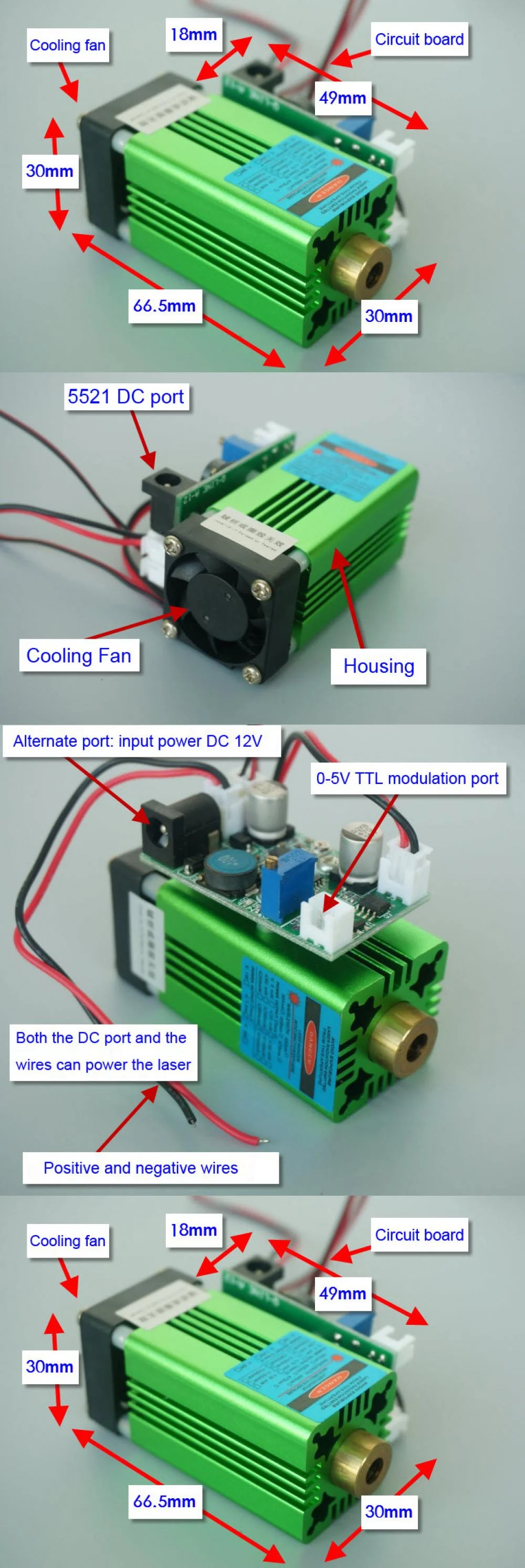

Technical Parameters
• Laser type: dot (violet)
• Laser body size: 69.5mm x 30mm x 30mm
• Circuit board size: 49mm x 18mm
• Output wavelength: 405nm
• Output power: 100mW - 1000mW
• Cooling method: cooling fan
• Modulation frequency: TTL 1-20K Hz
• Modulation voltage: 0-5V
• Housing material: aluminum
• Circuit control: constant current
• Reverse polarity protection: available
• Working voltage: DC=12V
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: -10℃～＋40℃
