Green Laser Module 532nm 100mW with Cooling Fan

We can provide customers with optoelectronic solutions and design laser modules that meet customer needs.

Product Details

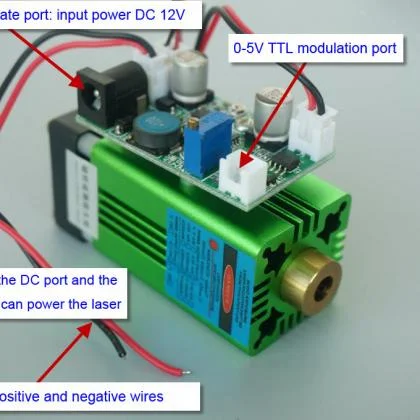

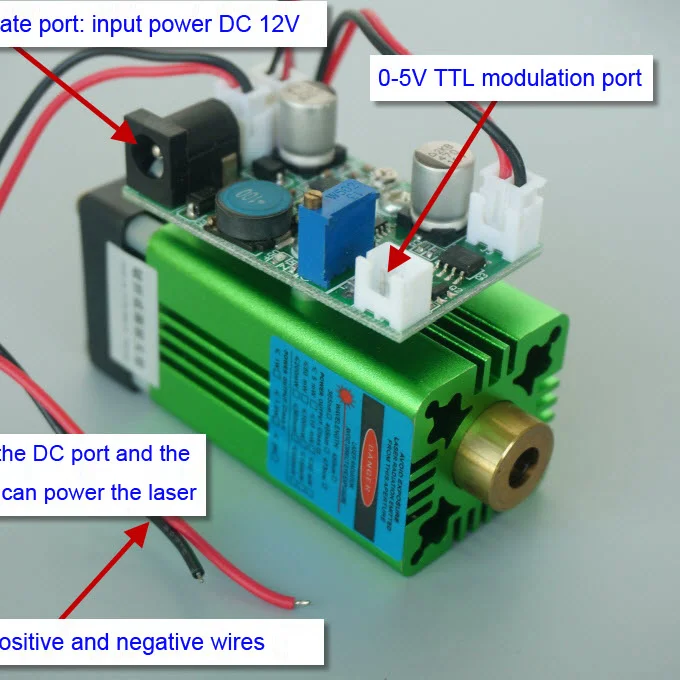

This laser module comes with TTL modulation and a cooling fan, which can work continuously for a long time. For the 532nm wavelength, 100mW is our recommended power for stability and durability. It can be used for stage, laser experiments, laser rangefinder, etc.

Notes
1) The input voltage is 12V. Overvoltage will cause damage to the circuit and module.
2) If you have any technical questions, please contact us.

Technical Parameters
• Laser type: dot (green laser)

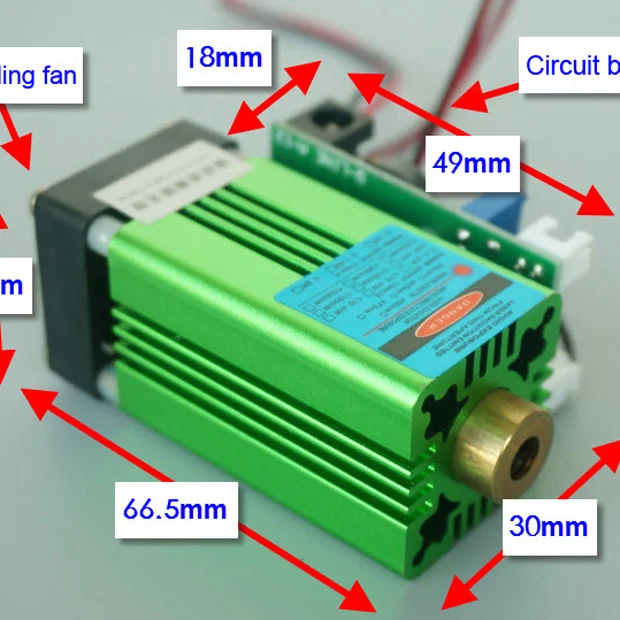

• Dimensions: 69.5mm x 30mm x 30mm
• Output wavelength: 532nm (green)
• Output power: 100mW

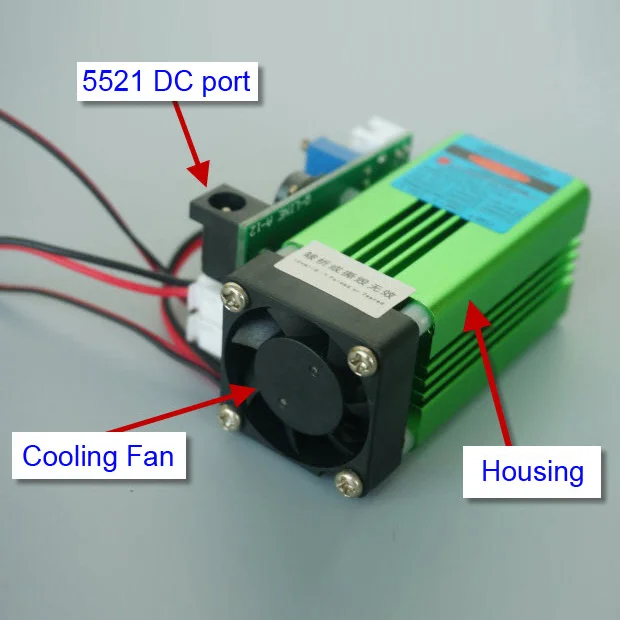

• Cooling method: cooling fan
• TTL control: available (0-5V)
• Housing material: aluminum
• Circuit control: constant current
• Reverse polarity protection: available
• Working voltage: DC=12V
• Working current: I<120mA
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: -10℃～＋40℃
