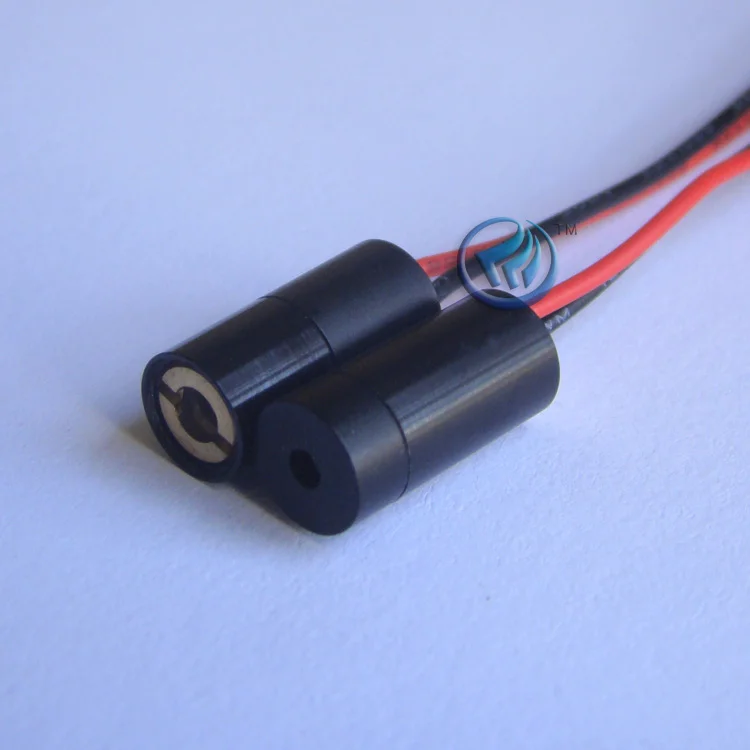

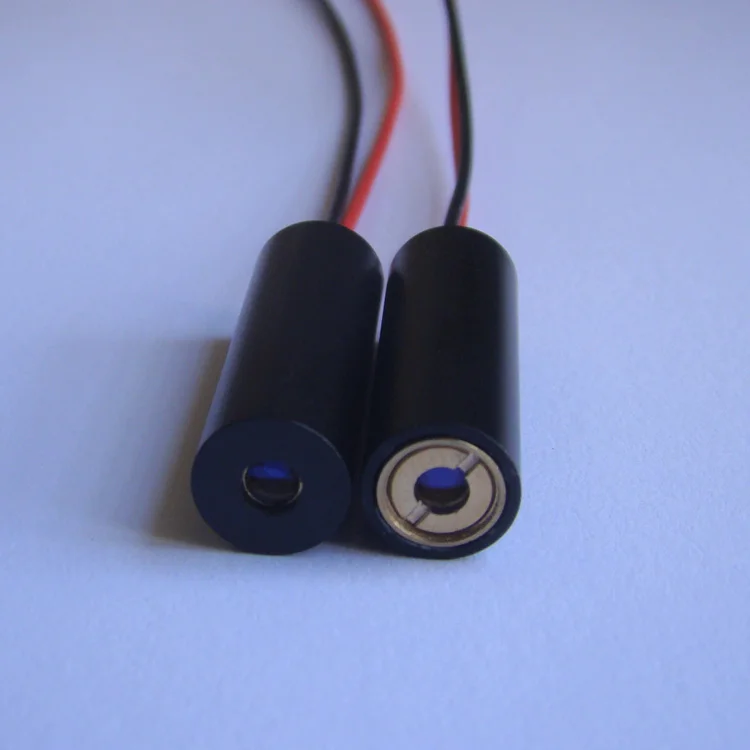

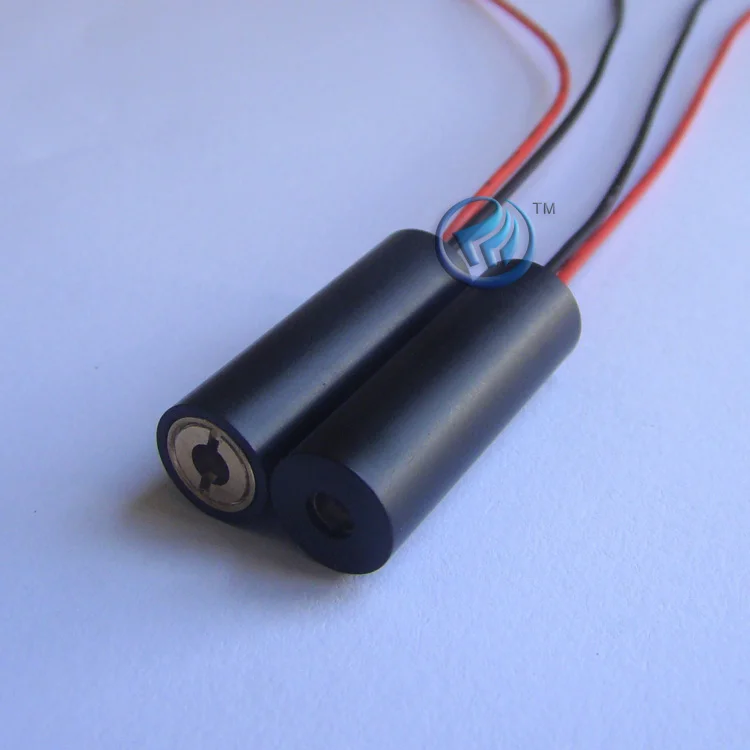

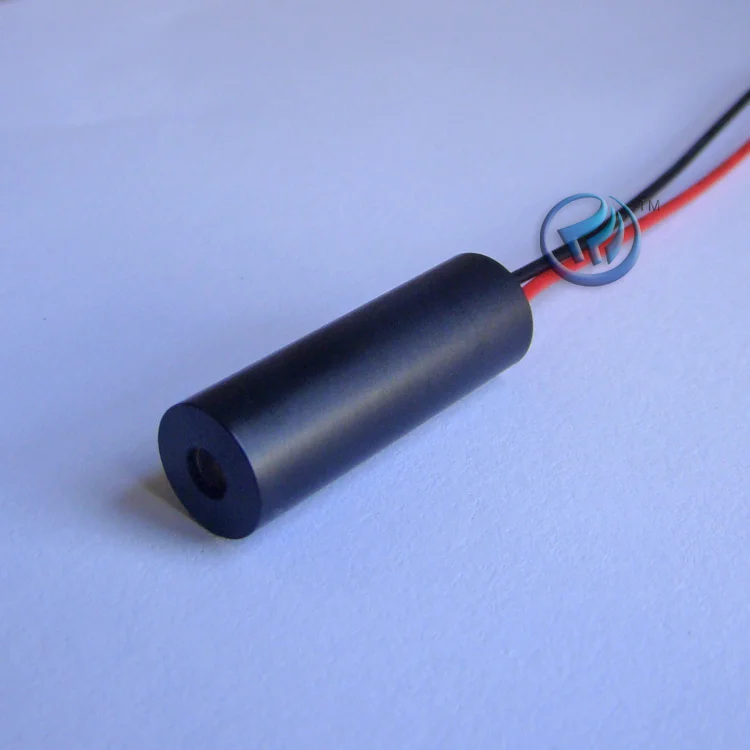

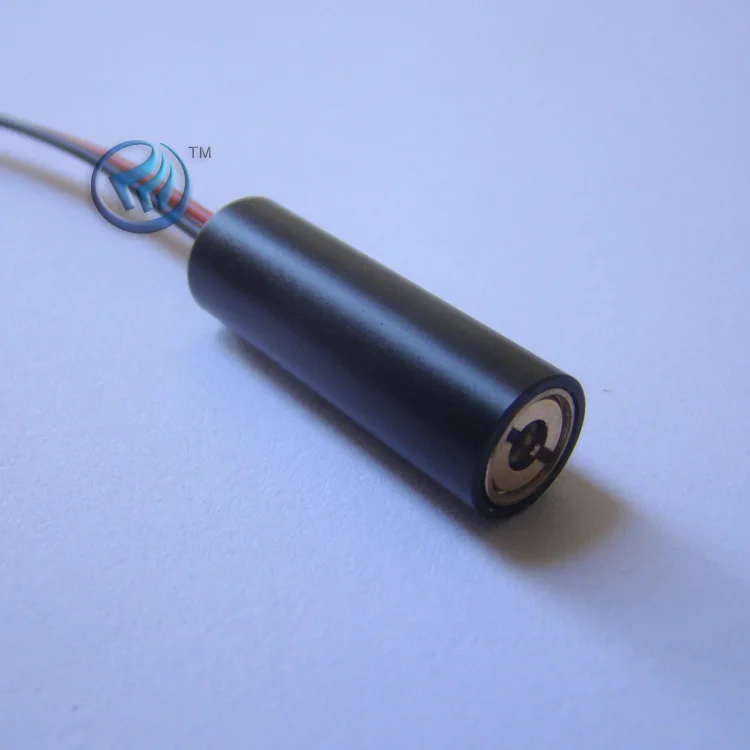

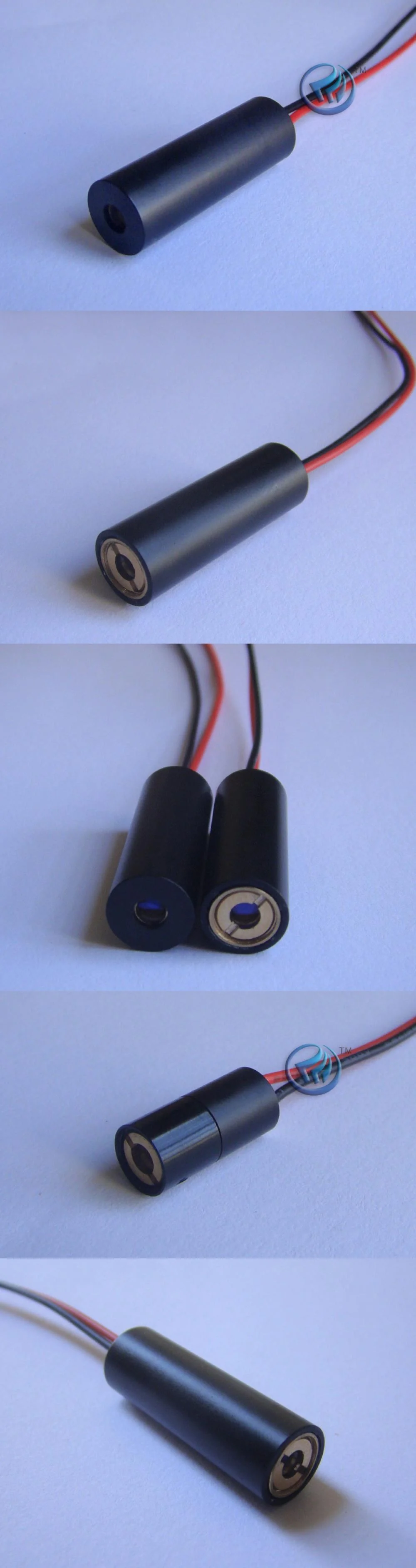

Red Dot Laser Module 650nm 1mW / 5mW / 10mW / 50mW / 100mW / 200mW

This laser module comes with small sizes, standard 650nm wavelength, and high stability. It has passed CE/FDA certifications, without any customs issues. The output power is optional, and the maximum value is about 200mW. The red spot is small, bright, and uniform. If you are looking for a red dot laser module, this will be an economical choice. For product customizations, please contact us via email. We will reply to you as soon as possible.

Buying Tips
1) The default operating voltage is 3V. 5V/12V/24V is customizable.

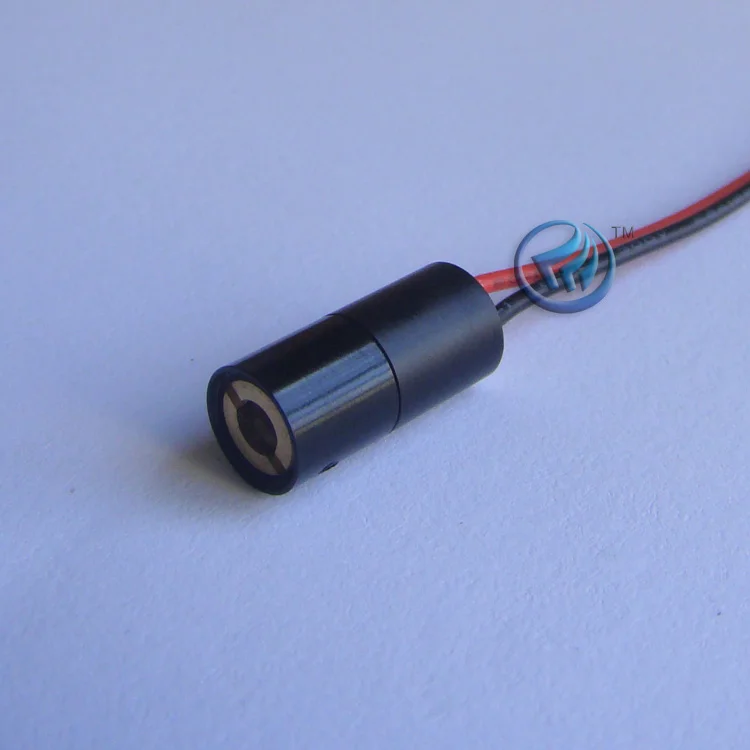

2) The module size can be customized: Φ9×26mm, Φ10×22mm, Φ10×30mm, Φ12×30mm, Φ12×50mm (size customization is free). We will send Φ10×30mm by default.

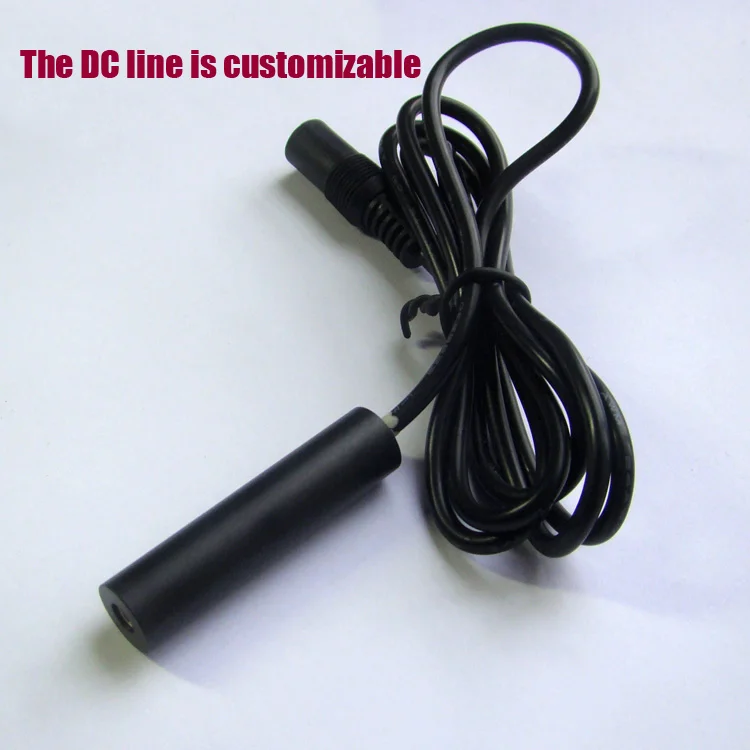

3) The DC line is customizable.

Specifications
• Wavelength: 650nm (red)
• Laser shape: dot
• Dimensions: Φ10 x 30 mm
• Power: 1mW/5mW/10mW/30mW/50mW/100mW/200mW

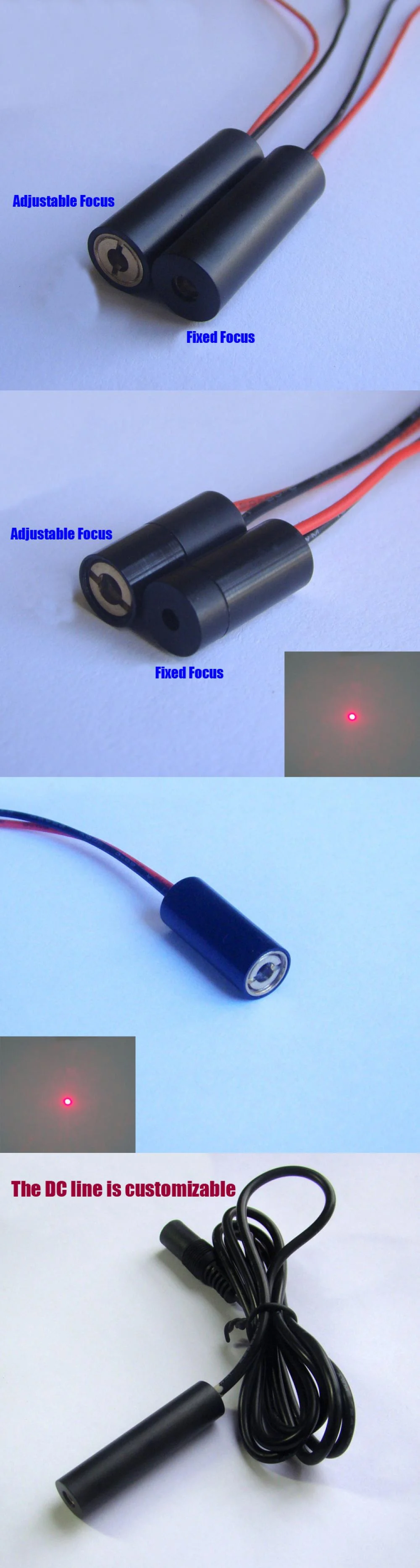

• Focus: adjustable/fixed (optional)
• Useful life: > 8000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Operating voltage: DC= 3V (2 x AAA batteries)
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
