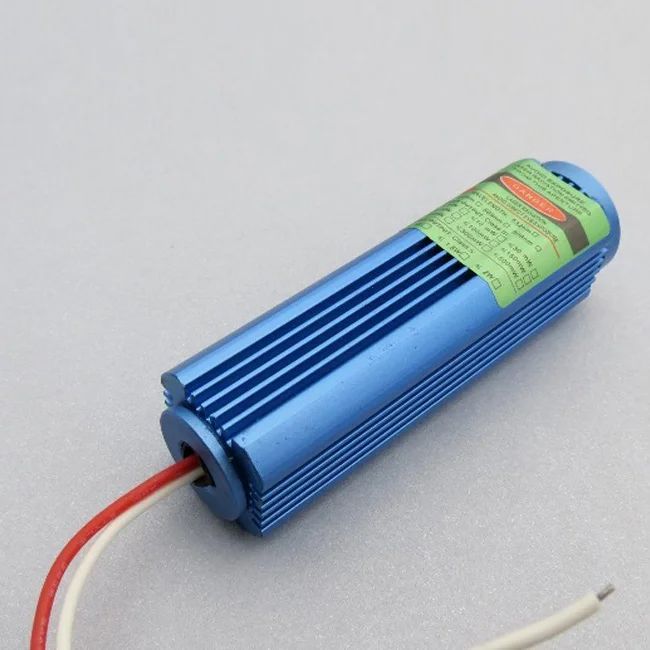

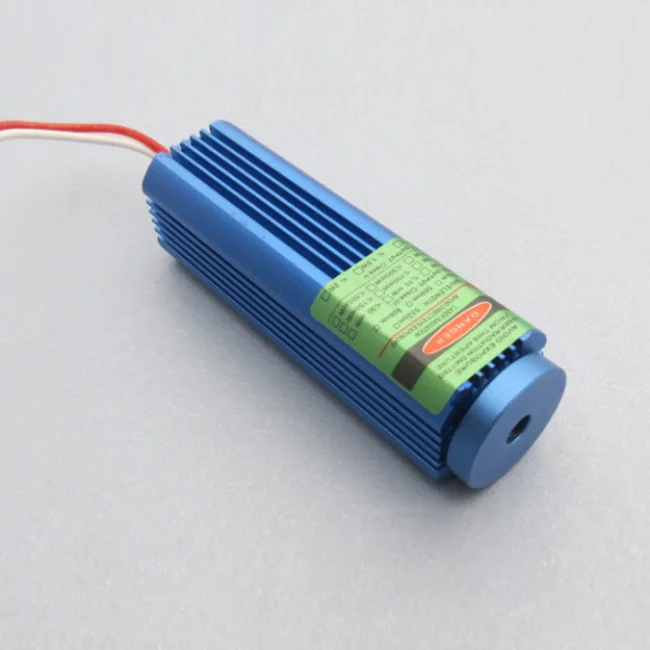

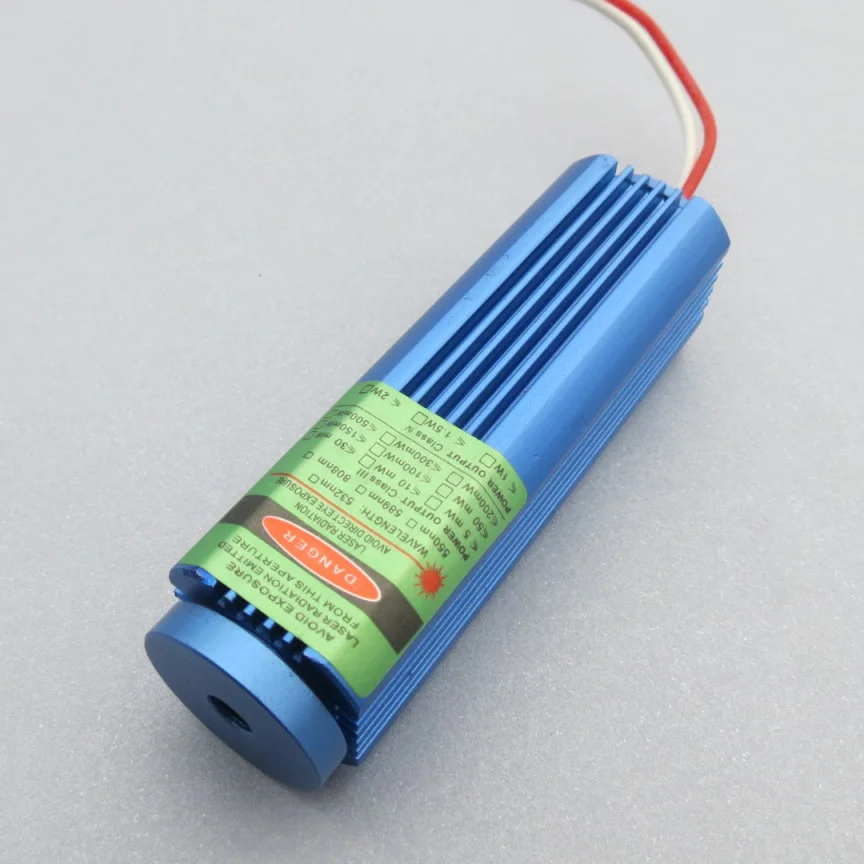

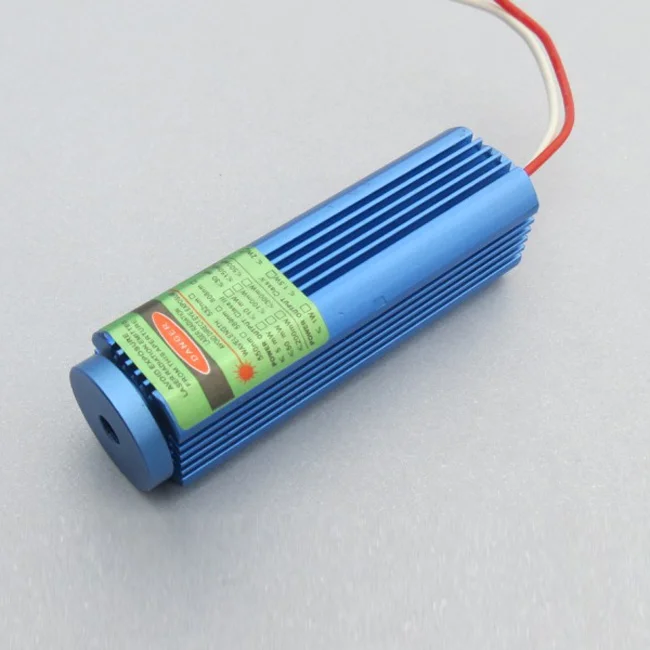

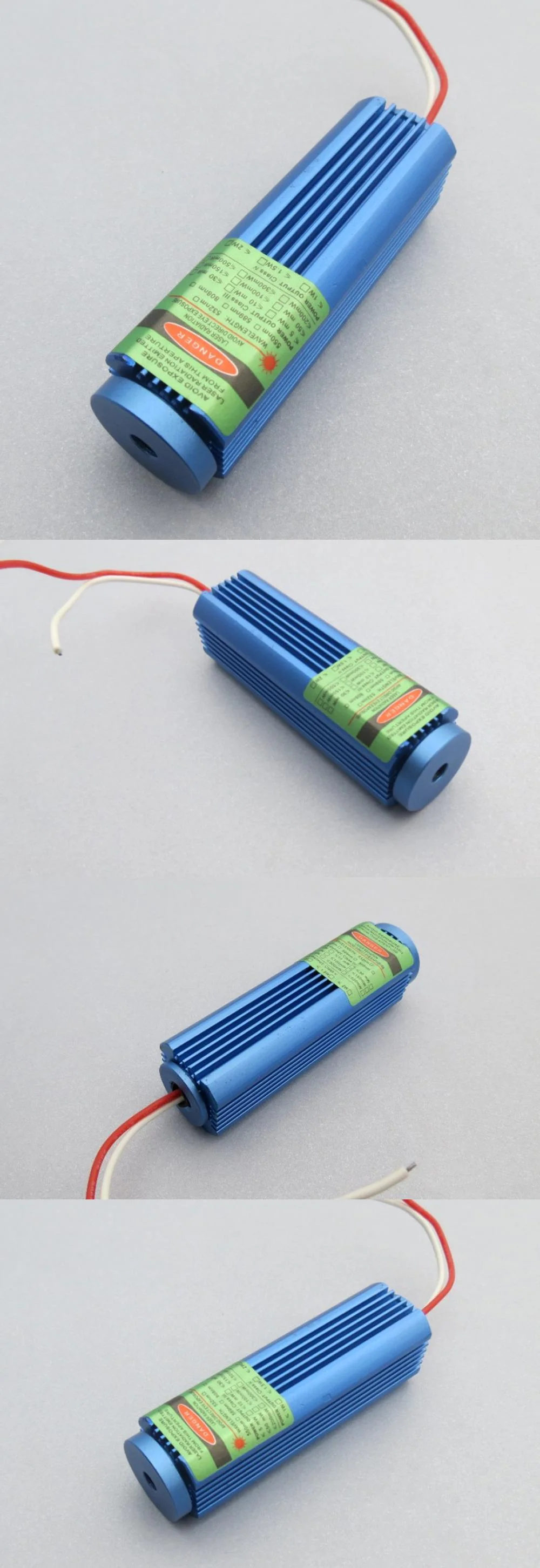

50mW 532nm Dot/Line Green Laser Module 3V-5V

This 532nm laser module adopts a stable imported laser diode, with low current and low power consumption. It comes with an optical glass lens, so the green laser spot is uniform and bright. A constant current circuit is available, and the power is stable.

Note:
This 532nm laser module cannot work continuously for more than 500 seconds.

Technical Parameters
• Laser type: dot/line (green)

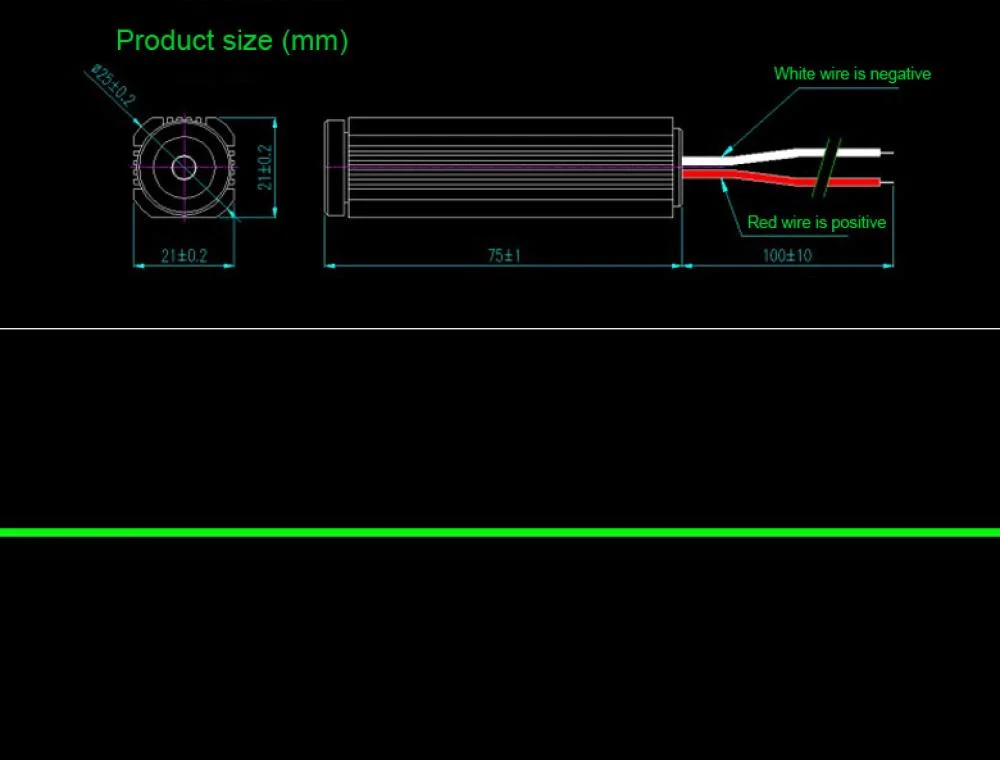

• Dimensions: φ25*75mm
• Output wavelength: 532nm
• Output power: 50mW (45-55mW)
• Projection light shape: 110 degree line
• Circuit control: ACC line
• Working voltage: DC=3V-5V
• Working current: I<350mA
• Warm-up time: none
• Working temperature: +20℃～+30℃
• Storage temperature: +10℃～+40℃
• Structure: laser part + crystal + glass lens
