Customizable Green/Blue/Red Laser Module with Thick Beam for Stage

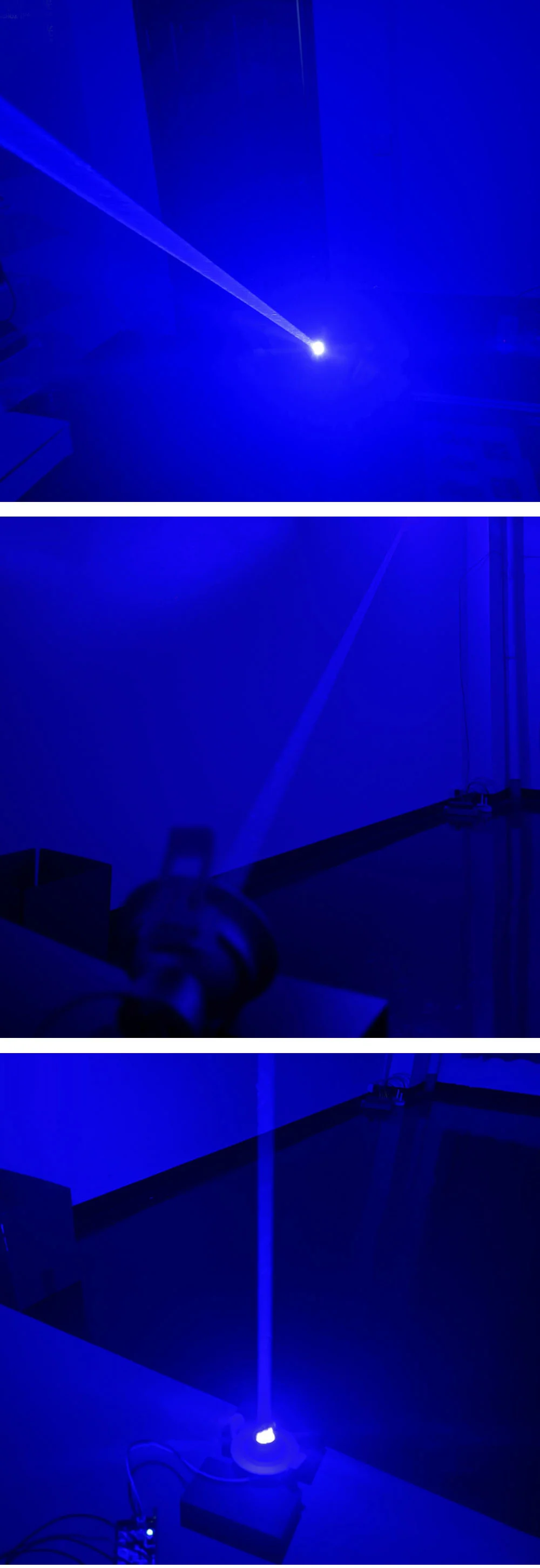

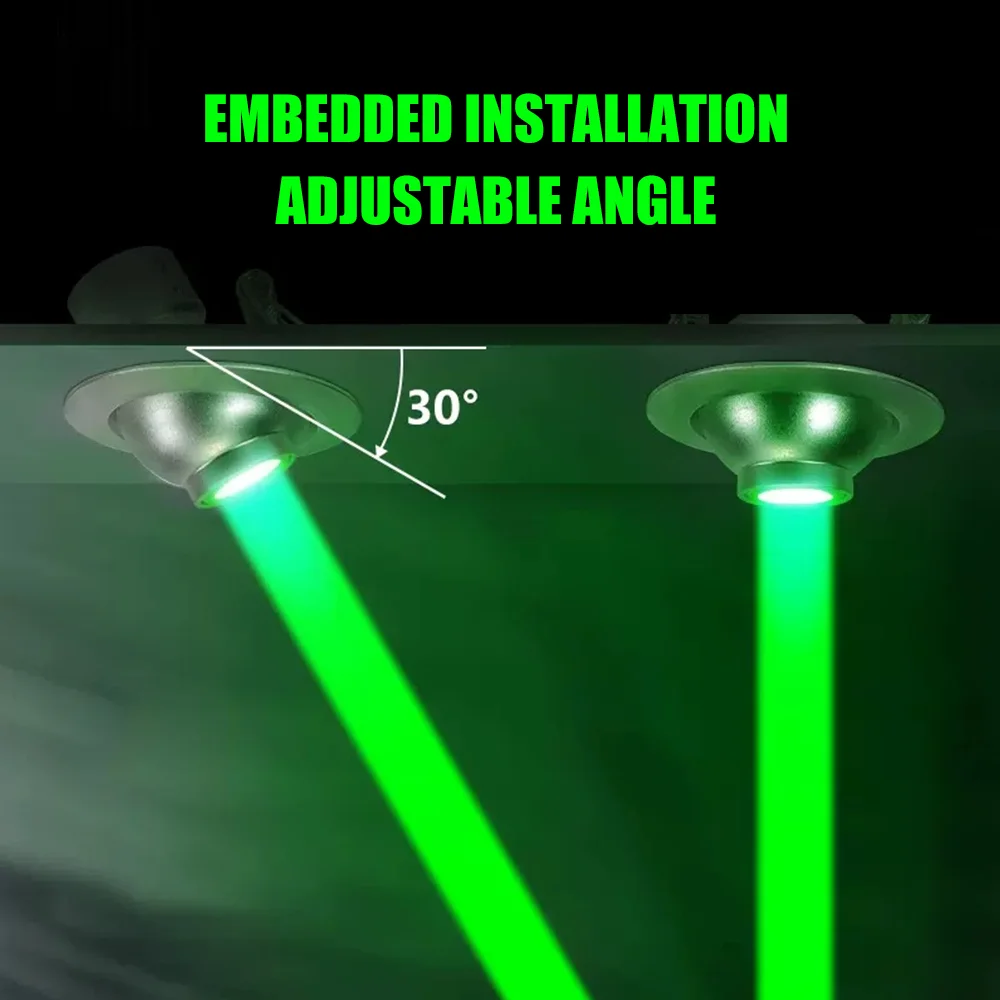

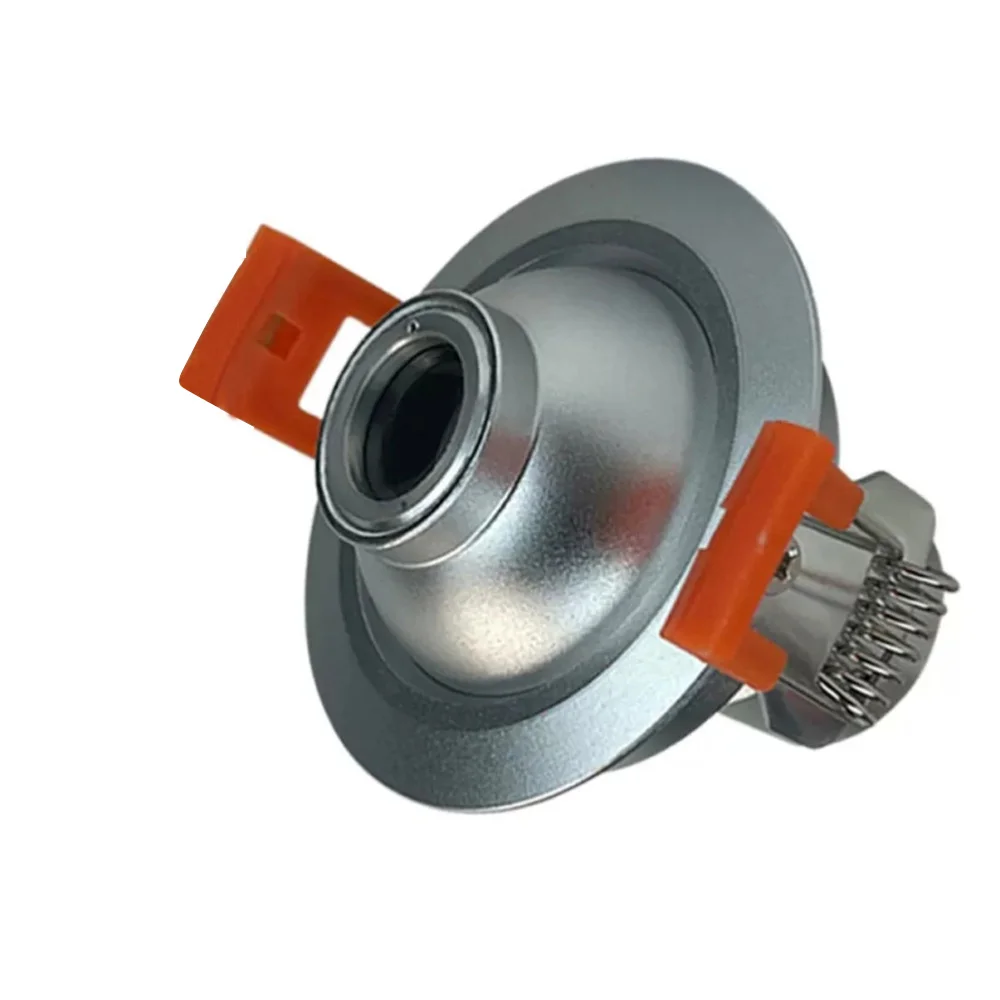

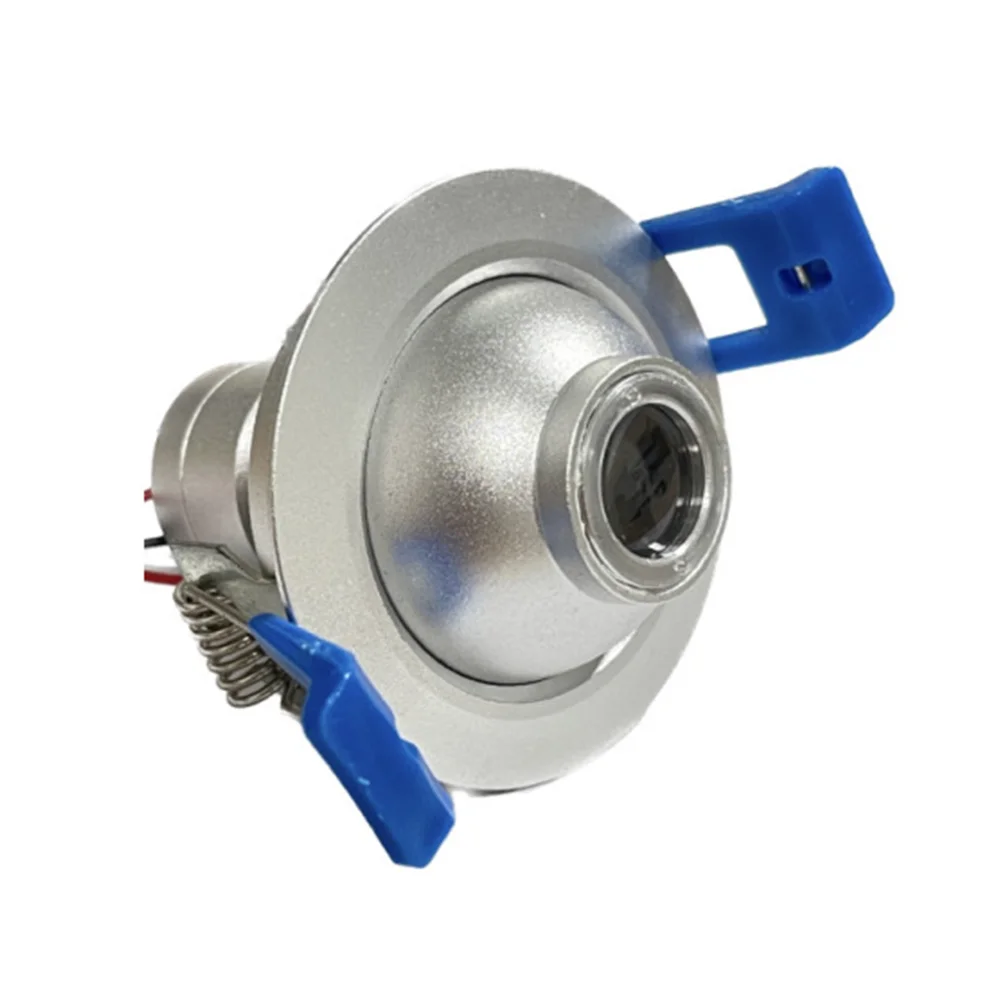

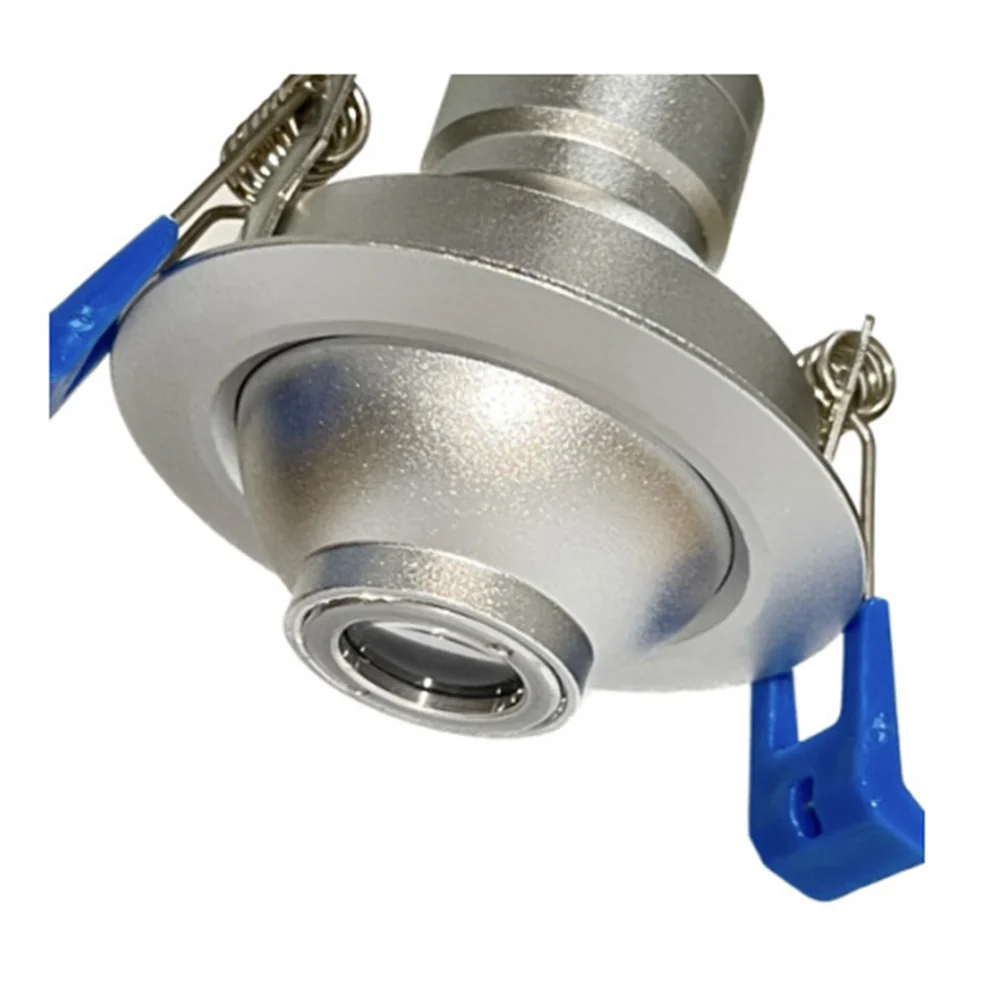

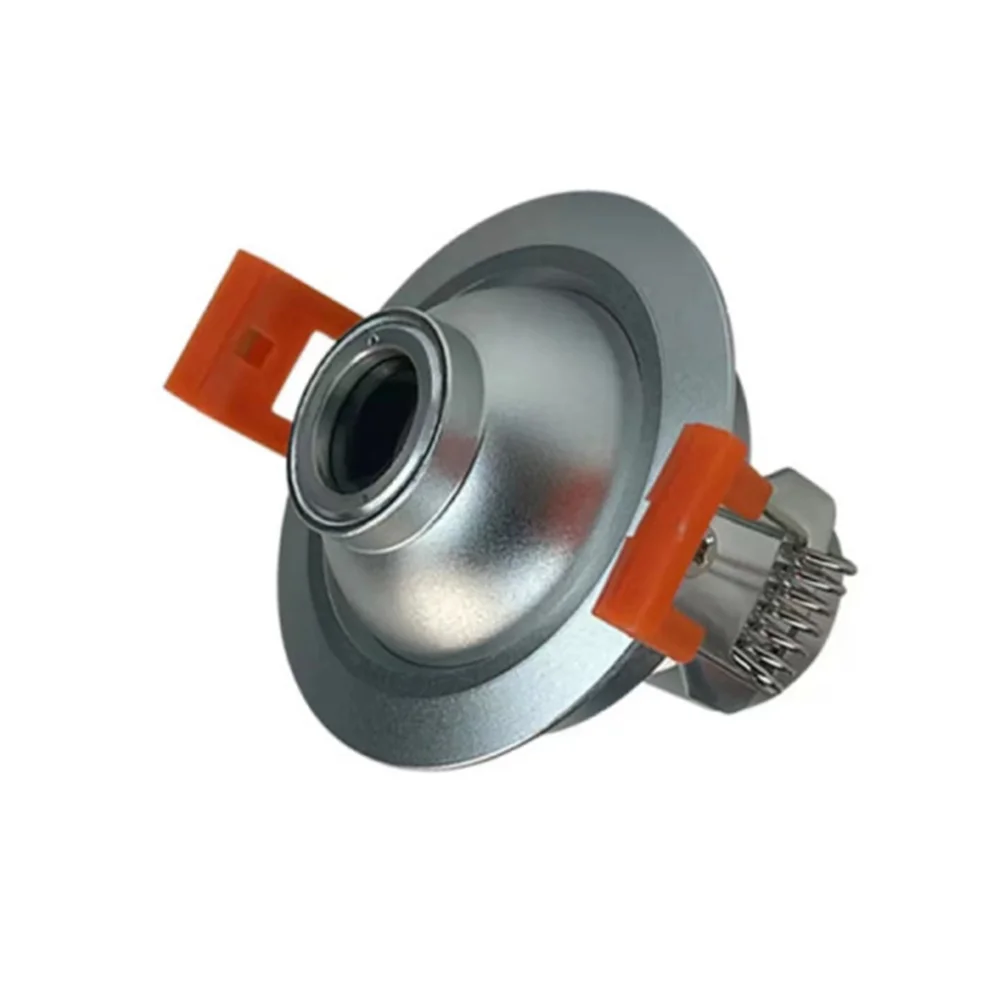

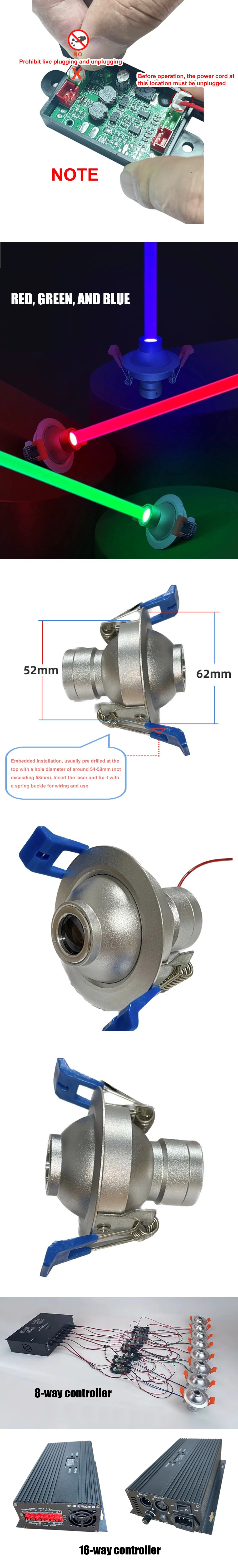

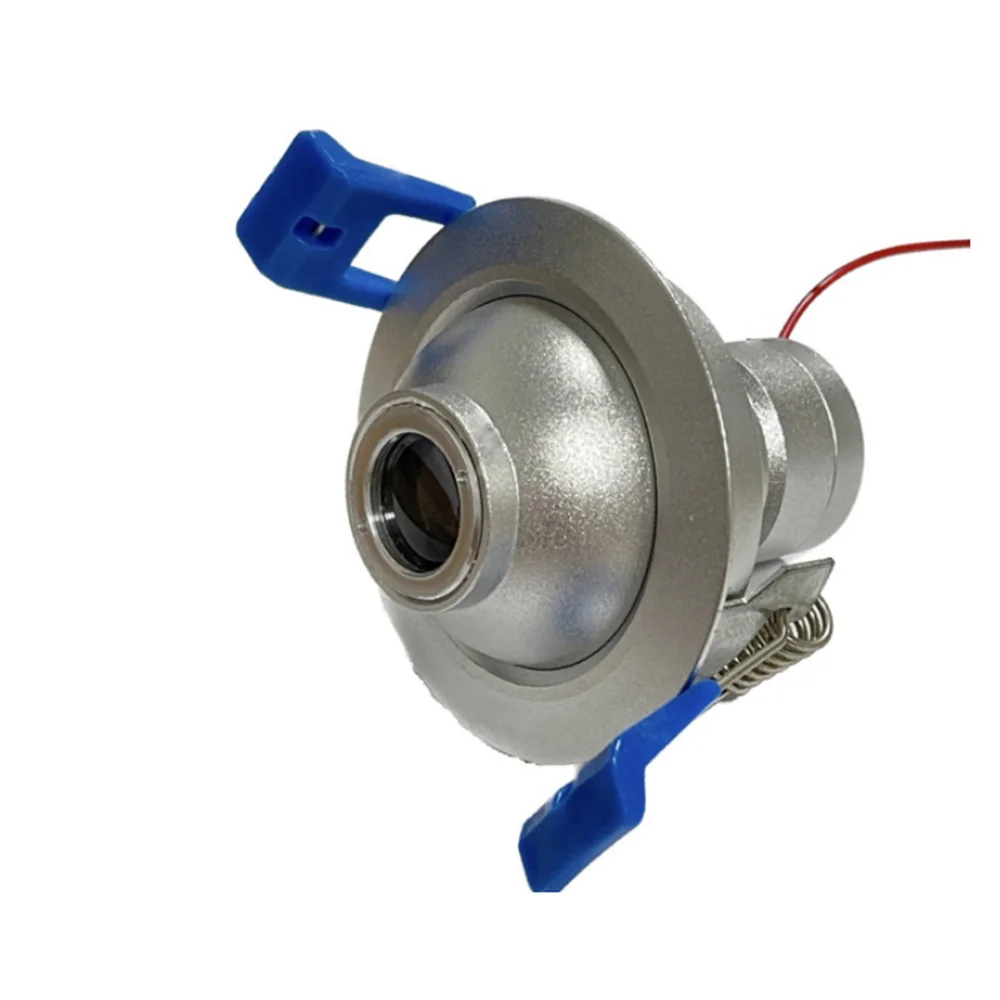

This laser module combines high power and good stability. It adopts a unique cannon shape with embedded installation (the installation angle is adjustable). The green/blue/red color is optional, and the laser beam is relatively thick (the beam diameter is customizable). This product is usually used in stages, bars, light shows, architectural landmarks, etc.

Tips for Buying
1) For this model, we have developed the 8/16-way controller (200x155x70mm), which can control 8/16 laser modules.
2) We send the thick-beam version by default (beam diameter is 22mm). If you need the 12mm or 15mm version, please contact us before purchase. Customizing the beam diameter is free.
3) This product's best working temperature is 11~35℃, and the suitable temperature is -20~50℃. When working above 50℃, a ventilation and cooling system must be installed. If you need to use it 24 hours a day, please install an external cooling fan.

Specifications
Laser wavelength: 650/638nm (red), 520nm (green), 450nm (blue)
Output power: 50mW / 200mW / 250mW / 300mW / 500mW /1000mW
Light spot mode: multimode
Divergence angle: < 3.5-5mrad
Outlet beam diameter: 22mm (12mm / 15mm is customizable)
Input voltage: DC 12V

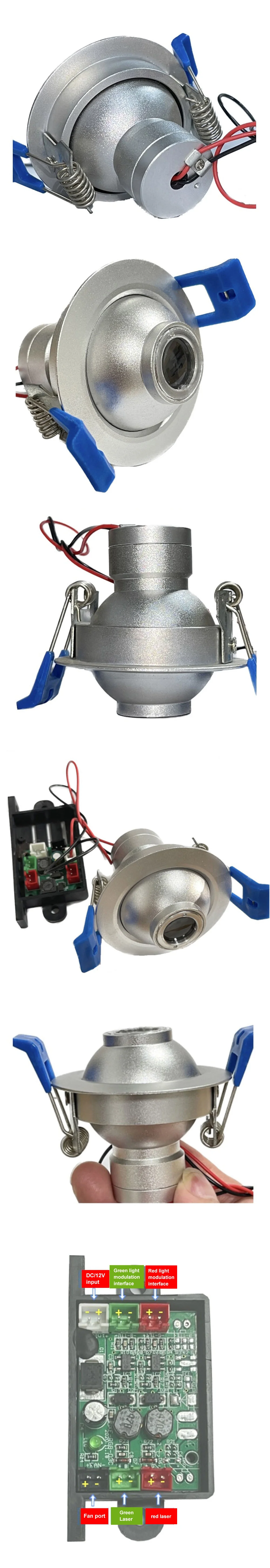

Driver board input wiring: 250mm long, red wire positive, black wire negative
Modulation frequency: 0~20KHz, PWM/TTL
Working life: 8000~12000 hours
Working temperature: -20~+50℃
Application areas: stage lighting, bar performance, laser light show, etc.
