Diode-Pumped Solid-State 532nm Green Laser Module 800-3000mW

This solid-state green laser uses a 532nm wavelength and 800-3000mW power. Through advanced diode pumping technology, it achieves efficient energy conversion and stable laser output. This laser module has a compact structural design, which is easy to integrate into various devices and systems. It can work stably in harsh environments. There are three power supplies: split power supply, integrated power supply, and digital display adjustable power supply. If you need to add fiber coupling, please contact us before purchasing. We can develop lasers according to customer requirements. For any questions, please contact us via email.

Specifications
• Wavelength: 532 nm
• 0utput power: 800-3000mW
• Laser type: diode-pumped solid-state laser
• Spatial mode: near TEM00
• 0peration mode: CW or modulation
• Pointing stability: < 0.05 mrad
• Beam diameter: < 3mm
• Beam divergence(full angle): < 2 mrad
• Beam height: 29mm
• Power stability: < ±5% per 2 hrs
• Temperature stabilizing: TEC
• Warm-up time: < 5 minutes
• Beam quality(M2): < 2
• Optimum operating temperature: 20~30°C
• Storage temperature: 10~50°C
• Useful life: 10,000 hrs

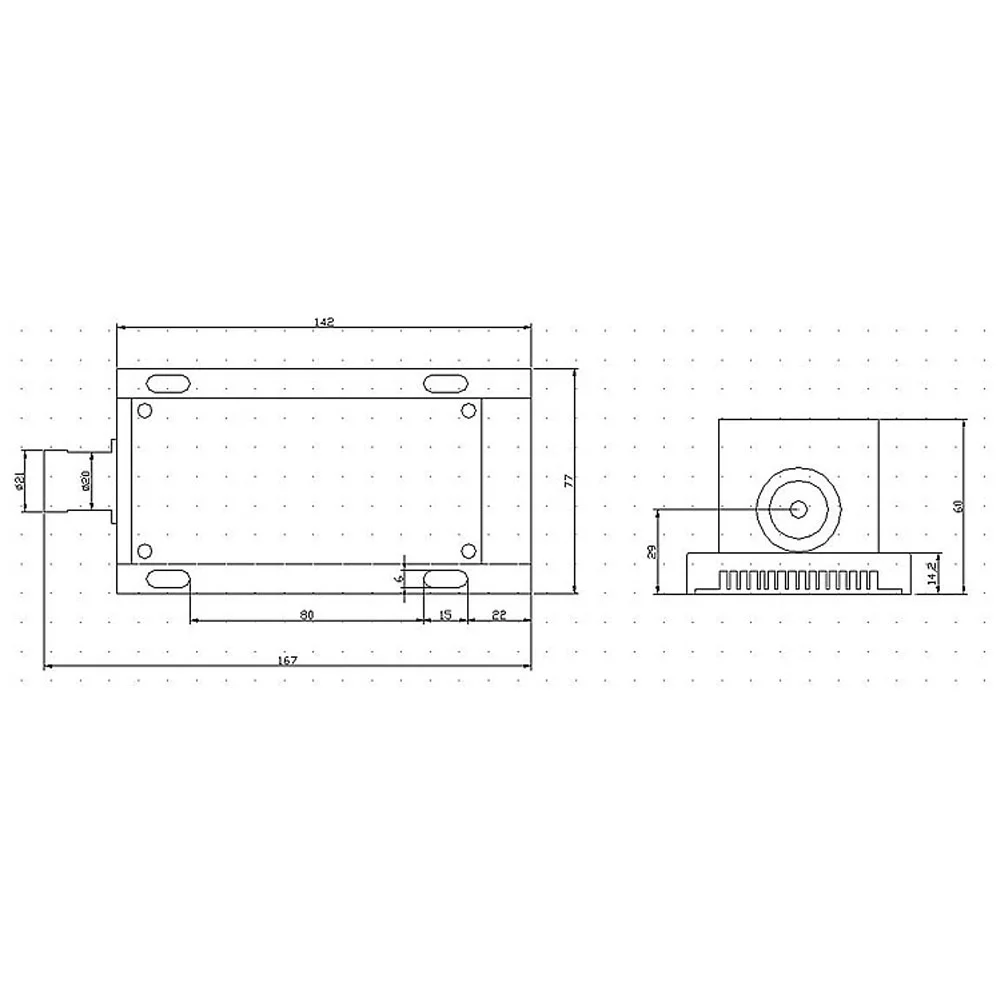

• Laser head dimensions: 155(L) x 77(W) x 60(H) mm³

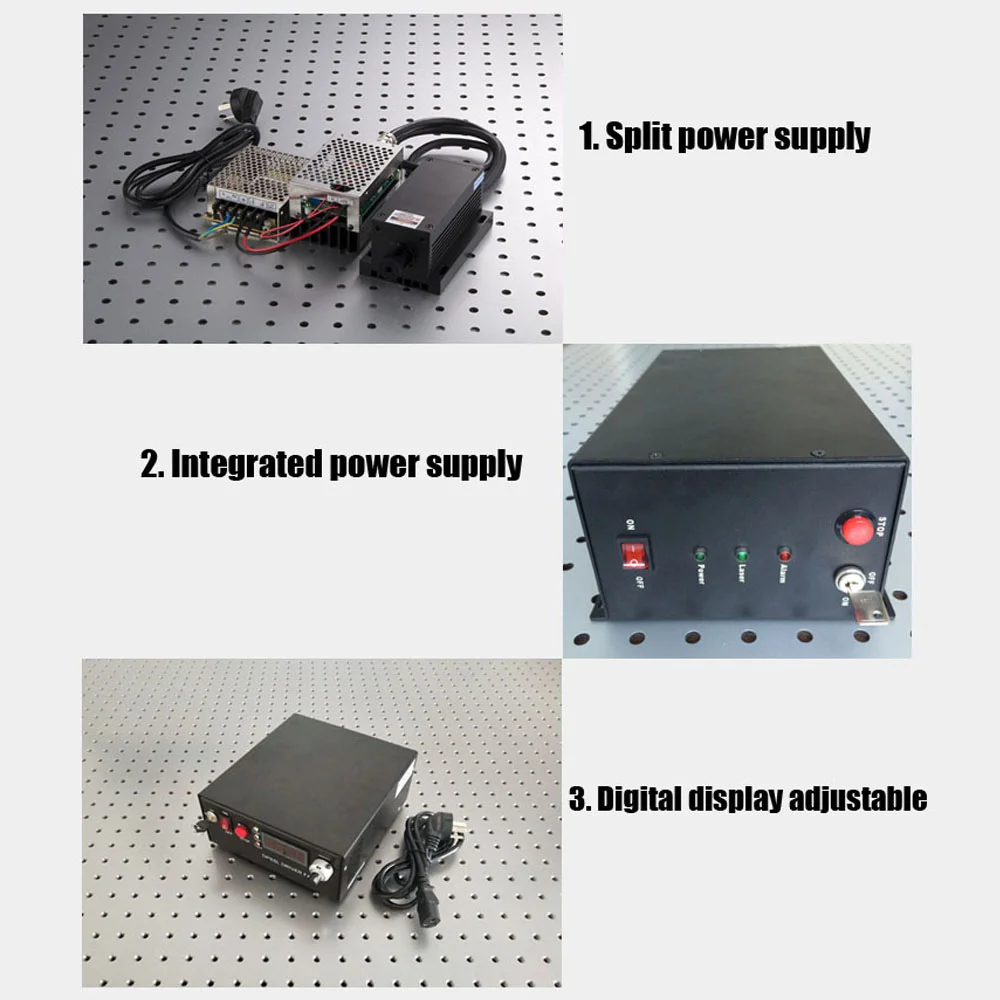

• Power supply: split power supply, integrated power supply, digital display adjustable
• Modulation: 0-30khz Analog or TTL
