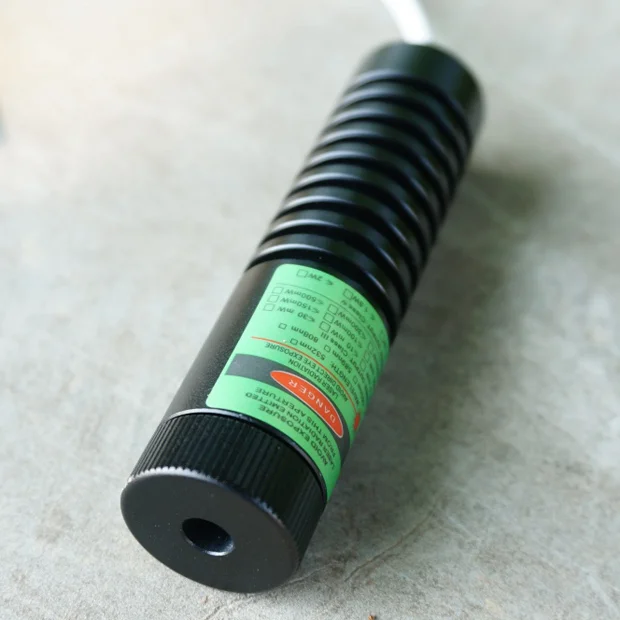

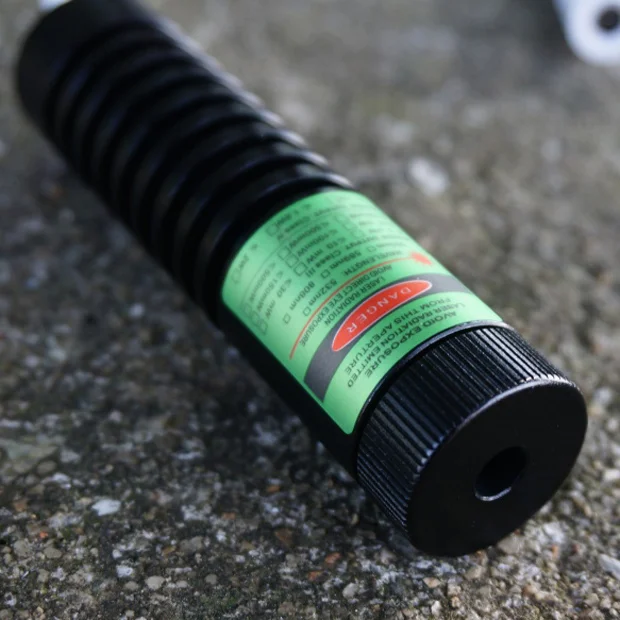

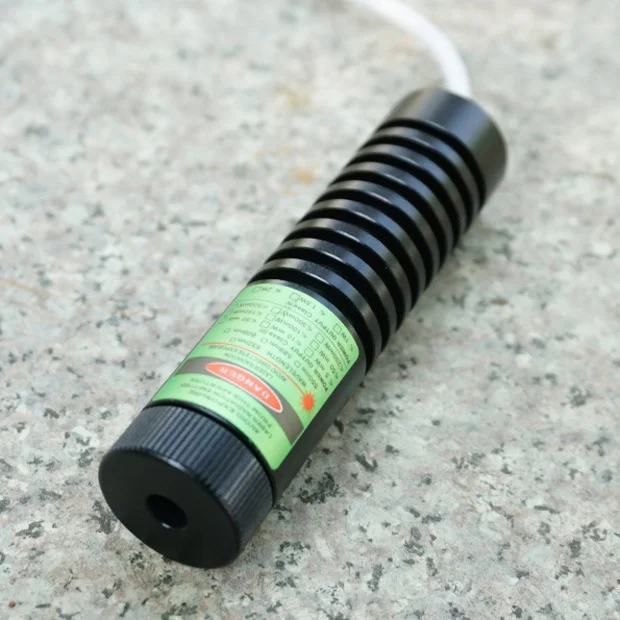

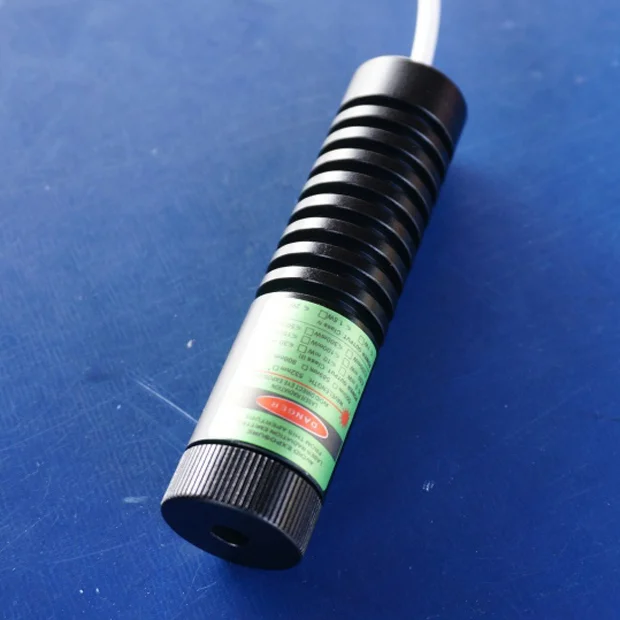

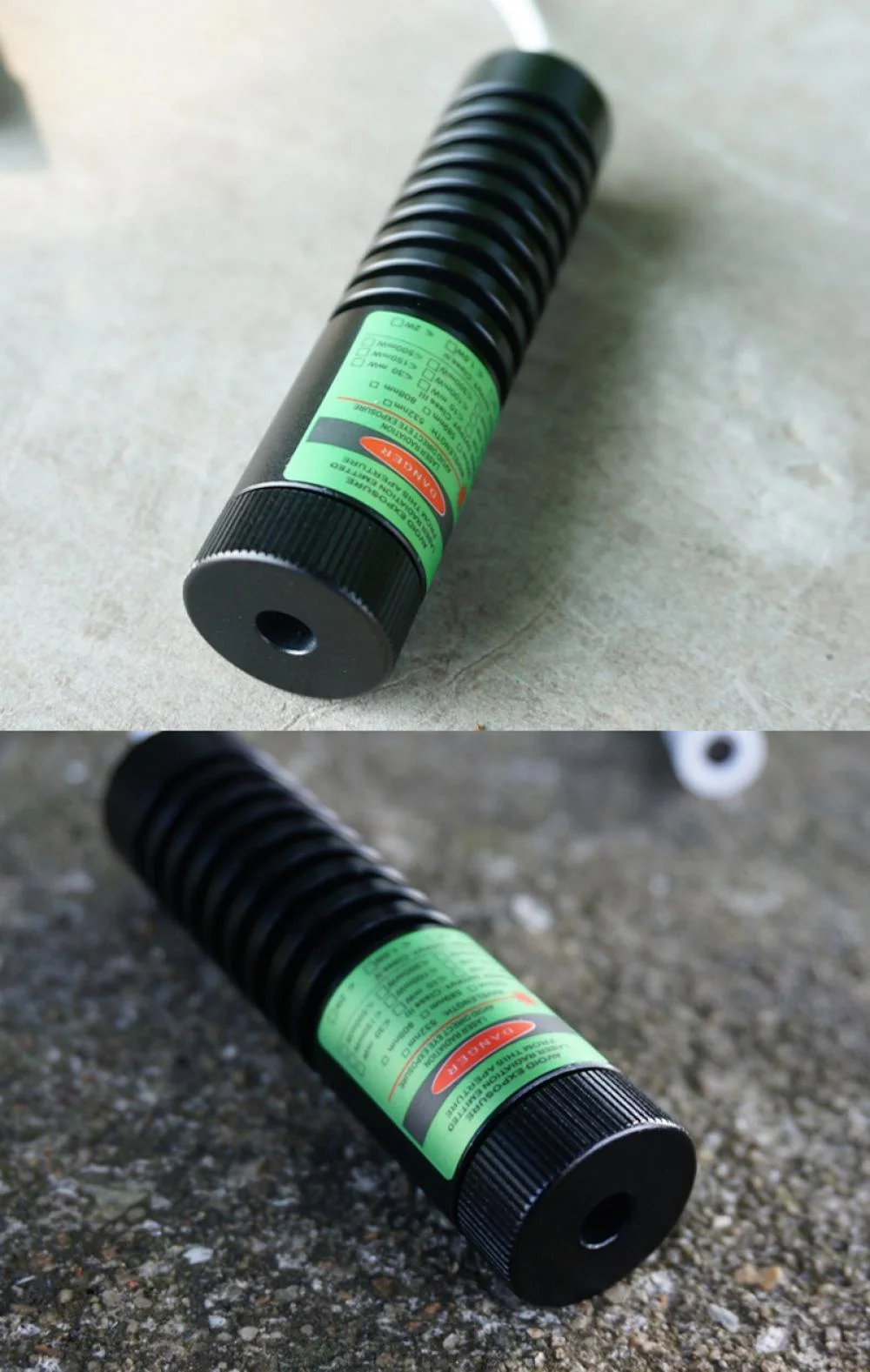

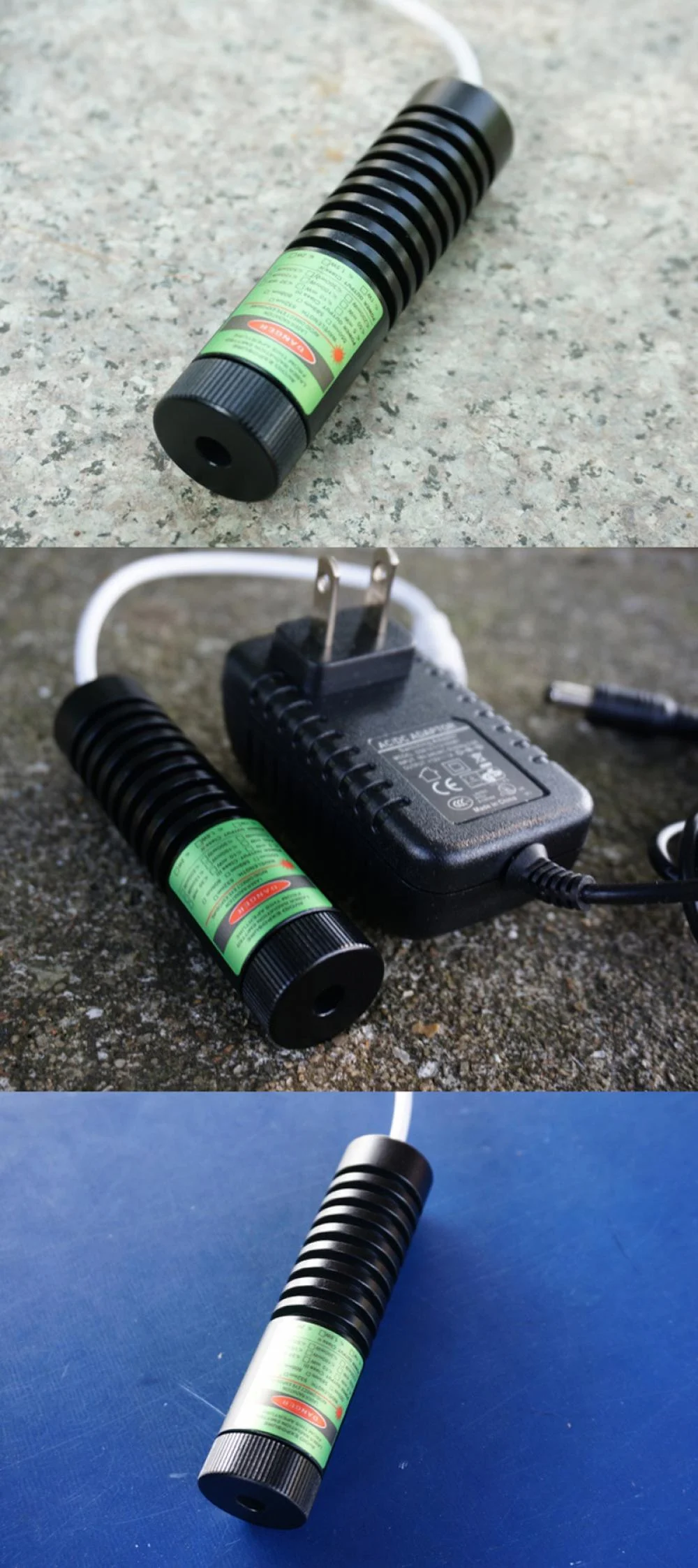

Focusable and Powerful Dot Laser Module Green/Blue/Violet/Red with Power Adapter

This model provides a uniform beam, which is ideal for professional optoelectronic systems. It adopts 5V/12V adapter and can be directly plugged into a 220V socket for power supply. For OEM, ODM and wholesale, please contact us via email. We will reply to you as soon as possible.

Key features
1) This dot laser module is power saving with low heat generation and no need for preheating
2) It can work continuously in the temperature range of 0-60℃.
3) It comes with the imported semiconductor laser diodes from OSRAM.
4) If you choose the 505nm/520nm, the beam distance is more than 3 km.
5) It adopts the 5V/12V voltage input power supply.
5) With the adjustable focus, you can adjust the spot size as needed.

Specifications
• Dimensions: 22mm x 91mm
• Wavelength: (405/450/505/510/520/638/658)±5nm
• Beam color: green/blue/red/violet
• Output power: 100-500mW
• Laser type: dot laser module
• Adjustable focus: yes (focusable)
• Beam divergence angle: < 1.5 mrad
• Surface treatment: anode black
• Housing material: aviation aluminum
• Circuit control: buck constant current
• Reverse polarity protection: available
• Working voltage: DC=12V/5V (optional)
• Working current: 80mA < I < 300mA
• Warm-up time: no
• Working temperature: 0°C ~ +55°C
• Storage temperature: -40°C ~ +80°C
• Structural features: laser tube + lens + heat sink

Tips:
Due to stability issues, we recommend using a laser module (not a laser pointer) to achieve the 505 nm wavelength.

Packing list
• 1 x Dot laser module green/blue/red/violet

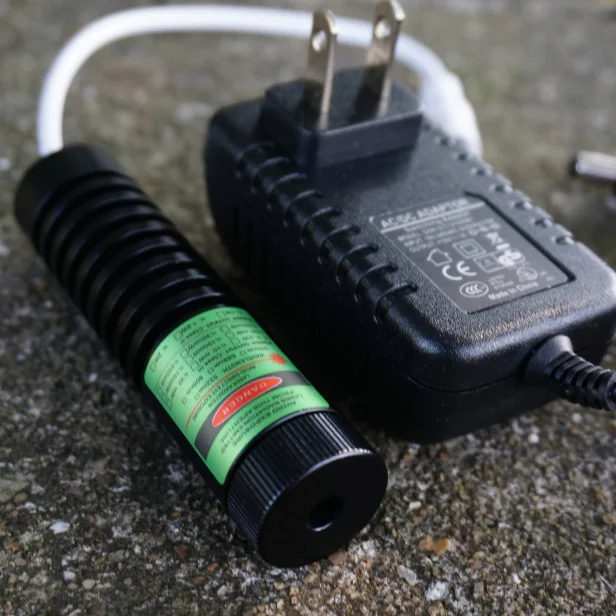

• 1 x Power adapter
