High-Power Line/Cross Green Laser Module 520nm 100-1000mW

This laser module can work continuously with a cooling fan, and you don't have to worry about overheating or overvoltage. It has adjustable focus, PWM/TTL modulation, and a high-efficiency circuit board. 520nm is more stable than 532nm and has a longer lifespan. If you are looking for a high-power and stable line/cross green laser module, this will be a perfect choice. For product customizations, please contact us by email. We will reply to you as soon as possible.

Package Type
1) Without accessories: only a green laser module

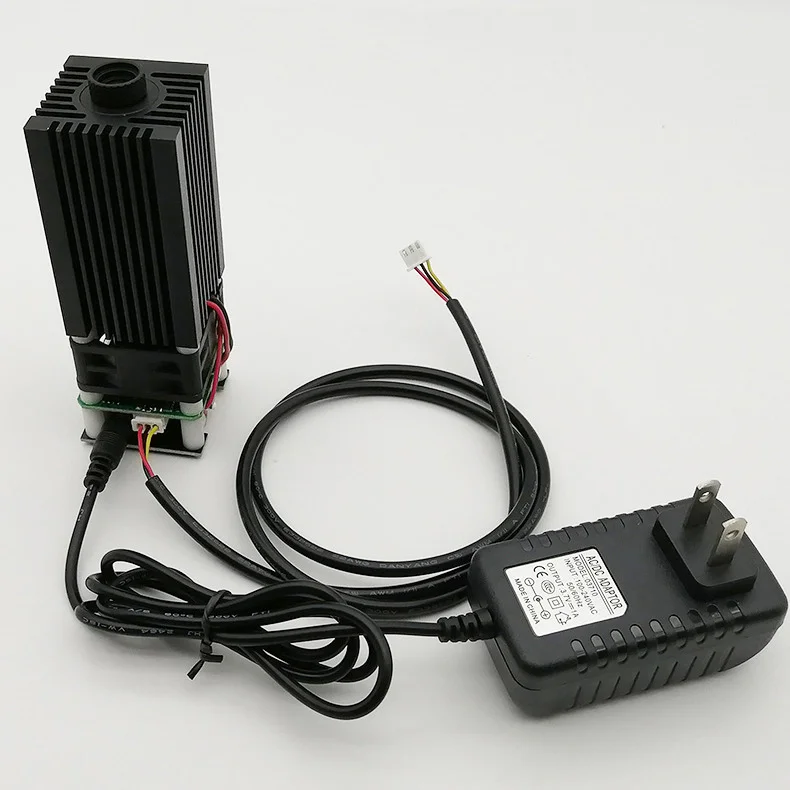

2) Standard package: green laser module + 12V adapter

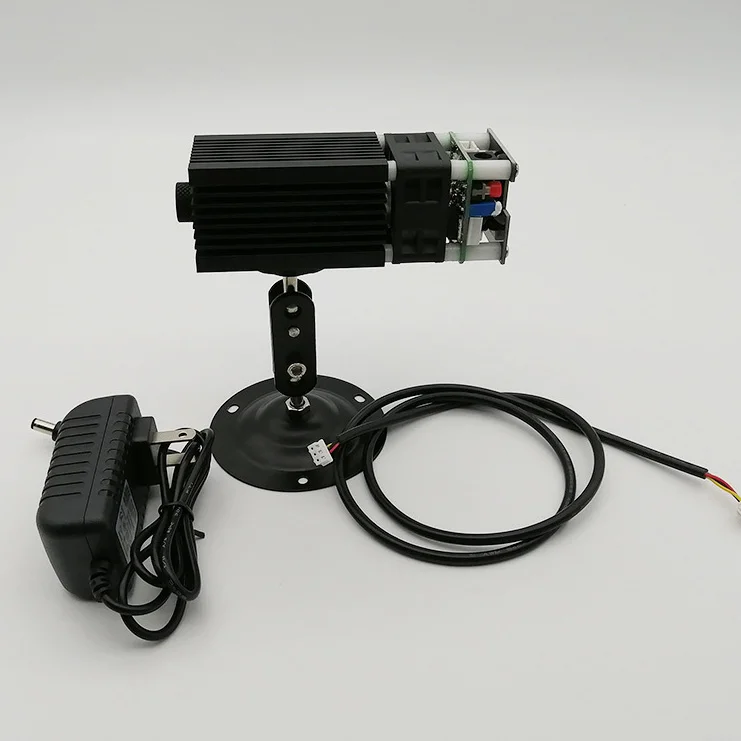

3) Professional package: green laser module + 12V adapter + bracket

Specifications
• Laser type: line/cross
• Laser wavelength: 520nm green
• Output power: 100mW / 200mW / 1000mW
• Drive mode: ACC constant current external drive
• Focus: adjustable focus

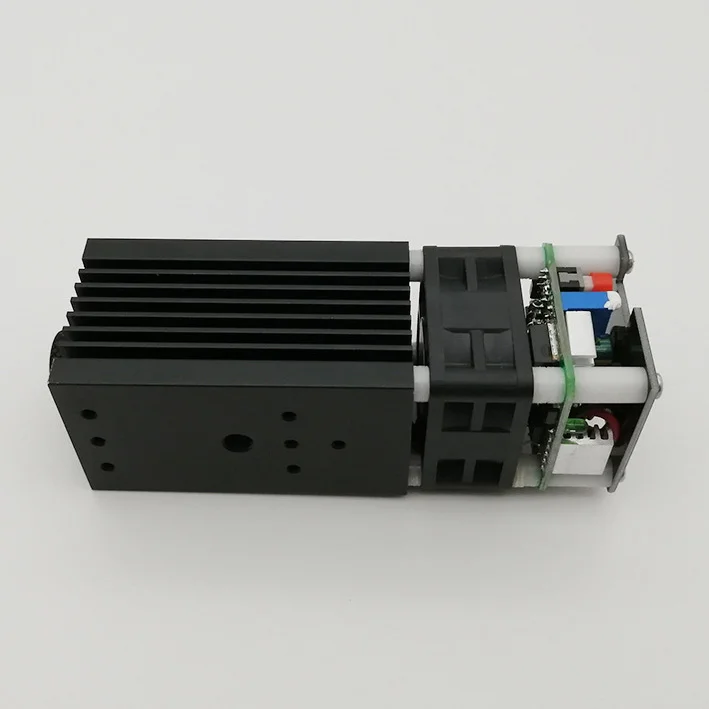

• Heat dissipation method: forced air cooling
• Working voltage: 12V DC
• PWM/TTL modulation: available (2.54-3P)
• Housing material: aluminum
• Module material: copper
• Lens material: glass
• Working temperature: -10℃～+50℃
• Storage temperature: 0℃～+40℃
• Dimensions: 40mm x 40mm
• Net weight: 219g
