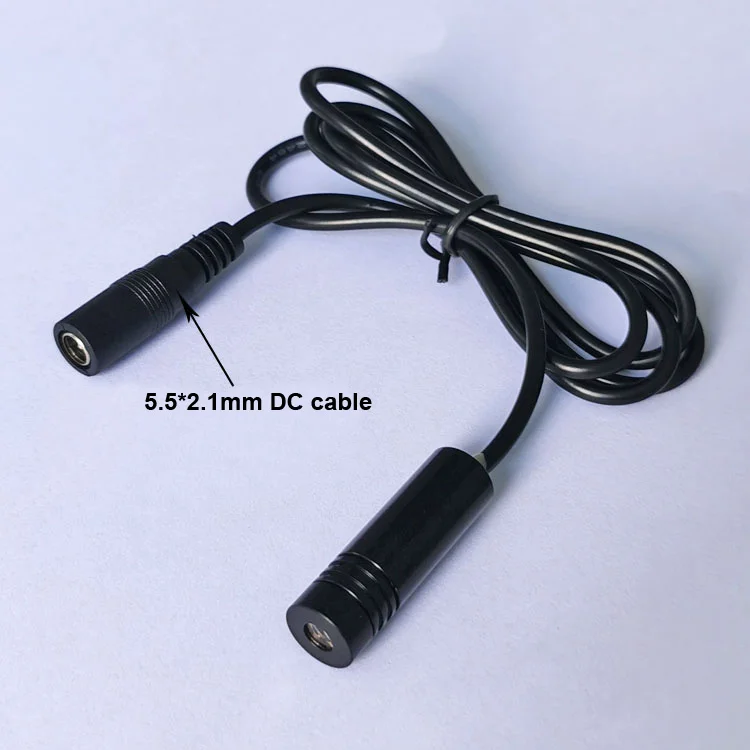

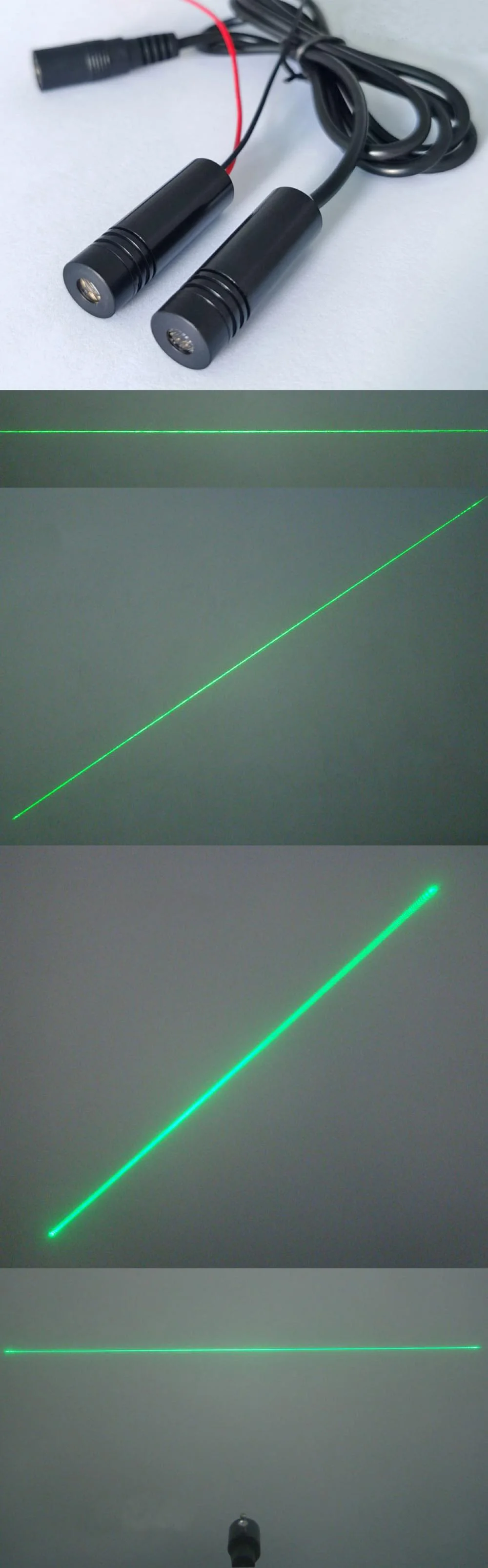

Industrial Line/Cross Green Laser Module 520nm 10mW

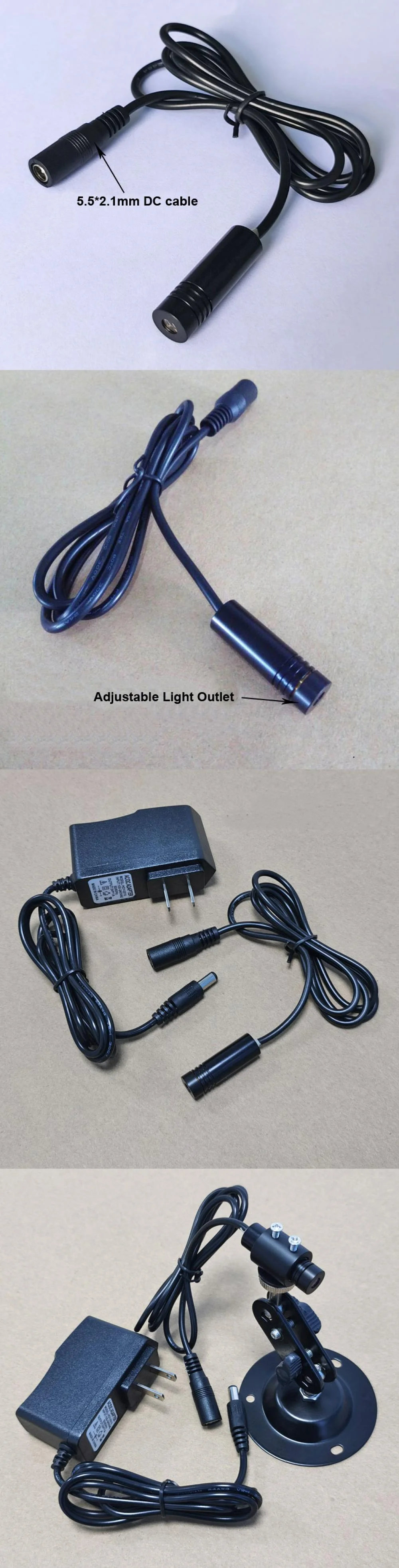

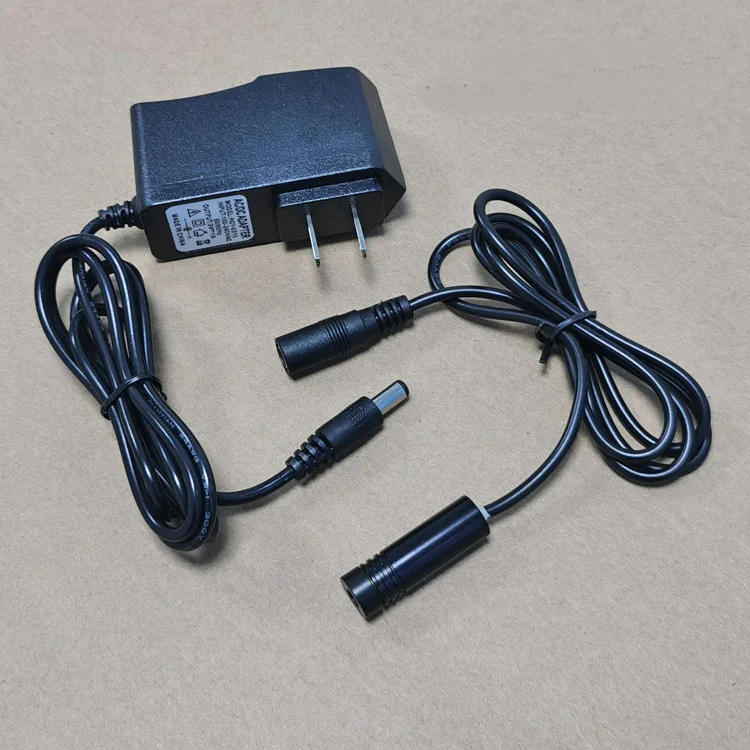

This stable and high-precision green laser module is ideal for industrial applications. Line/cross lasers are optional - you can choose according to your needs. This model works continuously, and you don't have to worry about overheating. Complete accessories include a power adapter and an adjustable metal bracket. For product customizations, please contact us via email. We will reply to you as soon as possible.

Buying Tips
1) The default operating voltage is 2.6V-5.5V. 12V/24V is customizable.
2) The module size can be customized: Φ9×26mm, Φ10×22mm, Φ10×30mm, Φ12×30mm, Φ12×40mm (size customization is free). We will send Φ12×40mm by default.
3) The light spread angle and fixed focus are customizable.

Specifications
• Wavelength: 520nm±10nm

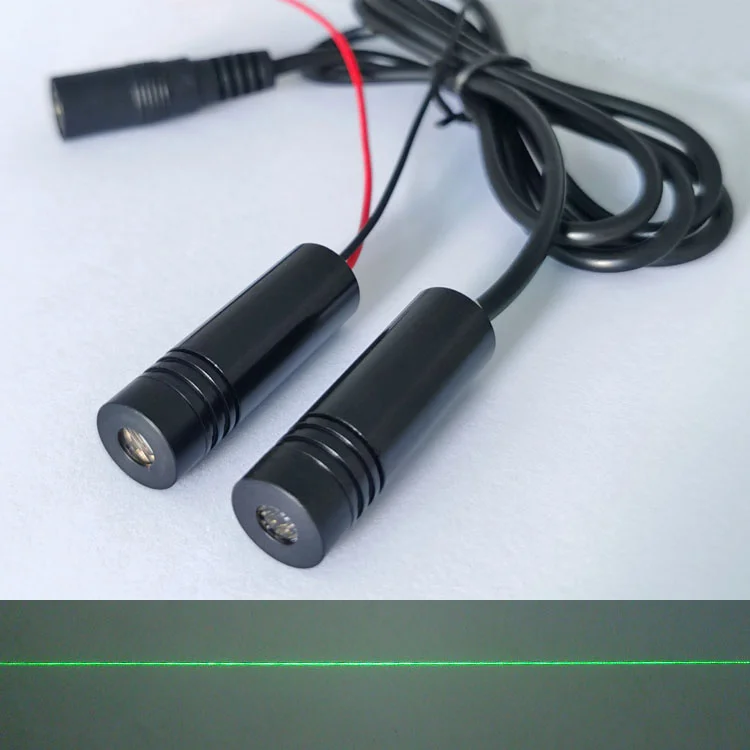

• Laser shape: line/cross

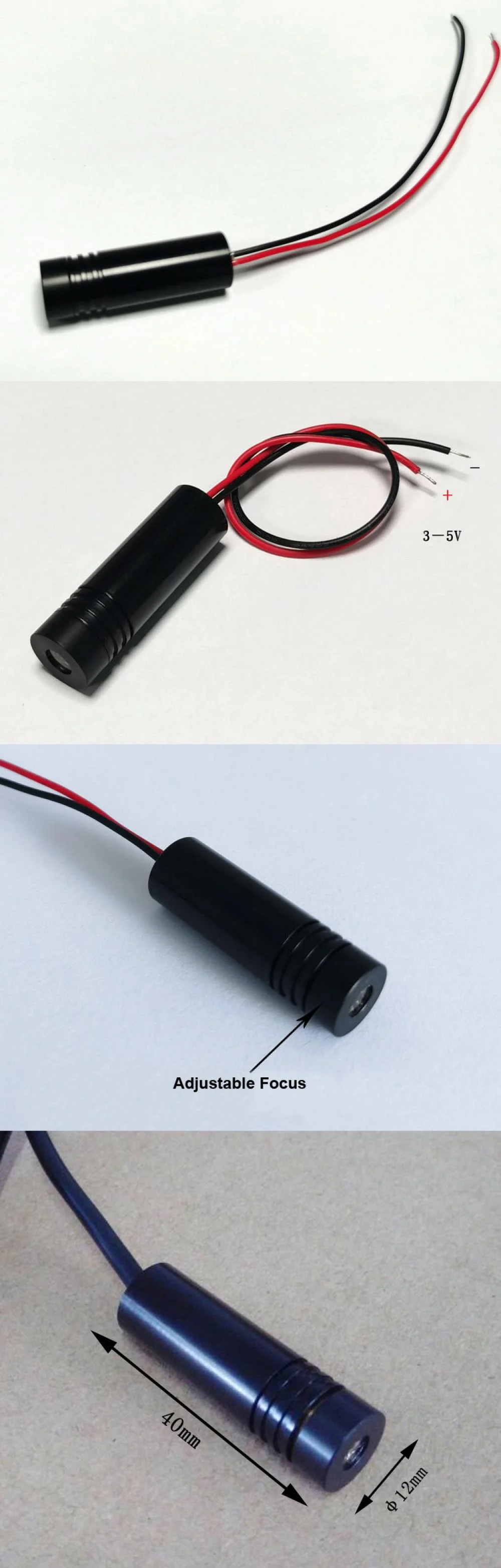

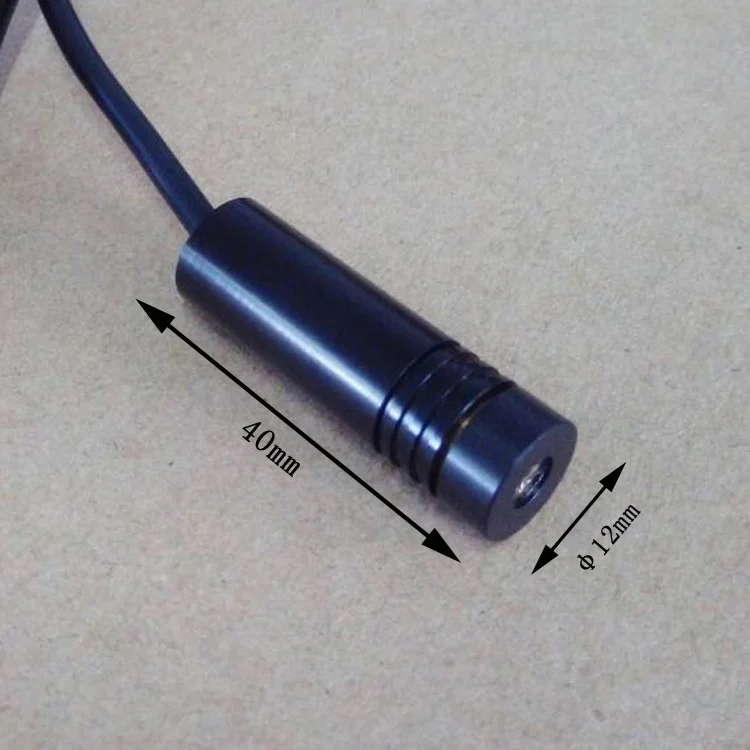

• Dimensions: Φ12 x 40 mm
• Output power: 10mW

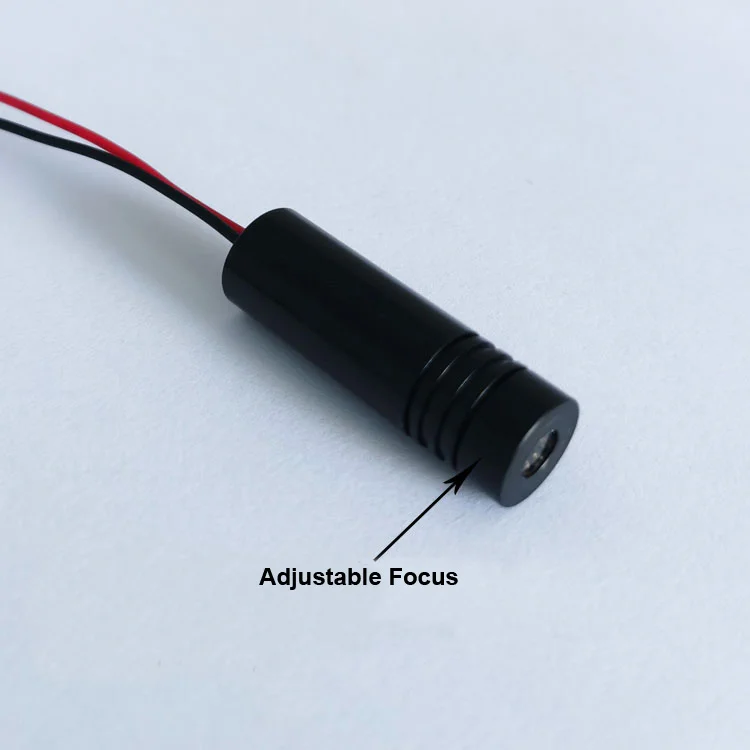

• Focus: adjustable focus
• Useful life: > 10000 hours (continuous output)
• Housing material: aviation aluminum
• Circuit control: APC line
• light spread angle: 90° (customizable)

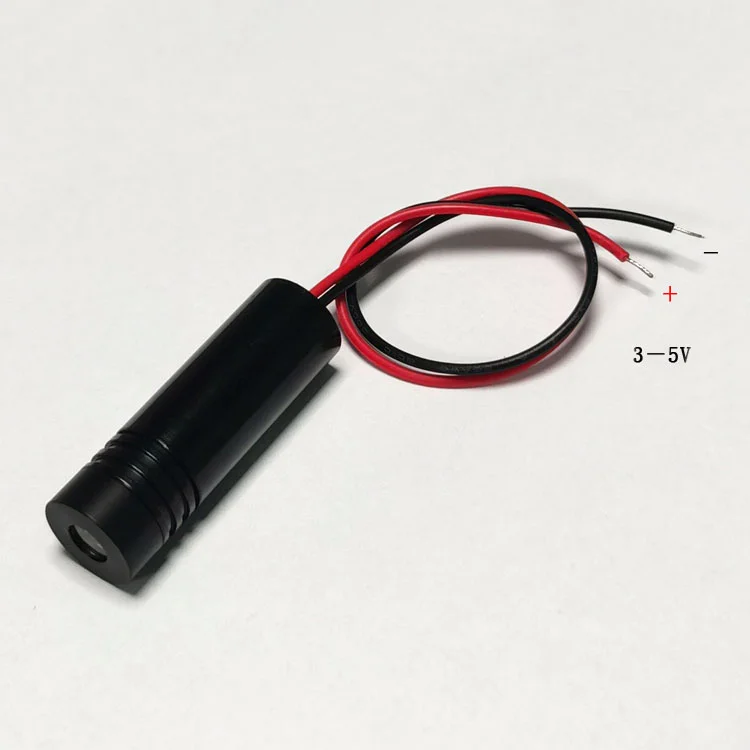

• Operating voltage: DC=2.6-5.5V
• Working current: I<250mA
• Operating temperature: -10℃～＋50℃
• Storage temperature: -20℃～＋80℃
