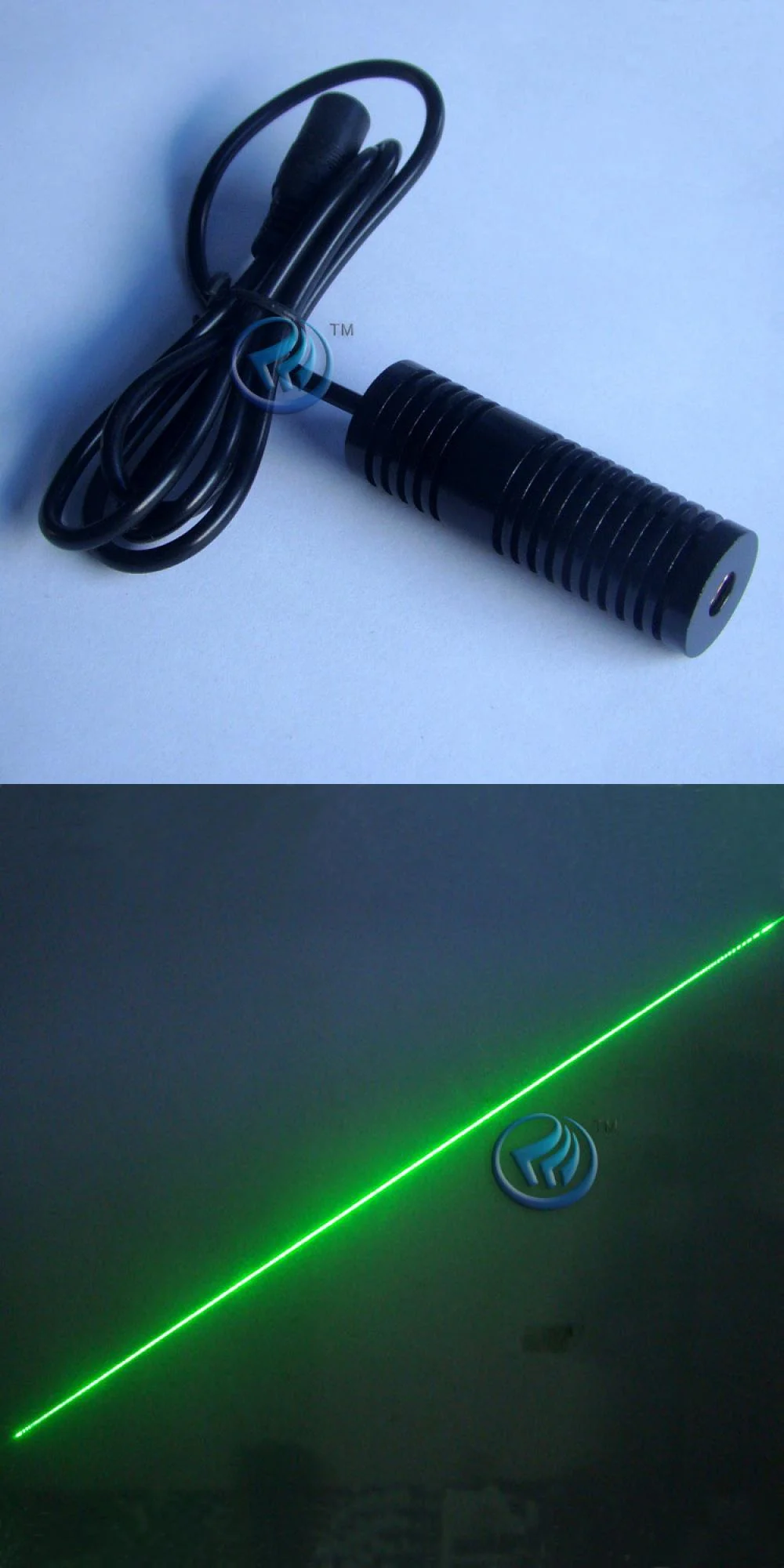

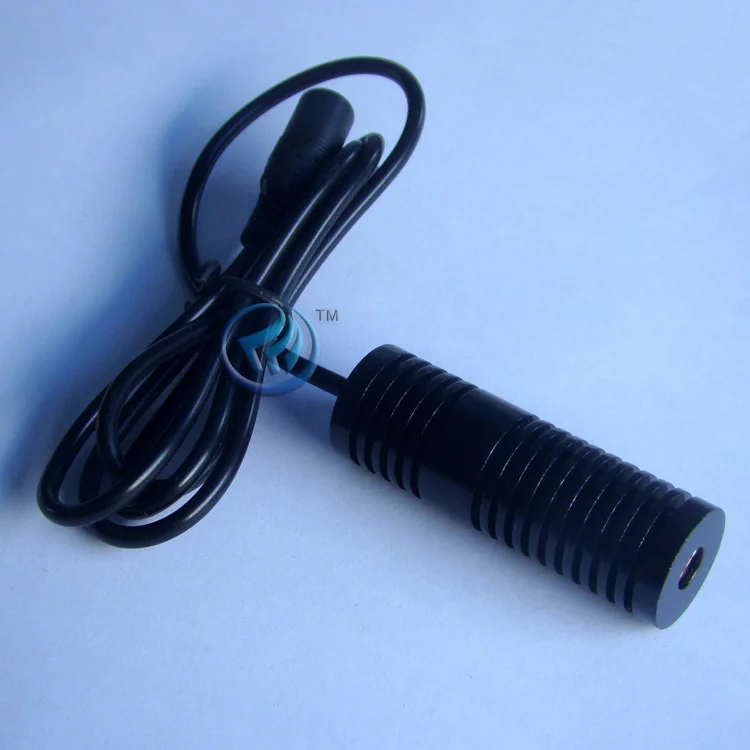

Line/Cross Green Laser Module 150mW 532nm 3V-5V

This green laser module is ideal for positioning and marking, such as instruments and equipment, health care equipment, military, rangefinders, swingers, line markers, spirit levels, etc. The output power is up to 150mW, rare for the 532nm wavelength. If you are looking for a long-distance green line laser module, this is a perfect choice. For product customizations, please contact us via email. We will reply to you as soon as possible.

Buying Tips
1) The default operating voltage is 3.0V-5.0V. 12V/24V is customizable.
2) The module size can be customized (size customization is free). We will send Φ20×60mm by default.
3) The light spread angle can be customized: 5°, 20°, 36°, 45°, 60°, 90°, 110°.

Specifications
• Wavelength: 532nm±5nm

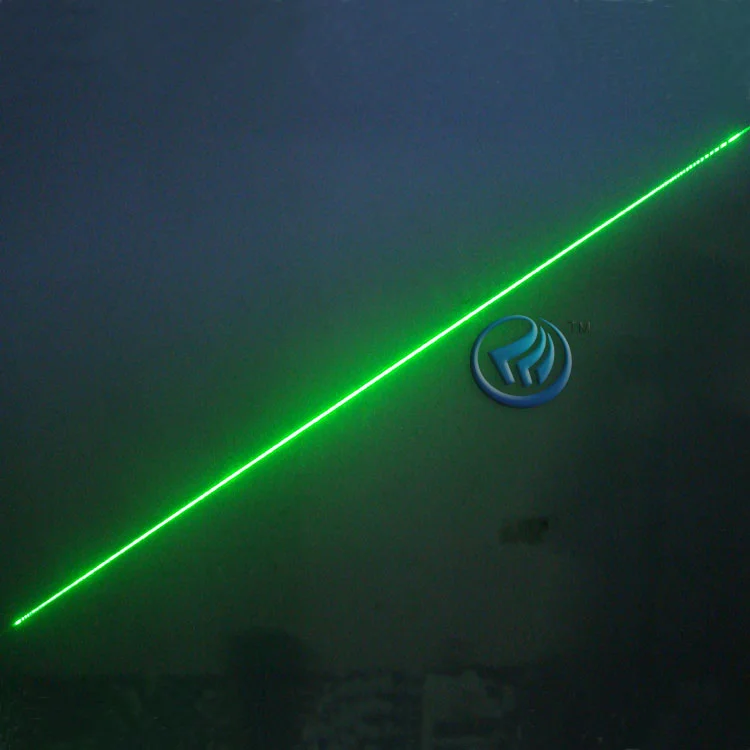

• Laser shape: line/cross
• Dimensions: Φ20 x 60 mm
• Output power: 150mW
• Useful life: > 8000 hours (continuous output)
• Maximum distance: < 40 meters
• Housing material: copper
• Circuit control: ACC line
• Focus: adjustable/fixed focus
• light spread angle: 90° (customizable)
• Operating voltage: DC=3V-5V
• Working current: I<400mA
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
