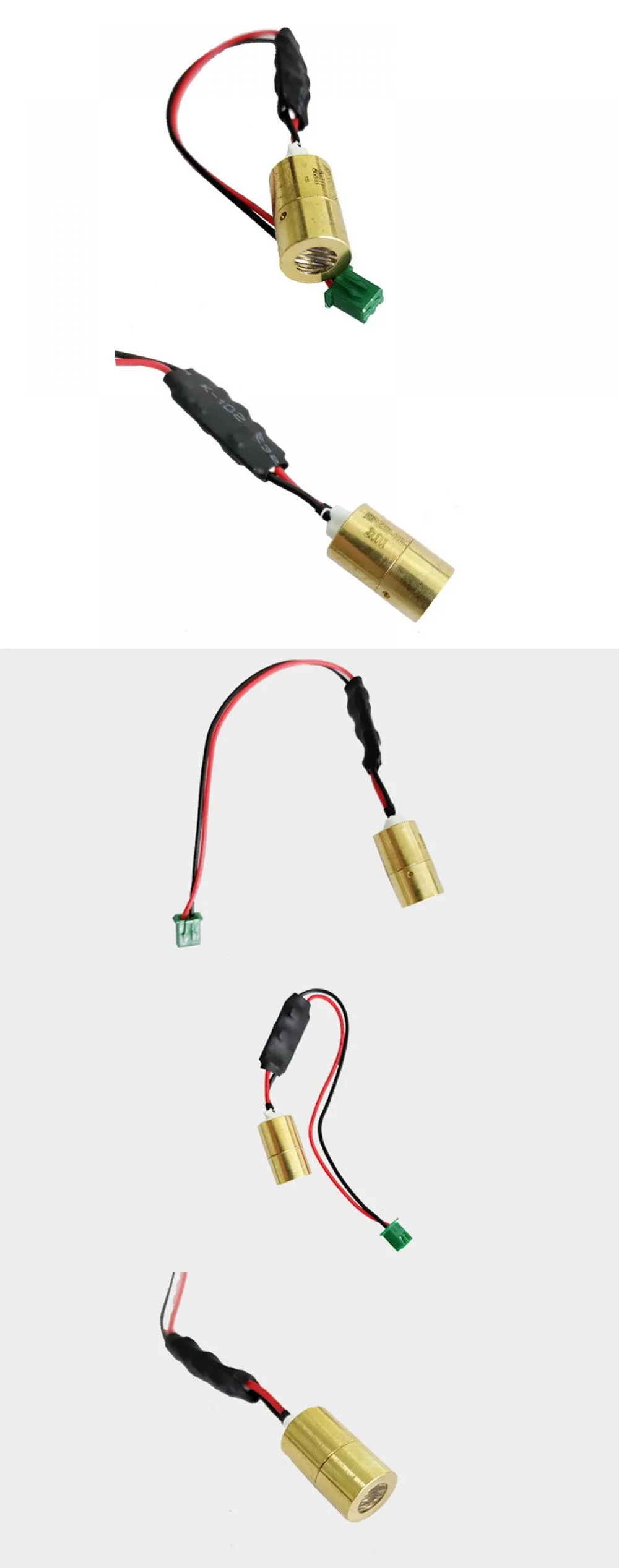

Line Green Laser Module

Line Green Laser Module 520nm 30mW

For product customizations, please contact us by mail. We will reply to you within 24 hours.

Price: $32.63

Quantity:

Product Details

This green line laser module has small sizes, high brightness, and good stability. It can work continuously, and you don't have to worry about heat dissipation. It uses a 30° lens and the best structural design, which effectively prolongs the useful life.

Specifications
• Output wavelength: 520nm
• Output power: 30mW
• Laser type: line
• Line width: 8M<10mm
• Working mode: continuous
• Optical lens: Φ7 / acrylic
• Housing material: copper H59
• Input voltage: DC 3-5V
• Input current: <400mA
• Useful life: > 10000 hours
• Working temperature: -20℃~60℃
• Storage temperature: -40℃~85℃
• Circuit board: 12V / PWM modulation board
• Housing dimensions: 12 x 20 mm
• Net weight: 15 g
• Wire rod: 26# 2P 2.54 terminal wire 20x100mm
