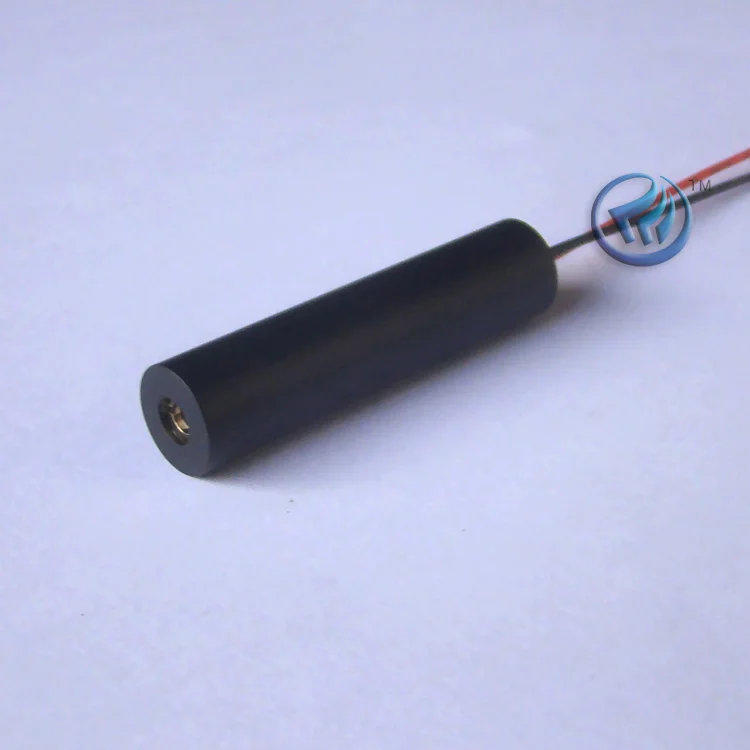

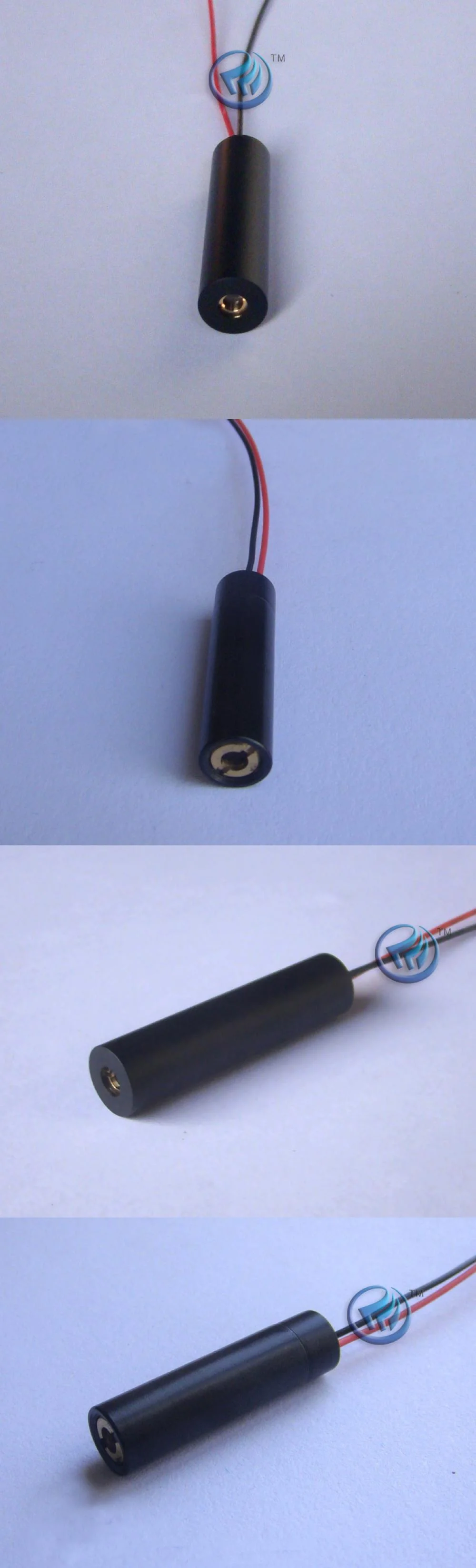

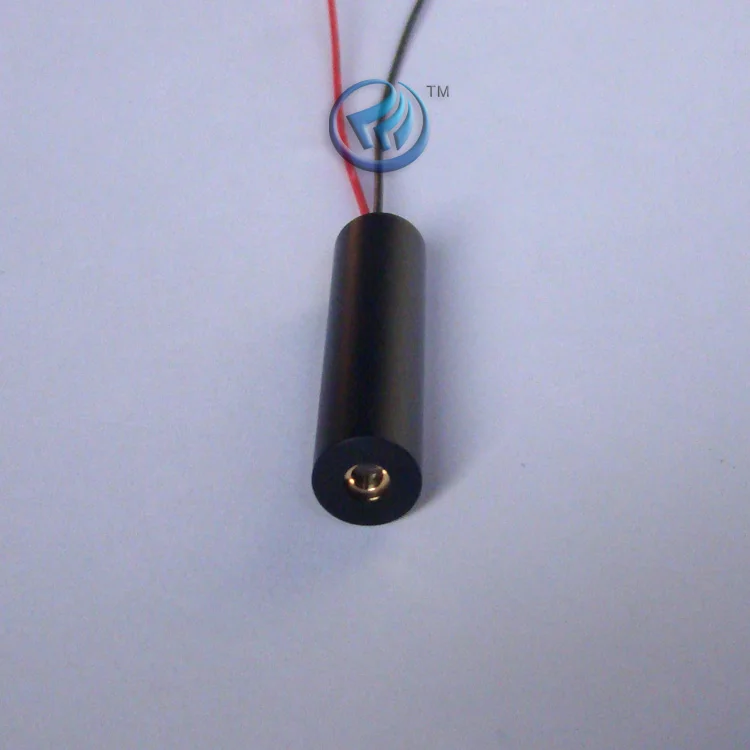

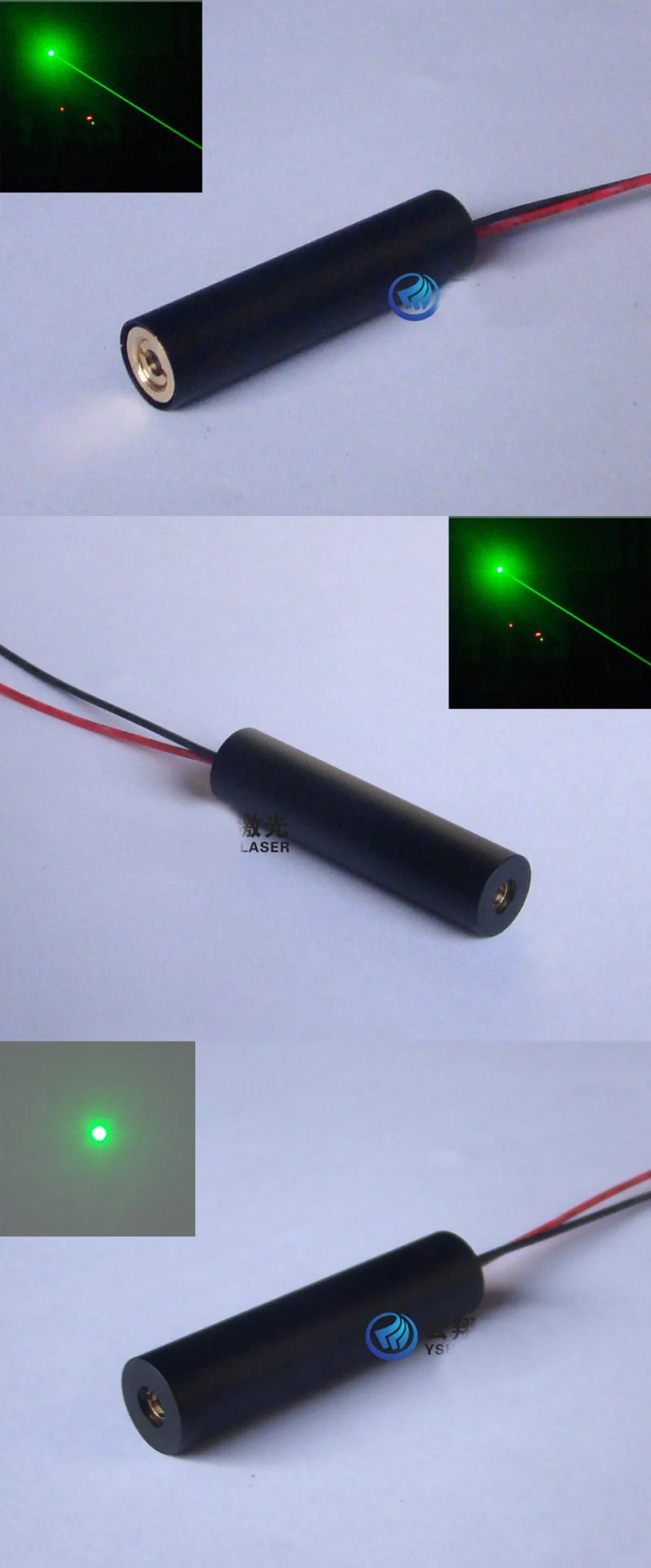

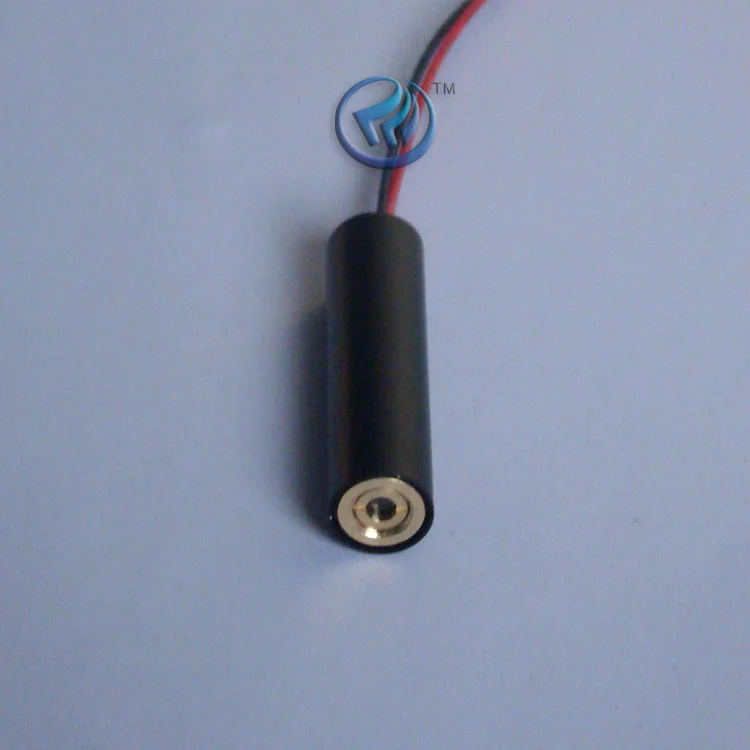

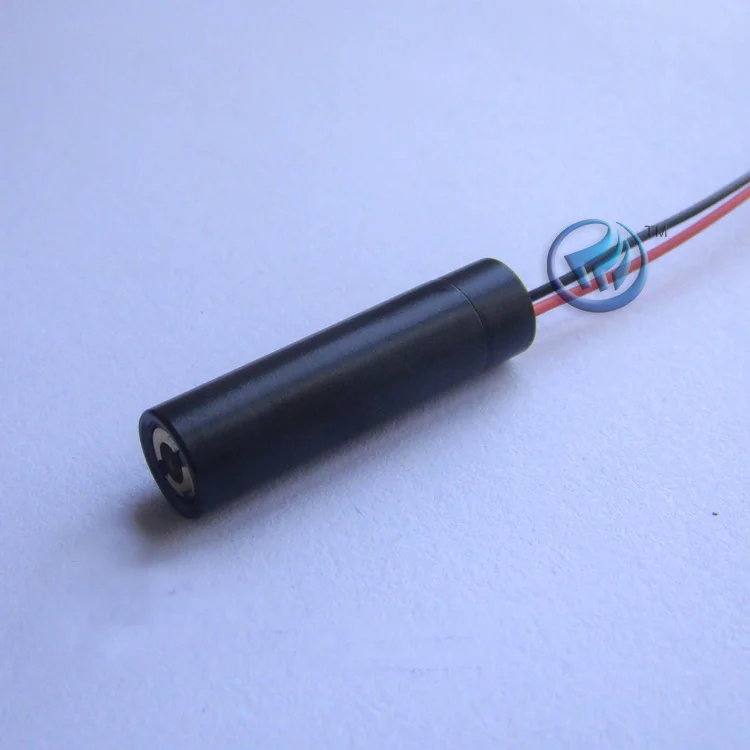

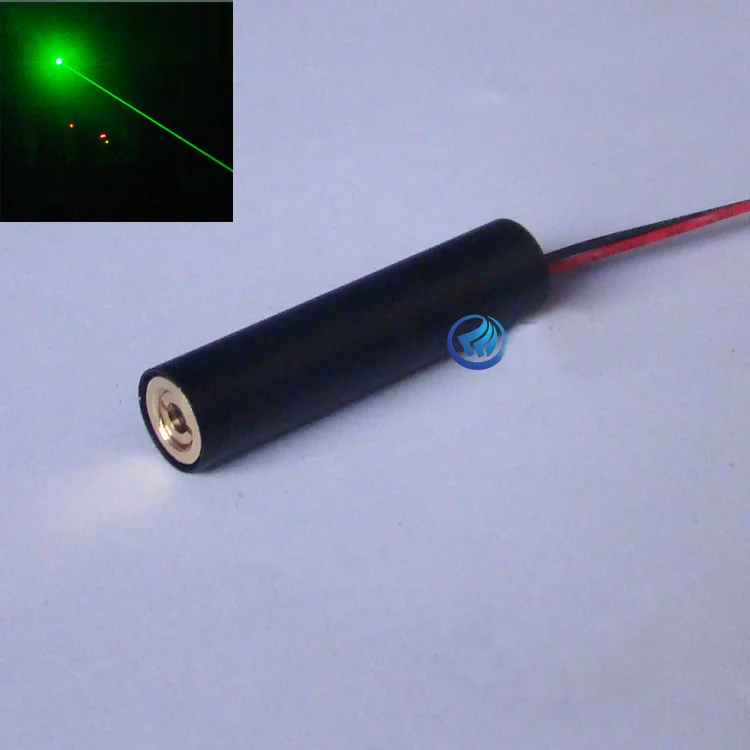

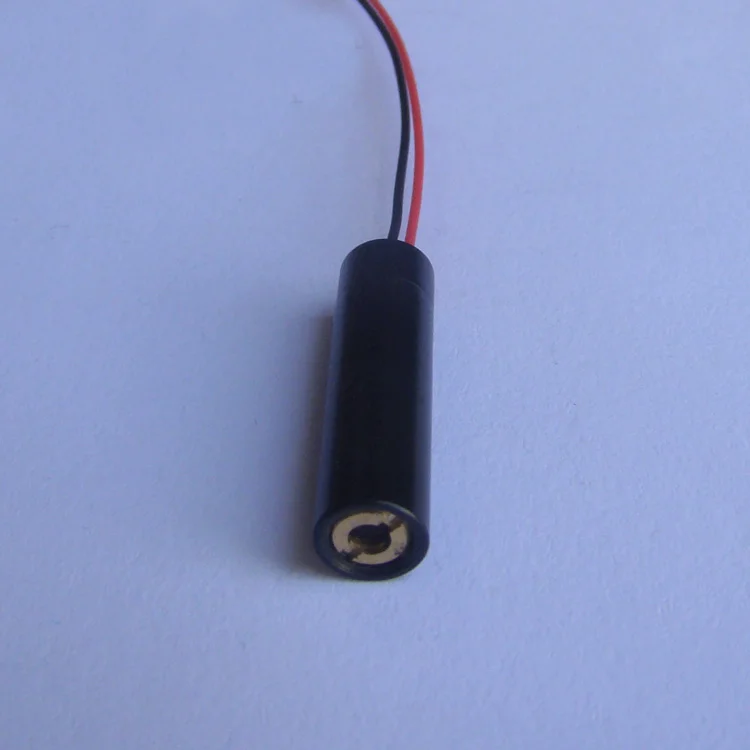

Long-Distance 532nm Green Dot Laser Module 10-50mW

This 532nm laser module is one of our OEM products. It is very suitable for applications of long-range aiming and positioning. Due to size and material constraints, our recommended maximum power does not exceed 50mW (10-50mW is optional). If you are looking for a small and long-range green laser module, this will be a good choice. For wholesale (more than 20 units), please contact us to get lower wholesale prices.

Buying Tips
1)The default operating voltage is 3V. 5V is customizable.
2) The module size can be customized: Φ8x30mm, Φ10x30mm, Φ12x50mm (size customization is free). We will send Φ12x50mm by default.

Specifications
• Laser shape: dot
• Wavelength: 532nm±5nm
• Power: 10mW/20mW/30mW/50mW
• Maximum distance: > 500 meters
• Beam diameter: minimum diameter ≤Φ1.0mm, <Φ15mm from 10m away
• Dimensions: Φ12x50mm (customizable)
• Focus mode: fixed/adjustable focus
• Useful life: > 6000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Operating voltage: DC=3.0V/5.0V
• Working current: I<350mA
• Operating temperature: ＋15℃～＋35℃
• Storage temperature: -10℃～＋60℃
