Integrated Laser Diodes, 520nm

Powerful Nichia Integrated Laser Diodes 520nm 1W / 8W

We can develop lasers according to customer requirements. If you have any questions, please contact us via email.

Price: $129.63

Quantity:

Product Details

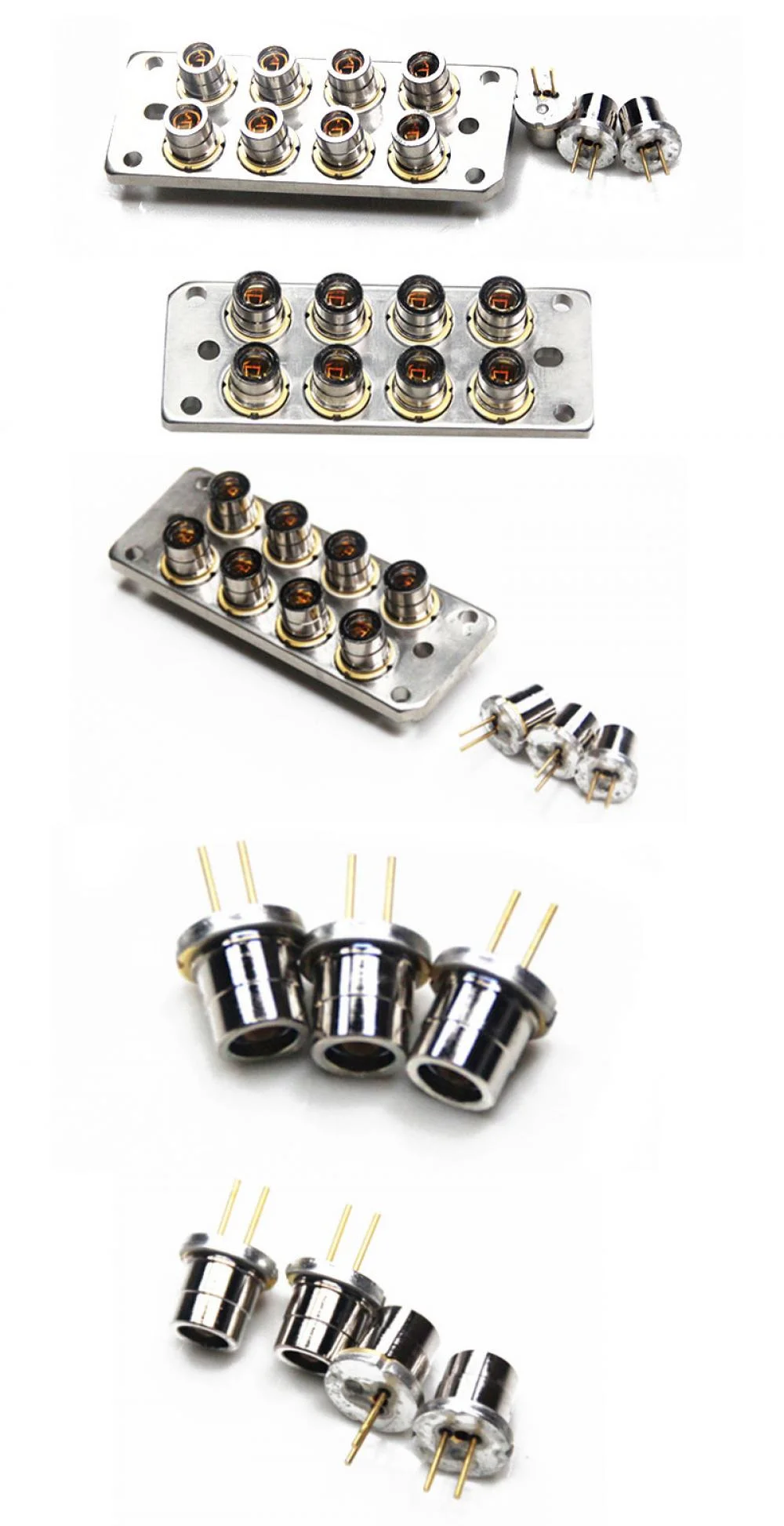

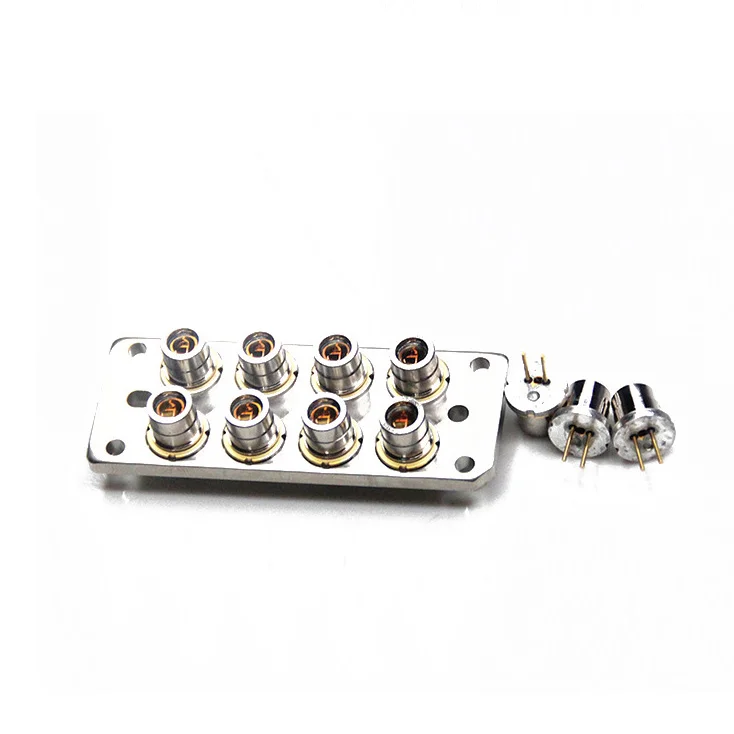

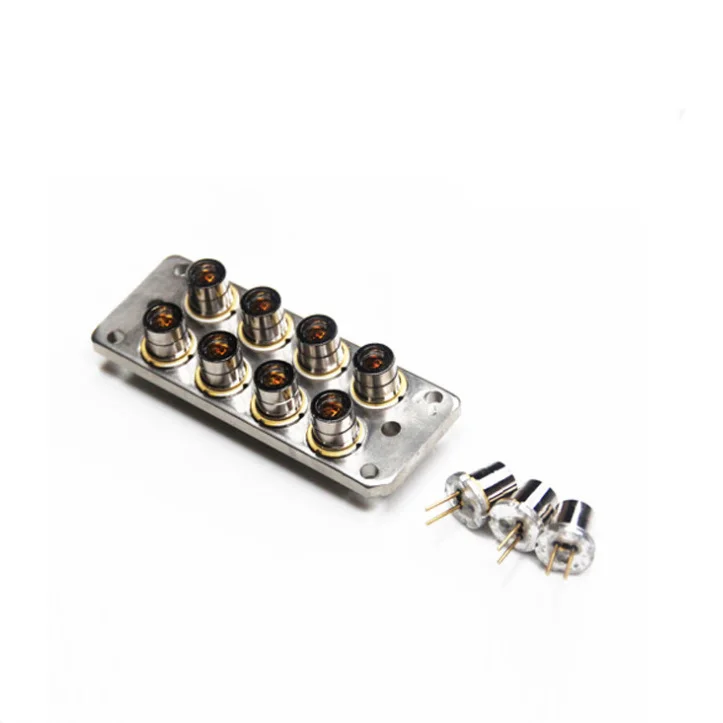

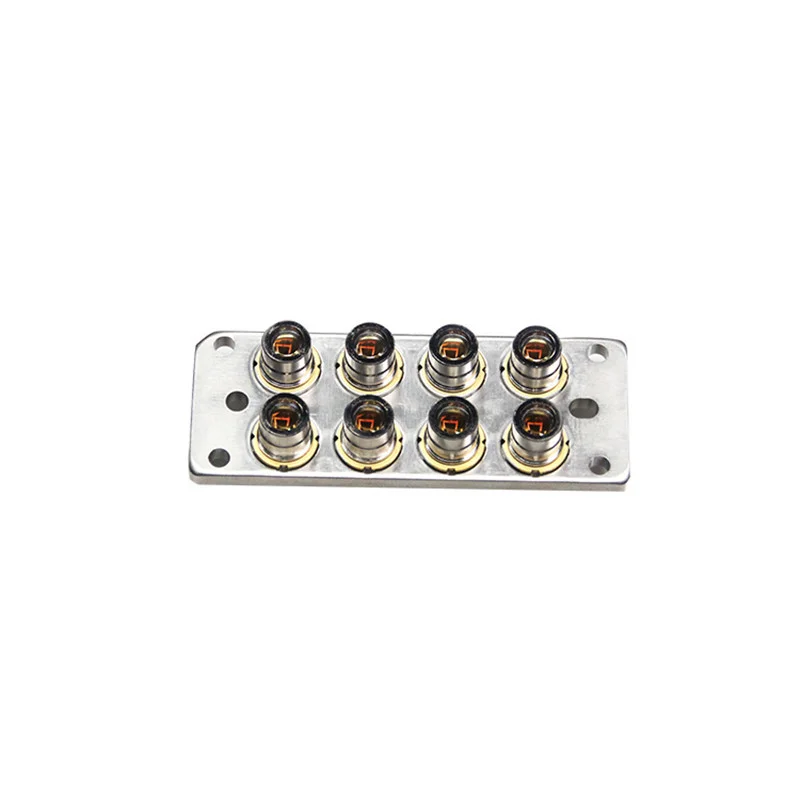

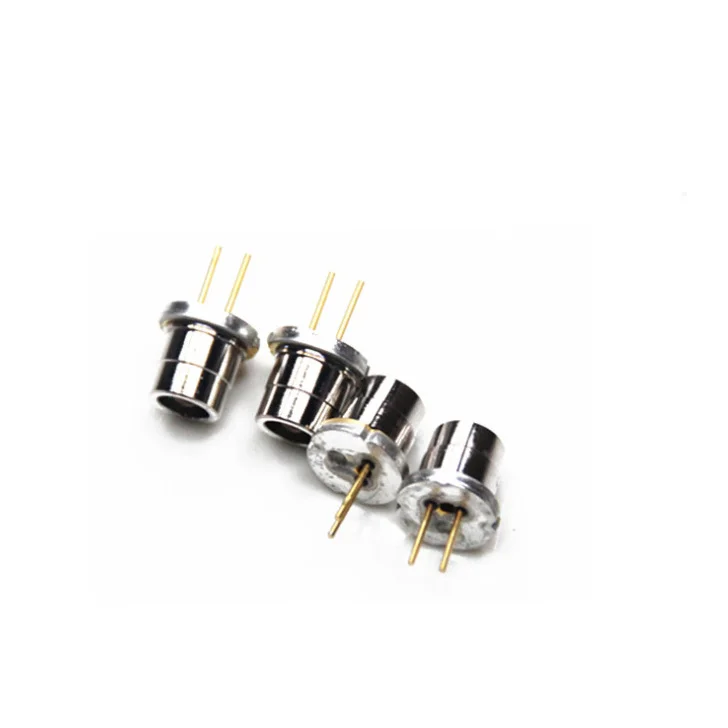

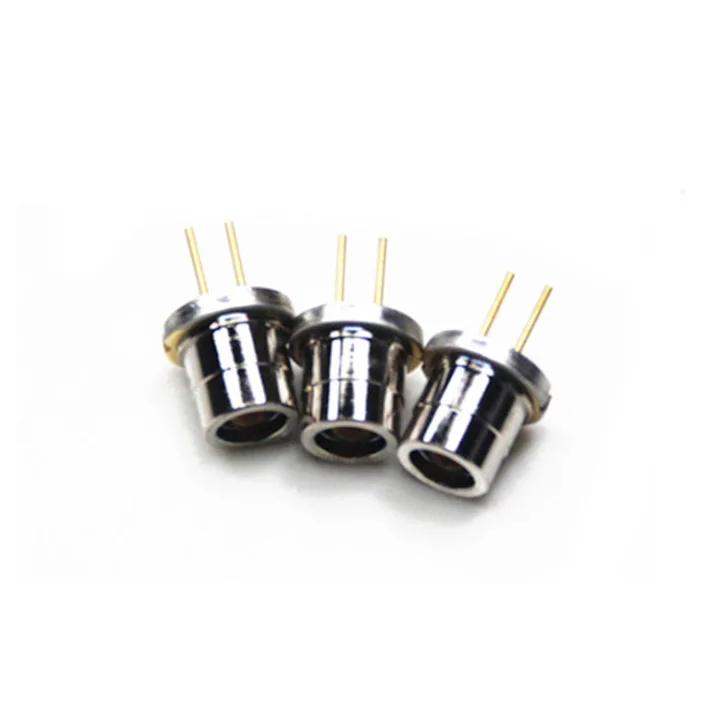

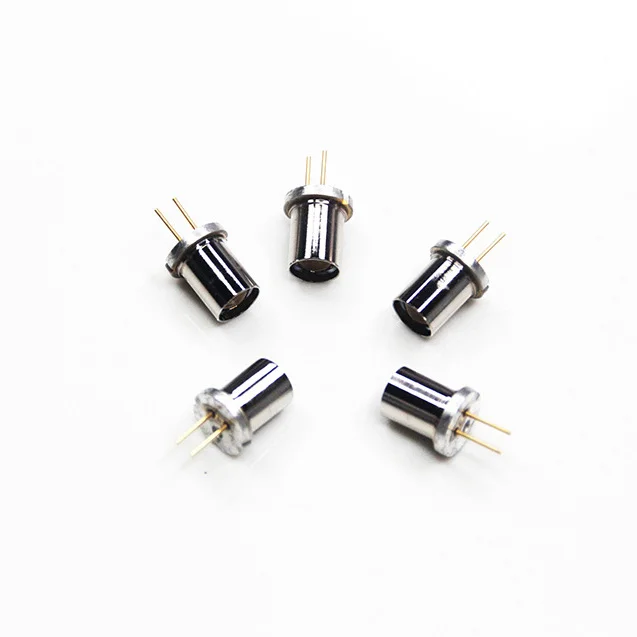

This laser module uses high-power multiple laser diodes with a total output power of 8W (each laser diode is 1W). It is designed with a sturdy structure, an efficient cooling system, and eight collimator beams. 1W (single laser diode) and 8W (integrated 8 diodes) are optional. If you are looking for the most powerful integrated green laser diodes, this model will be the best choice.

Specifications
Brand: Nichia
Wavelength: 520nm
Output power: 1W / 8W
Type: NDGM03
Forward current: 2.0A
Allowable reverse current: 85mA
Operating voltage: 38V
Working temperature: 0 ~ +65°C
Storage temperature: -40 ~ +85°C
