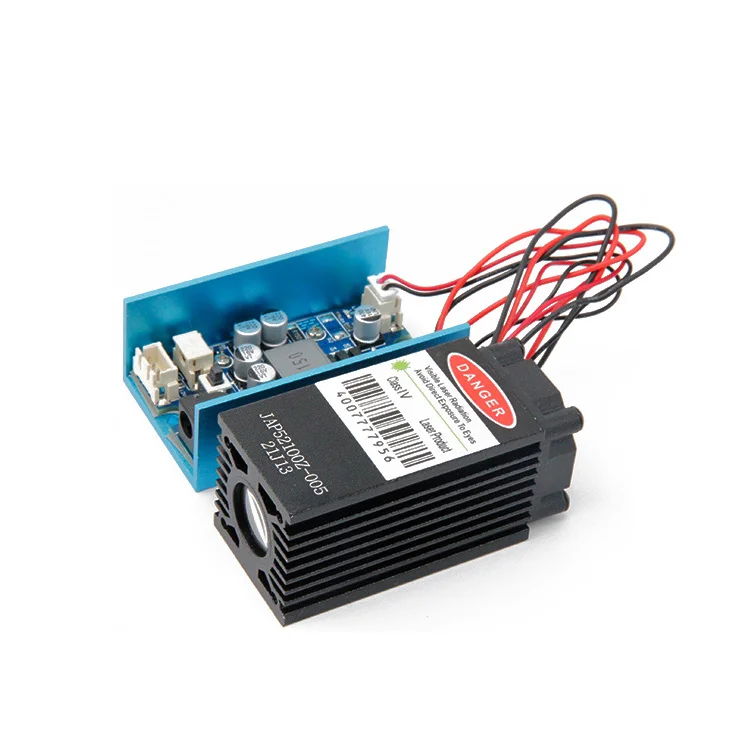

Thick-Beam Green Laser Module, Bird Repellent

Powerful Thick-Beam Green Laser Module 520nm 1000mW for Bird Repellent

We can develop laser modules and optical systems according to customer requirements. If you have any questions, please contact us via email.

Price: $279.63

Quantity:

Product Details

This powerful green laser module comes with a thick laser beam that is high brightness and long range, ideal for bird repelling systems. It has PWM modulation, a cooling fan, and circuit optimizations. The 520nm laser is very stable. Although the maximum power is up to 1000mW, it can work continuously, and you don't need to worry about overheating or overvoltage. We offer the lowest price for the promotion. This product can be used for stage lighting, highway warning, city landmarks, lighting, bird repelling, etc.

Specifications
• Laser wavelength: 520nm green
• Output power: 1000mW (1W)
• Circuit board size: 67x40x25 mm
• Cooling fan: available (12V)
• Optical lens: Φ16/glass
• Product material: aluminium 6061 + copper H59
• Working current: 850-1000 mA
• Operating voltage: 12V
• Electric power: 10.2-12 W
• Control signal voltage: 0 for low level, 3-5V for high level
• The control mode: PWM modulation
• Response frequency: <1KHz
• Initial response duty: 100%
• Laser beam mode: dot
• Working mode: pulse work
• Laser spot size: 36-40mm from 8M
• Working temperature: 0°C ~ +50°C
• Storage temperature: -40°C ~ +85°C
• Dimensions: 33mm x 33mm x 60mm
• Net weight: 189 g

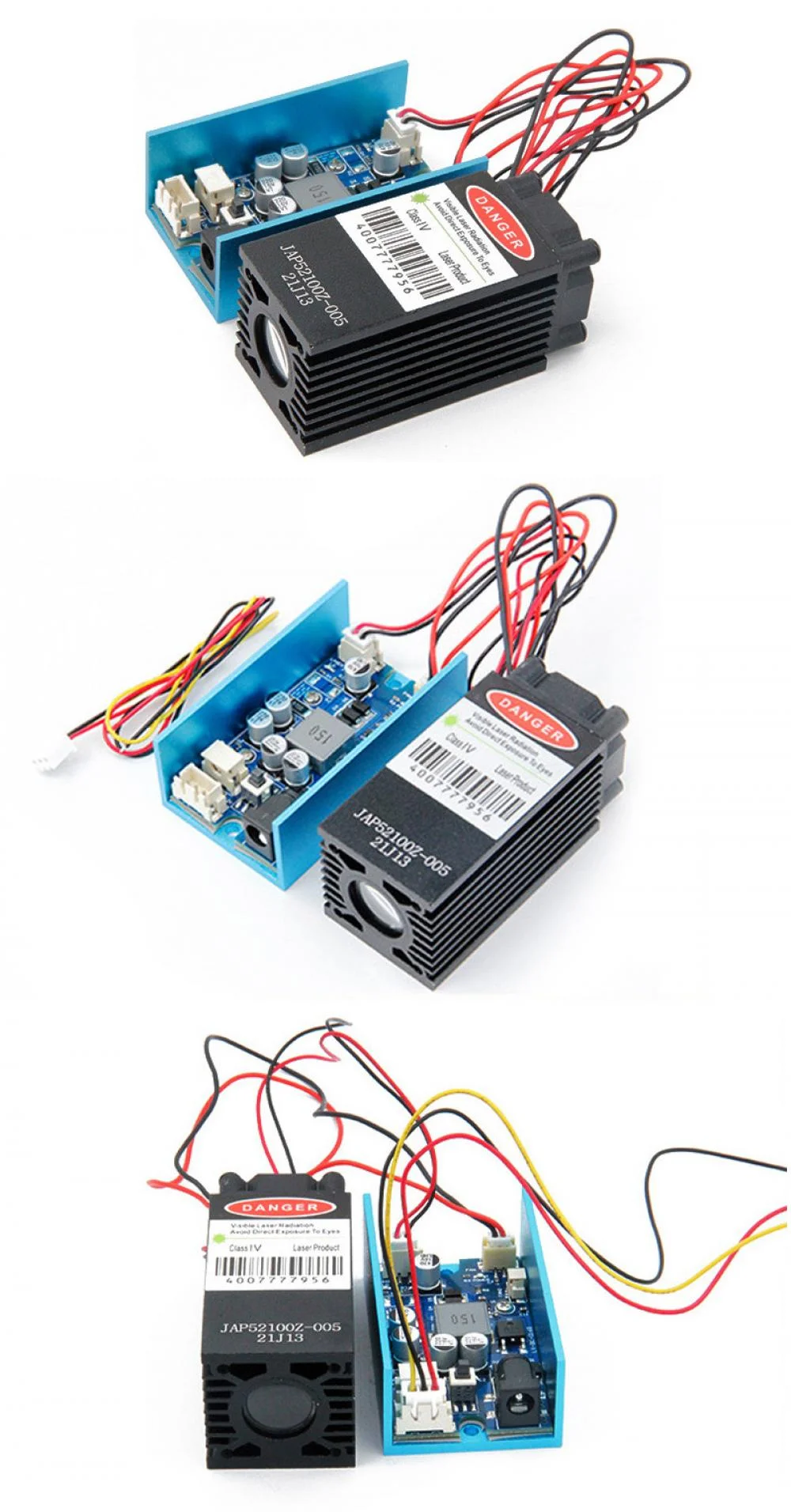

Green Laser Module 520nm 1000mW

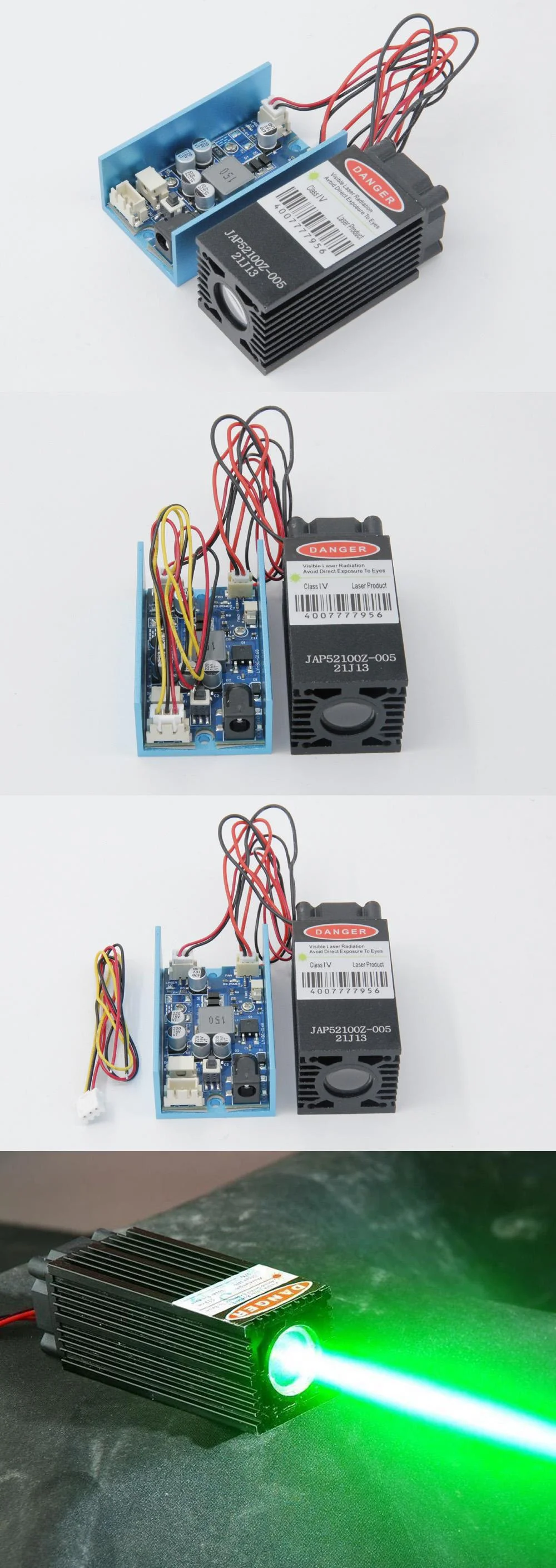

Thick-Beam Green Laser Module
