Solid-State Green Laser 532 nm TEM00 100mW / 200mW / 300mW

This DPSS green laser module is one of our OEM products. It adopts the 532nm wavelength, diode pumping technology, and TEM00 mode, effectively ensuring the high concentration of the laser beam. The output power is optional: 100mW, 200mW and 300mW. This solid-state 532nm laser can be used for scientific research, industry, laser experiments, etc. We can develop lasers according to customer requirements. If you have any questions, please contact us via email.

Specifications
• Wavelength: 532nm ± 0.5nm
• 0utput power: 100mW / 200mW / 300mW
• Spatial mode: TEM00
• 0peration mode: CW or modulation
• Laser type: diode-pumped solid-state laser
• Beam diameter: < 2mm
• Beam divergence(full angle): < 1.5 mrad
• Power stability: < 3% per 4 hrs
• Temperature stabilizing: TEC
• Warm-up time: < 3 minutes
• Useful life: 10,000 hrs

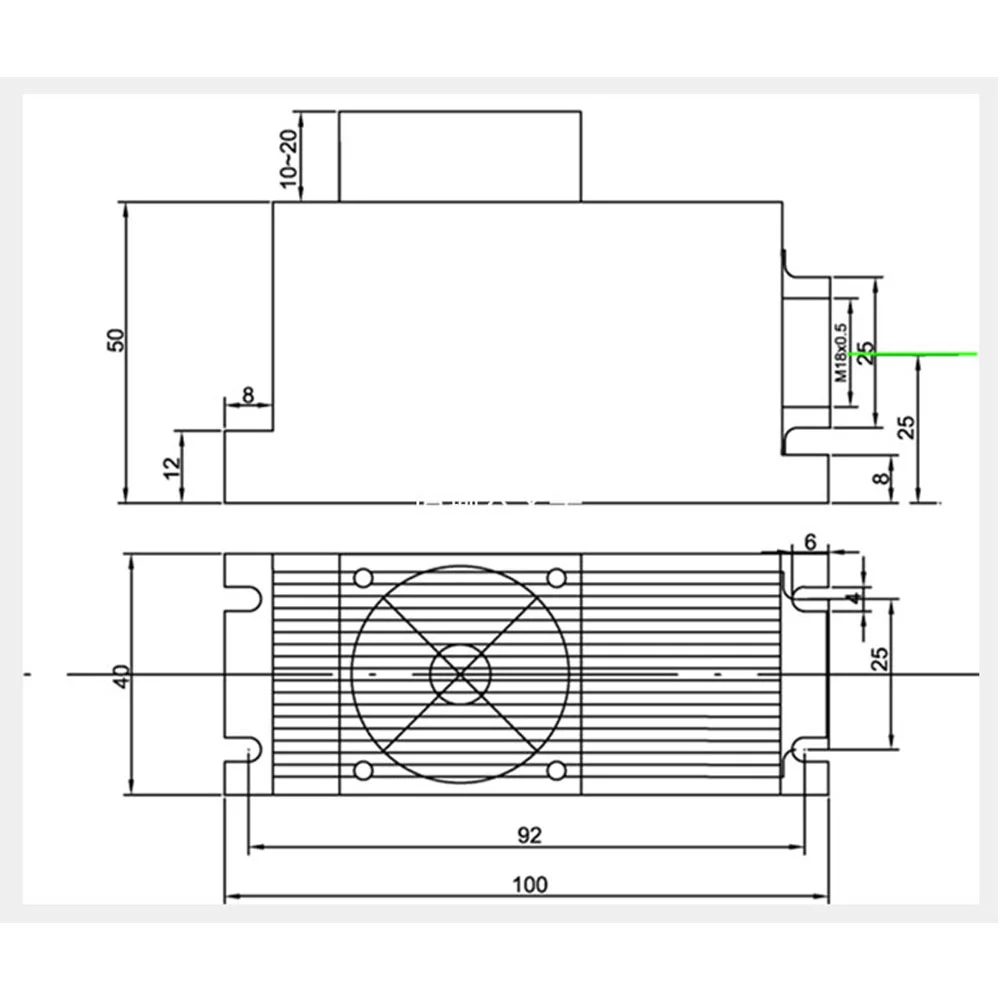

• Laser head dimensions: 100(L) x 40(W) x 50(H) mm³

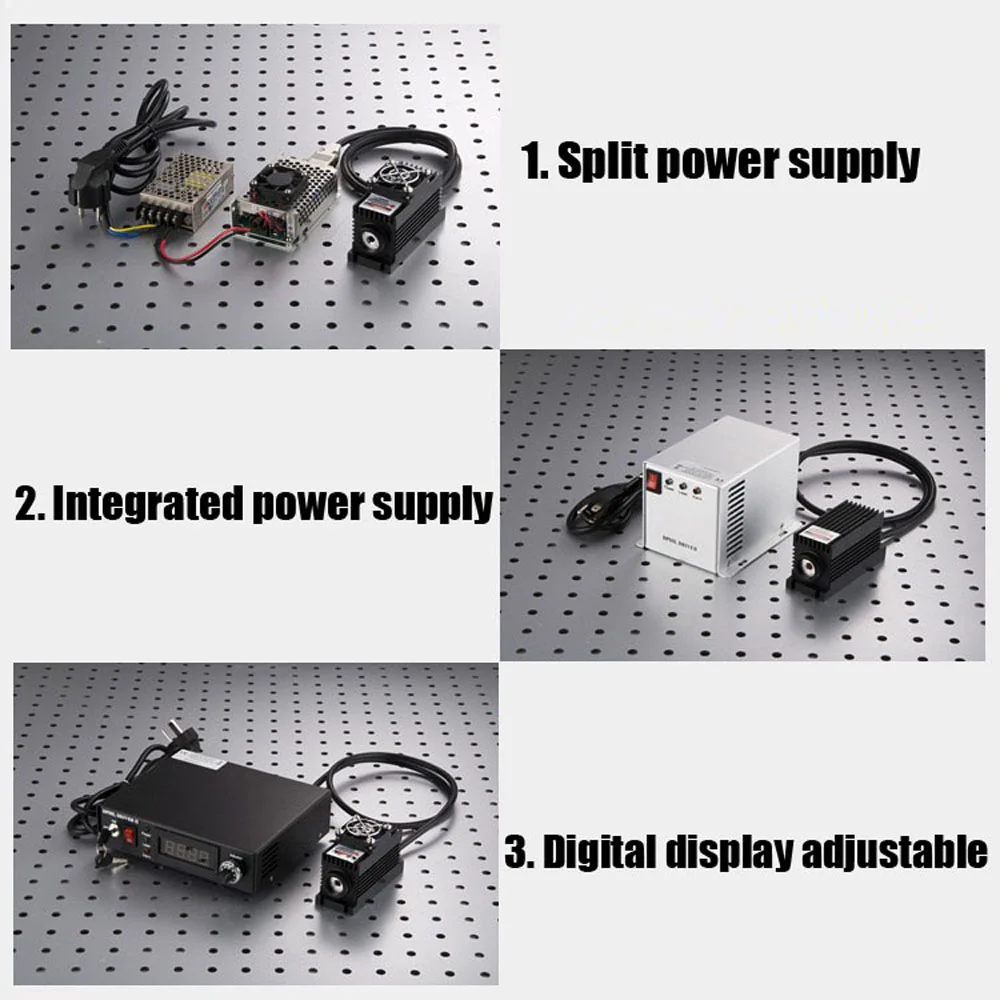

• Power supply: split power supply, integrated power supply, digital display adjustable
• Modulation: 0-30khz Analog or TTL
