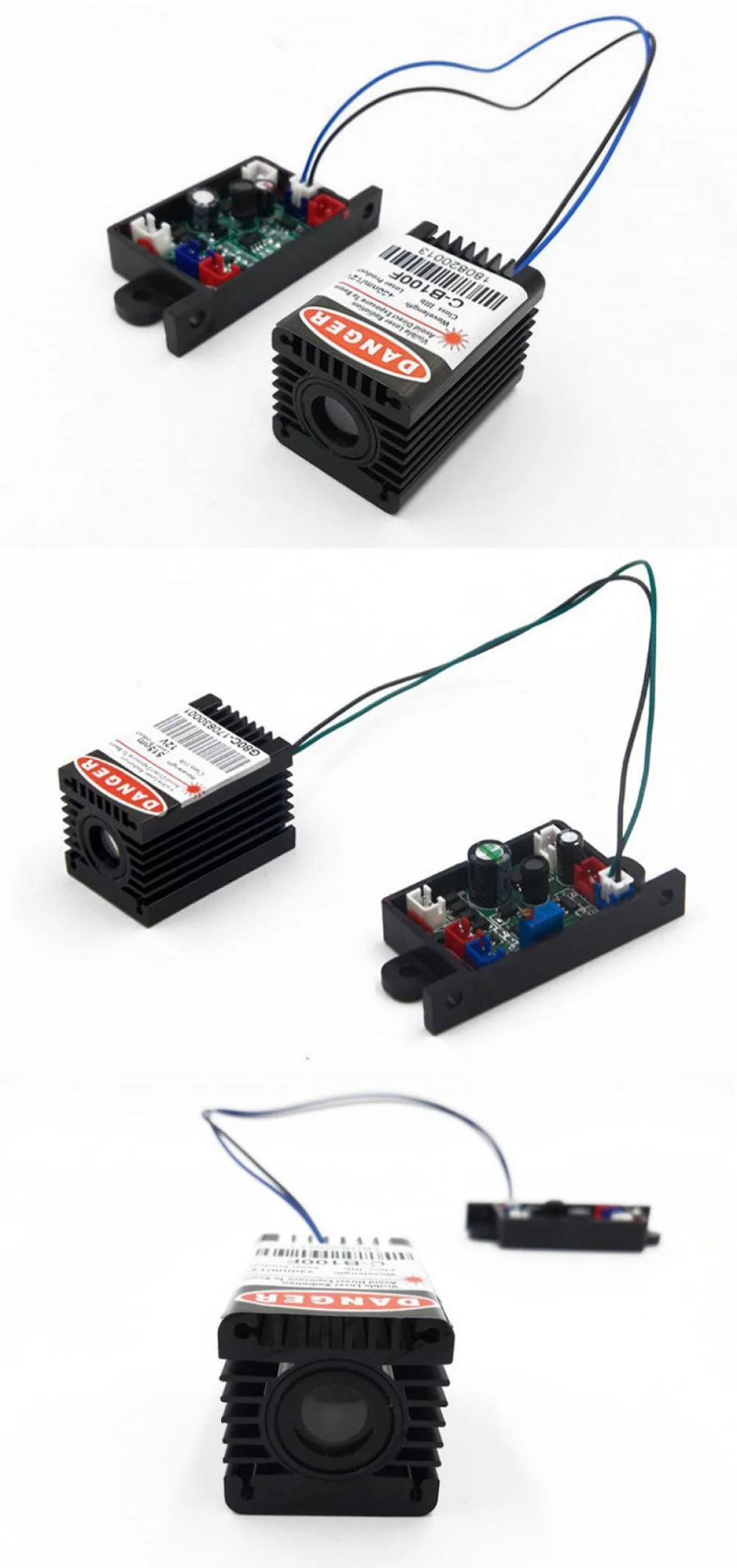

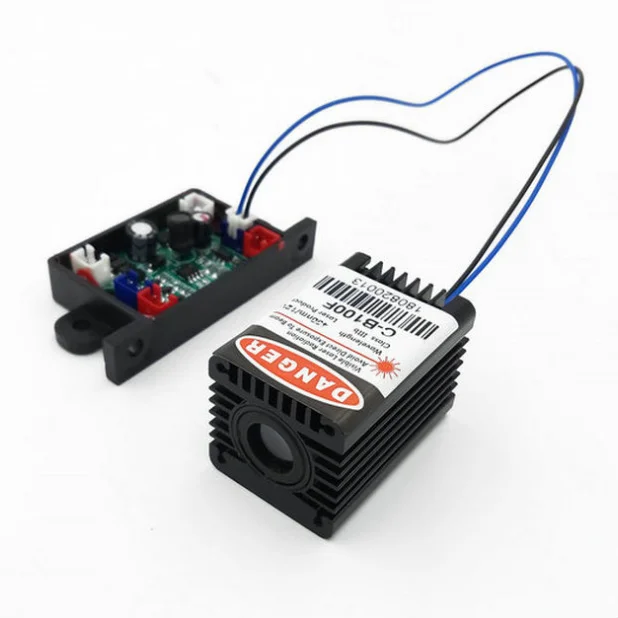

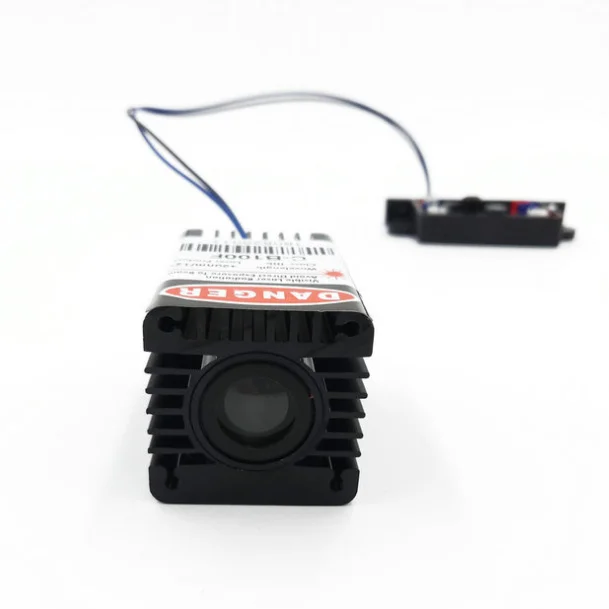

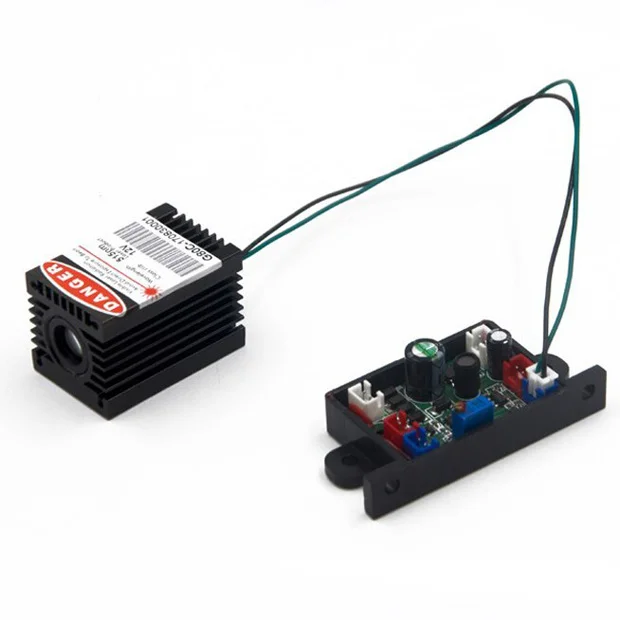

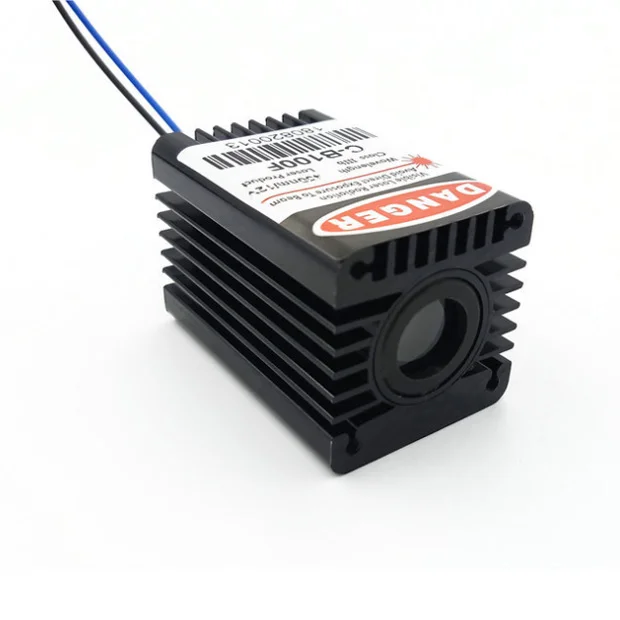

This module comes with a bright and thick green laser beam. It is very suitable for stages, bars, and other entertainment venues.
Features
1) The laser spot is small and bright, the divergence angle is low, the collimation is good, and the product size is small.
2) The temperature control, driver, and laser are fully integrated. The structure is small and compact. The external DC power supply is available.
3) This laser module has passed tests of high-temperature, low-temperature, and vibration impact. With reliable stability, when the temperature is in the range of -10 ~ 45 degrees, it can work stably for 24 hours.
4) We have extended the life of the laser as much as possible, with the precise and scientific heat dissipation design, two-way temperature control, and perfect circuit protection.
Specifications
Wavelength: 515m (green)
Output power: 100mW
Spot shape: round laser spot

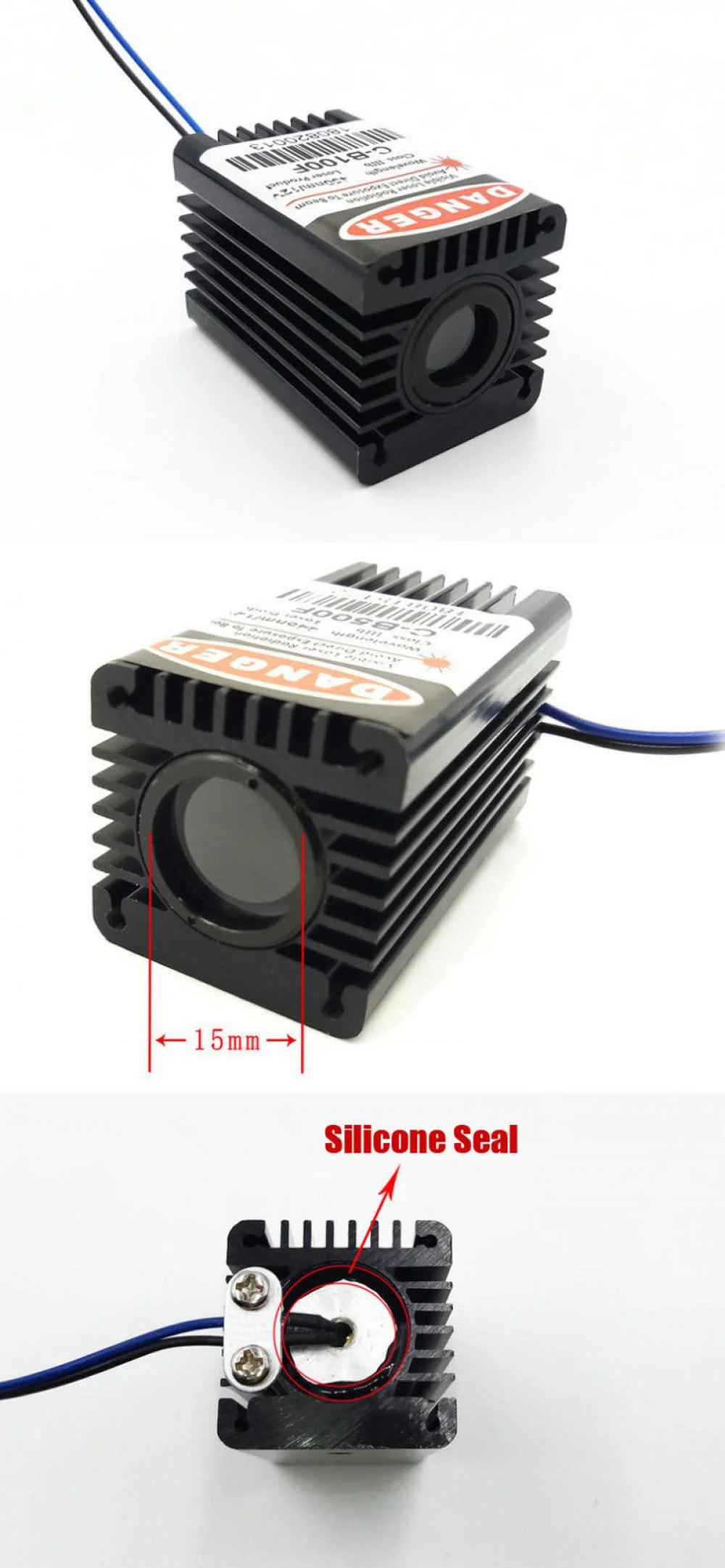

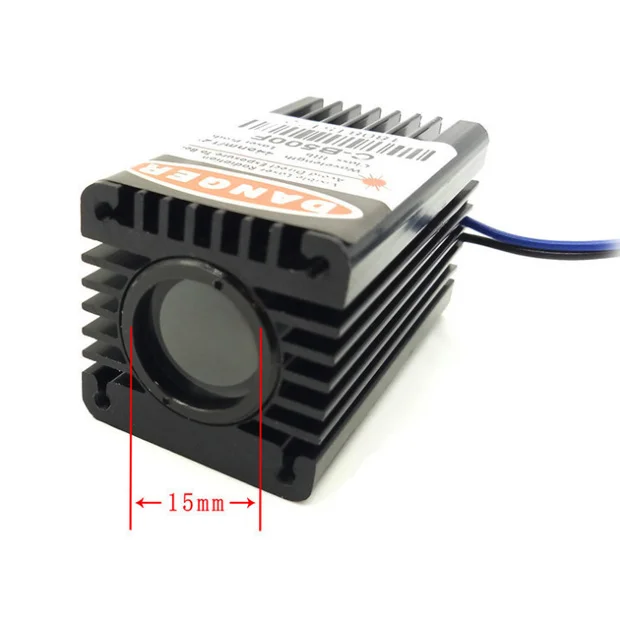

Spot size (at the light outlet): 16mm
Laser class: class 3B
Modulation mode: TTL / PWM
Input stability: ± 5%
LD input voltage: 7.8V
LD input current: 280mA
Power consumption: 2W
Operating temperature: - 10℃ - 55℃
Useful life: > 10000 hours
Wire length: 110mm
Dimensions: 30 x 30 x 45 mm
Weight: 61 g |
