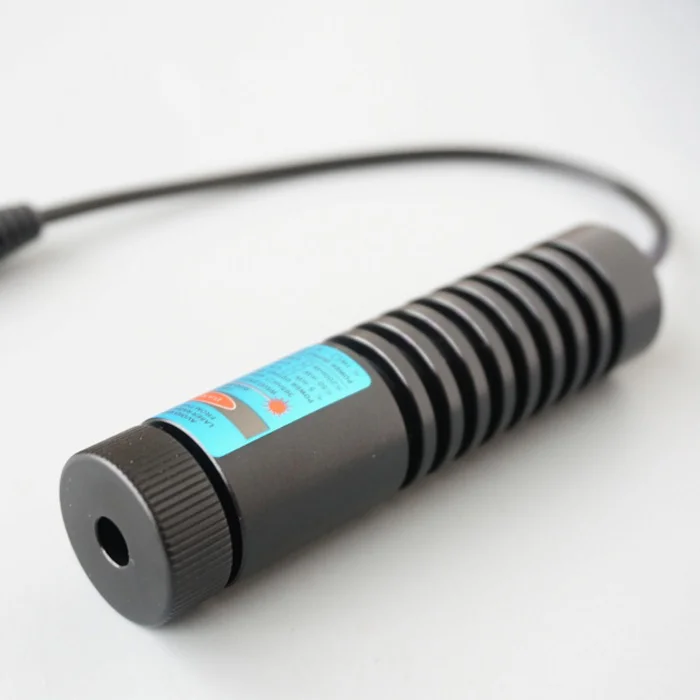

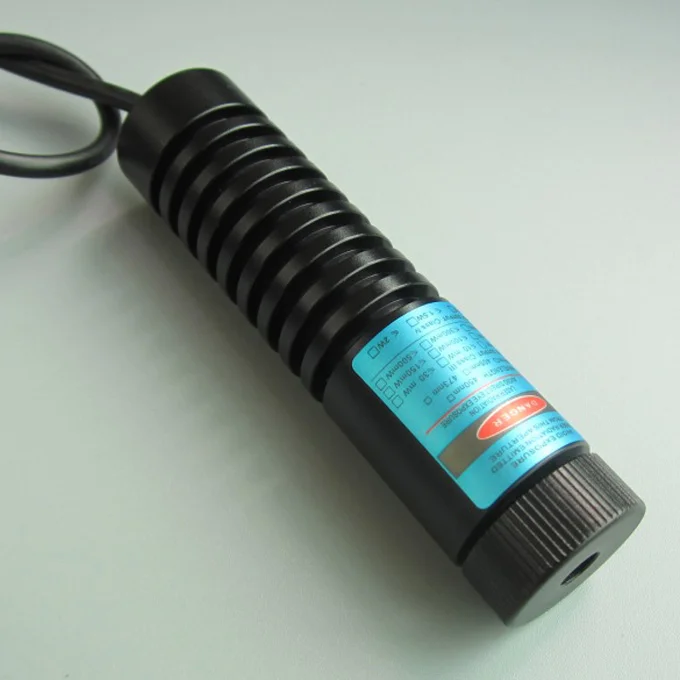

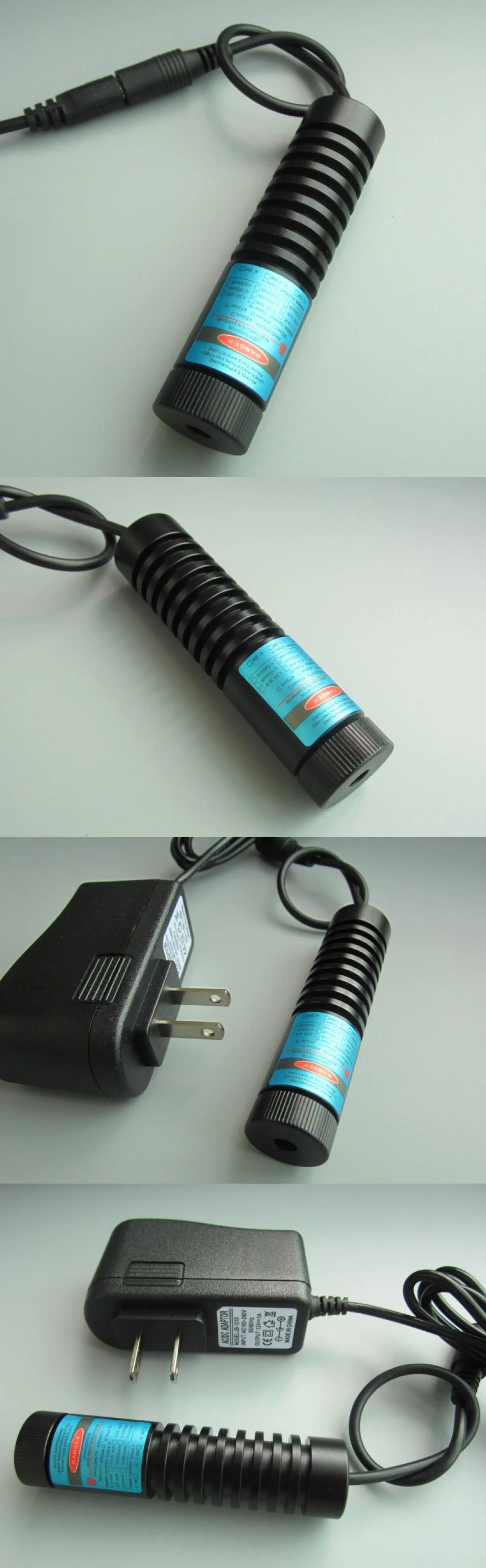

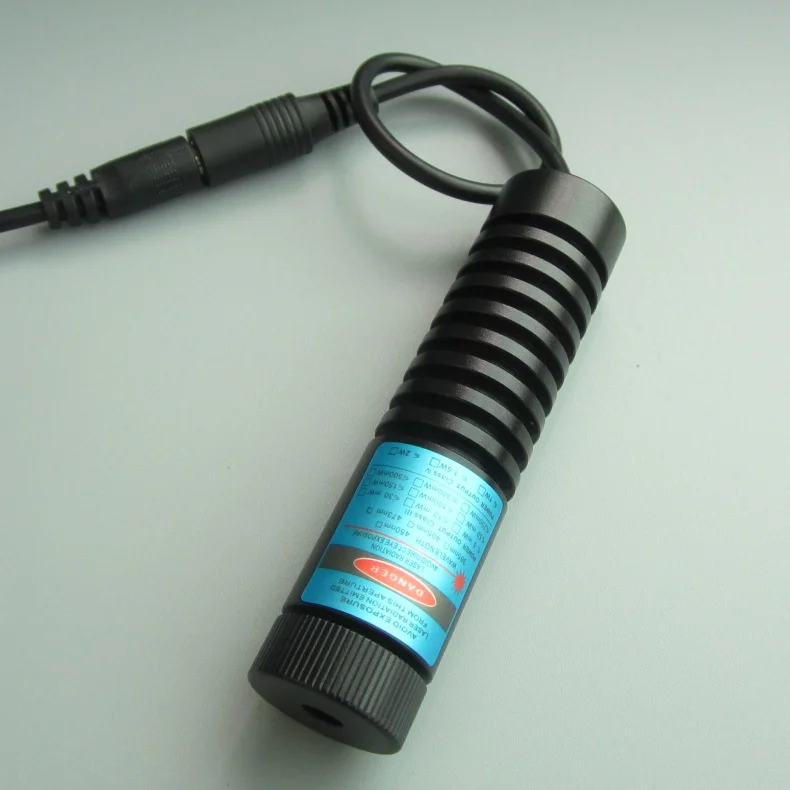

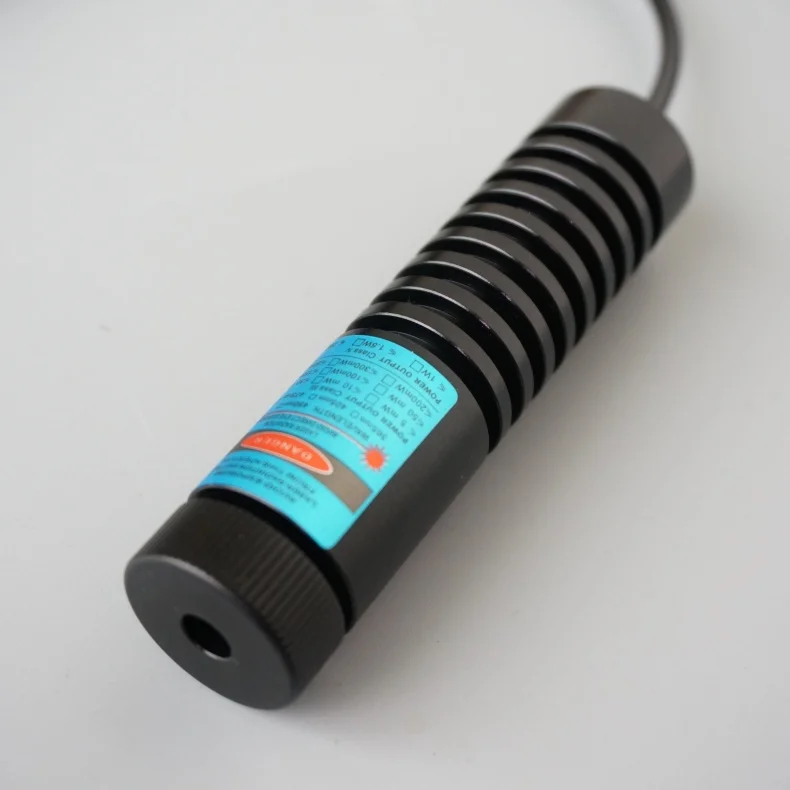

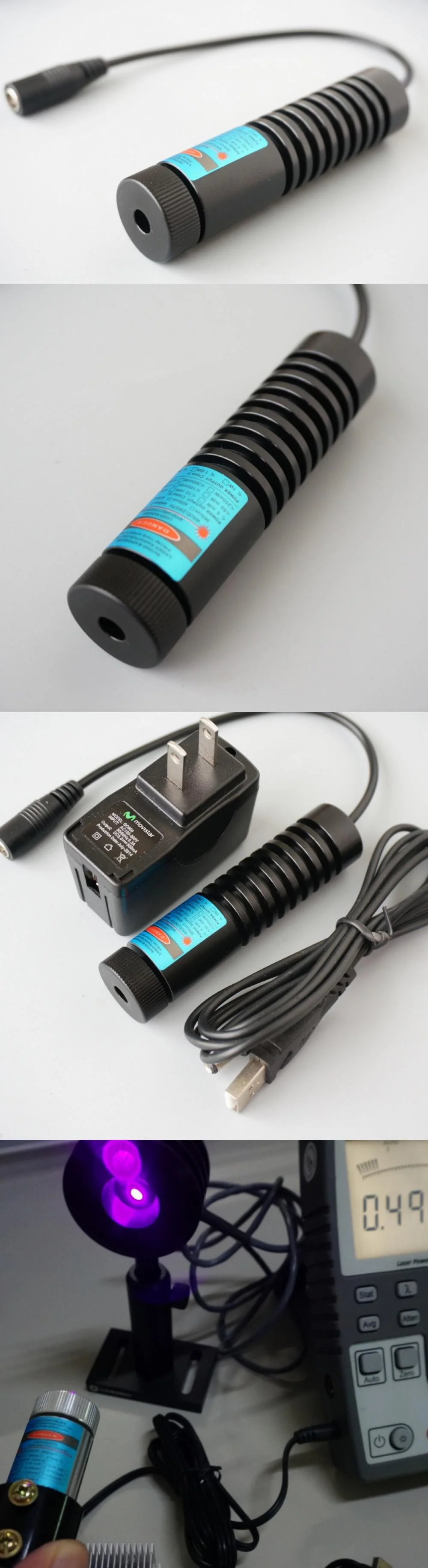

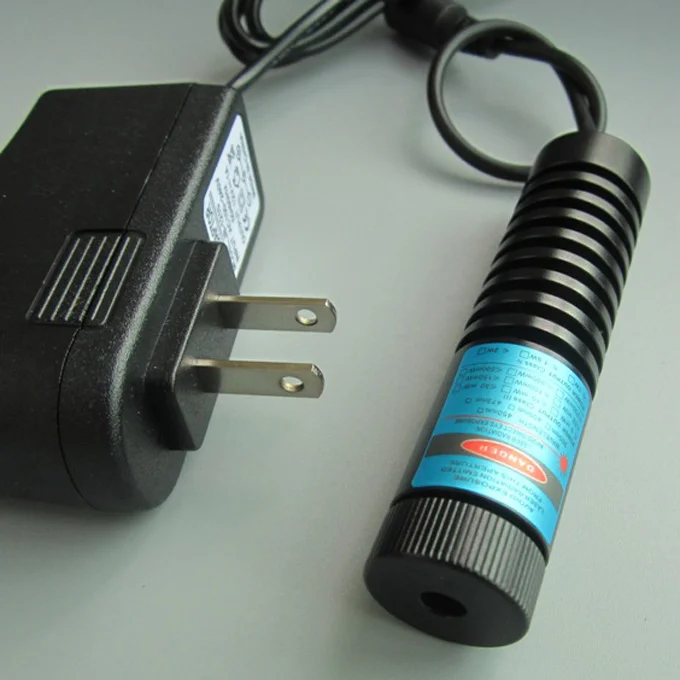

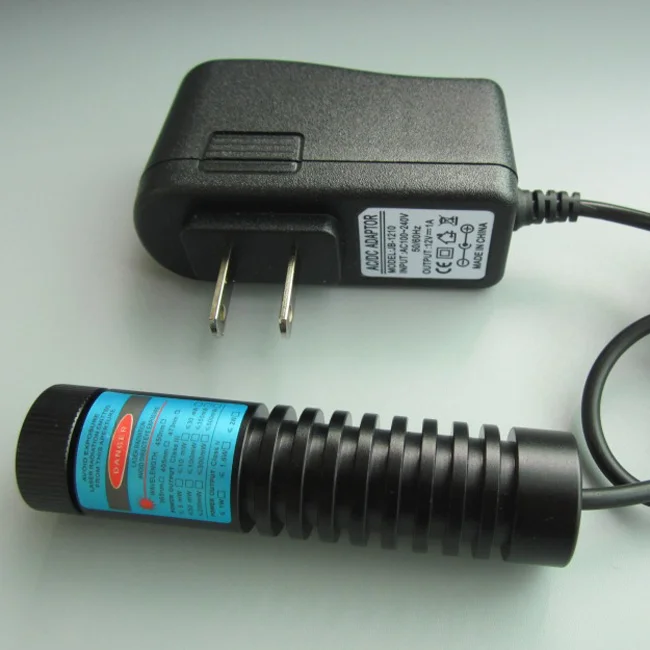

405nm 100-500mW Violet Laser Module with Adjustable Focus

This violet laser module has high power and high stability. It comes with adjustable focus, cooling system, and circuit protection. The 405nm violet laser spot is uniform, and the line/cross is customizable. For product customizations, please contact us by email. We will reply to you as soon as possible.

Specifications
• Laser type: dot (line/cross is customizable)
• Dimensions: φ22*90mm
• Output wavelength: 405nm
• Output power: 100-500mW
• Surface treatment: anodized black
• Housing material: aviation aluminum
• Circuit control: ACC
• Reverse polarity protection: yes
• Working voltage: DC=-5V/12V
• Working current: 150mA<I<800mA (current depends on power)
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: +10℃～+60℃
• Structure: laser + focusing lens + cooling housing
• Net weight: 120g
