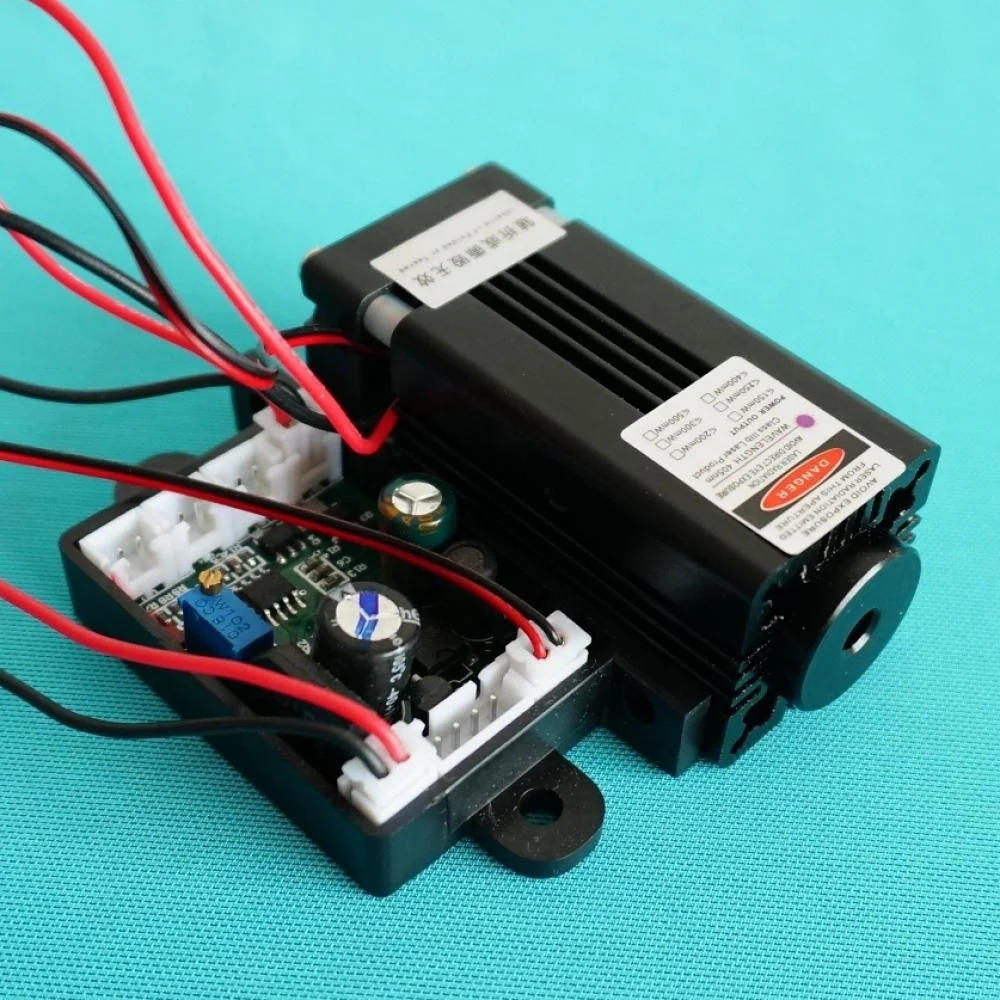

405nm 200mW Violet Laser Module with TTL Modulation

This violet laser module has TTL modulation, cooling system, circuit protection, and adjustable focus. It can work for a long time, and you don't need to worry about heat dissipation. 100mW / 200mW / 300mW / 500mW are optional - you can choose according to your needs.

Specifications
• Laser type: dot (line/cross is customizable)
• Module size: 74mm x 30mm x 30mm
• External power supply: 71.5mm x 35mm x 20mm
• Output wavelength: 405nm
• Output power: 185-210mW
• Cooling method: air cooling
• Modulation frequency: TTL 1-20K Hz
• Modulation voltage: 0-5V
• Working characteristics: it can work continuously
• Surface treatment: anodized black
• Housing material: aluminum
• Circuit control: constant current
• Reverse polarity protection: available
• Working voltage: DC=12V
• Working current: I<260mA
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: -10℃～＋40℃
• Structure: laser + focusing lens + cooling housing
• Net weight: 180g

Notice
The input voltage is 12V. Overvoltage will cause instantaneous damage to the circuit and module.
