Blue Laser Module

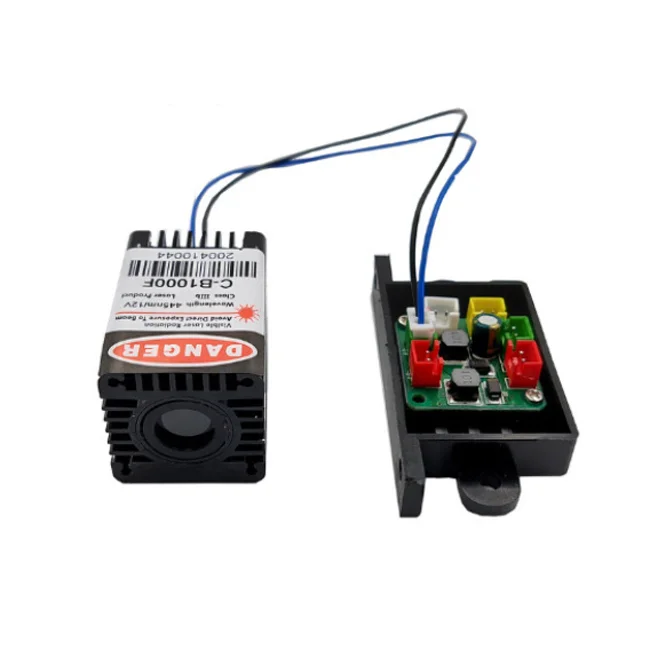

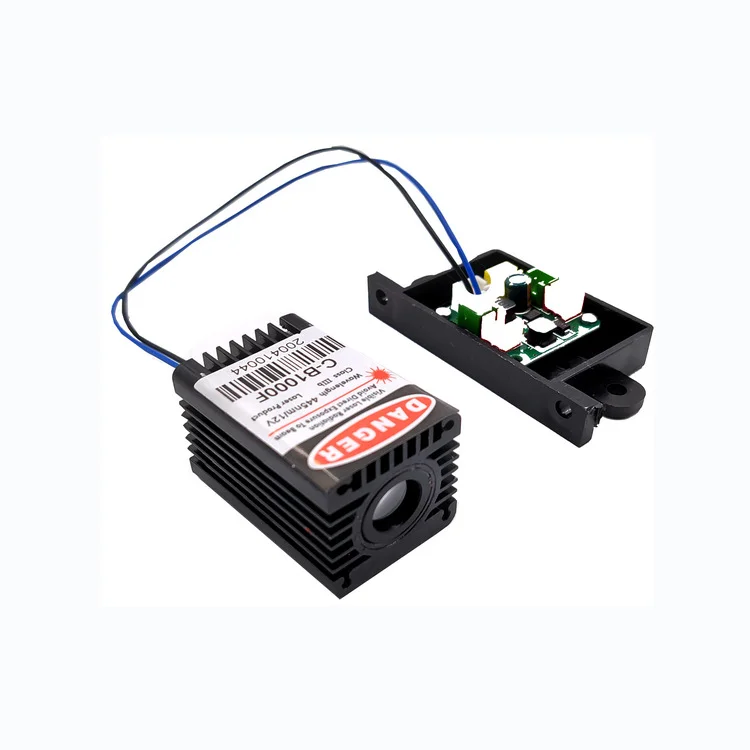

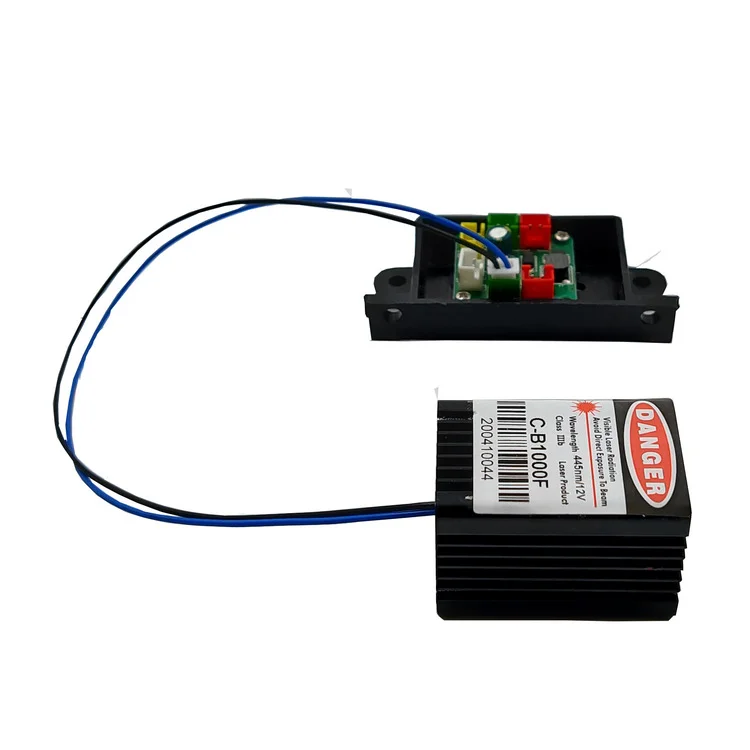

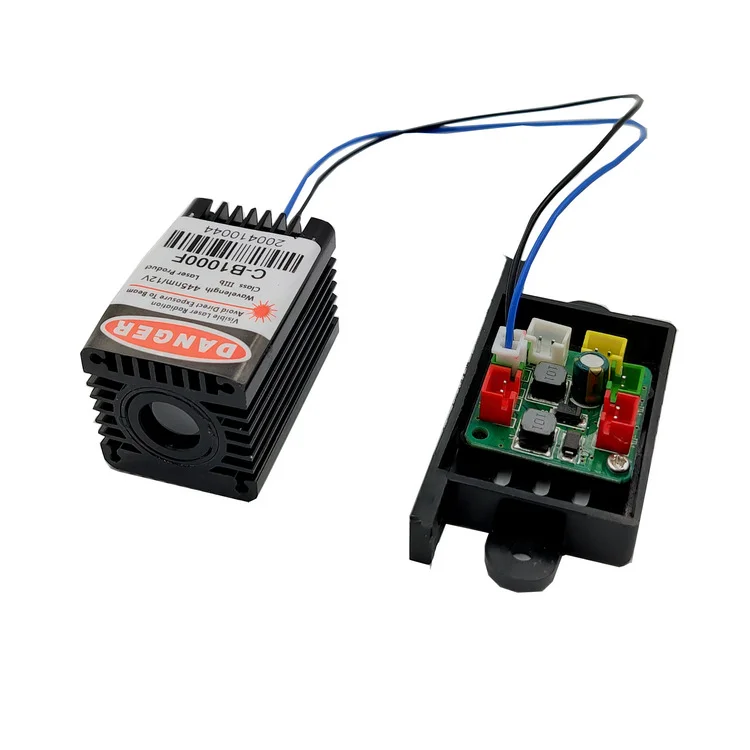

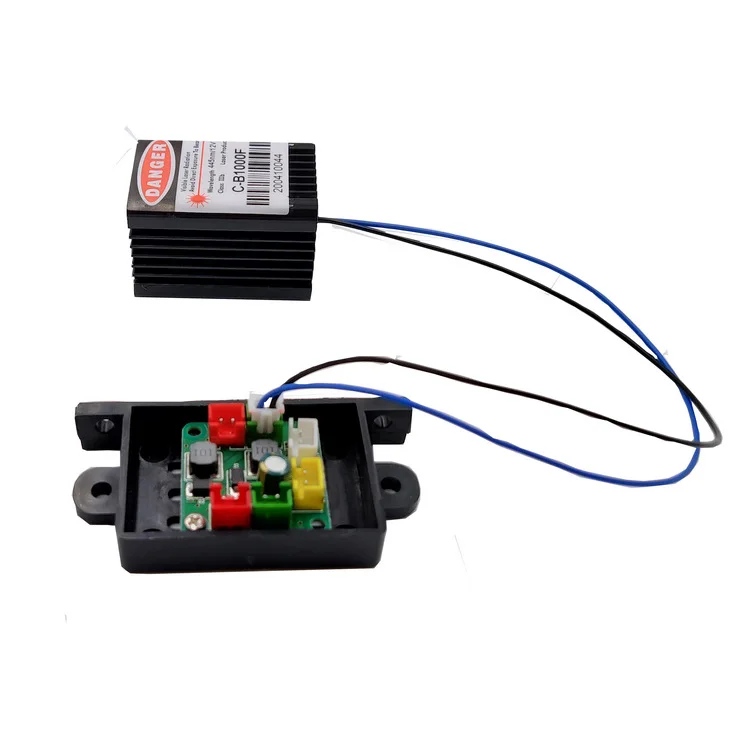

445nm 1000mW Blue Laser Module with Thick Beam

For product customizations, please contact us by mail. We will reply to you as soon as possible.

Price: $58.93

Quantity:

Product Details

This blue laser module has a standard 445nm wavelength, 1000mW power, and high stability. It can work continuously for 4-8 hours, and you don't need to worry about overheating or overvoltage. The laser is thick, bright, and long-distance. If you are looking for a thick-beam blue laser module, this will be a perfect choice.

Specifications
• Laser wavelength: 445nm
• Output power: ≥ 1000mW
• Output stability: ±5%
• Laser class: class 4
• Spot shape: rectangle
• Spot size: φ16mm (thick beam)
• Divergence angle: ≤ 2mrad
• Lens material: professional focusing optical lens
• Input voltage: DC 12V
• LD input voltage: 5V
• LD input current: 1.5A
• Power consumption: 7.5W
• Wire length: 250mm
• Recommended ambient temperature: -10~40℃
• Product size: 30x30x55mm
• Product weight: 63g
• Useful life: >8000 hours

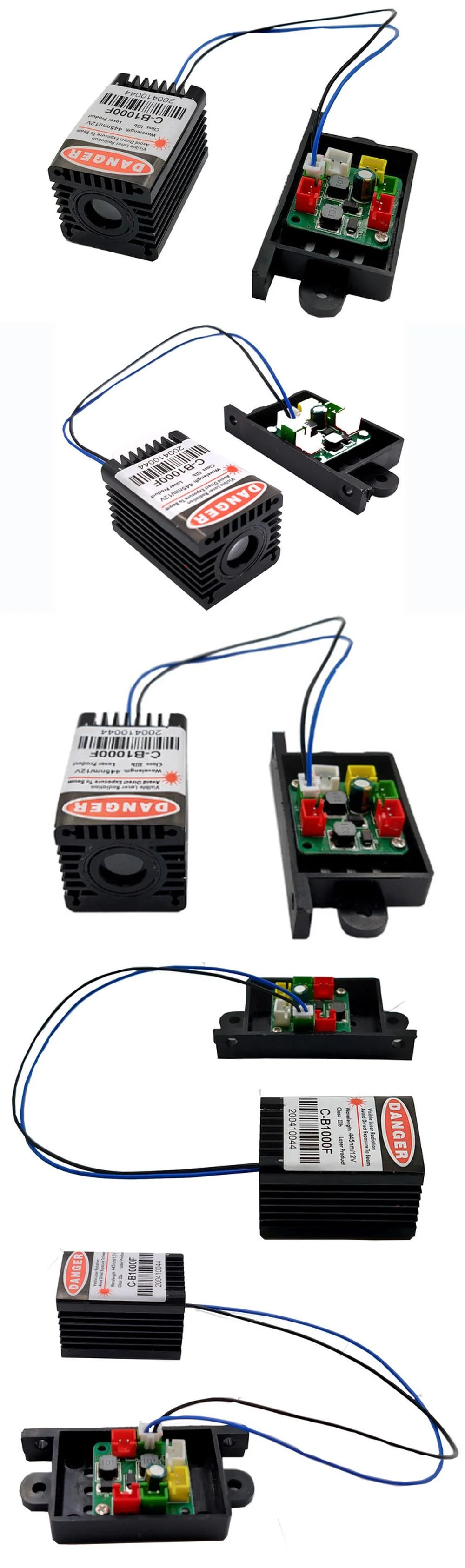

445nm 1000mW Laser Module

Blue Laser Module

Notice
The input voltage is 12V. Overvoltage will cause instantaneous damage to the circuit and module.
