450nm 80mW Thick-Beam Blue Laser Module for Wine Booth and Stage

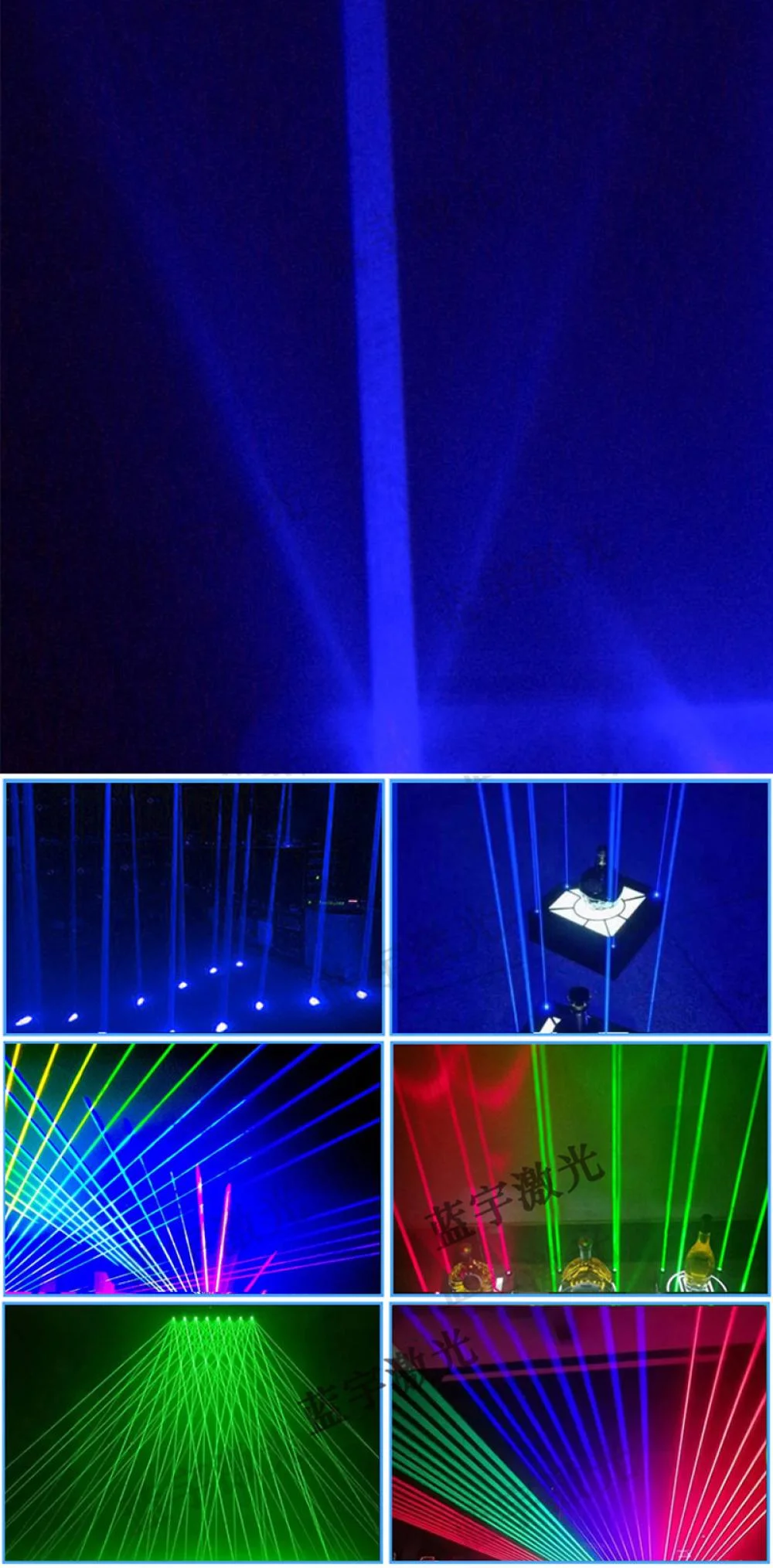

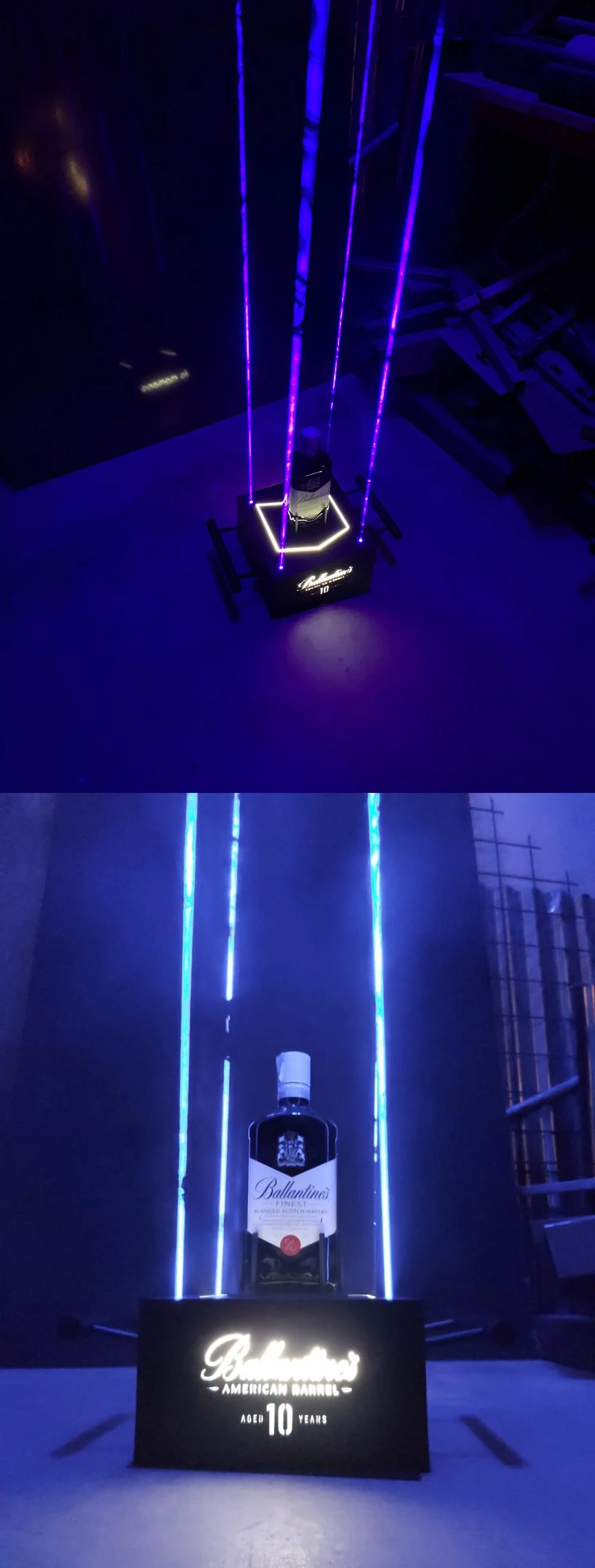

This model is an OEM product we developed for our customers, very suitable for wine stand lights. The cooling system is reliable, so you don't need to worry about overheating. The blue laser beam is thick and bright, which can work continuously. If you're looking for a thick-beam blue laser module for the wine booth or stage lights, this will be a perfect choice.

Specifications
• Laser type: dot
• Output wavelength: 450nm
• Beam type: thick beam
• Output power: 80mW
• Housing material: aluminium
• Working voltage: DC 3.7-5V
• Input current: 500mA
• Useful life: > 8000 hours
• Working temperature: 10℃～40℃
• Storage temperature: -40℃～80℃

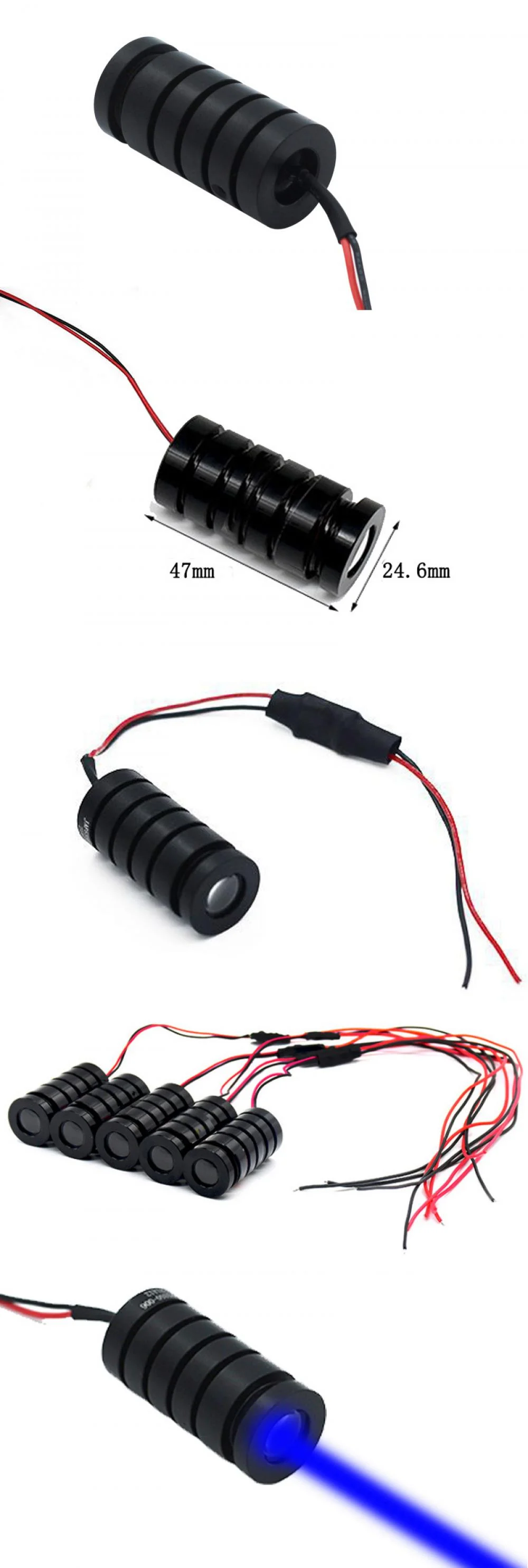

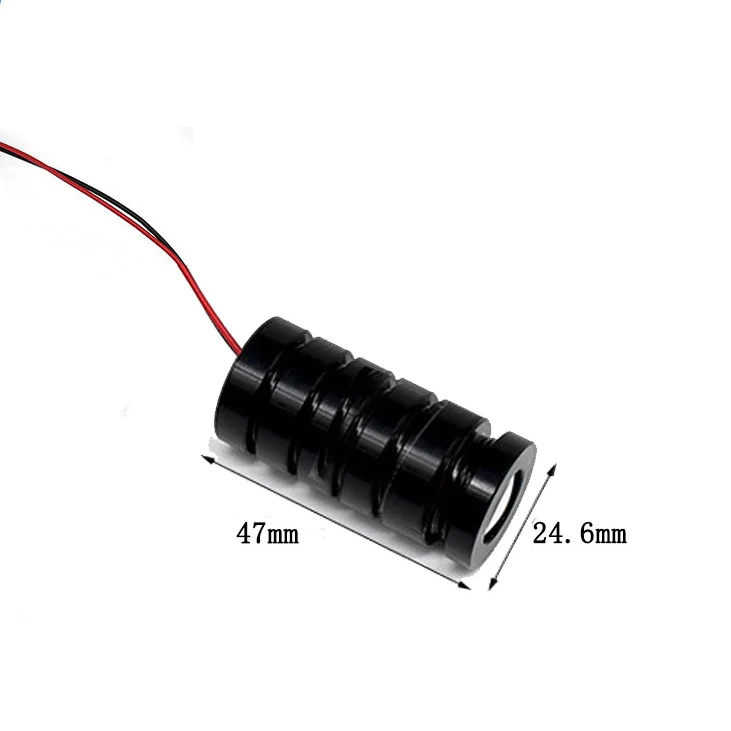

• Dimensions: 24.6 x 47 mm
• Net weight: 32 g

CAUTIONS
1) The laser light emitted by the laser module is likely to injure human eyes, so do not directly gaze at its end surface and wear appropriate safety glasses to prevent laser light when it is working.
2) The laser module needs an appropriate laser driver (PCB). Please set the output voltage to zero when the laser module connects with the power supply. The adjustment of current should be slowly increased or decreased to avoid damage.
3) Keep the device working or store it in a dry environment. The anti-dust grade is over one million to prevent dust inside the lens from affecting the laser dot shape.
4) Working at high temperatures will increase the threshold current, reduce conversion efficiency and speed up the device's ageing.
5) When the output power is higher than the specific operation parameter, it will accelerate the device's ageing.
6) When the operating temperature of the laser diode is over 40 degrees, please do well with heat dissipation.
7) This laser module is an electrostatic-sensitive device. Please ensure to ground yourself or wear an antistatic wrist strap before taking it. Static voltage is less than 1V.
