488 nm Cyan Laser Module

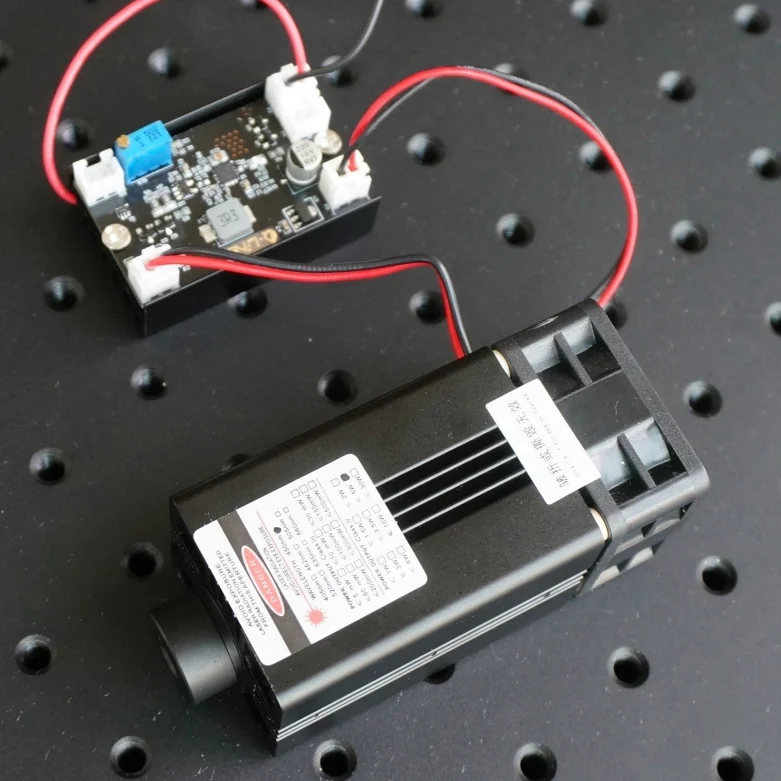

488 nm Cyan Laser Module 100mW 12V with TTL Control

We can provide customers with optoelectronic solutions and design laser modules that meet customer needs.

Price: $125.63

Quantity:

Product Details

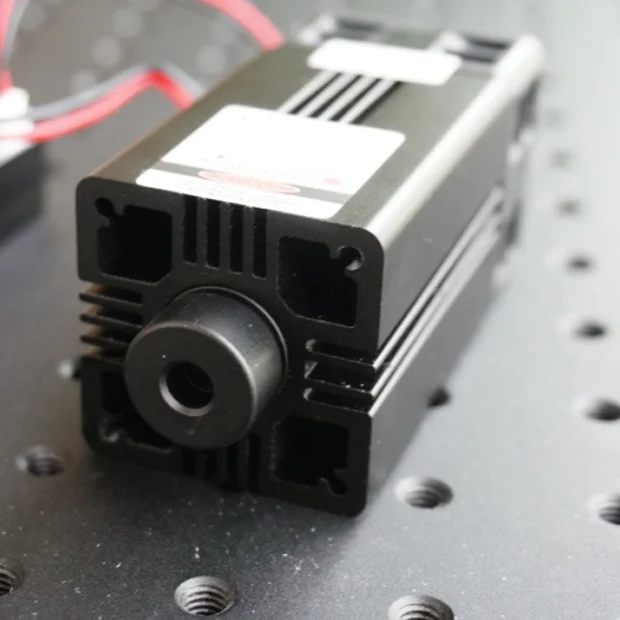

This laser module is a product we developed for OEM customers. The 488nm laser is cyan, and the light is clear and bright. It adopts the laser diode imported from Germany, which has high stability and can work 24 hours a day.

Notes
1) The input voltage is 12V. Overvoltage will cause damage to the circuit and module.
2) If you have any technical questions, please contact us.

Technical Parameters
• Laser type: dot / line / cross

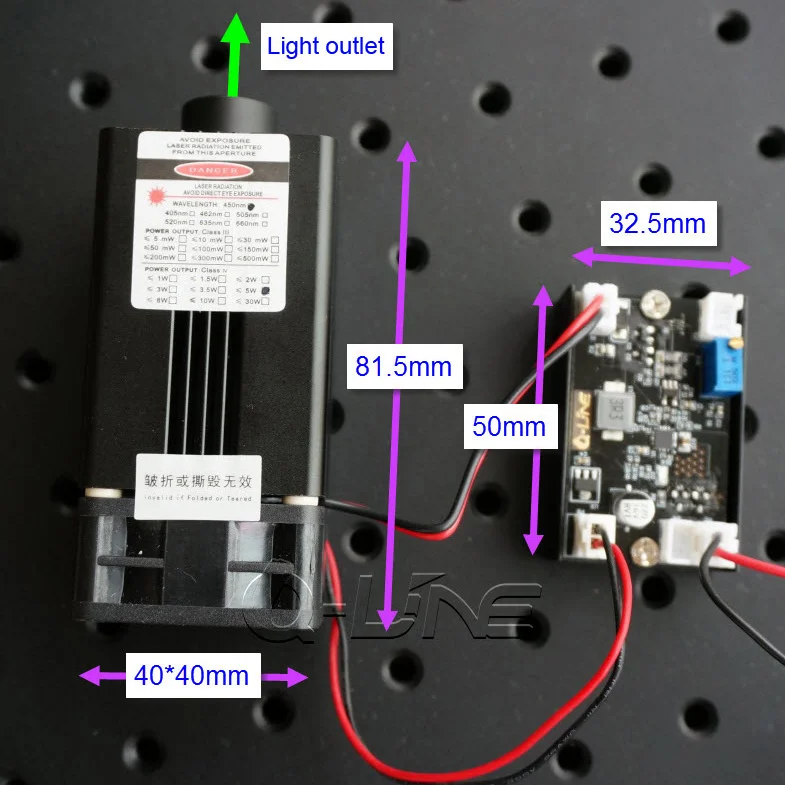

• Laser body size: 69mm x 30mm x 30mm
• Circuit board size: 47.5mm x 31.5mm x 16mm
• Output wavelength: 488 nm (cyan)
• Output power: 100mW

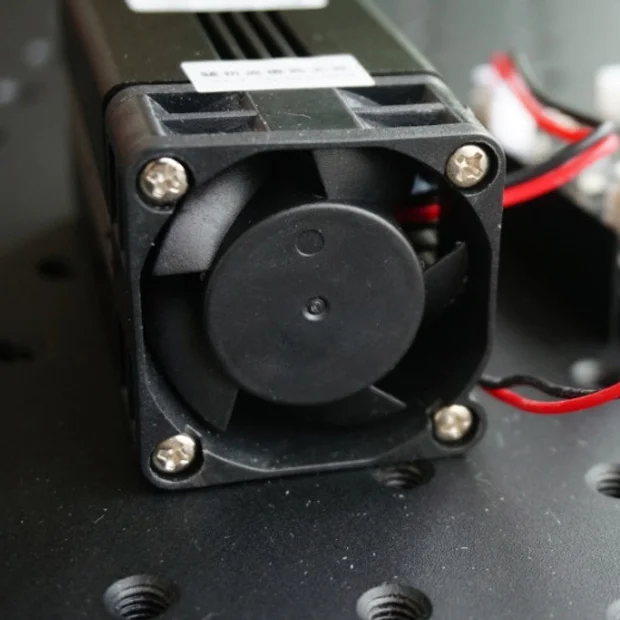

• Cooling method: cooling fan
• TTL control: available (0-5V)
• Housing material: aluminum
• Circuit control: constant current
• Reverse polarity protection: available
• Working voltage: DC=12V (10-14V)
• Warm-up time: none
• Working temperature: -10℃~+40℃
• Storage temperature: -10℃~+40℃
