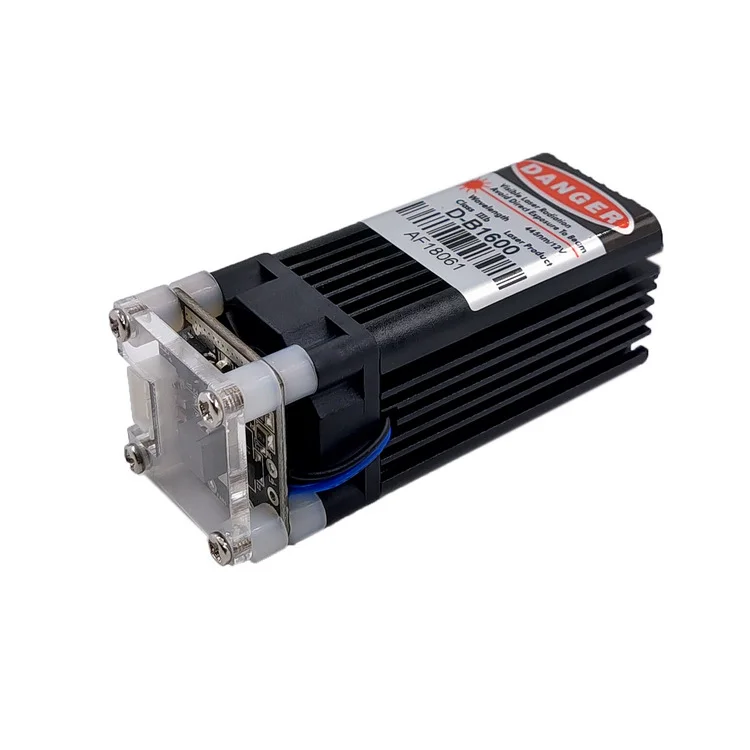

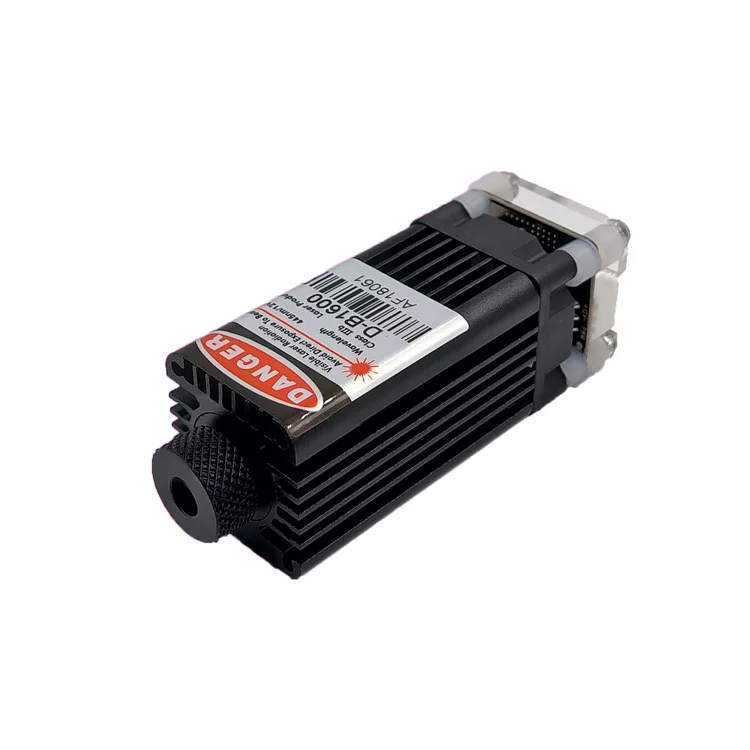

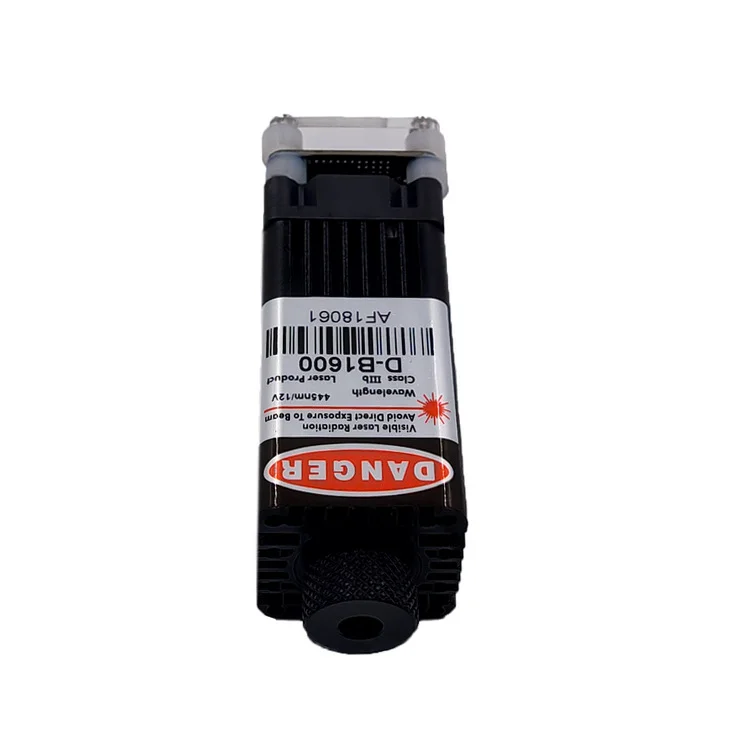

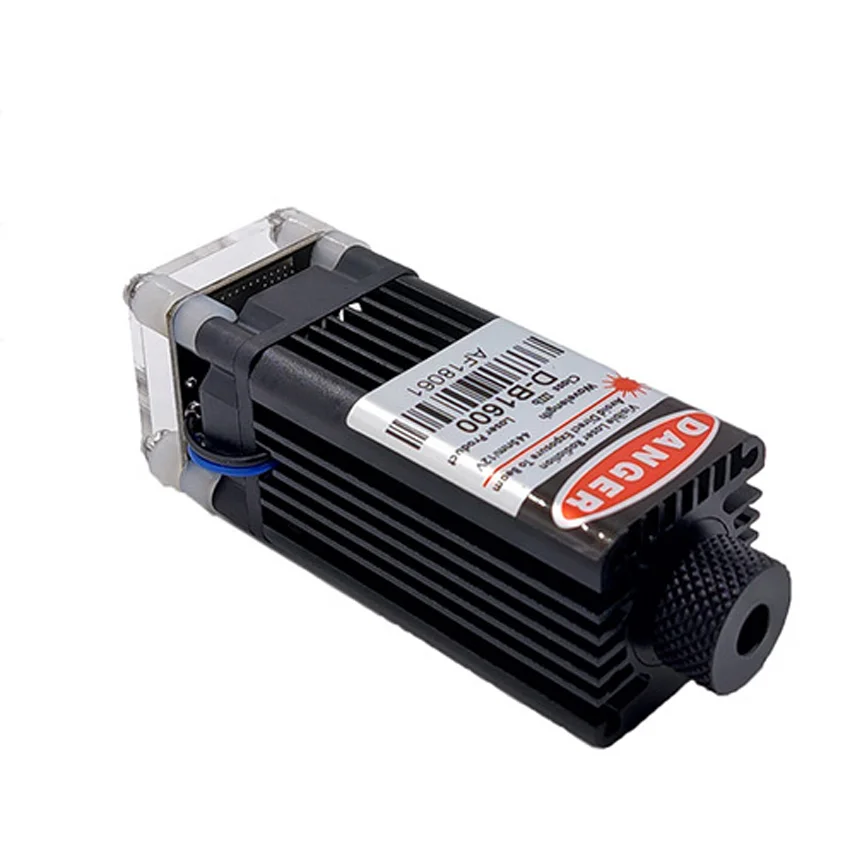

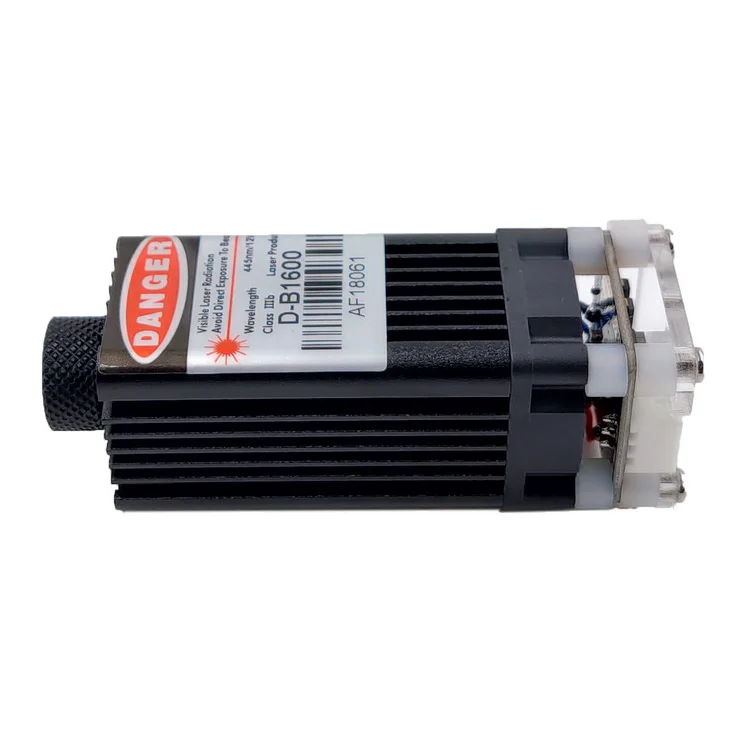

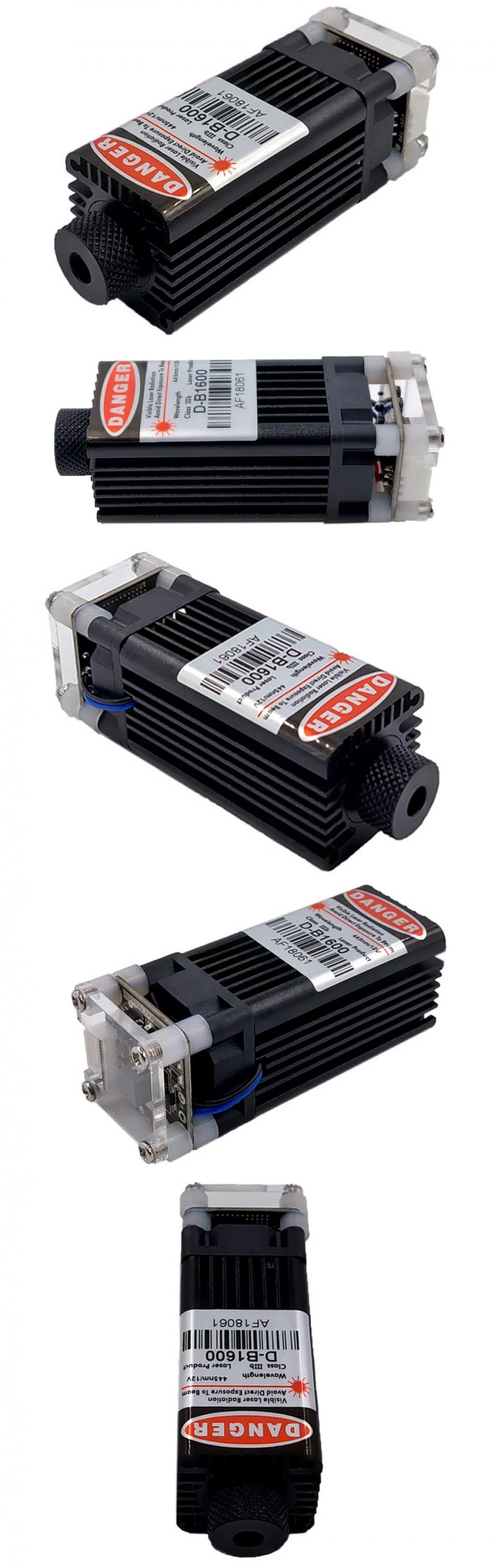

500mW 450nm Blue Laser Module 12V/24V with TTL/PWM

This 450nm laser module adopts an imported diode and sturdy structure design, with bright laser spot, low divergence angle, and good collimation. It perfectly integrates the cooling system, driver and laser, which can work stably for 24 hours. If you are looking for a powerful blue laser module with TTL/PWM modulation, this will be a good choice.

Specifications
• Laser wavelength: 450nm (blue light)
• Laser type: dot (adjustable focus)
• Output power: > 500mW
• Output stability: ±5%
• Laser class: class 4
• Focal length range: 2~8cm
• Focus size: 0.2mm
• Lens material: professional focusing optical lens
• Power board input voltage: DC 12V/24V
• LD input voltage: 5V
• LD input current: 1.7A
• Control mode: TTL/PWM control
• Control input voltage range: 0~5V
• Working frequency: ≤30KHz
• Recommended ambient temperature: -10~40℃
• Product size: 30*30*85mm
• Product weight: 110g
• Useful life: >8000 hours

Notes
The input voltage is 12V/24V. Overvoltage will cause instantaneous damage to the circuit and module.
