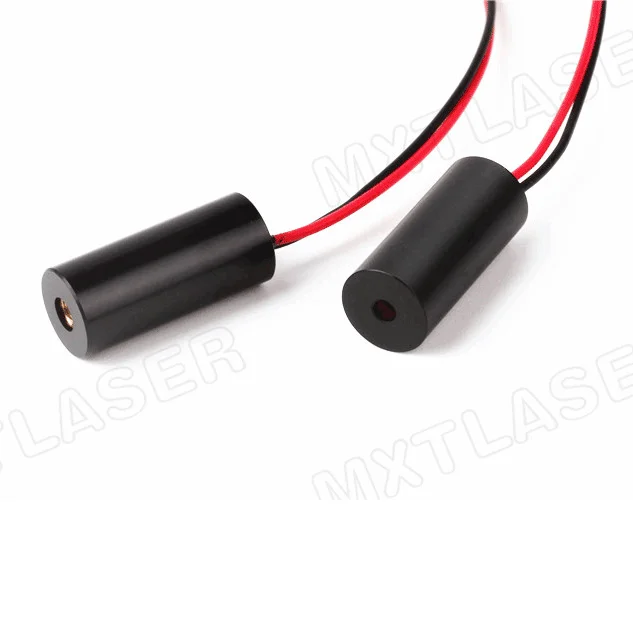

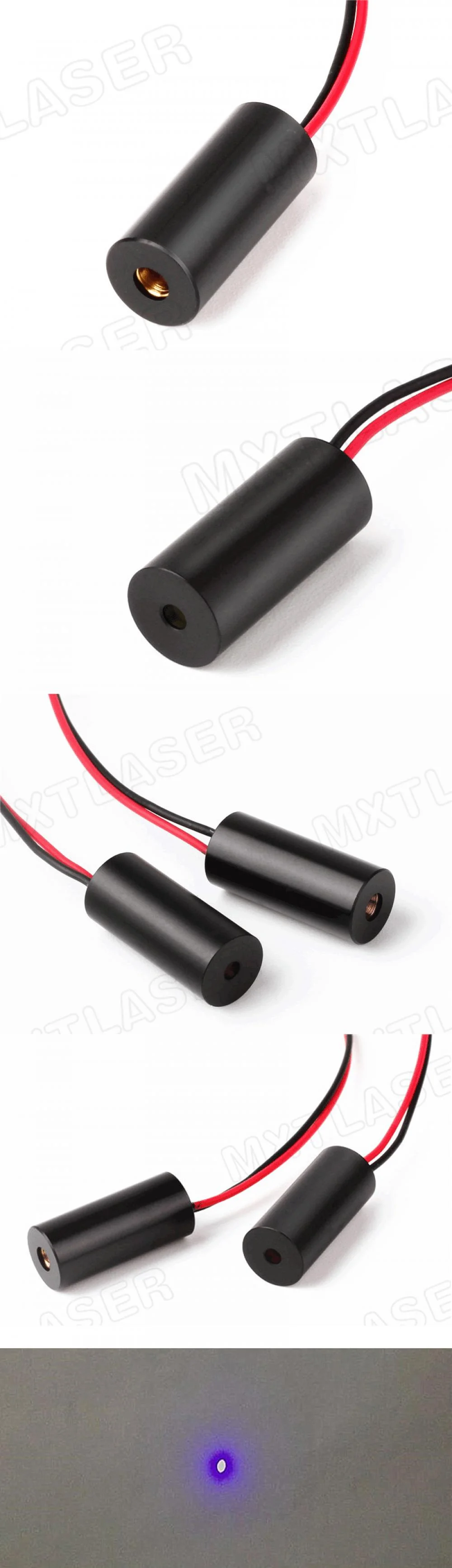

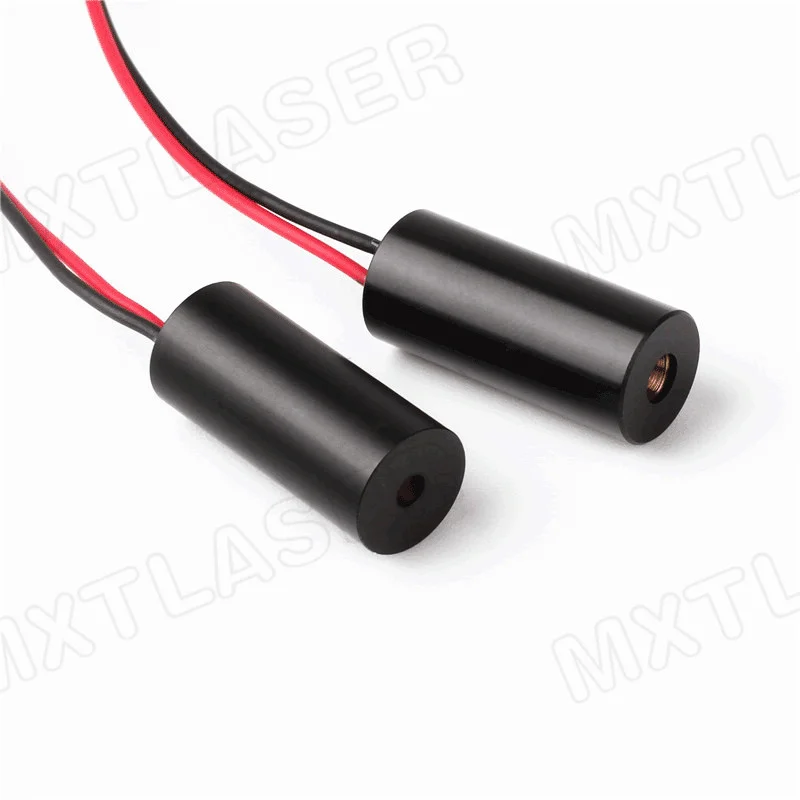

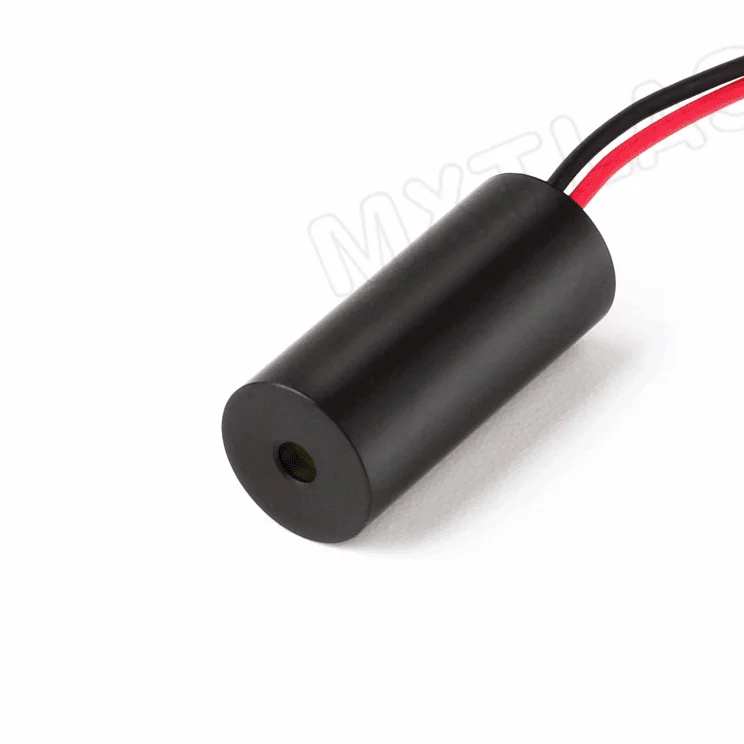

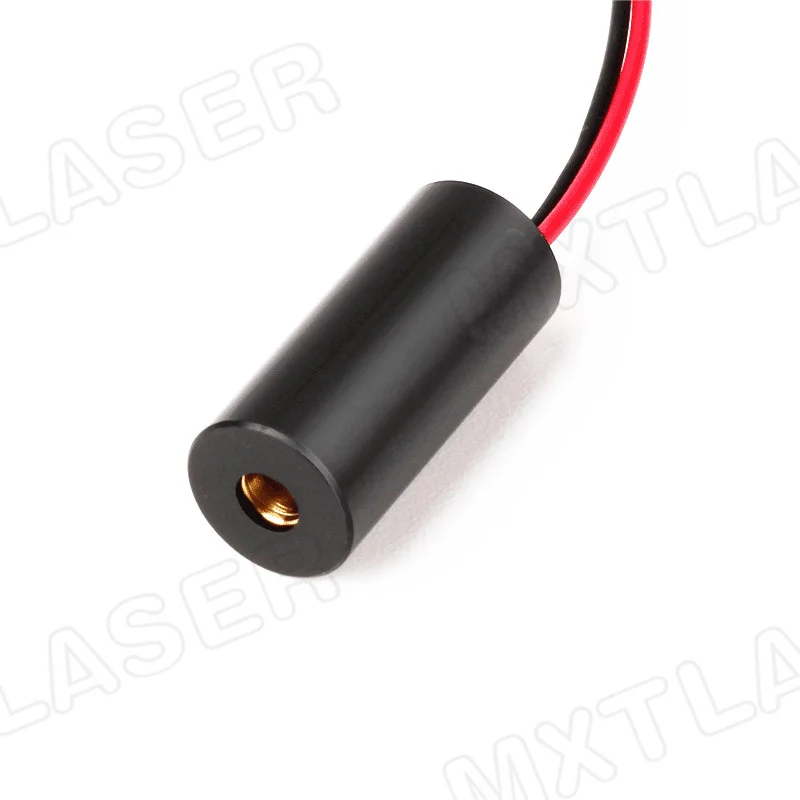

780nm Dot Infrared Laser Module 1mW / 5mW / 10mW / 20mW / 40mW

If you have any questions, please contact us via email. We will reply to you as soon as possible.

Product Details

This infrared dot laser module has a standard 780nm wavelength, small size, and high stability. It can be used in barcode scanners, levels, levelling instruments, laser rangefinders, thermometers, radars, sweeping robots, security alarms, industrial detection, laser guidance, etc. We offer the lowest wholesale price.

Specifications
• Wavelength: 780nm (infrared)
• Laser type: dot
• Power: 1mW / 5mW / 10mW / 20mW / 40mW
• Spot size: 6-8mm from 10 meters
• Housing material: copper
• Lens material: glass
• Operating voltage: DC 3-5.5V
• Working current: 10-42mA, 50mA MAX.
• Drive mode: APC (automatic constant power control)
• Power stability: < 5%
• Beam divergence angle: < 0.7
• Useful life: > 8000 hours
• Operating temperature: -10°C ~ 50°C
• Storage temperature: -40°C ~ 85°C
• Dimensions: ⌀8 x 18 mm
