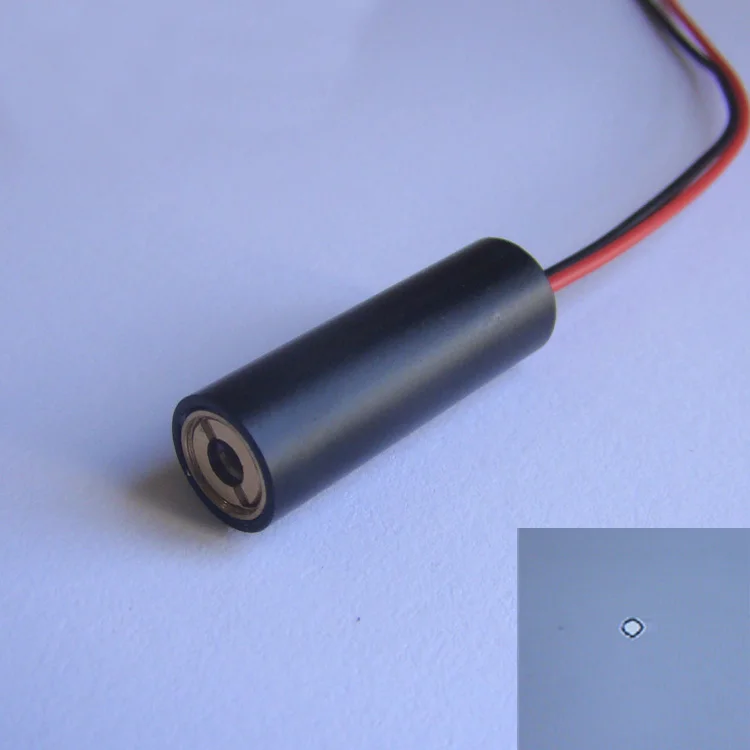

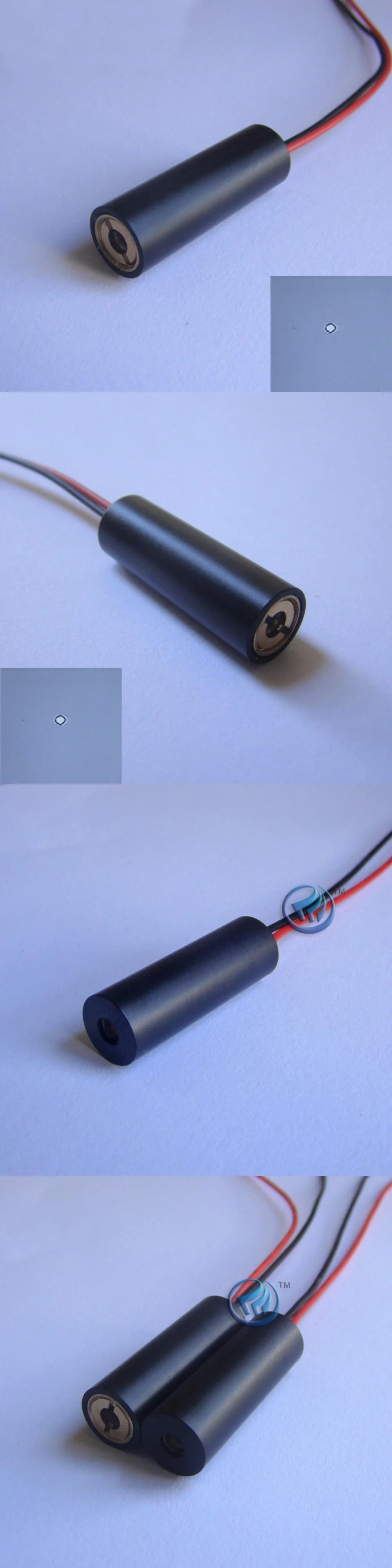

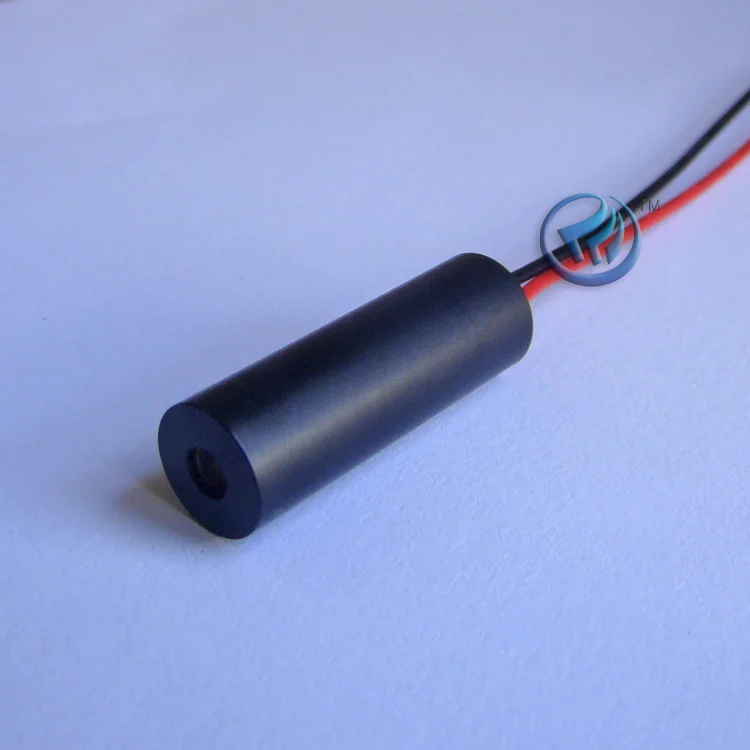

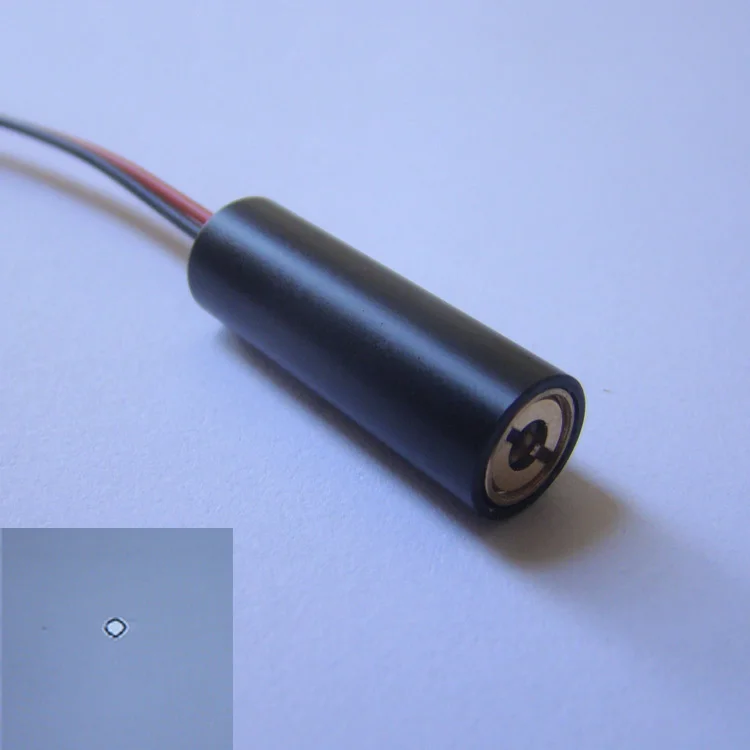

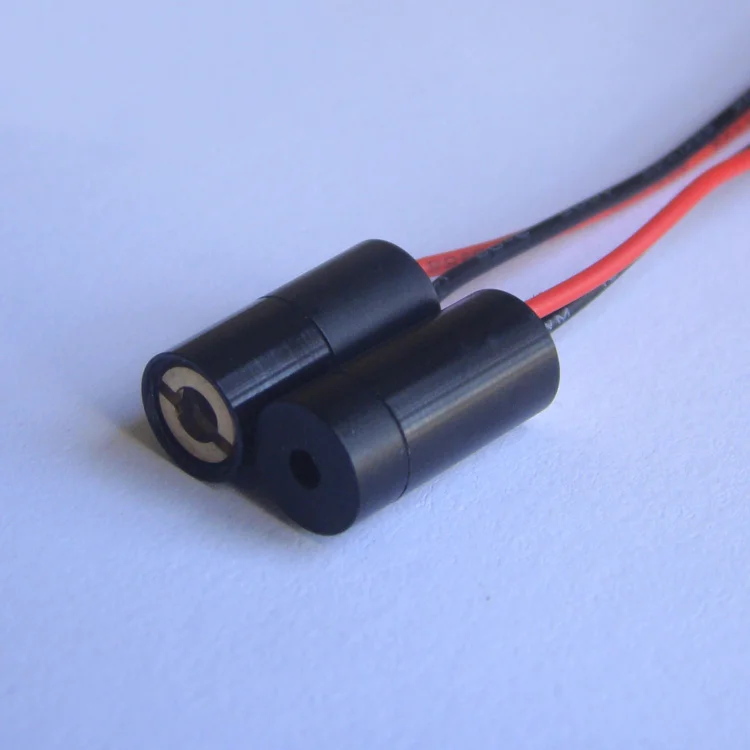

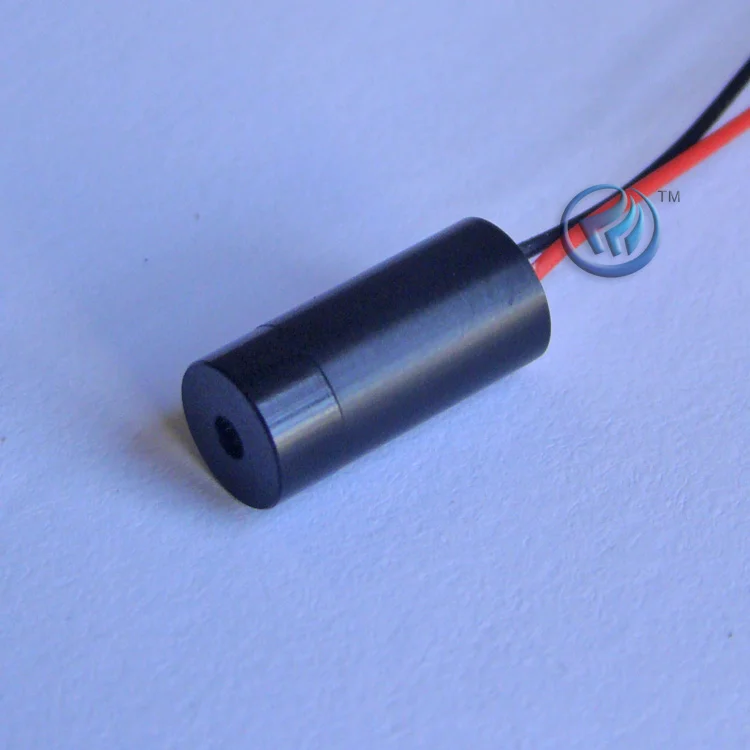

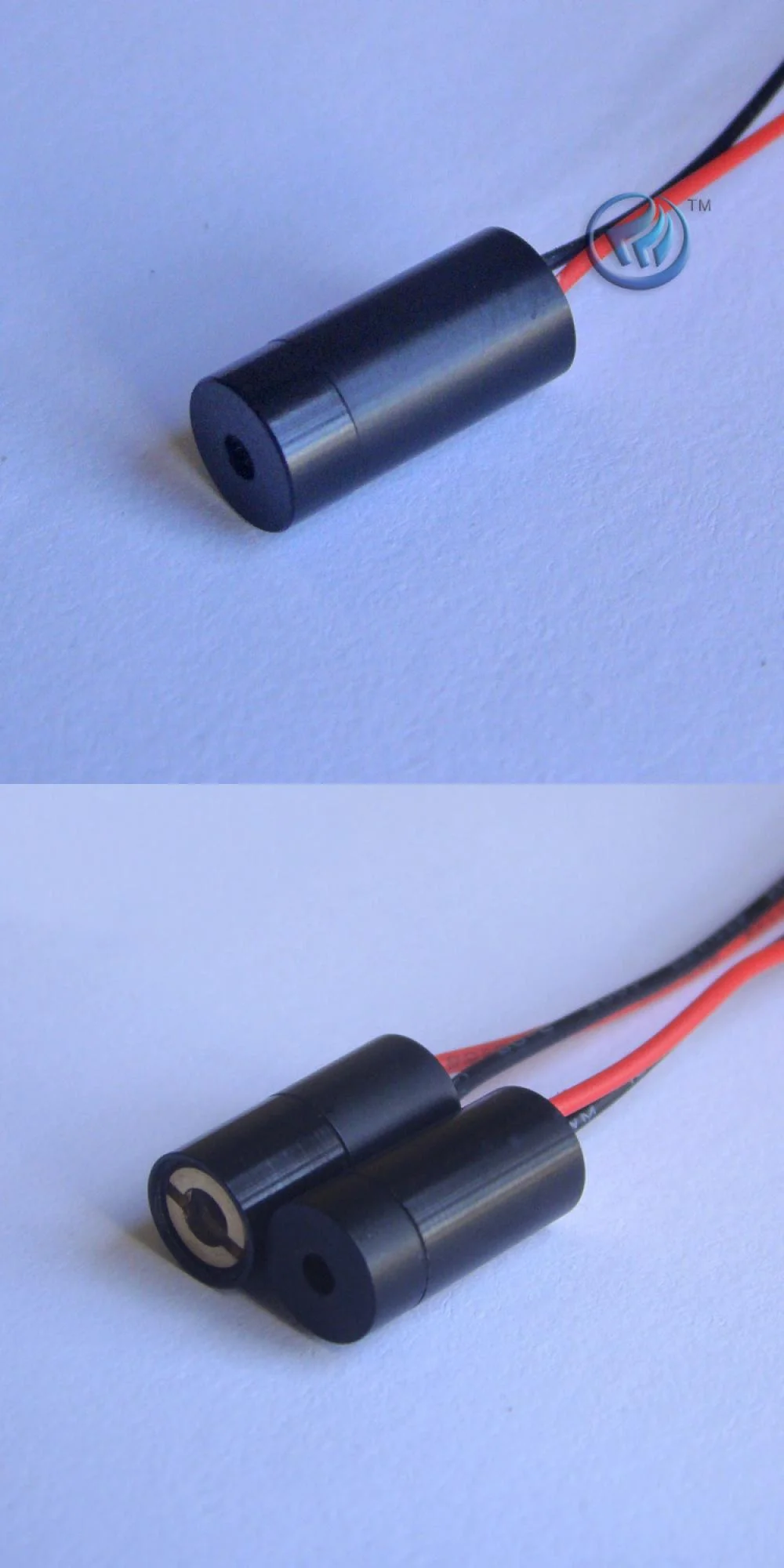

850nm Infrared Laser Module 1-100mW

This infrared laser module is one of our OEM products. It has a standard 850nm wavelength and 1-100mW power. The size, operating voltage and output power are all customizable - you can choose according to your needs. For product customizations, please contact us via email. We will reply to you as soon as possible.

Buying Tips
1) The default operating voltage is 3V. 5V is customizable.
2) The module size can be customized: Φ9×26mm, Φ10x22mm, Φ10x30mm, Φ12x30mm, Φ12x50mm (size customization is free). We will send Φ10x30mm by default.

Specifications
• Laser shape: dot
• Wavelength: 850nm±5nm
• Dimensions: Φ10x30mm (customizable)
• Output power: 1-100mW
• Focus mode: fixed/adjustable focus
• Useful life: > 5000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Operating voltage: DC= 3.0V
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
