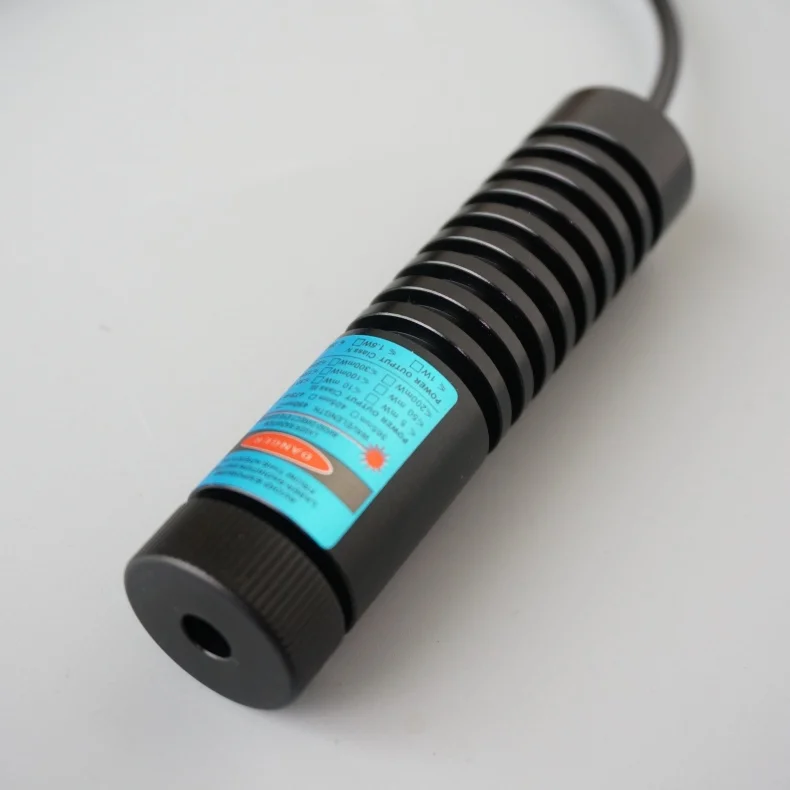

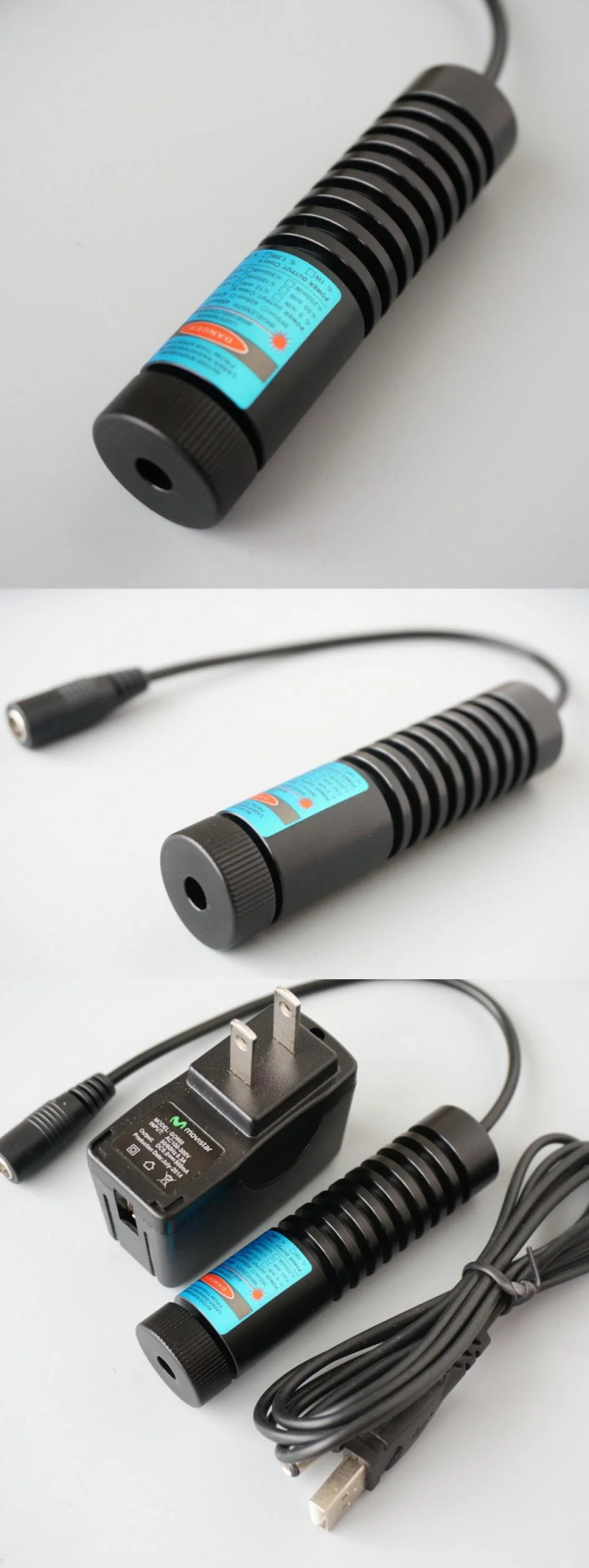

Adjustable Focus Blue Light Laser Module 445nm 100mW-1500mW

This laser module can be used in various power tools, spirit levels, locators, rangefinders, laser liners, etc. The blue laser light is visible even during the day. A power adapter is included, and you can use it directly on a 220V outlet. For product customizations, please contact us by email. We will reply to you within 24 hours.

Notes:
If you need to keep this laser module working continuously, please choose 100mW. For the 500mW/1000mW/1500mW version, it cannot work continuously for more than 10 minutes.

Technical Parameters
• Dimensions: φ22*90mm
• Laser type: dot/line/cross
• Output wavelength: 445nm (blue)
• Output power: 100mW/500mW/1000mW/1500mW (the power is customizable)
• Adjustable focus: yes
• Finish: anodized black
• Housing material: aviation aluminum
• Circuit control: ACC
• Reverse polarity protection: yes
• Working voltage: DC=3-5V (100mW), DC=12V (500mW/1000mW/1500mW)
• Working current: I < 1600mA
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: +10℃～+40℃
• Product net weight: 120 g
• Structure: laser part + lens + cooling housing

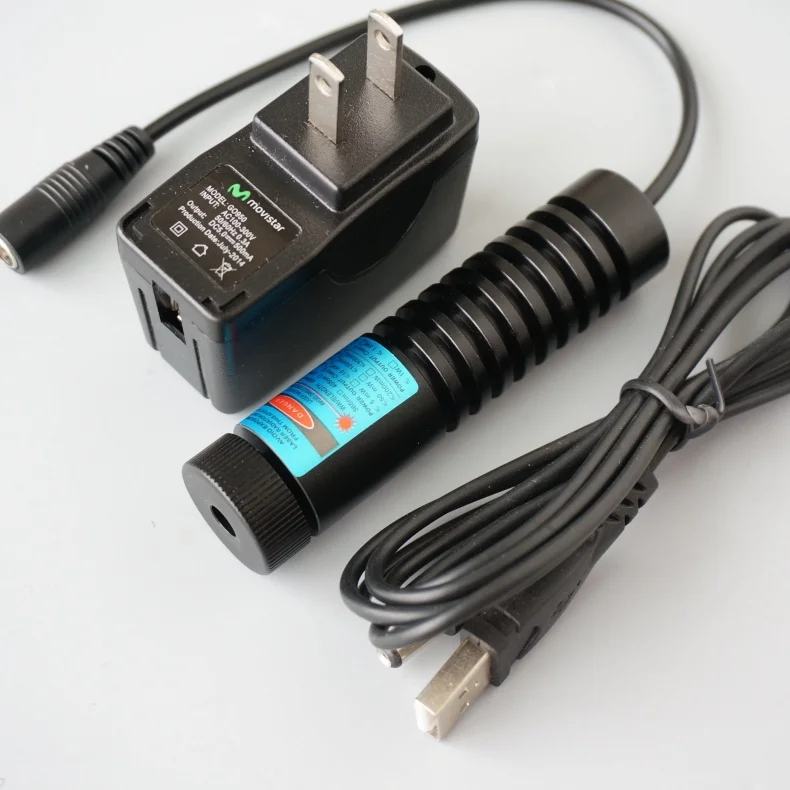

Packing List
• 1 x Blue Light Laser Module
• 1 x 5V/12V Power Adapter
