White Laser Module

Cheap and Powerful White Laser Module for Tactical Flashlight

For product wholesale and customization, please contact us by mail. We will reply to you as soon as possible.

Price: $169.83

Quantity:

Product Details

This white laser module uses inorganic phosphor technology to convert blue light into white light. It is ideal for car lights, flashlights, stage lights, gun lights, drones, etc. The ultra-high brightness is perfect for tactical flashlights. With a bifocal lens, it can also be used in car headlights. If you are looking for a cheap and powerful white laser module, this will be a perfect choice.

Key Features
• This white light module adopts the imported laser part.
• Working principle: high-energy blue laser excites fluorescent crystals to produce white light.
• The luminous intensity reaches 540cd/mm2.
• The useful life is up to 10,000 hours.
• It has no moving parts, with high stability and high shock resistance.
• It is driven by low voltage, with good stability.
• With full coverage of the visible spectrum, no IR or UV components.
• The brightness is adjustable, with amplitude modulation and frequency modulation.
• The high conversion efficiency makes this white laser brighter than many other similar products.

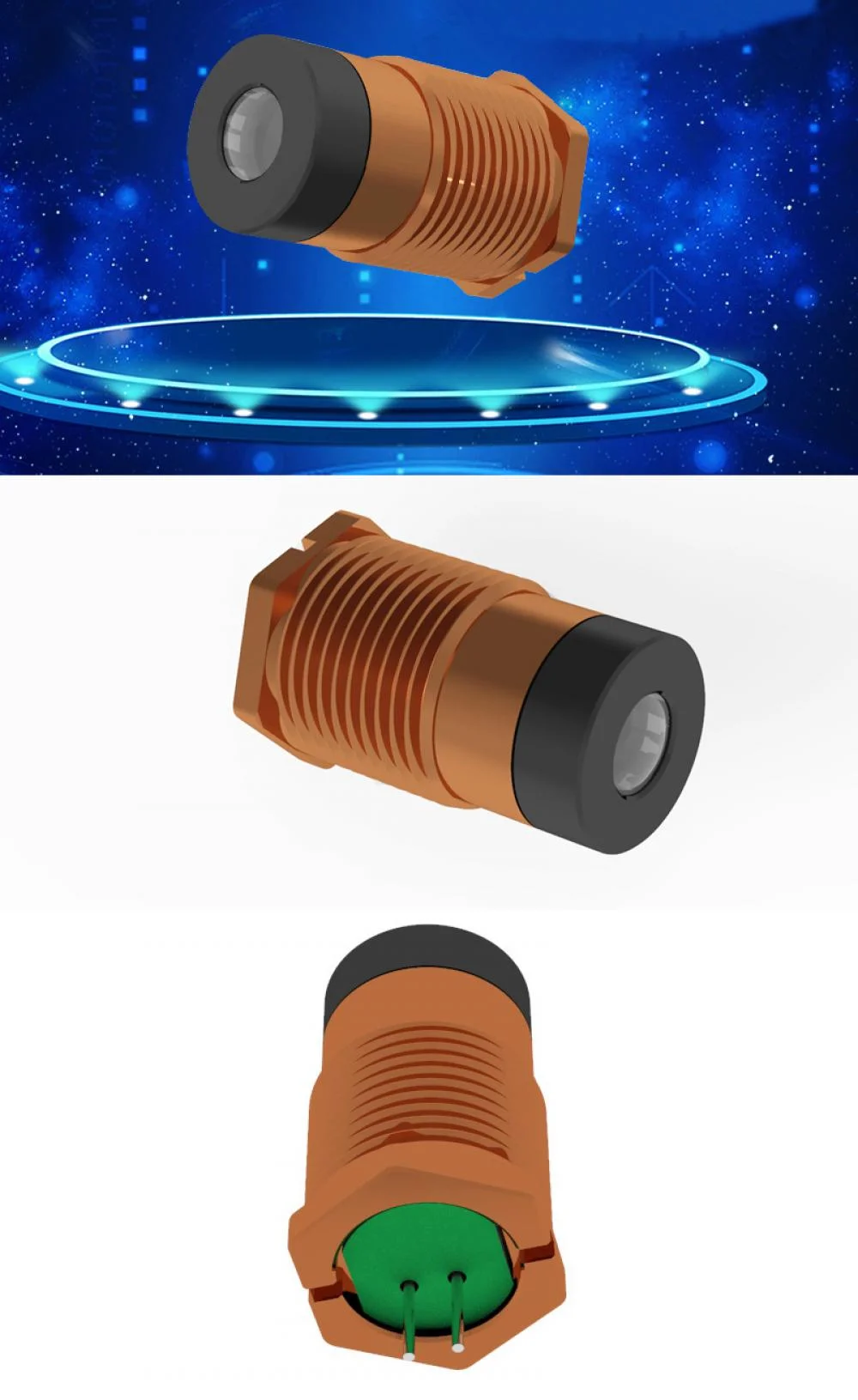

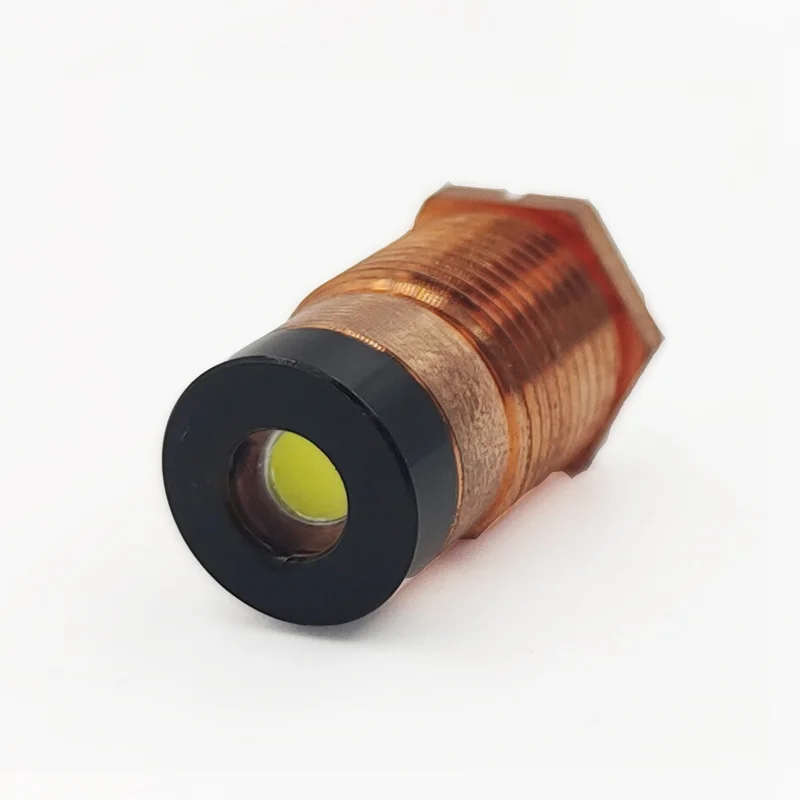

White Laser Module

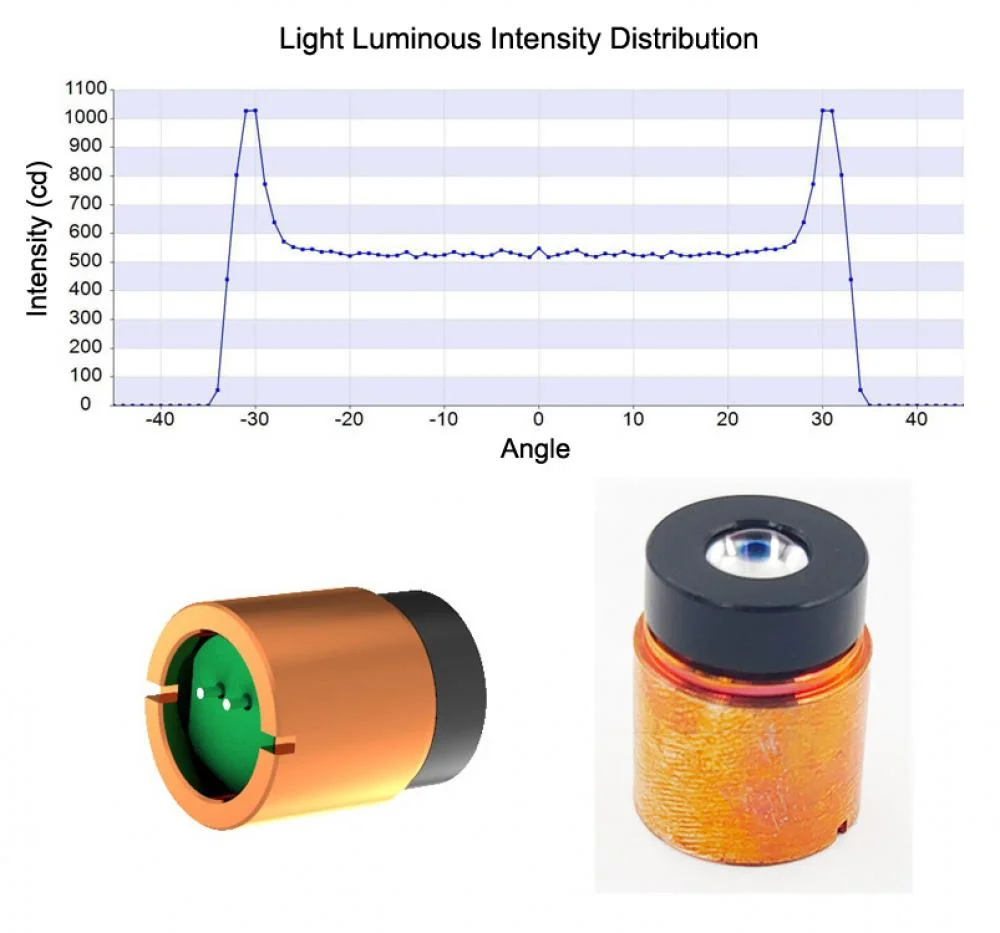

Cheap White Laser Module

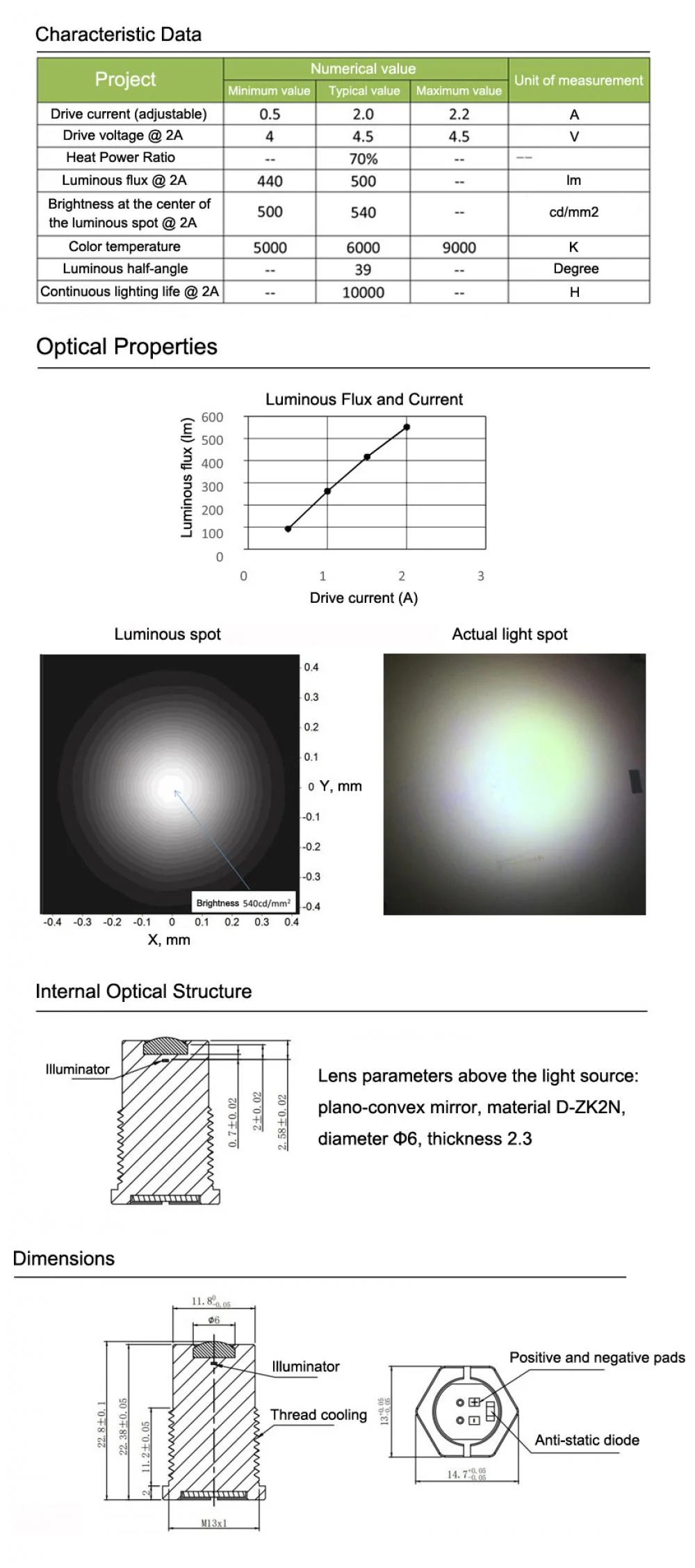

Powerful White Laser Module

Requirements of heat dissipation
1) The radiator must be in good contact with the thread to ensure that the heat of the light source can be quickly conducted to the radiator.
2) If necessary, the radiator needs to be cooled by a fan to ensure that the temperature is not higher than 60 °C.
3) Calculation of calorific value: calorific value = driving electric power x heating energy ratio = driving electric power x 70%.

Instructions for use
1) Drive interface: You can weld the positive and negative leads at the positive and negative pads.
2) Driving mode: The laser must be driven by a constant current mode, using a constant current circuit within 4.3-5V, and ensure that the output voltage at any time (including the instantaneous voltage) does not exceed the maximum voltage. Please pay attention to prevent electrostatic damage during transportation. Due to the voltage loss, the maximum voltage can be appropriately increased.
