Focusable Green Laser Module 5V 515nm 50mW / 100mW / 150mW

For product customizations, please contact us by mail. We will reply to you as soon as possible.

Product Details

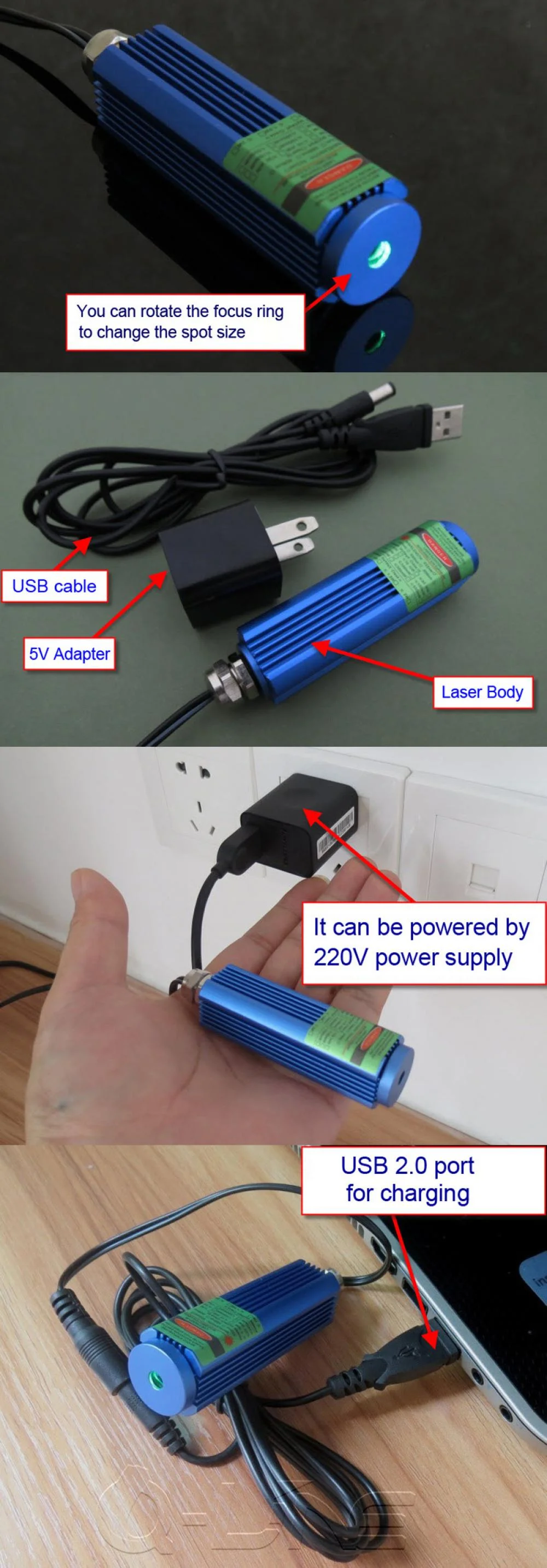

This green laser module is one of our new products, with sturdy housing, thermal design, and high power. It has an integrated cooling system, which can work continuously, and you don't need to worry about overheating. It is very convenient to use, and you can connect an external power supply with the DC5521 interface (a 5V adapter is available).

Specifications

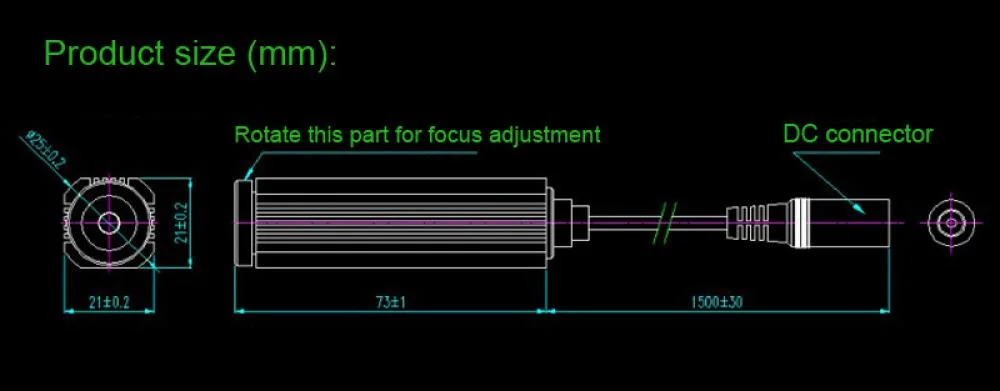

• Dimensions: 21 x 21 x 73 mm
• Wavelength: 515nm ± 5nm
• Power: 50mW /100mW / 150mW
• Laser shape: dot
• Beam angle: < 1.5mrad
• Surface treatment: anodized blue
• Housing material: aviation aluminum
• Connection interface: DC5521
• Circuit control: ACC Line
• Reverse polarity protection: yes
• Working voltage: DC = 5V
• Working current: I < 250mA
• Warm-up time: none
• Focusable: yes
• Working temperature: 0℃～+60℃
• Storage temperature: -40℃～＋85℃
• Structure: laser tube + lens + cooling system
