Focusable Line/Cross Laser Module 405/450/505/520/638/660 nm

Product Details

This laser module is one of our OEM products. Different wavelengths are optional: 405nm / 450nm / 505nm / 510nm / 520nm / 638nm / 660nm. It can work continuously, and the output is very stable. The uniform line/cross laser is ideal for industrial applications. If you are looking for a small, professional, and stable line/cross laser module, this will be a perfect choice. For OEM, ODM, and wholesale, please contact us via email. We will reply to you in 24 hours.

Key features:
1) This laser module is power saving with low heat generation and no need for preheating
2) It can work continuously in the temperature range of 0-60℃.
3) It comes with the imported semiconductor laser diodes from OSRAM.

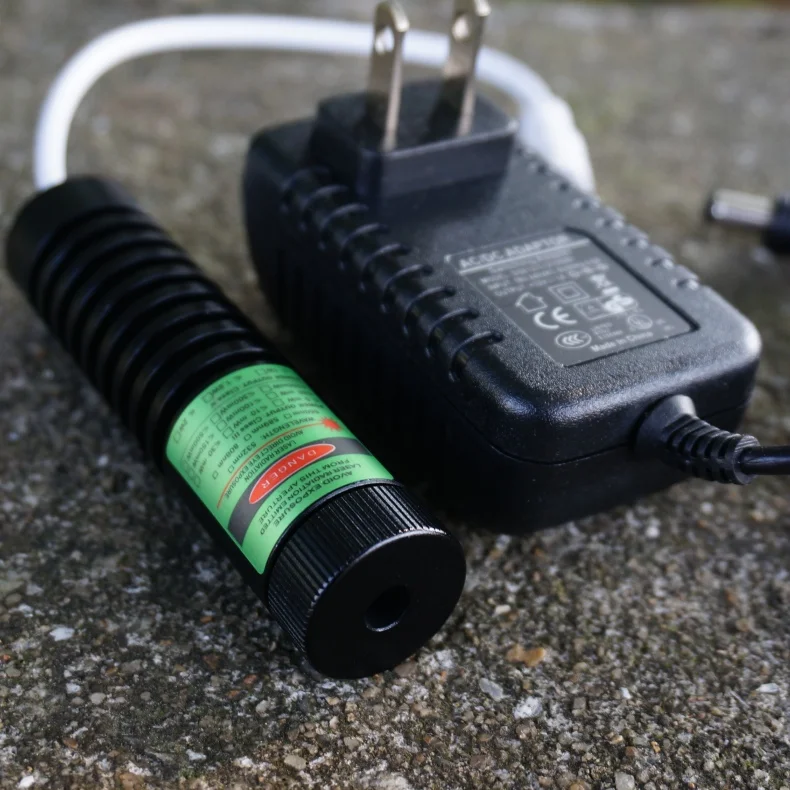

4) It adopts the 5V voltage, with a power adapter.
5) With the adjustable focus, you can adjust the width of the line/cross.

Tips
The 12V input voltage is customizable (with the same price). Please contact us if necessary.

Specifications

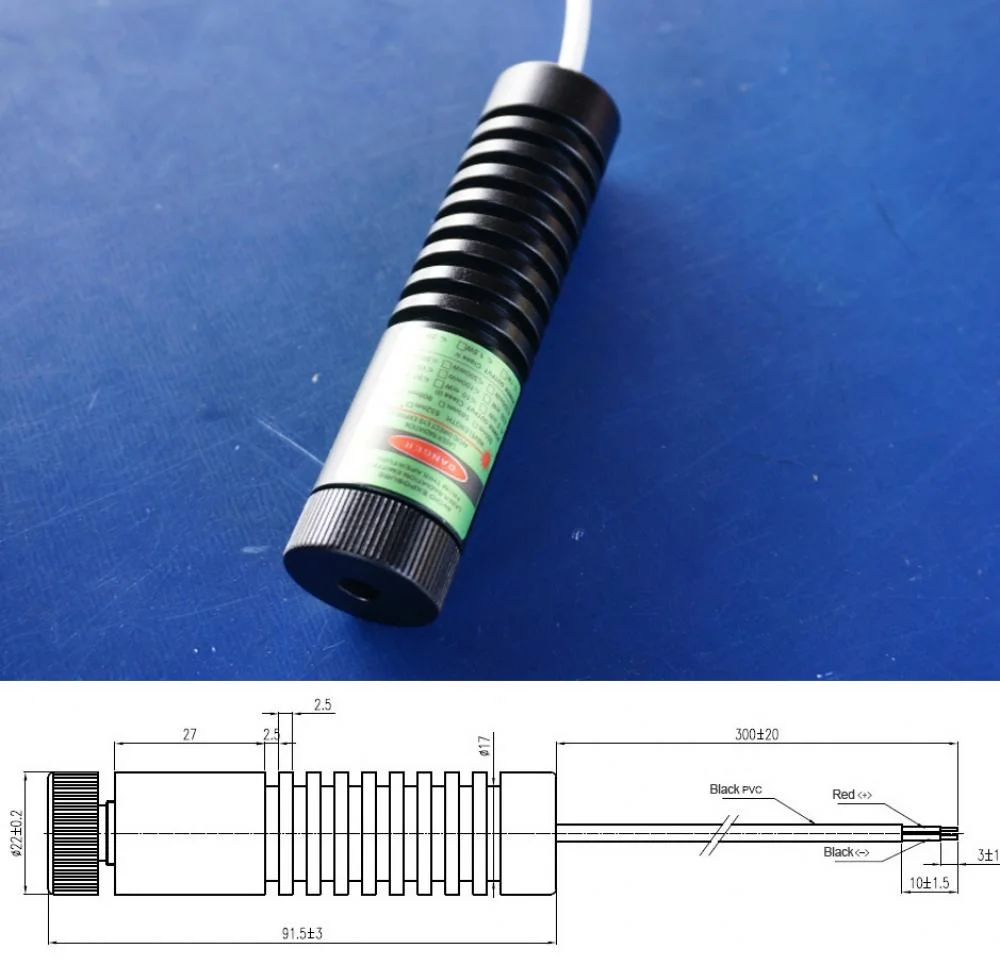

• Dimensions: 22mm x 91mm
• Wavelength: (405/450/505/510/520/638/660)±5nm
• Beam color: green/blue/red/violet
• Output power: 30-500mW
• Laser type: line/cross laser module
• Focusable: yes (adjustable focus)
• Surface treatment: anode black
• Housing material: aviation aluminum
• Circuit control: buck constant current
• Reverse polarity protection: available
• Working voltage: DC=5V (12V is customizable)
• Working current: 50mA < I < 300mA
• Warm-up time: no
• Working temperature: 0°C ~ +55°C
• Storage temperature: -40°C ~ +80°C
• Structural features: laser tube + lens + heat sink
