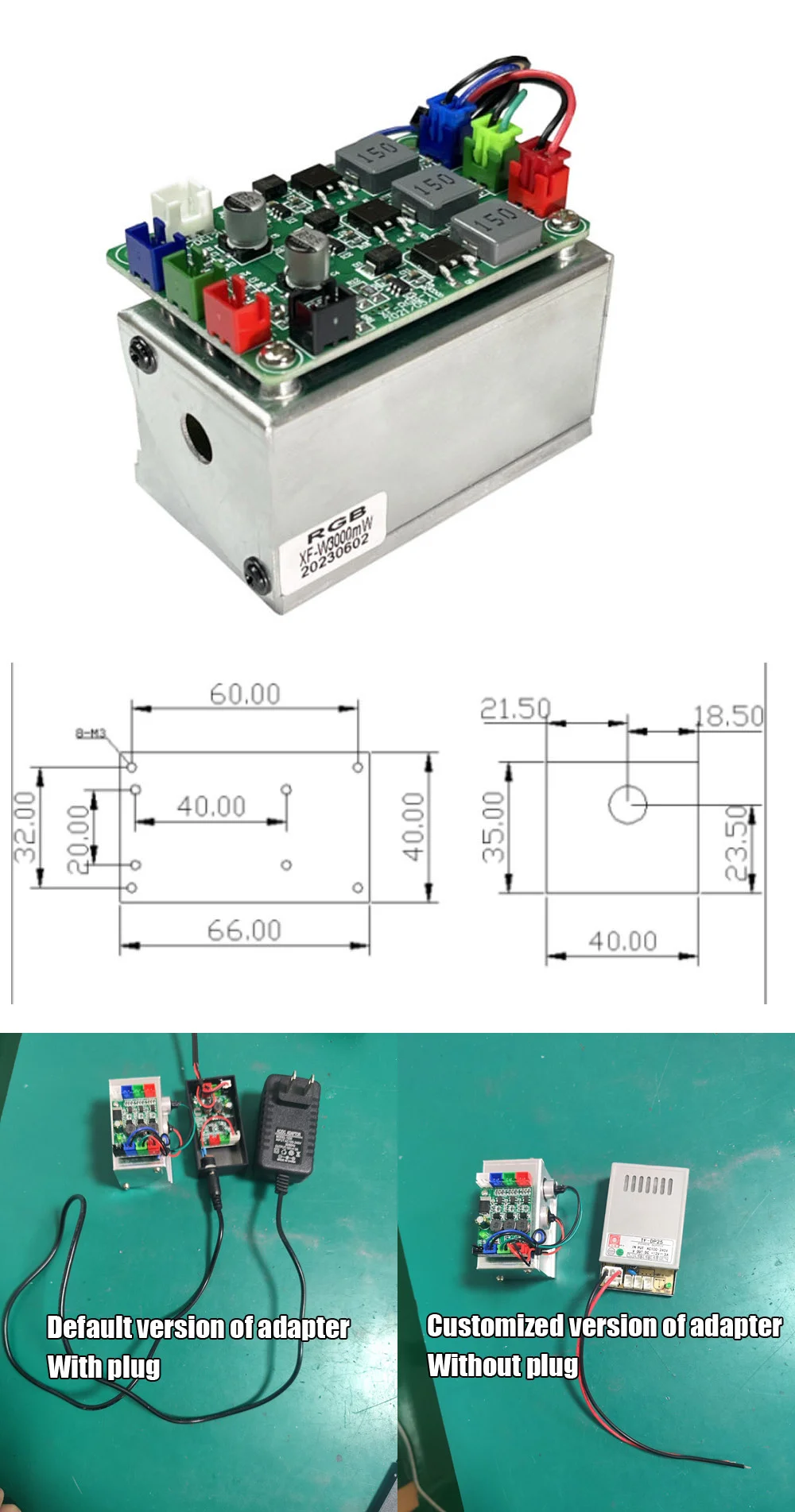

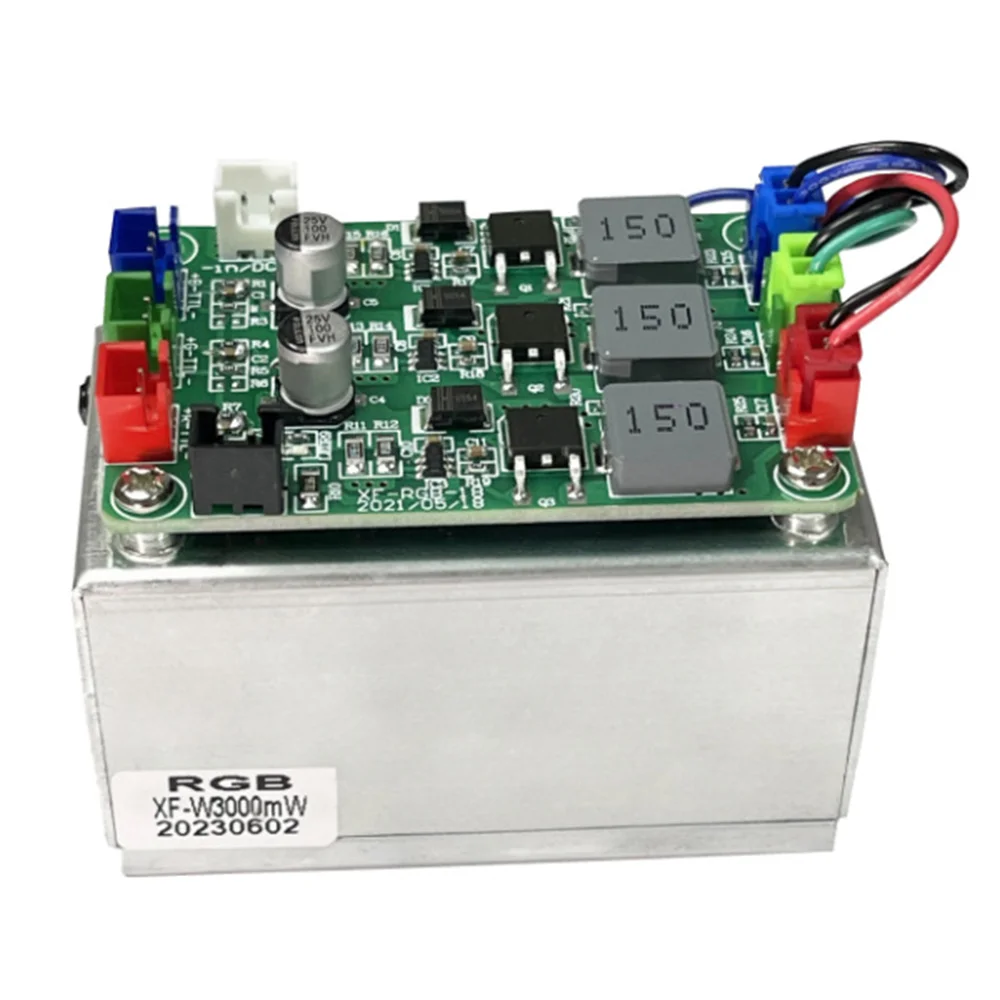

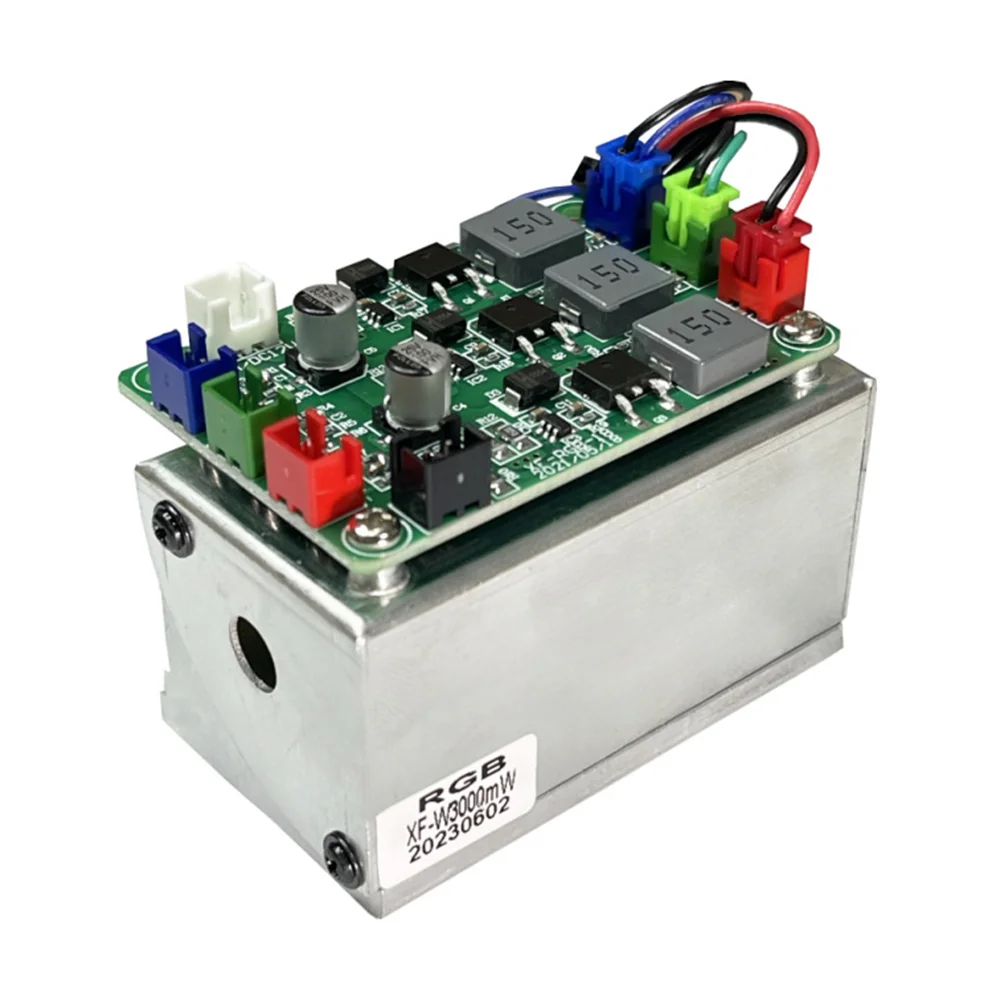

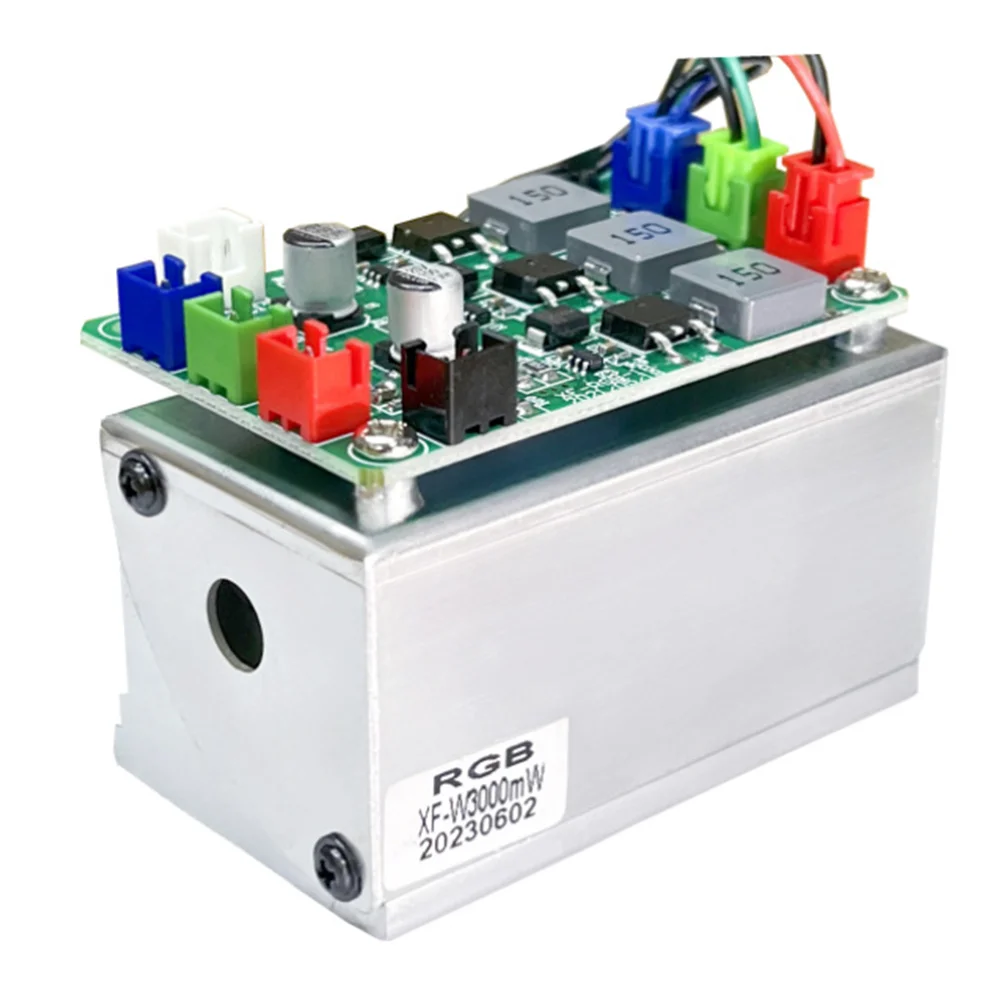

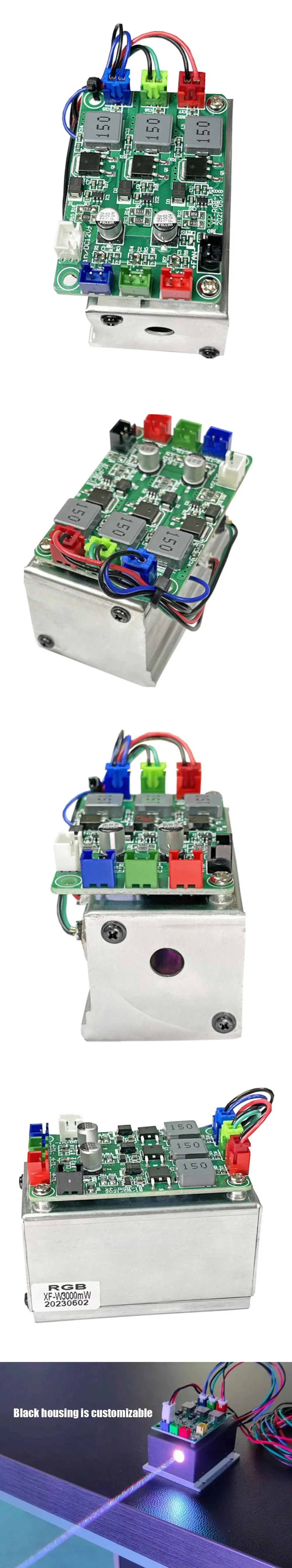

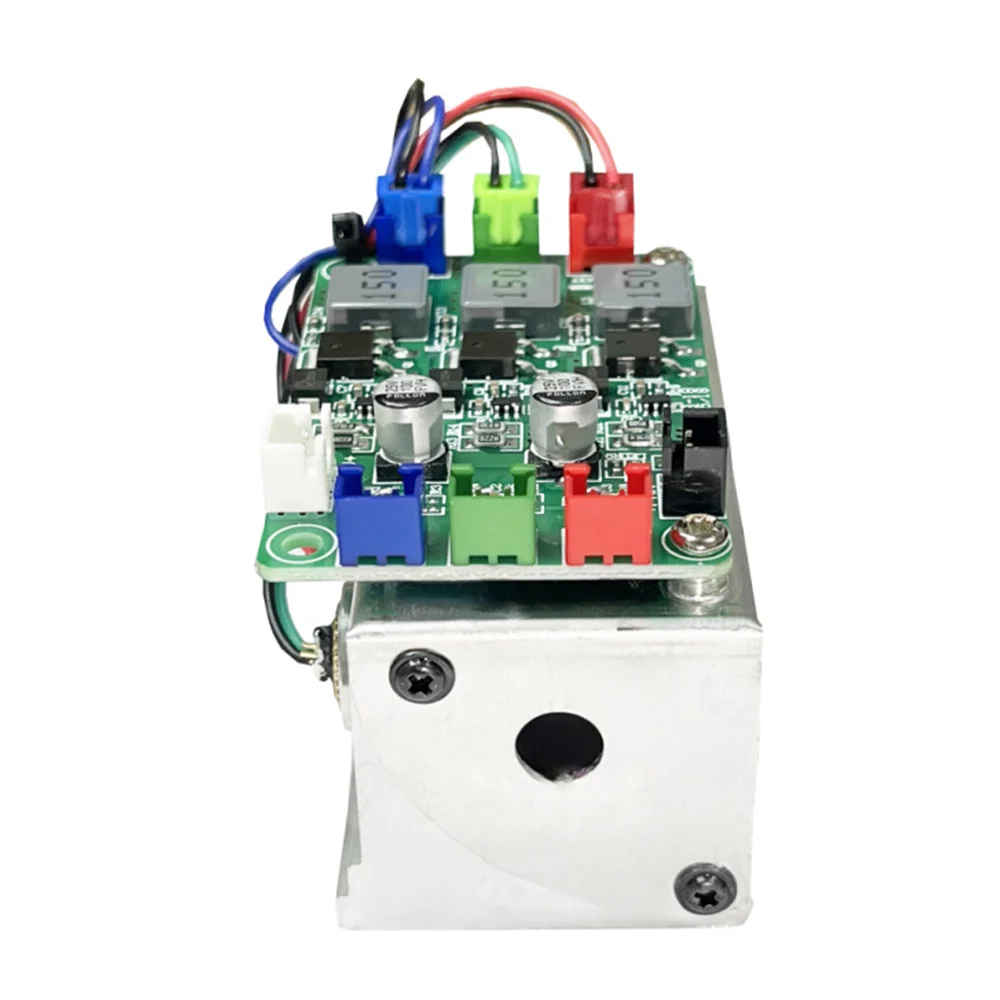

High-Power 3W RGB White Laser Module with Fat Beam

This RGB laser module is small, sturdy, and high-power. It synthesizes a fat-beam white laser through red, green, and blue lasers. The total power is up to 3W, and the output is stable. The PWM/TTL modulation is available so that you can generate different colors of lasers by modulation: red, green, blue, cyan, yellow, cyan, purple, and white.

Notes
There are many counterfeit products of this housing design. They are not from JETLASERS (Sanwu's branch). If you find their prices are more than 10% cheaper than ours, and the pictures are exactly the same, they will be 100% fake!

Tips for Purchasing
1) We send the white light version of RGB by default.
2) If you need specific beam effects, we recommend modulating this laser by PWM/TTL (you can change the red/green/blue lasers to combine different beam effects).
3) We can customize a specific beam effect for you before shipping (please send us the effect picture via email). The product customization requires additional fees.
4) The best working temperature of this high-power white laser is 11℃ ~ 35℃, and the suitable temperature is -20 ~ 50℃. When working above 50℃, a cooling system must be installed. If you need the laser to work continuously 24 hours a day, please install an external cooling fan.
5) Our power adapters come in two versions. By default, we will send the version with a plug (we can match the European/US plug according to your location). If you need a custom version without a plug, please contact us before purchasing.

Specifications
Wavelength: 520nm (green) / 638nm (red) / 450nm (blue)
Output power: > 3W (3000mW)
Power fluctuation range: ±20mW
Light spot mode: multi-mode
Divergence angle: < 8mrad
Laser spot size at the light outlet: 5.0 x 2.5 mm (fat beam)
Input voltage/current: DC12V/2A, total power 24W
Driver board input wiring status: wire length 250mm, red wire positive, black wire negative
Modulation frequency: 0~20KHZ, PWM/TTL
Working life: 10000~12000 hours
Working temperature: -20 ~ +50℃
Applications: stage lighting, laser shows, laser experiments, etc.
