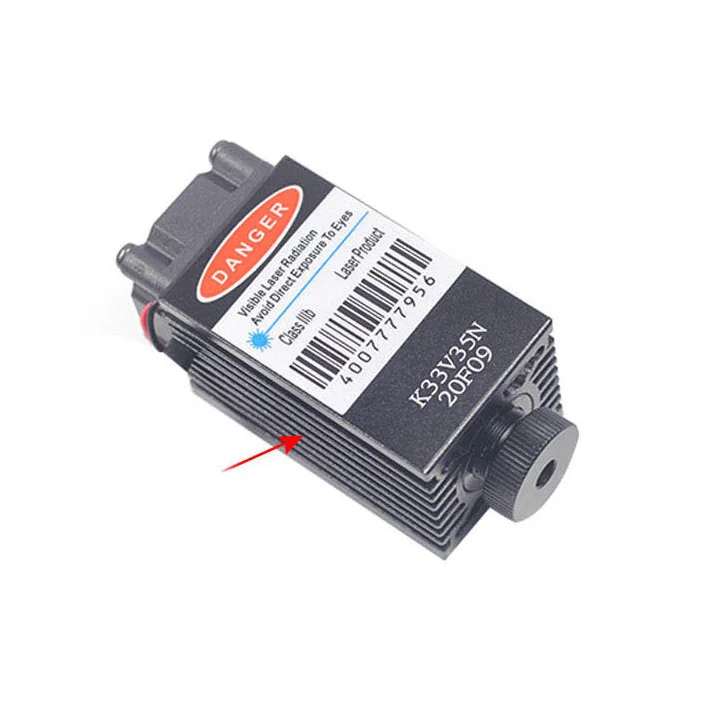

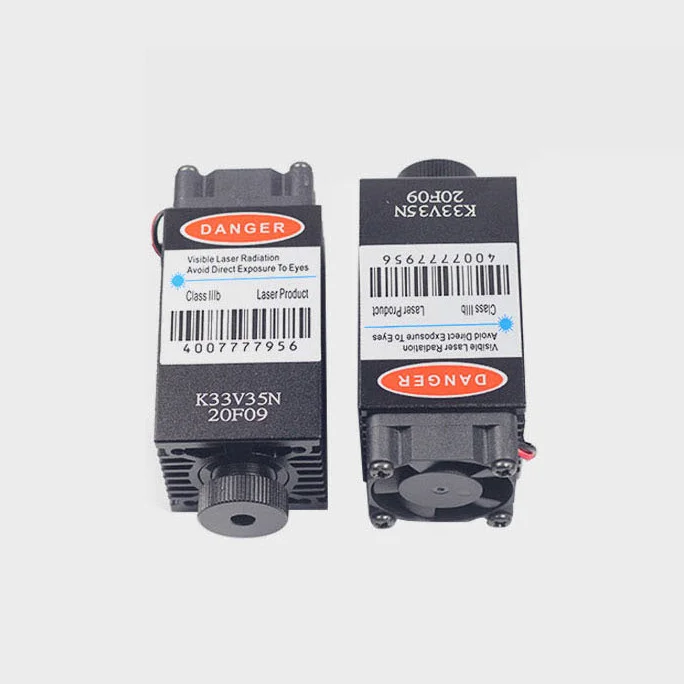

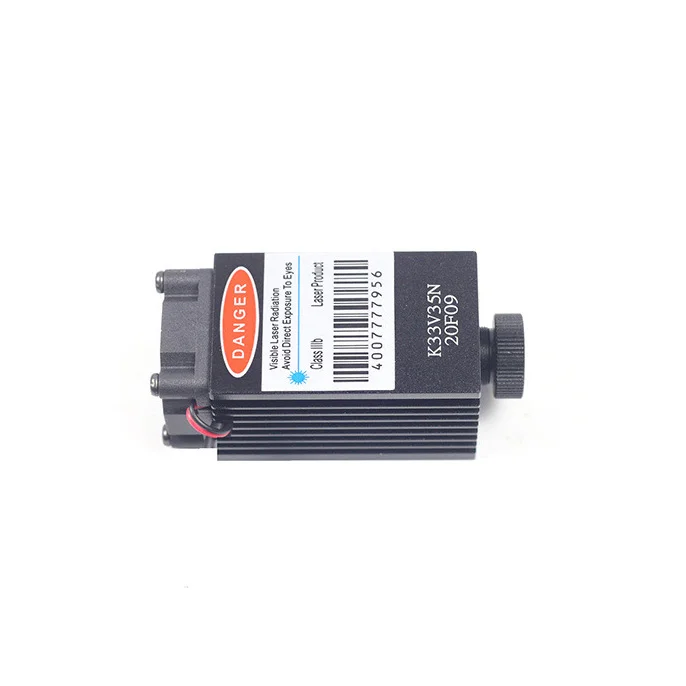

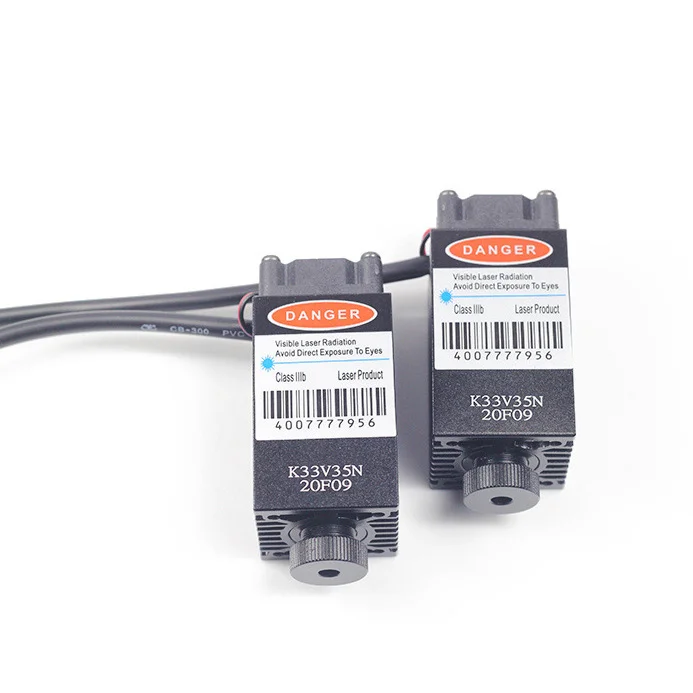

High-Power Violet Laser Module

High-Power and Adjustable Violet Laser Module 405nm 400mW 12V

We can develop optical systems according to customer requirements. If you have any questions, please contact us via email.

Price: $89.63

Quantity:

Product Details

This 405nm laser module has high power, low power consumption, fast heat dissipation, TTL modulation, low noise, energy saving, environmental protection, etc. It adopts an imported glass lens and high-power diode with good stability and a long useful life. You can adjust the focus and change the size of the laser spot by rotating the laser head. It uses a 12V fan for cooling and can work continuously - you don't need to worry about overheating.

Specifications
• Output wavelength: 405nm
• Output power: 400-450mW
• Laser type: dot
• Operating voltage: 12V
• Operating current: 350-450mA

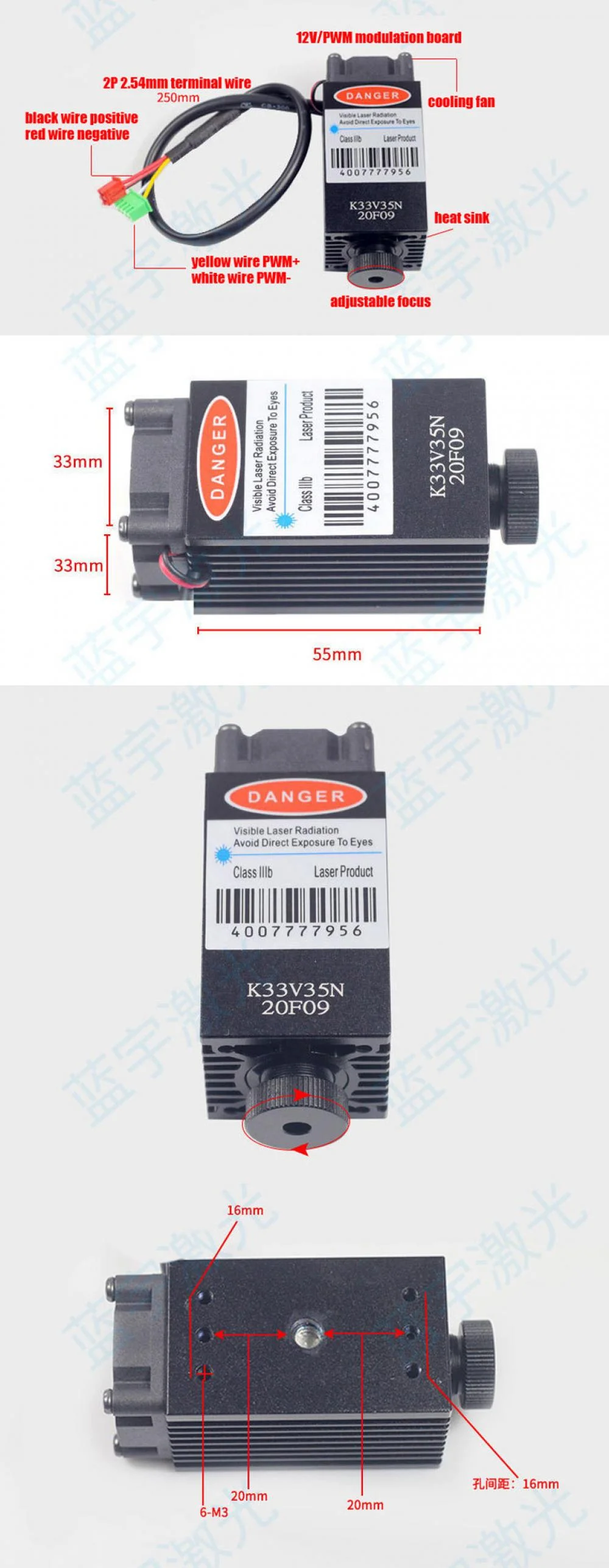

• Dimensions: Φ33 x 55 mm
• Electric power: 4.2-5.4W

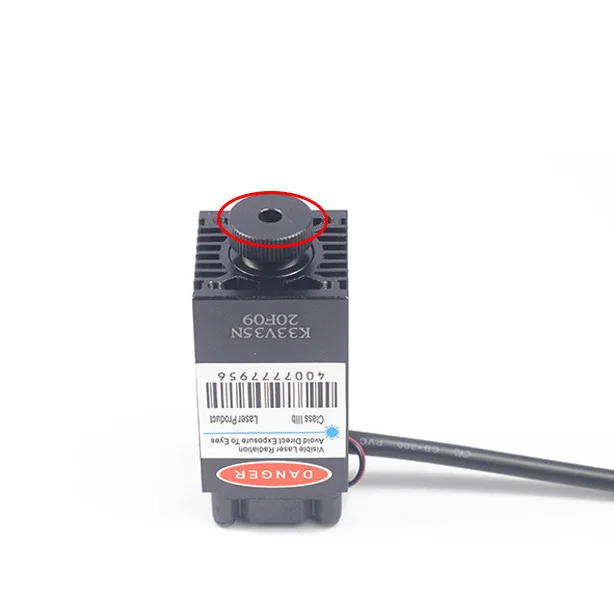

• Focus: adjustable focus
• Useful life: 10000 hours
• Operating temperature: 0°C ~ +50°C
• Storage temperature: -40°C ~ +85°C
• Optical lens: Φ6 / glass
• Circuit board: 12V / PWM modulation board
• Circuit board size: 25 x 17 mm
• Cooling fan: available (12V)
• Product material: aluminum 6061
• Net weight: 108 g

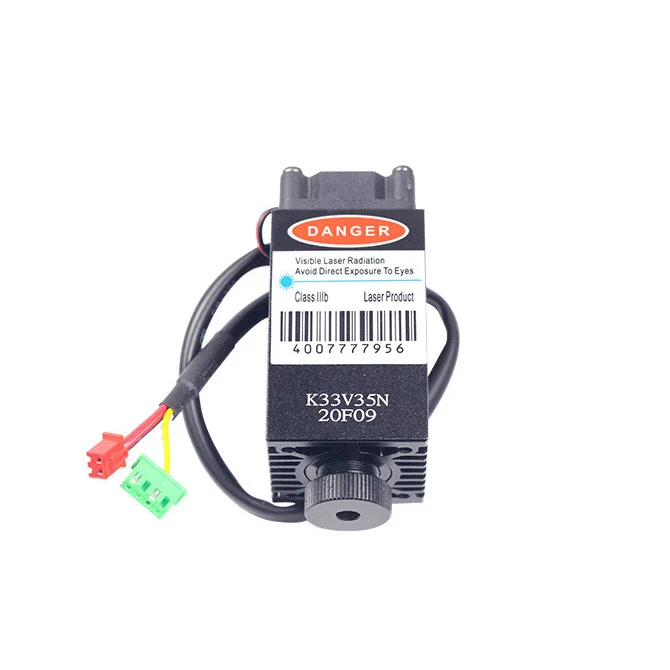

• Wire rod: 26# 2P 2.54mm terminal wire (250mm)

High-Power Violet Laser Module
