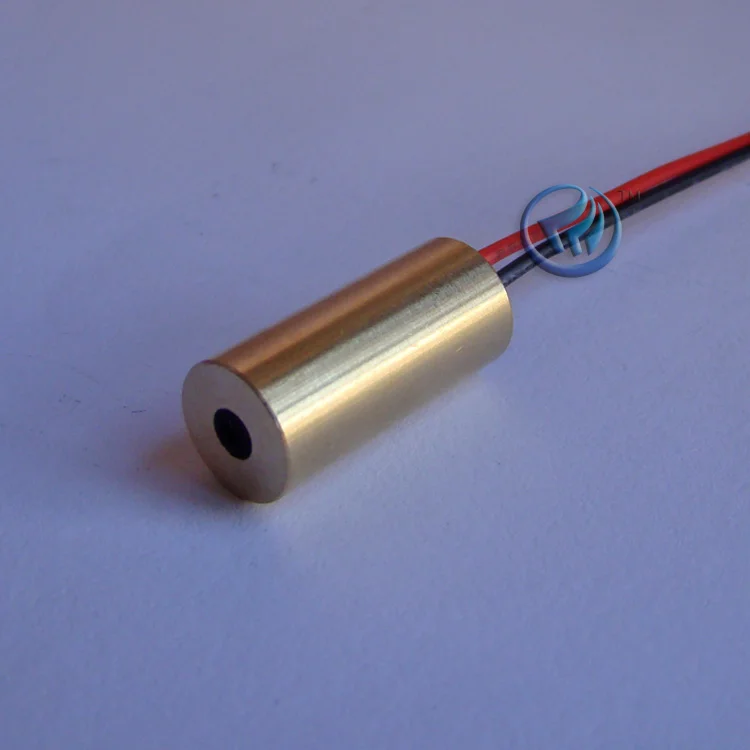

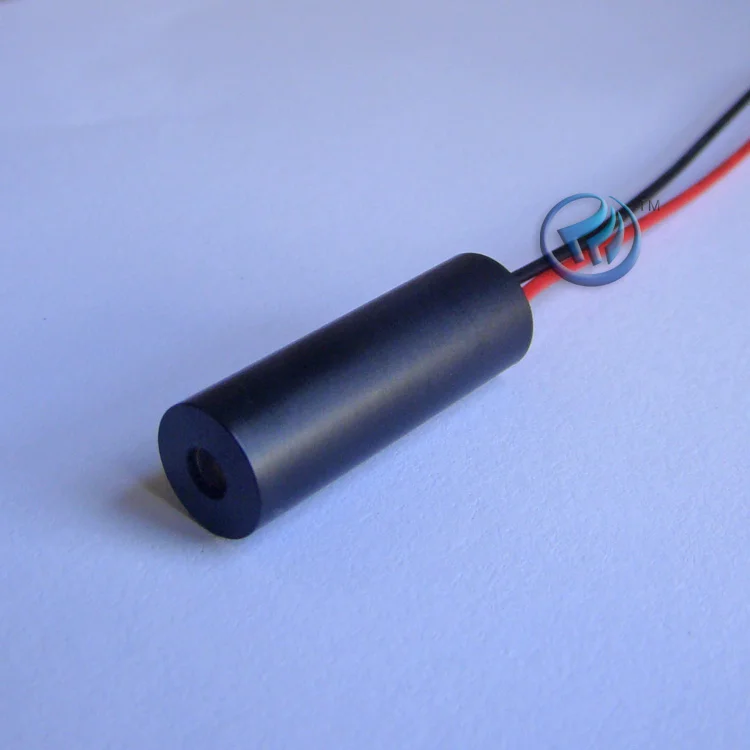

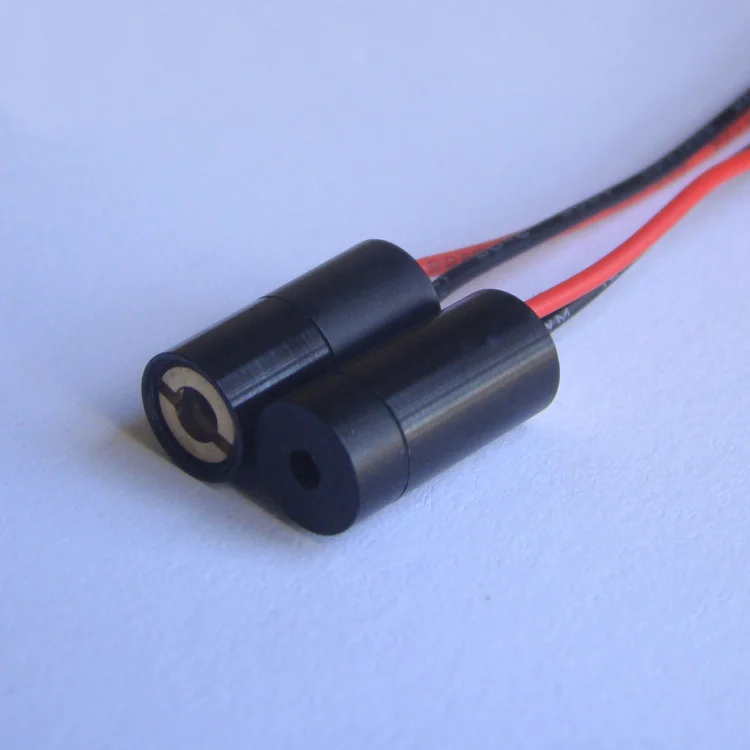

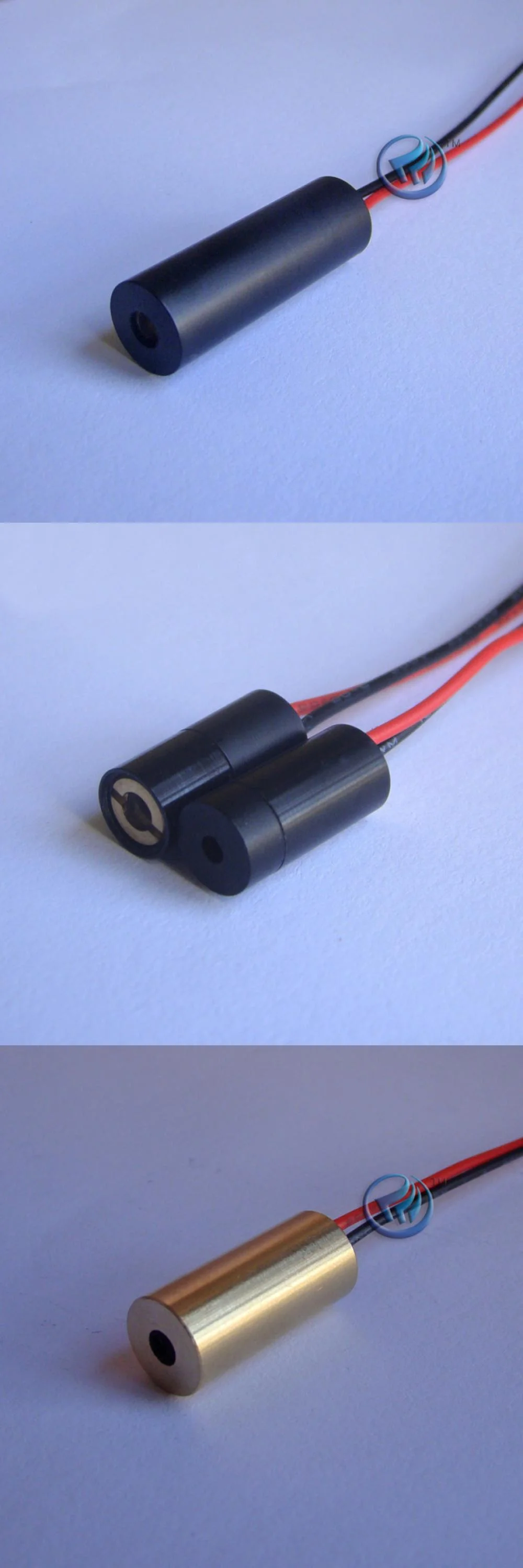

IR Laser Module 780nm 5mW with Small Size

This IR laser module has a standard 780nm wavelength, low power, and small size. All our laser modules have complete certifications, so you don't have to worry about product quality or customs issues.

Buying Tips
1) The default operating voltage is 3V. 5V is customizable.
2) The module size can be customized: Φ6x12mm, Φ8x17mm, Φ9x21mm, Φ10x30mm (size customization is free). We will send Φ6x12mm by default.
3) The default version is fixed focus, and the adjustable focus is customizable.

Specifications
• Laser shape: dot
• Wavelength: 780nm±5nm
• Dimensions: Φ6x12mm (customizable)
• Output power: < 5mW
• Focus mode: fixed focus
• Beam diameter: minimum ≤Φ1.0mm, < Φ12mm @ 10m
• Useful life: > 6000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Operating voltage: DC= 3.0V / 5.0V
• Working current: I<40mA
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
