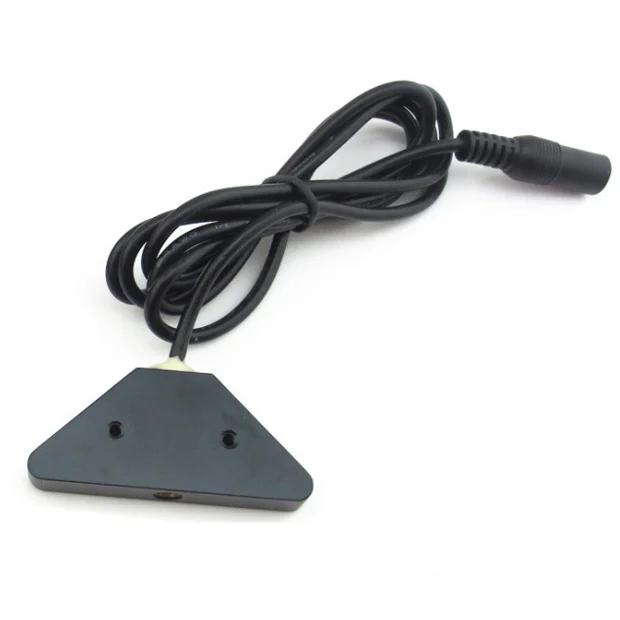

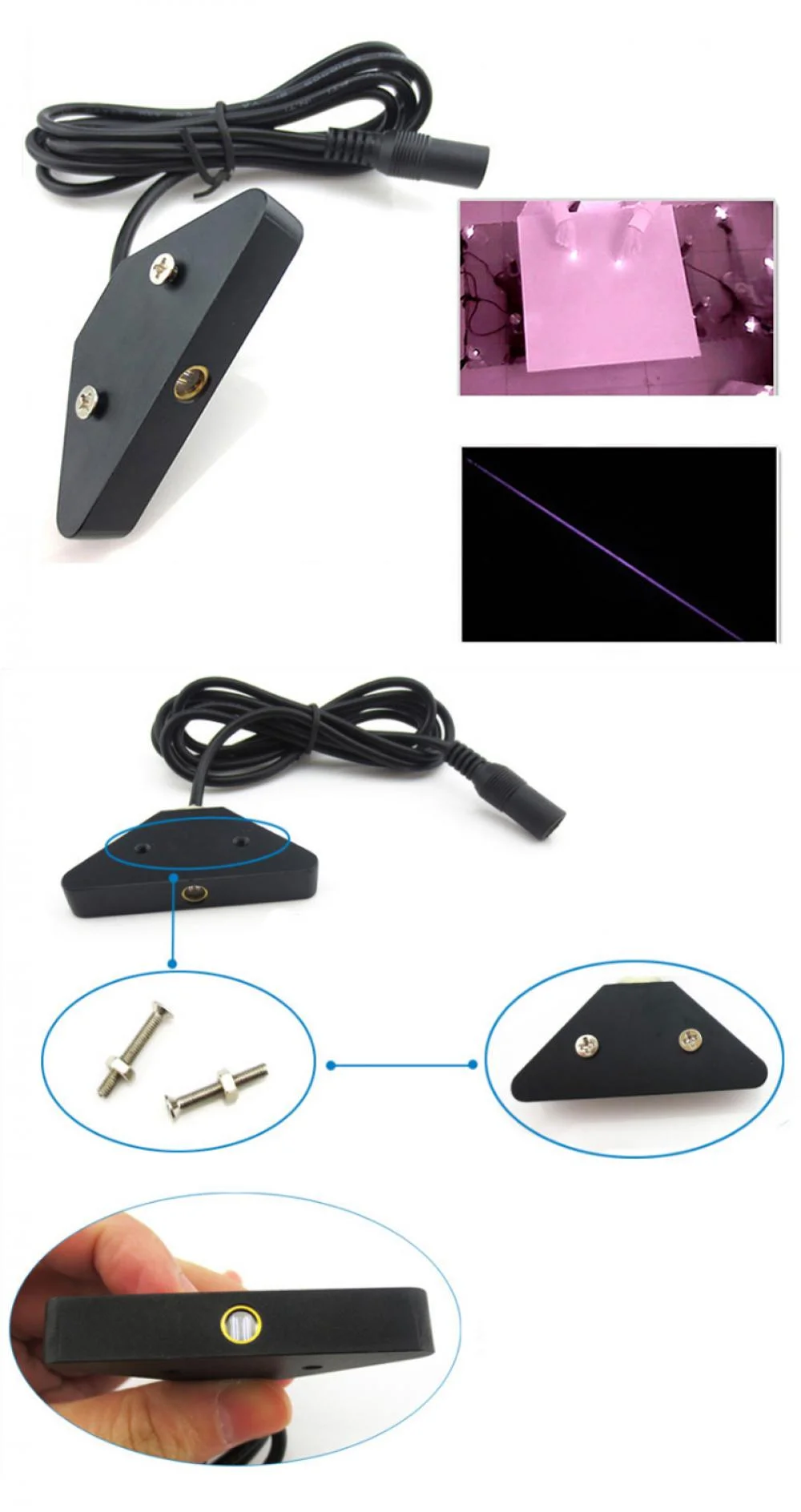

IR Line Laser Module 808nm for Multi-Point Touch Screen

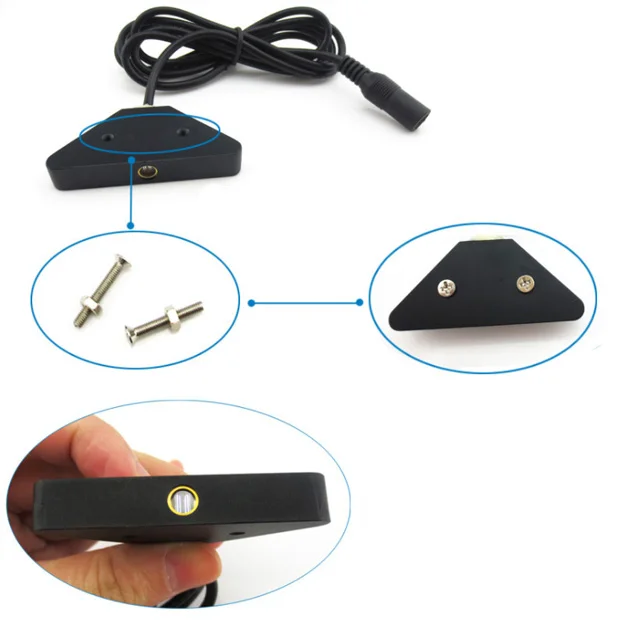

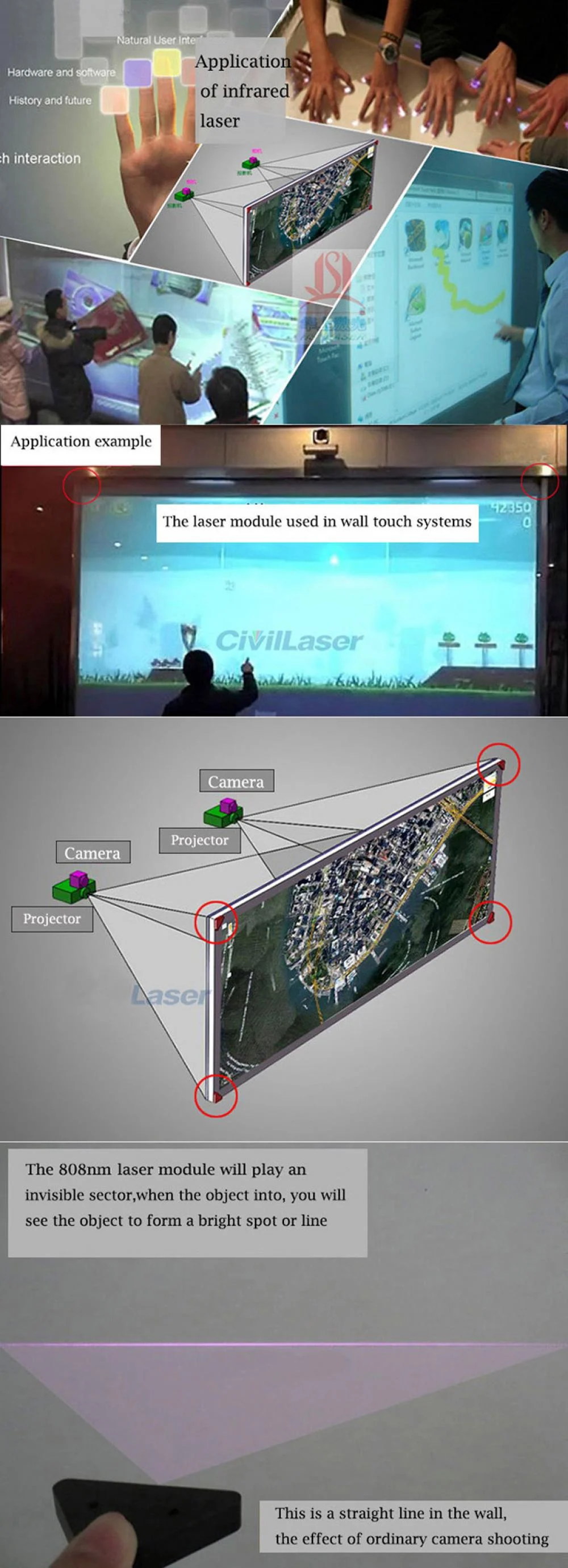

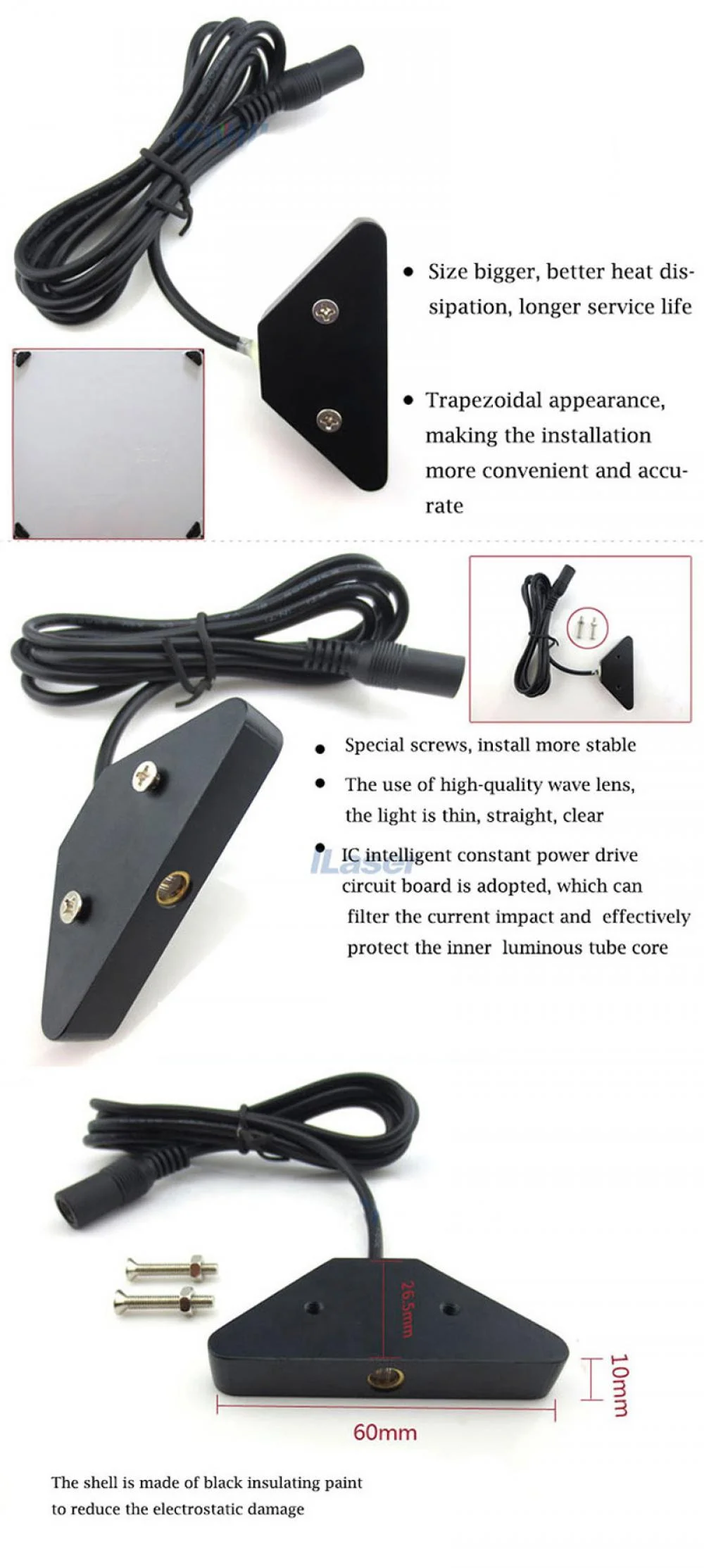

This IR laser module is usually used for the multi-point touch interactive projector. It comes with heat dissipation, shockproof and anti-static functions, which can work continuously 24 hours a day. It adopts the imported diode and optical lens, which is more accurate and stable than many other 808nm line laser modules. This model has been debugged on a multi-point touch screen. It is easy to install and use.

Specifications
• Wavelength: 808nm
• Laser shape: line

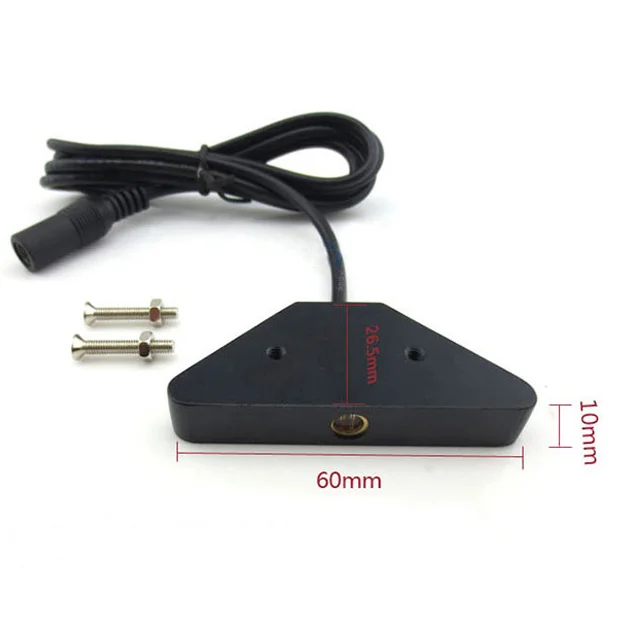

• Dimensions: 60x26.5x10mm
• Power: 50mW / 100mW / 200mW / 300mW / 500mW
• Lens angle: 110° (5-130° can be customized)
• Housing material: copper
• Useful life: > 8000 hours (continuous output)
• Housing material: copper
• Circuit control: APC line
• Operating Voltage:DC 3.0V (5.0V can be customized)
• Operating current: < 380mA (50-300mW), < 600mA (500mW)
• Operating temperature: -10°C ~ +45°C

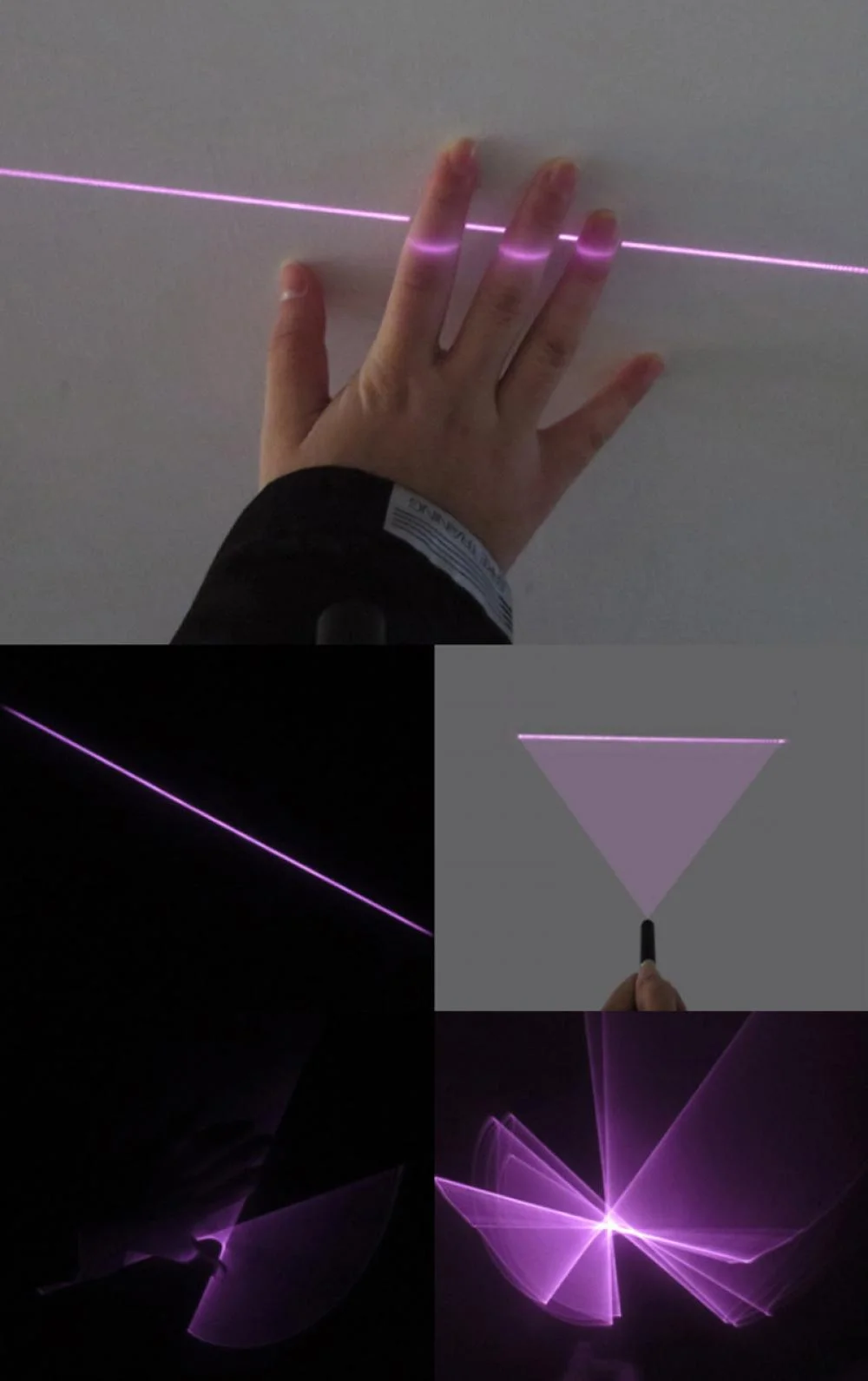

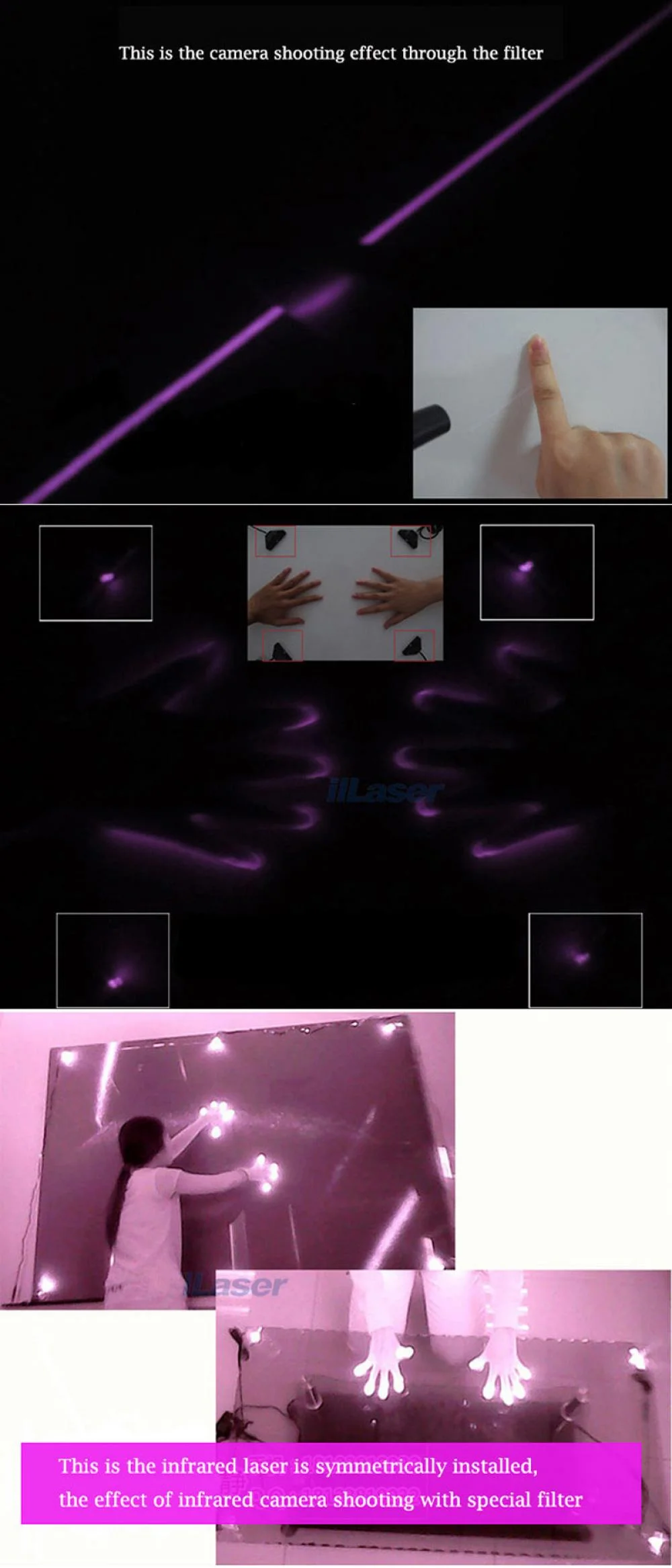

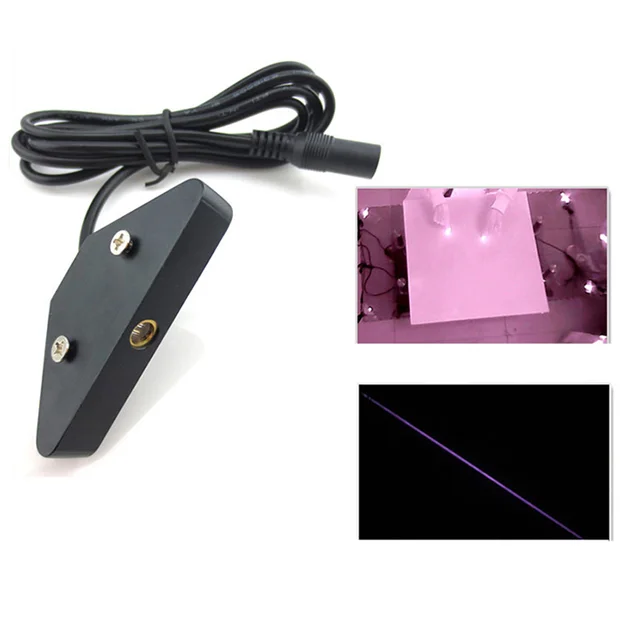

You can see the laser line via the camera.

Package content

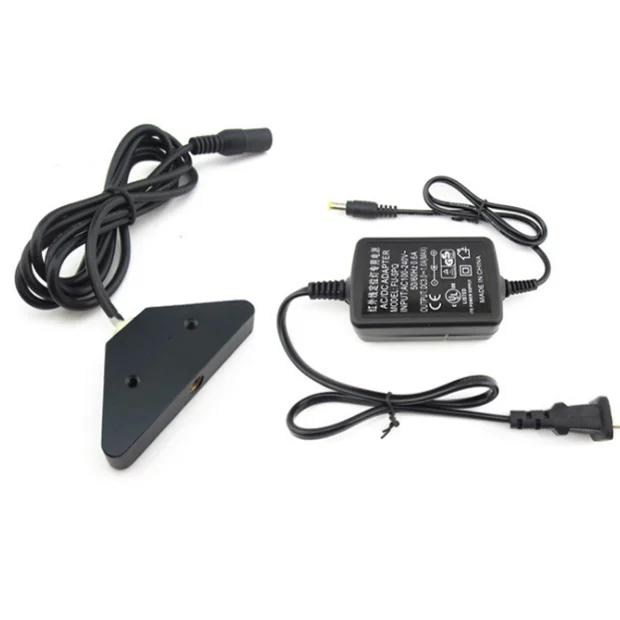

• 1 x 808nm laser module for multi-point touch screen
• 2 x AAA batteries
