Landmark Laser Module 520nm 1W for Expressway Warning

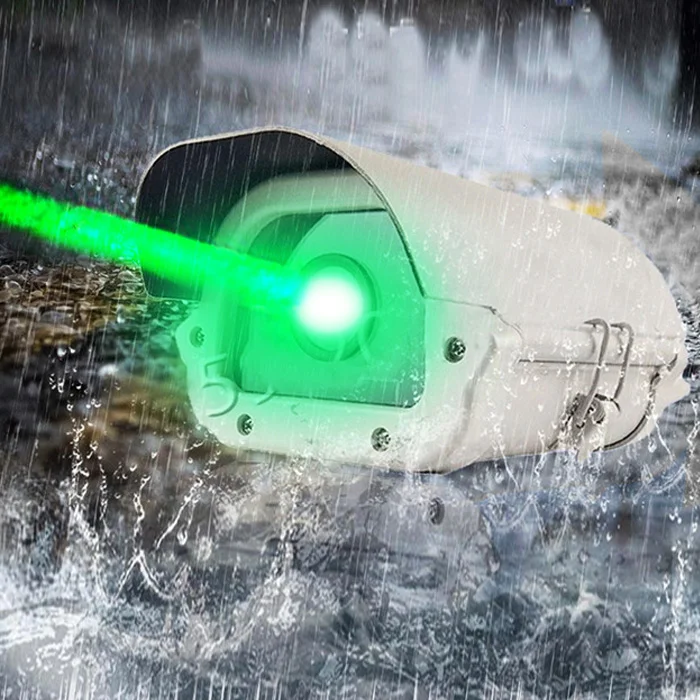

This 520nm laser module has a thick beam, high brightness, high power, and sturdy metal housing. Multiple protections are available: circuit protection, over-temperature protection, over-voltage protection, etc. It is waterproof and dustproof with IP65 protection, which is very suitable for outdoor use, such as highway laser warning lights and mountaintop landmark lights. This model is drop-resistant and lightning-resistant. It can work continuously, with a fixed focus and a maximum distance of 8km (2cm spot size from 7 meters away).

Specifications
• Output wavelength: 520nm ±5nm
• Output power: 1W (800-1000mW)
• Laser beam: thick beam
• Focus: fixed focus
• Maximum distance: 8KM
• Operating voltage: 12V
• Operating current: 800mA
• Electric power: 9.6W
• IP rating: IP65
• Working mode: pulse and CW

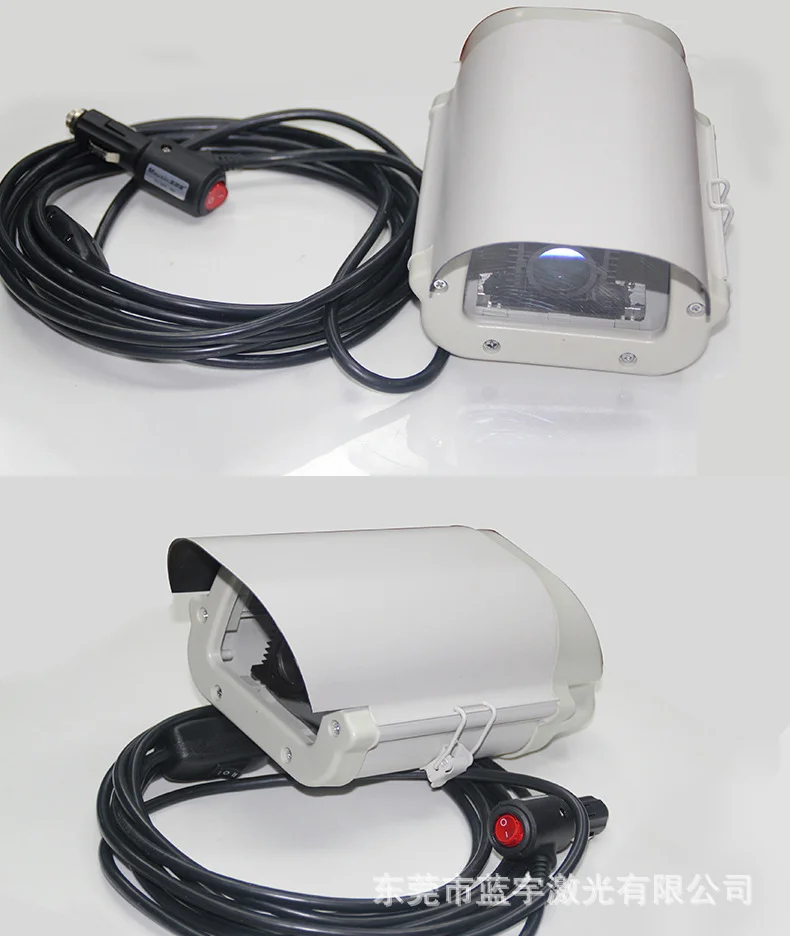

• Cable length: 4.7 meters (customizable)
• Connection mode: red 12V (+), black 0V (-), blue 12V pulse power supply (+)
• Operating temperature: 0°C ~ +50°C
• Storage temperature: -40°C ~ +85°C
• Dimensions: Φ22×90mm
• Useful life: > 8000 hours

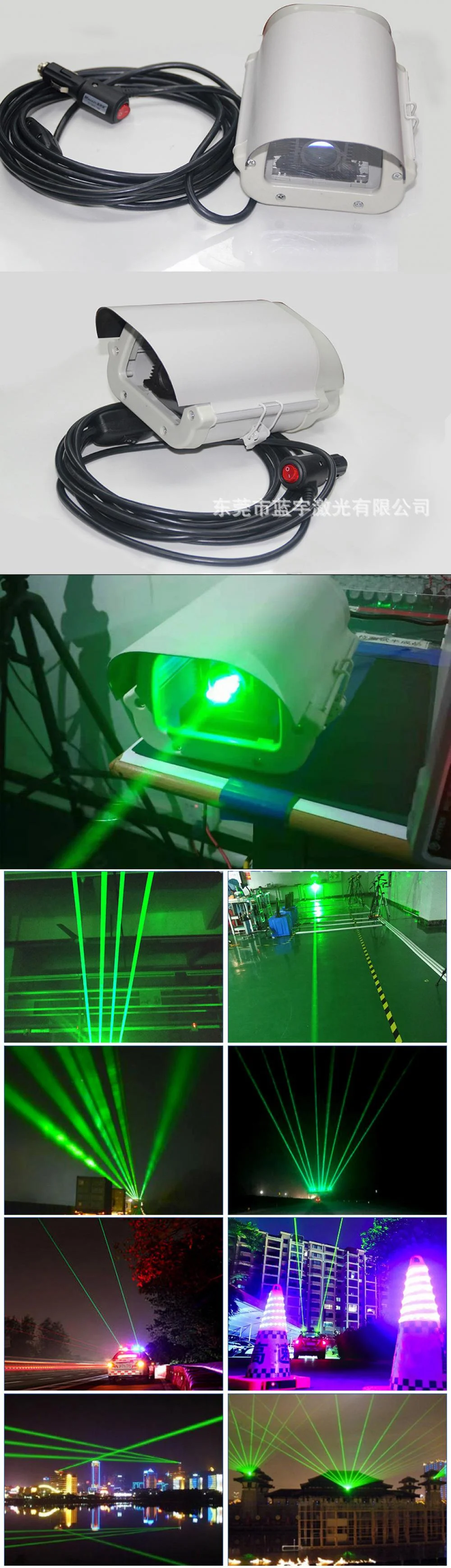

• Applications: highways, landmarks
