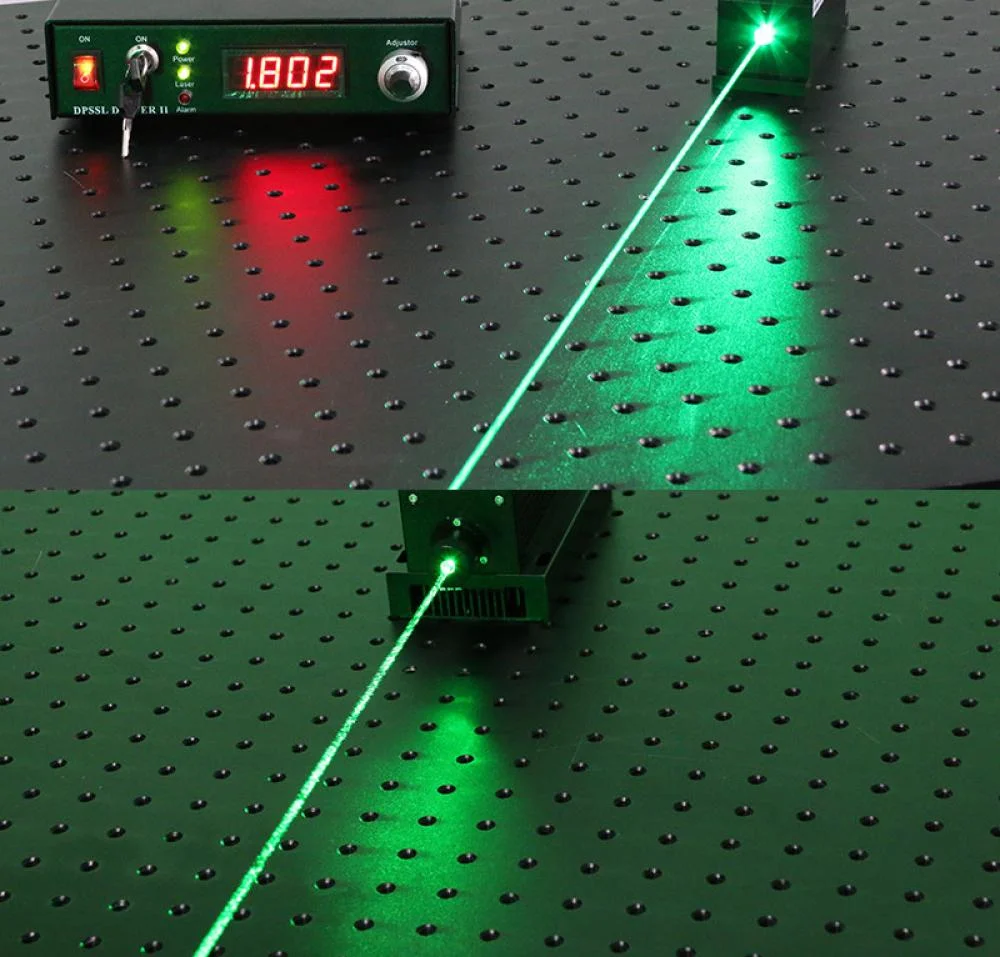

Most Powerful Green Laser Module 520nm 1500mW / 2000mW

We can provide customers with optoelectronic solutions and design laser modules that meet customer needs.

Product Details

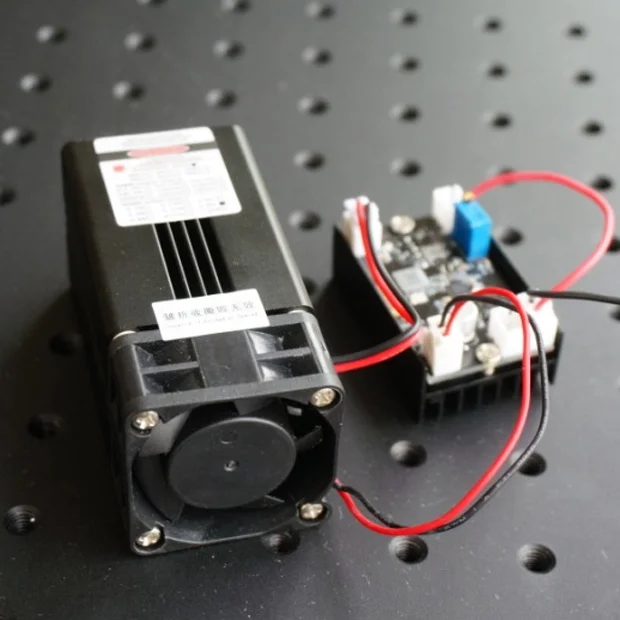

This model is one of our custom products. Currently, the highest power we can achieve for a 520mW green laser module is 2000mW (2W). It has integrated a cooling fan, which can work continuously 24 hours a day, and you don't need to worry about overheating. If you are looking for the most powerful green laser module, this will be a perfect choice.

Notes
1) The input voltage is 12V. Overvoltage will cause damage to the circuit and module.
2) If you have any technical questions, please contact us.

Technical Parameters
• Laser type: dot (green laser)

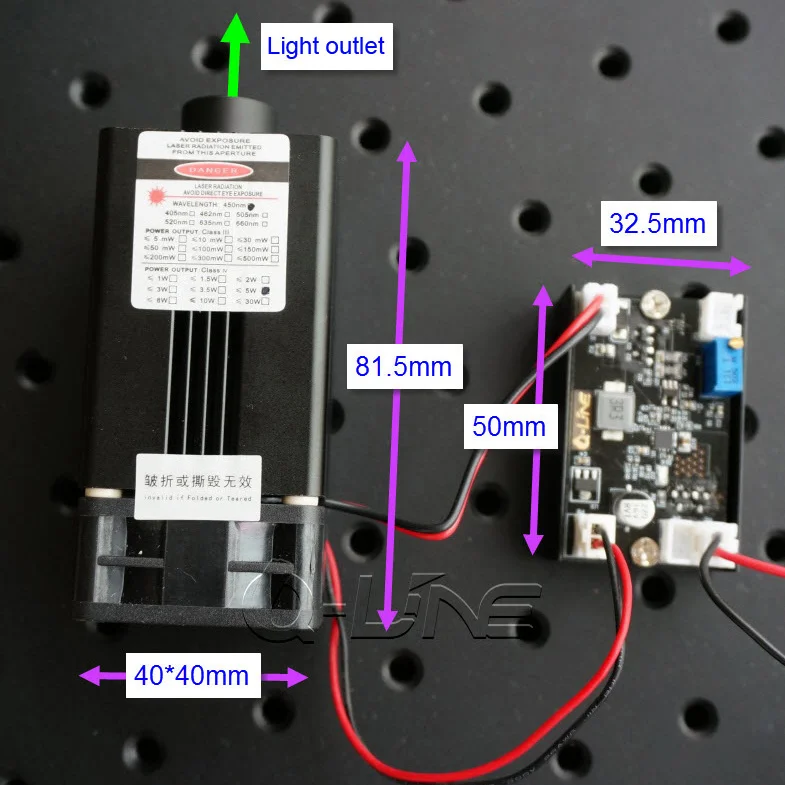

• Laser body size: 81.5mm x 40mm x 40mm
• Circuit board size: 50mm x 32.5mm x 16mm
• Output wavelength: 520nm (green)
• Output power: 1500mW / 2000mW

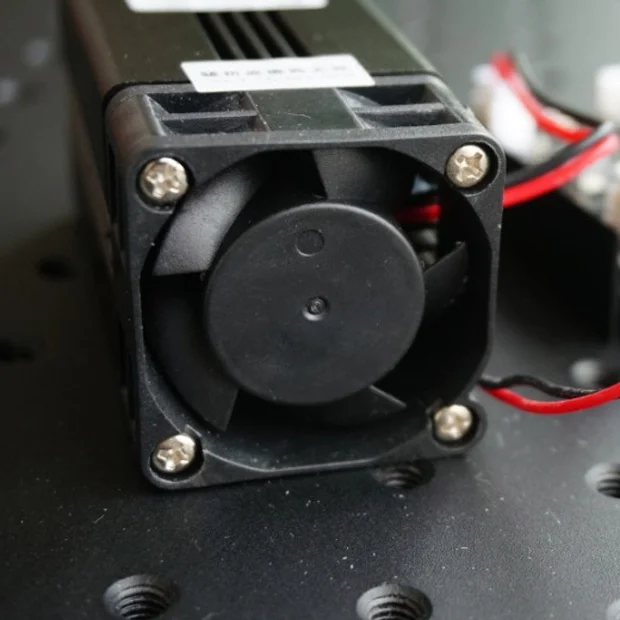

• Cooling method: cooling fan
• TTL control: available (0-5V)
• Housing material: aluminum
• Circuit control: constant current
• Reverse polarity protection: available
• Working voltage: DC=12V (10-14V)
• Working current: I<2.0A
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: -10℃～＋40℃
