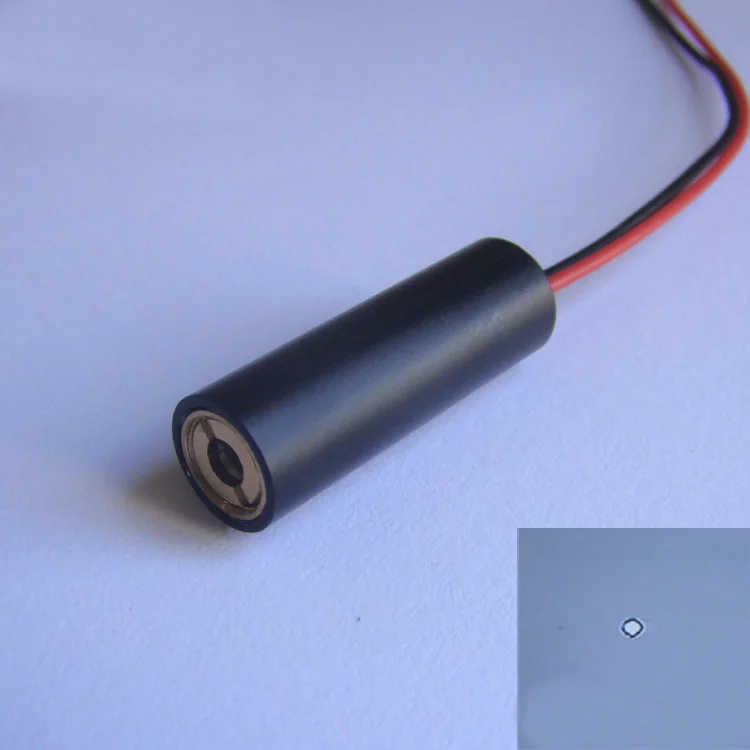

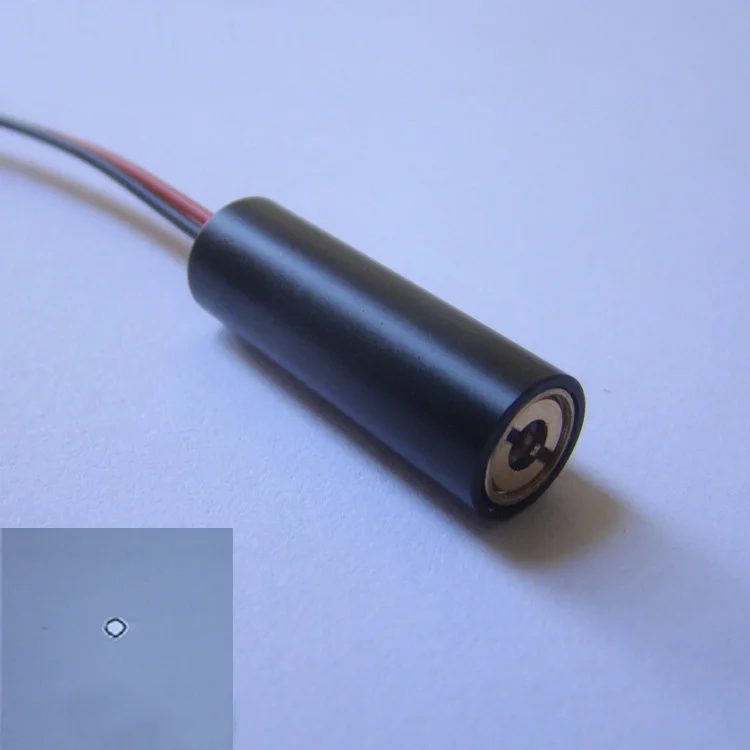

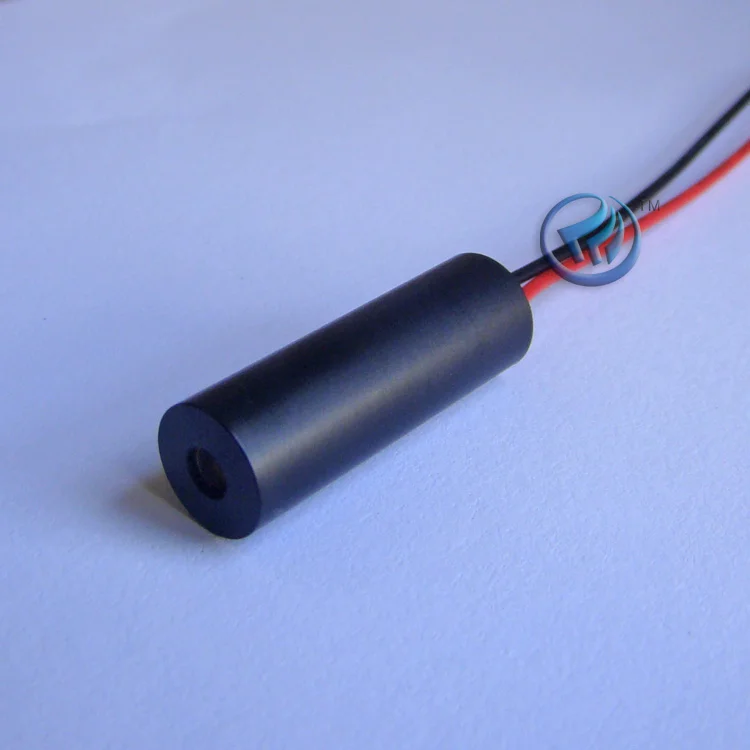

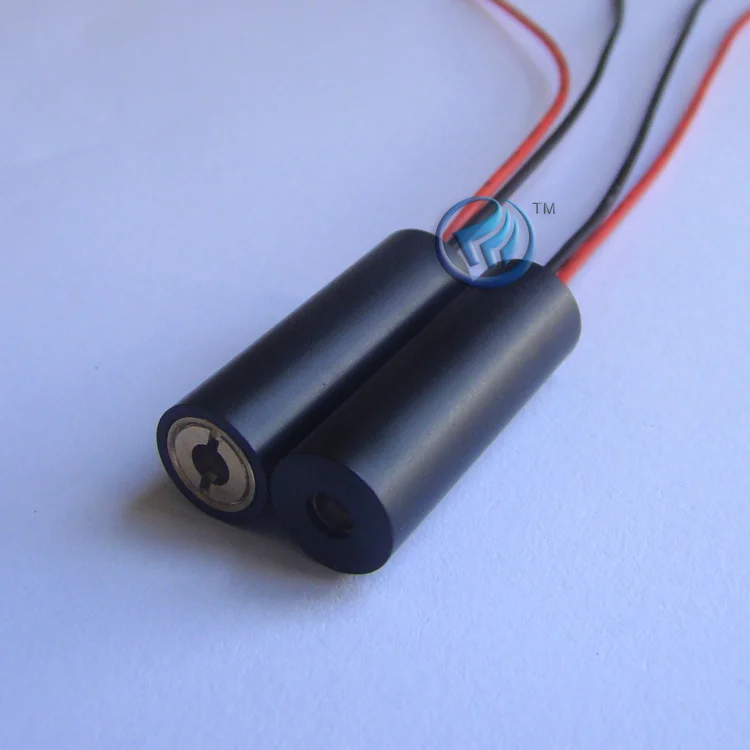

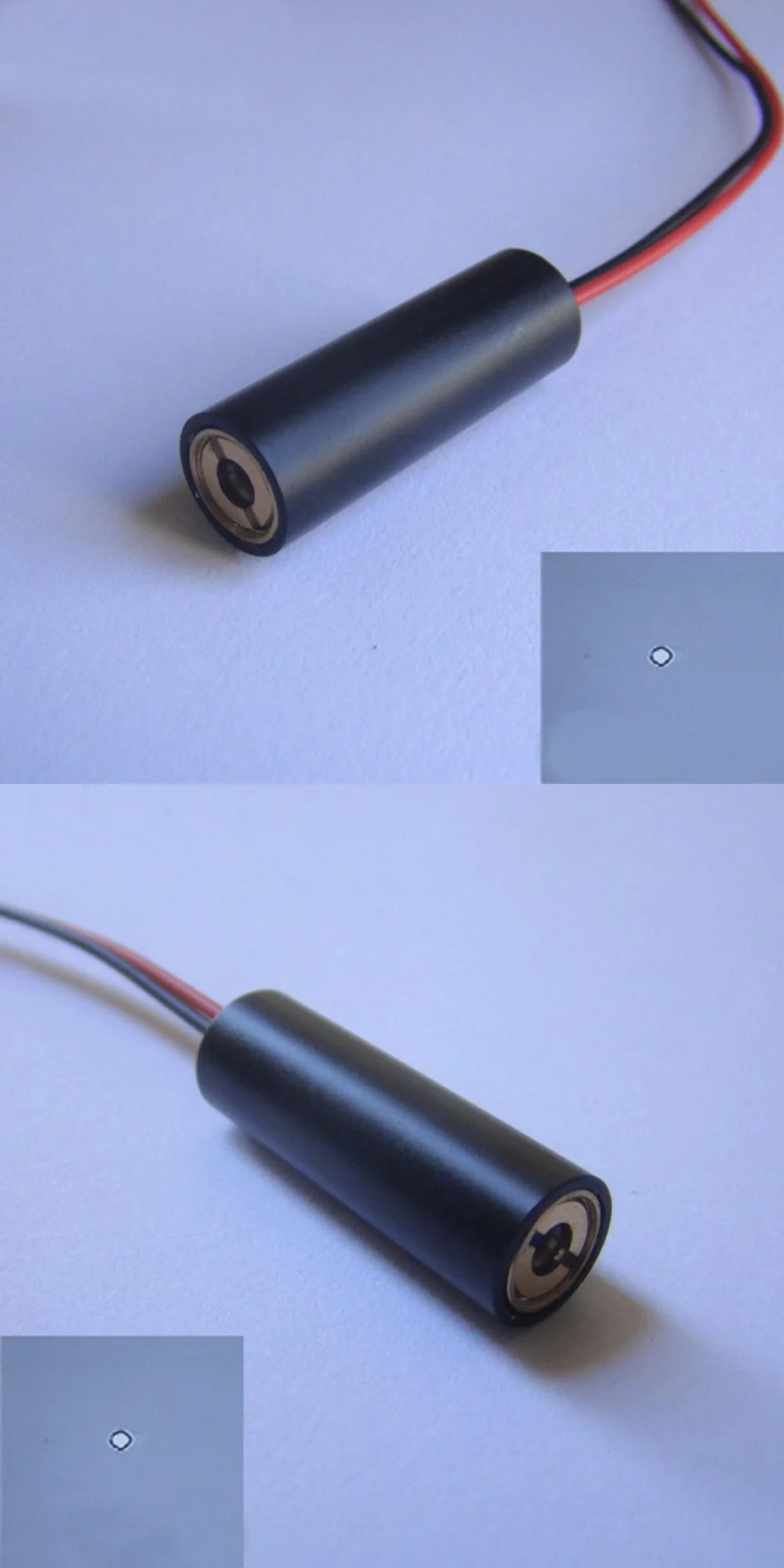

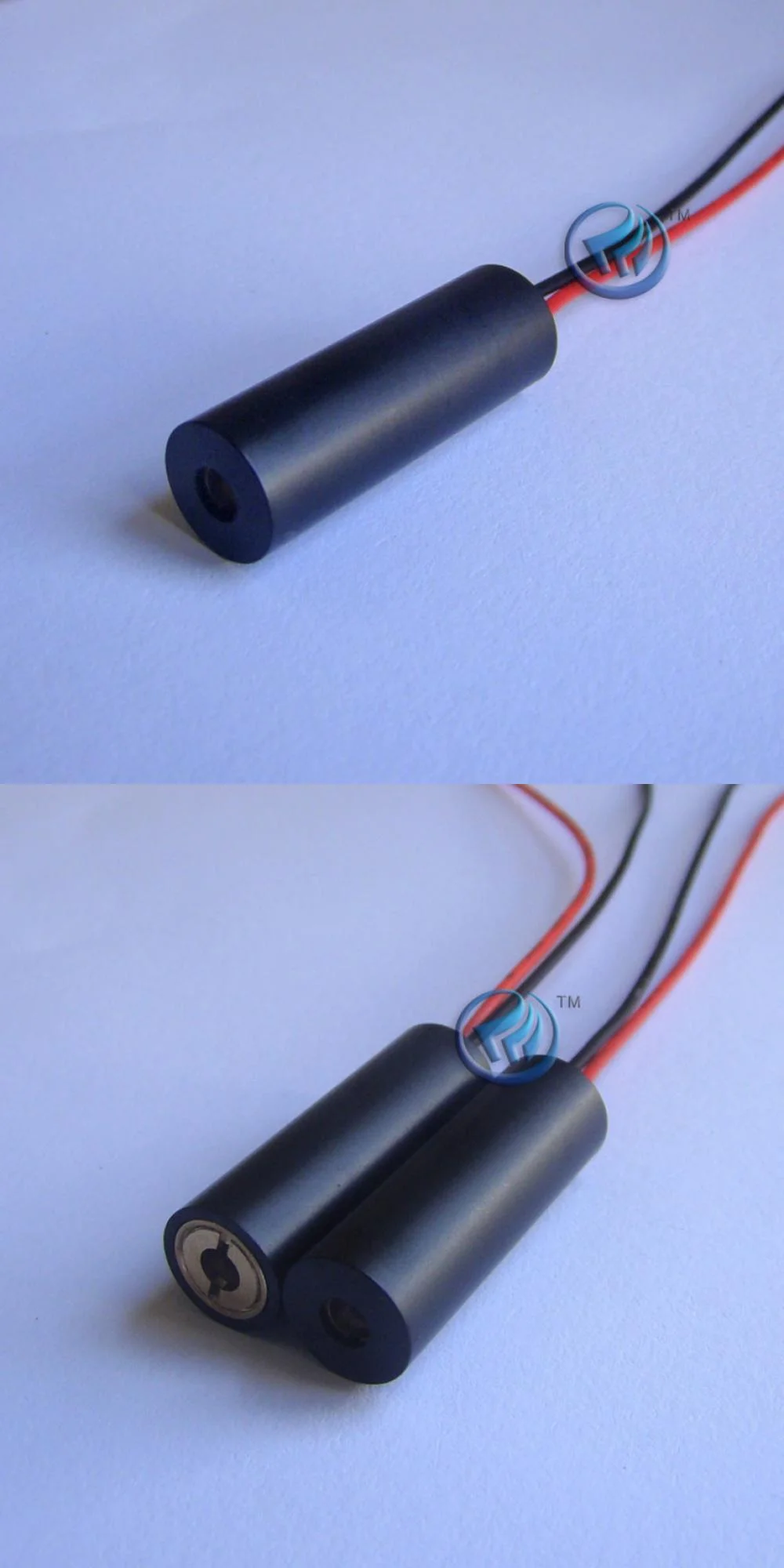

Near-infrared dot laser module 780nm 10-200mW

This spot laser module has standard 780nm wavelength and optional output power (10mW / 20mW / 30mW / 50mW / 100mW / 150mW / 200mW). As a near-infrared laser, it isn't easy to see with the naked eye. Please make sure the product is suitable for your applications before purchasing. For product customizations, please contact us via email. We will reply to you within 24 hours.

Buying Tips
1) The default operating voltage is 3V. 5V is customizable.
2) The module size can be customized: Φ9×25mm, Φ10×30mm, Φ12×50mm (size customization is free). We will send Φ10×30mm by default.

Specifications
• Laser shape: dot
• Wavelength: 780nm (near-infrared)
• Dimensions: Φ10 x 30 mm (customizable)
• Power: 10mW/20mW/30mW/50mW/100mW/150mW/200mW
• Focus: adjustable/fixed (optional)
• Useful life: > 6000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Operating voltage: DC= 3-5V (customizable)
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
