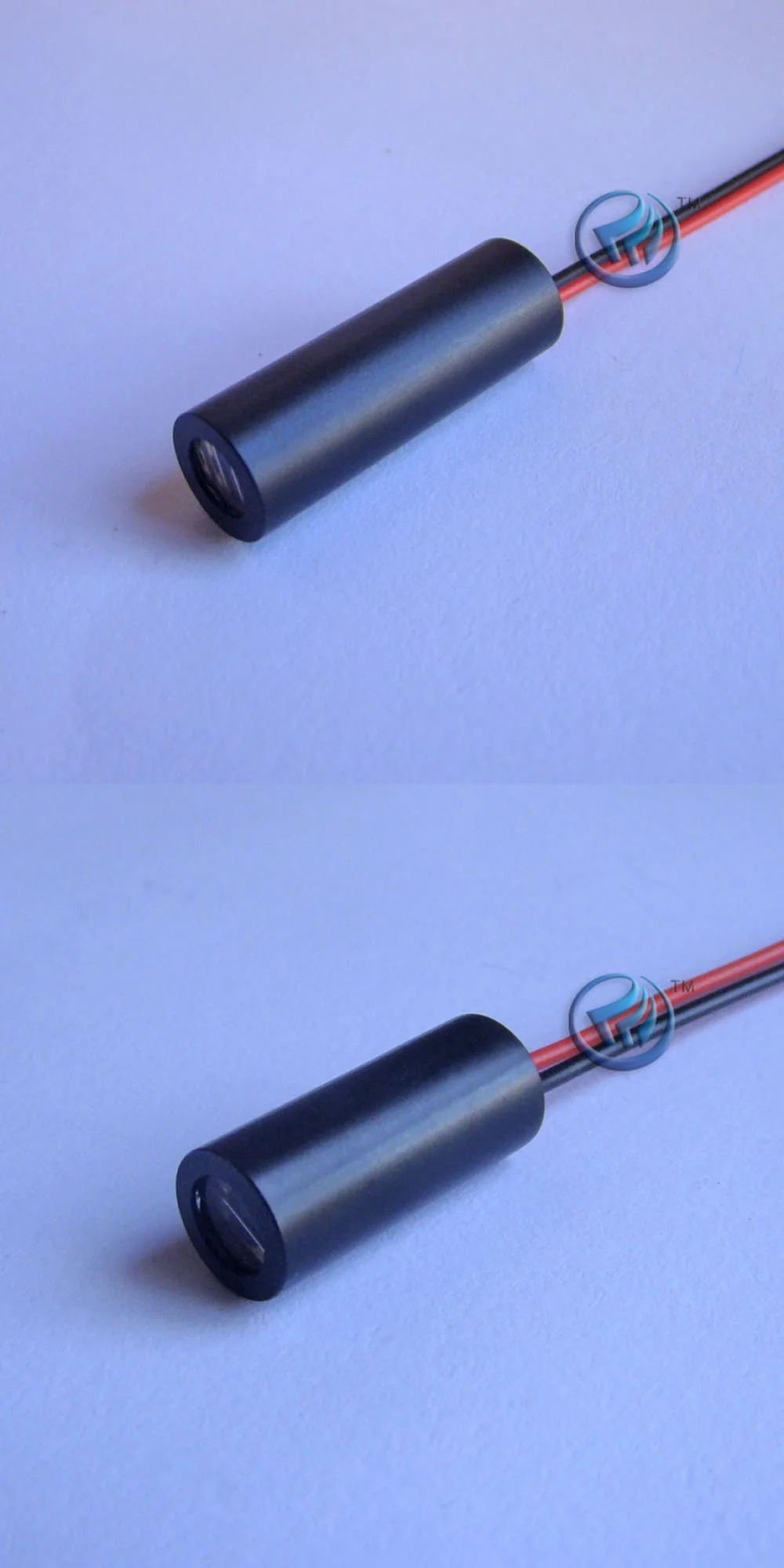

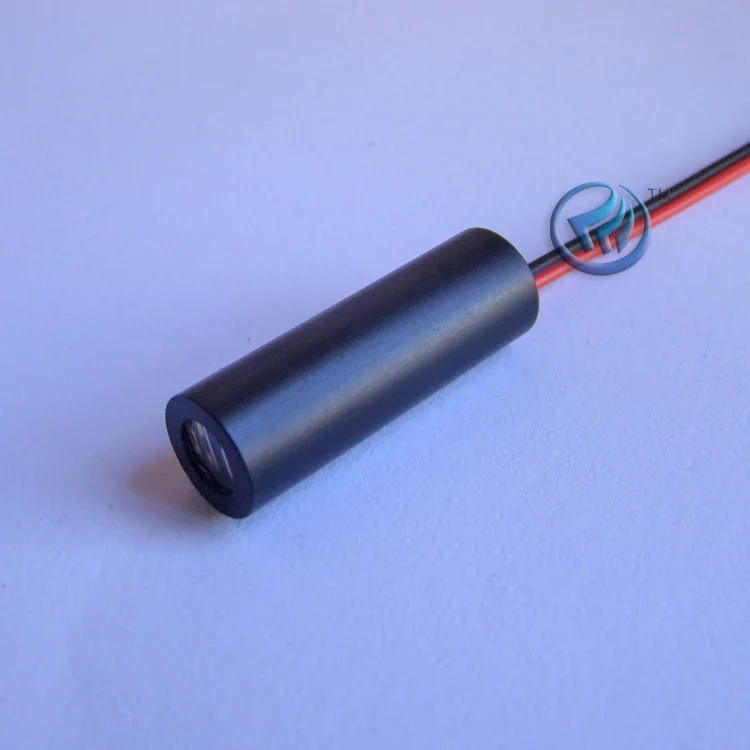

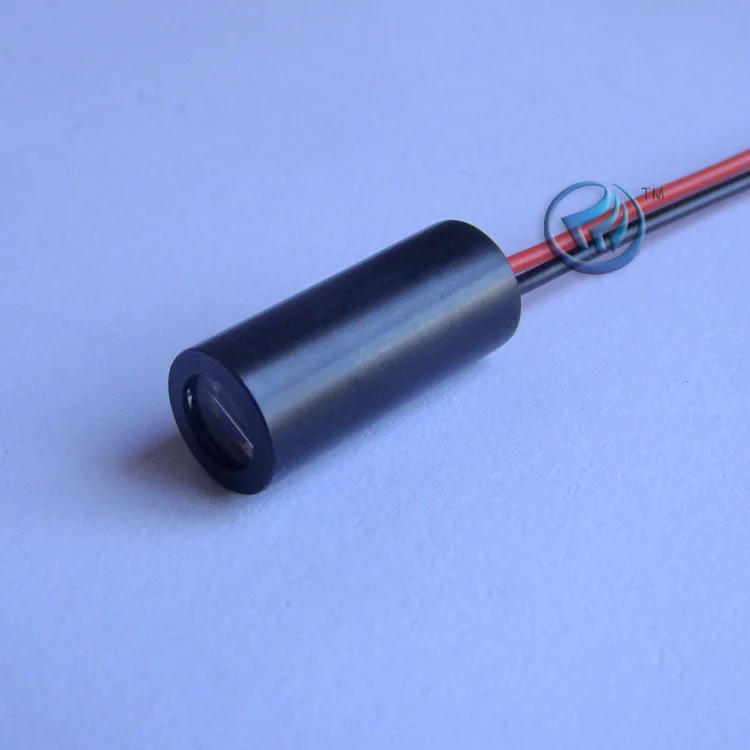

NIR Laser Module 780nm 10-200mW for Touch Screen

This NIR laser module has a standard 780nm wavelength. The line laser is suitable for touchscreen applications. If you are looking for a 780nm line laser for touchscreen design, this will be a good choice. For product customizations, please contact us via email. We will reply to you as soon as possible.

Buying Tips
The module size can be customized: Φ9x25mm, Φ10x30mm, Φ12x30mm, Φ12x50mm (size customization is free). We will send Φ10x30mm by default.

Specifications
• Laser shape: line
• Wavelength: 780nm±5nm
• Dimensions: Φ10x30mm (customizable)
• Output power: 10-200mW
• Focus mode: fixed focus
• Useful life: > 5000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: ACC line
• Beam divergence angle: 5°-110° is customizable
• Operating voltage: DC= 3.0V / 5.0V
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
