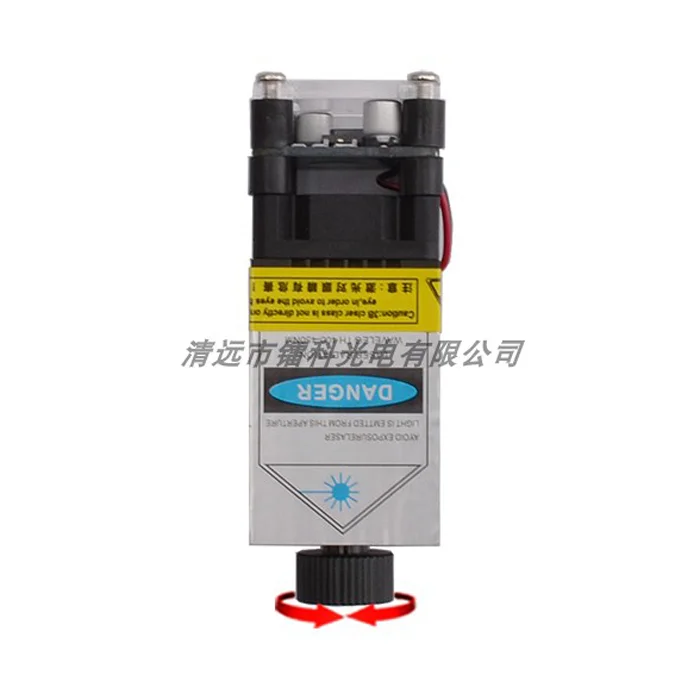

405nm Violet Laser Module

Powerful 405nm 500mW Violet Laser Module with TTL/PWM

For product customizations, please contact us by mail. We will reply to you as soon as possible.

Price: $99.99

Quantity:

Product Details

This laser module has a standard 405nm wavelength, 500mW power, TTL/PWM control, and adjustable focus. The violet laser is powerful and stable, which can be used for wood and plastic engraving. It has passed aging tests and power tests. If you are looking for a powerful violet laser module with TTL/PWM control, this will be a reliable choice.

Specifications
• Laser wavelength: 405nm
• Output power: 500mW
• Output stability: ±5%
• Light spot shape: dot
• Lens material: professional focusing optical lens
• Input voltage: DC 12V AC
• LD input current: <2A

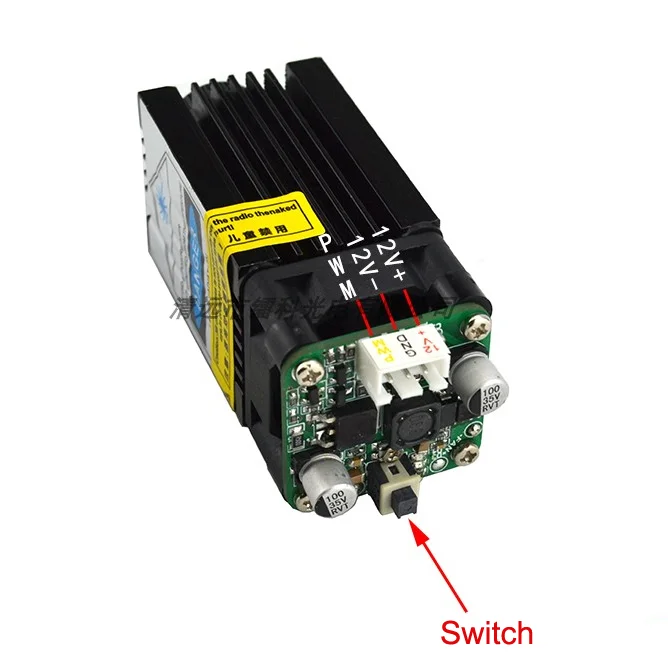

• Modulation control: PWM or TTL control
• Adjustable focus: yes
• Working temperature: -10~40℃
• Product size: 33x33x56.5mm
• Useful life: >8000 hours

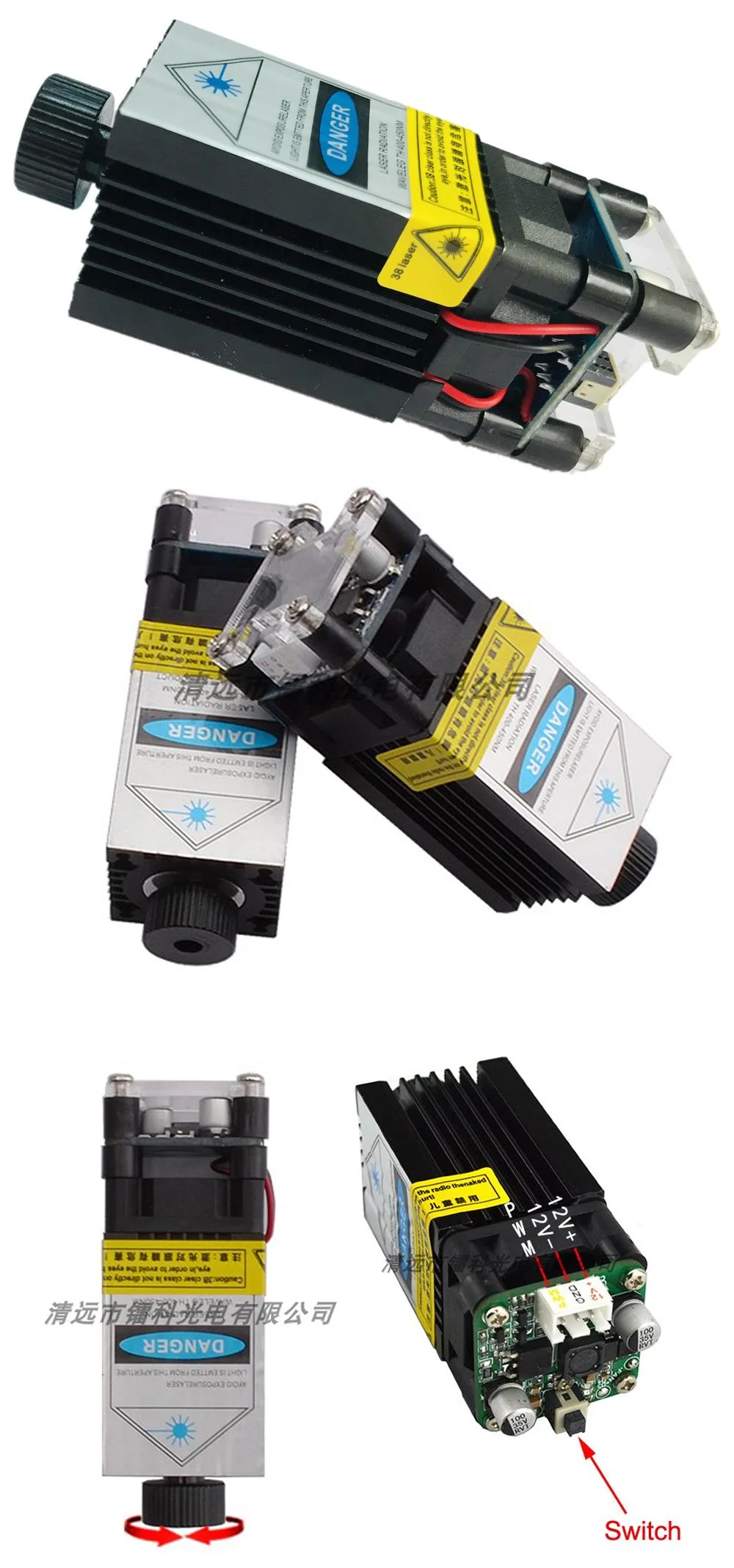

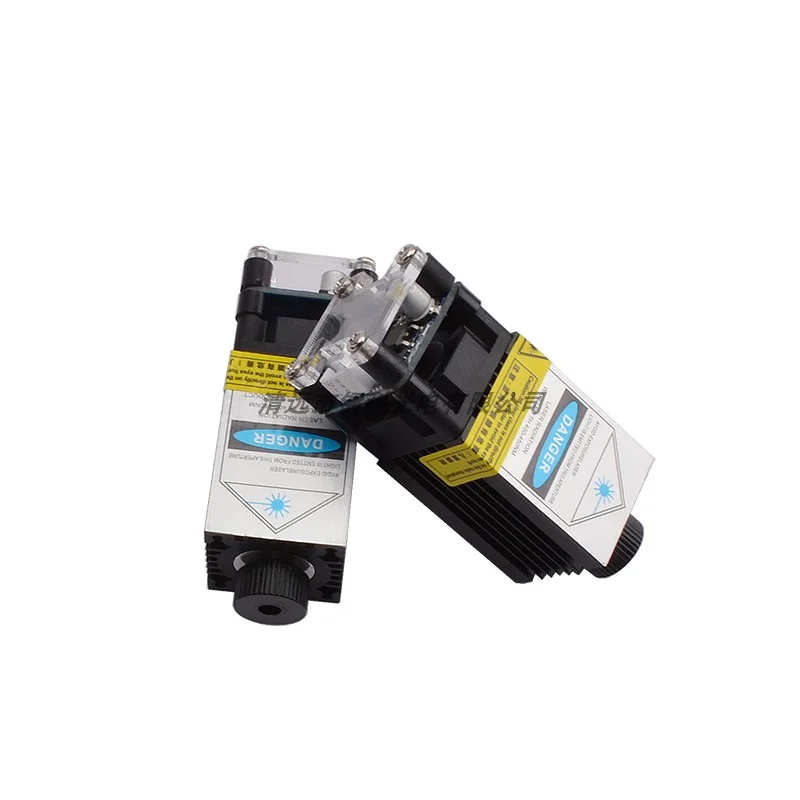

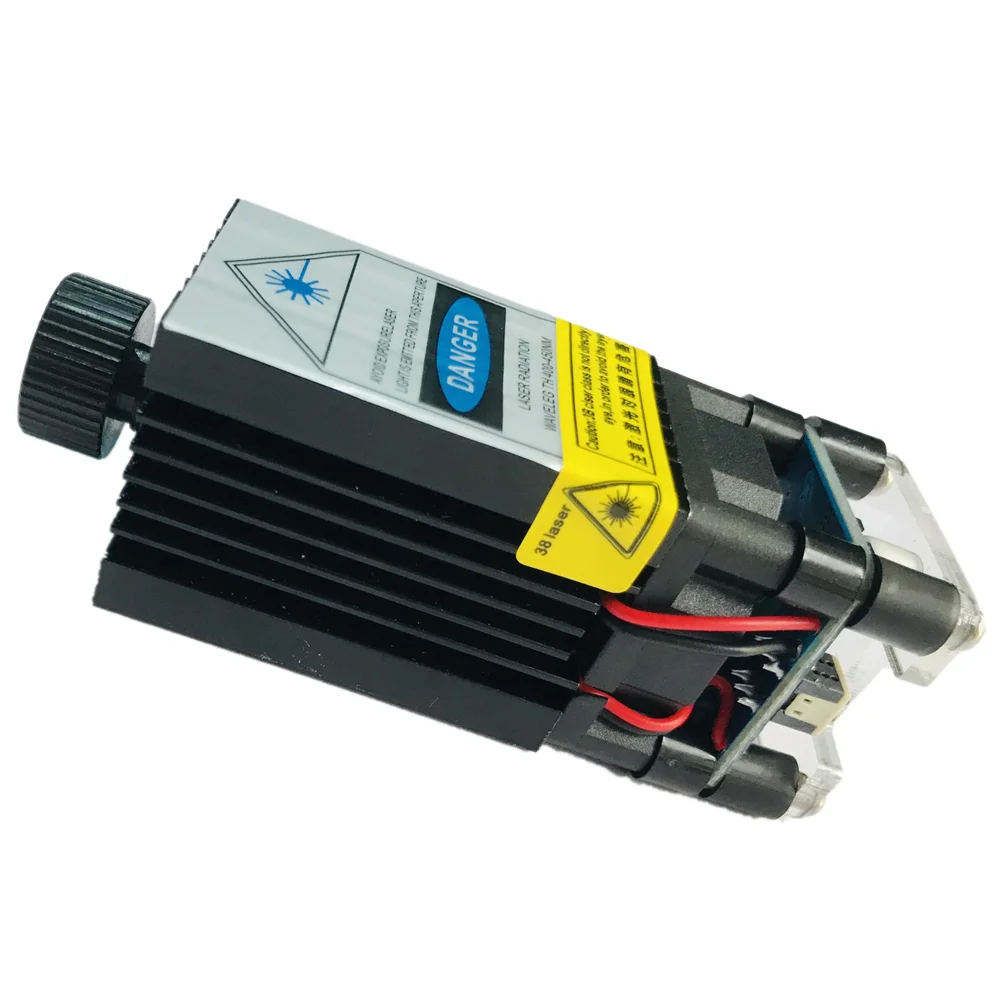

405nm Violet Laser Module

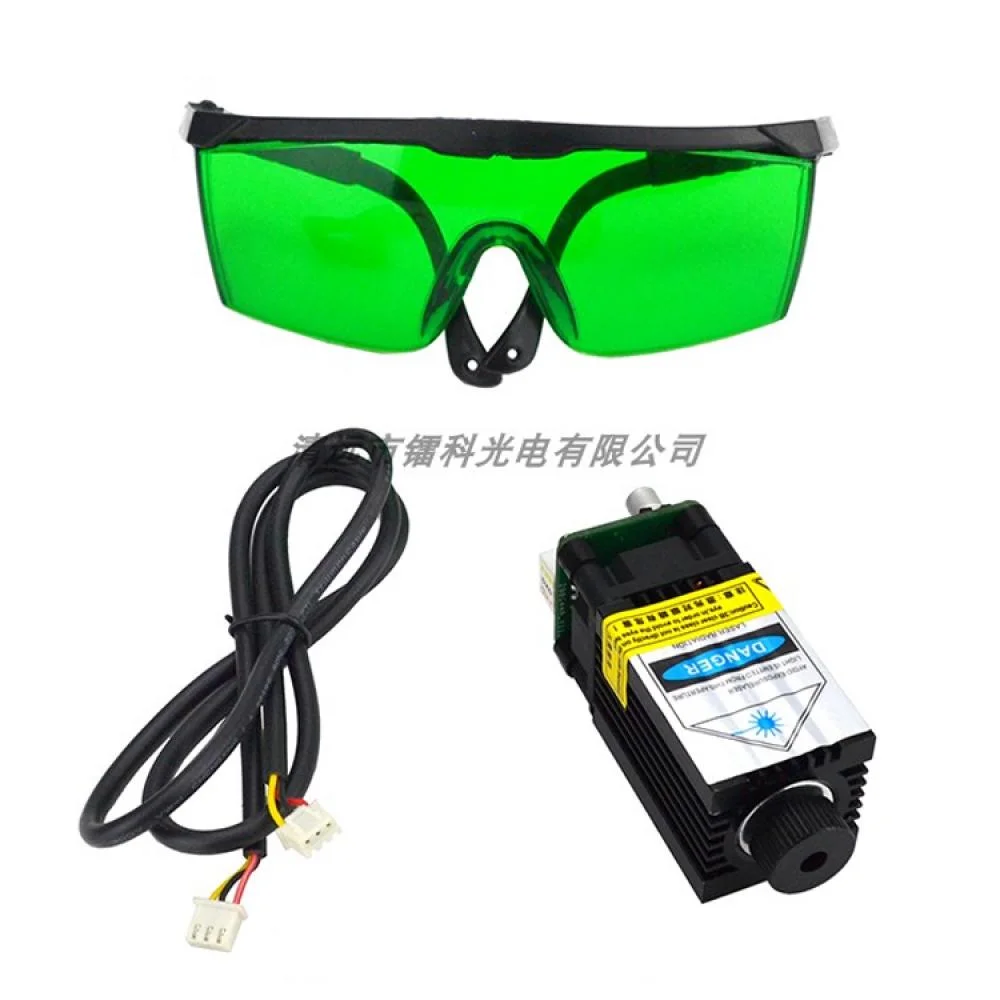

Powerful Violet Laser Module

Notice
1) The input voltage is 12V. Overvoltage will cause instantaneous damage to the circuit and module.
2) The 24V can be customized.
