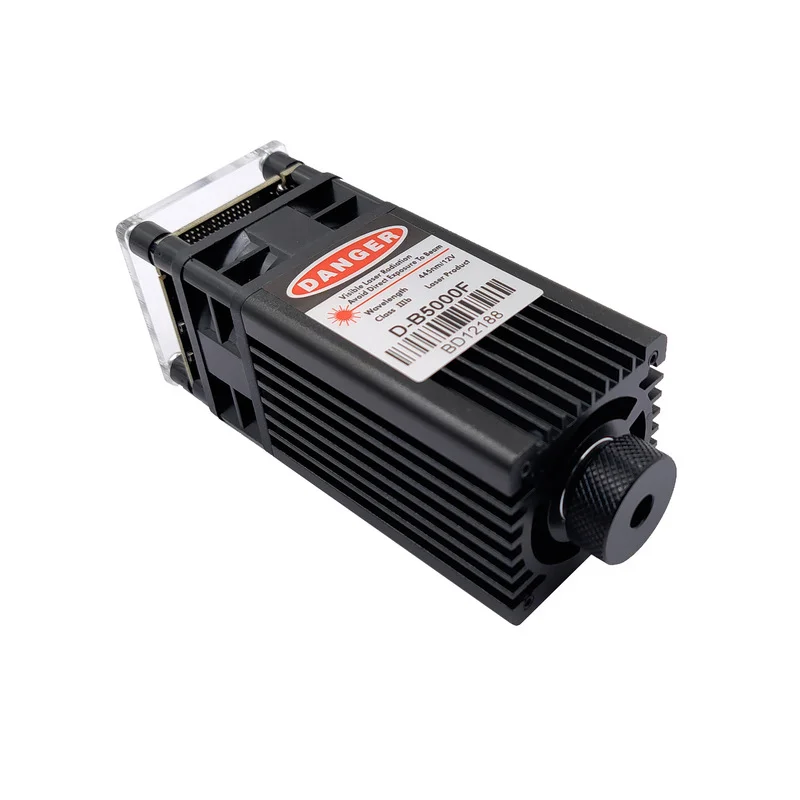

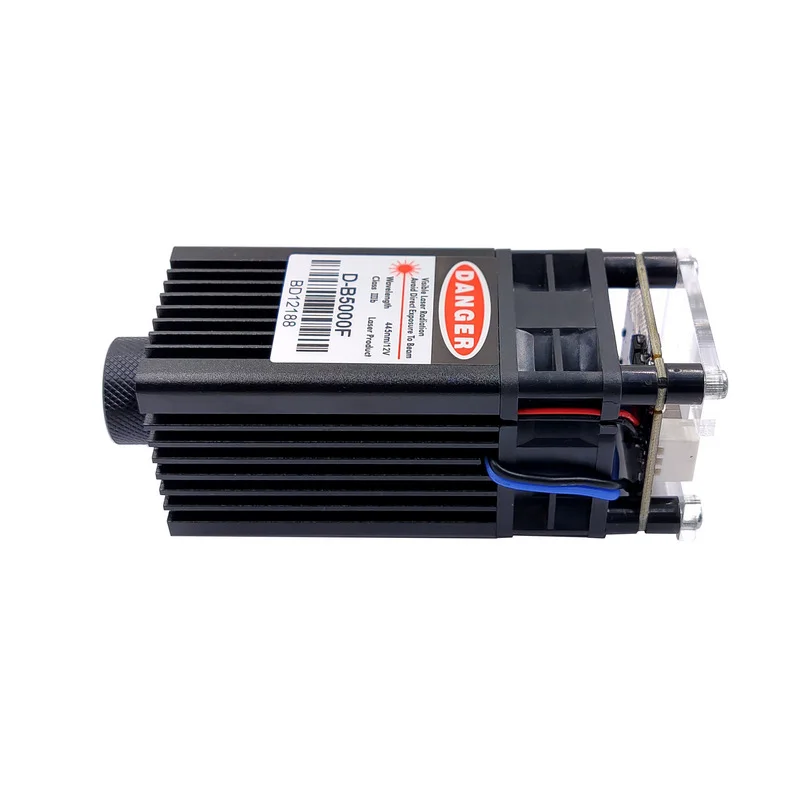

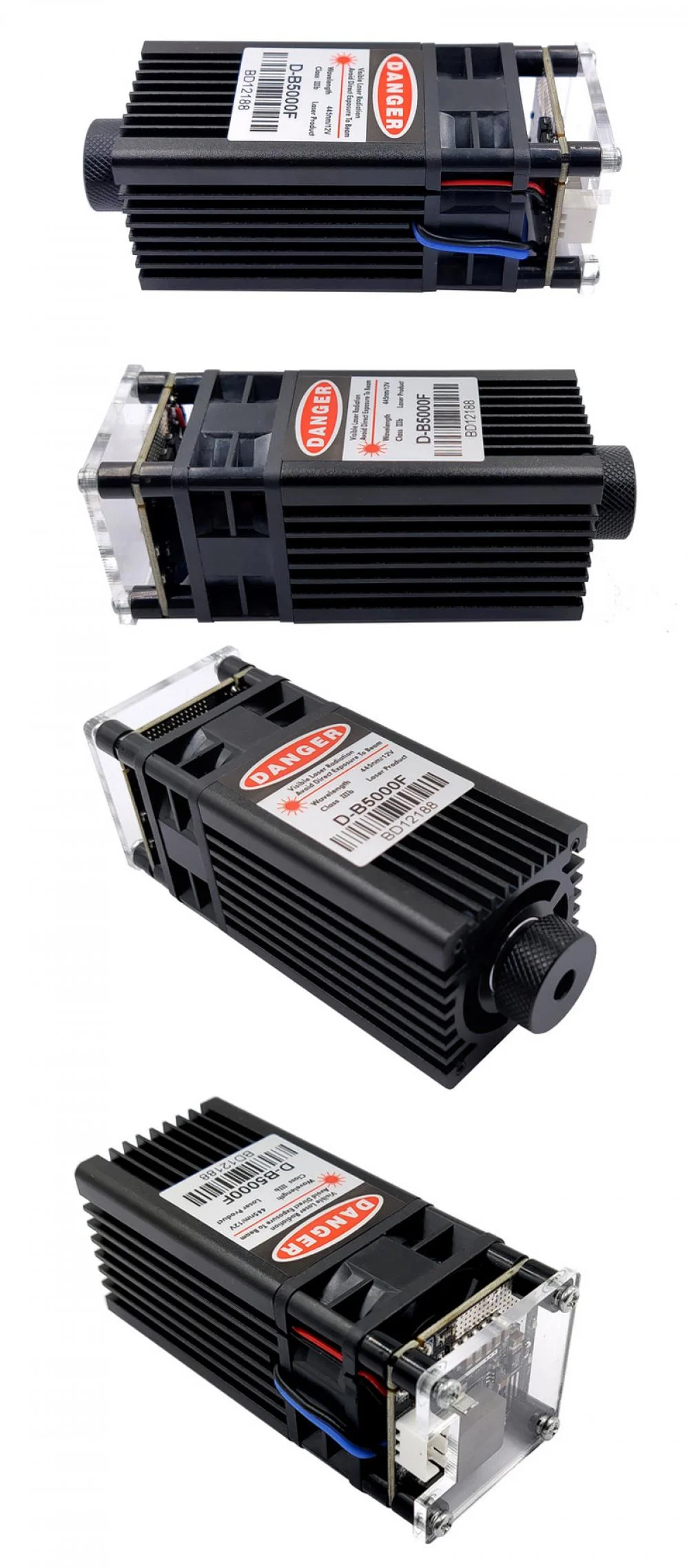

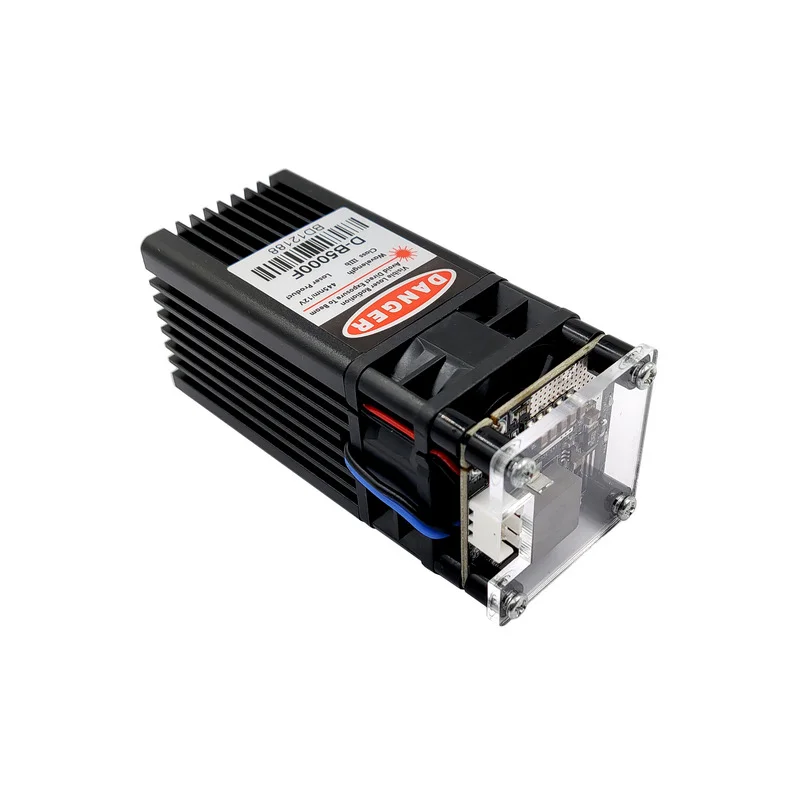

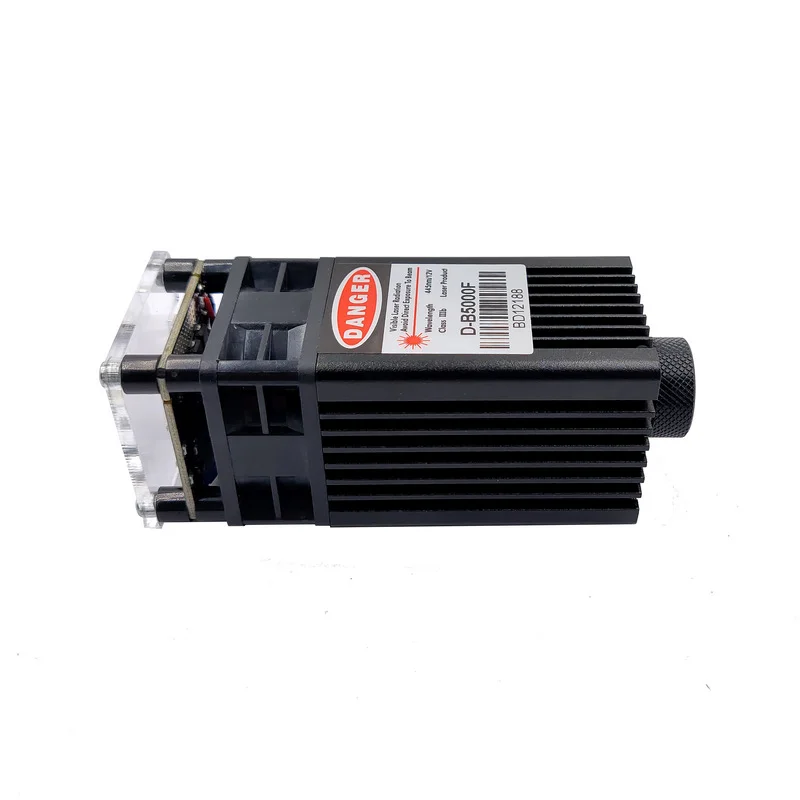

Powerful Blue Laser Engraver Module 5W (5000mW) 445nm

This powerful laser engraver module adopts the best materials and the latest technology. It perfectly integrates the temperature control system, circuit driver, and laser diode. You don't need to worry about overheating with scientific heat dissipation design, two-way temperature control, and perfect temperature protection. The blue laser spot is thin and bright, with a small divergence angle and good collimation.

This model has passed aging tests and impact tests. When the temperature is -20~70 degrees, it can work stably for 24 hours. If you are looking for a 5W laser engraver module, this will be a good choice.

Specifications
• Laser wavelength: 445nm
• Output power: 5000mW (5W)
• Output stability: ±5%
• Laser class: class 4
• Spot shape: rectangle
• Focal length range: 2-8 cm
• Focus size: 0.2 mm
• Lens material: professional focusing optical lens
• Input voltage: DC 12V
• LD input voltage: 5V
• LD input current: 3.8A
• Modulation mode: TTL/PWM control
• Input voltage control range: 0~5V
• Working frequency: ≤30KHz
• Recommended ambient temperature: -10~40℃
• Product size: 40x40x85mm
• Product weight: 245g
• Useful life: >8000 hours

Notice
1) The input voltage is 12V. Overvoltage will cause instantaneous damage to the circuit and module.
2) The 24V can be customized.
