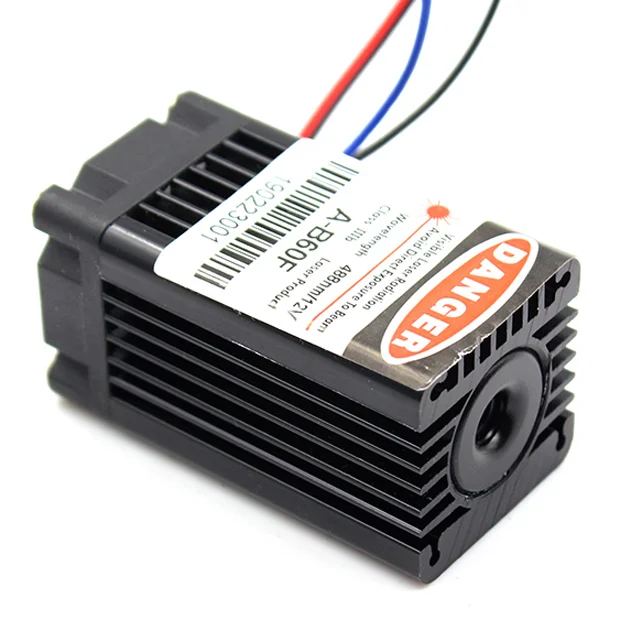

Professional 488nm Cyan Laser Module 200mW with TTL/PWM Modulation

The 488nm cyan laser is rare on the market, with high material costs and high technical requirements. For stability, our recommended maximum power does not exceed 200mW. This model is usually used for medicine, communication, laser detection, scientific experiments, etc. It is also a valuable collection for laser enthusiasts. Are you looking for a professional 488nm laser module? What you get will exceed your expectations here!

Features
1) With bright laser spot, low divergence angle, and good collimation.
2) It supports TTL / PWM modulation (0-5V) to adjust the output power.
3) The temperature control, driver board, and laser have been fully integrated. Please connect it to the DC power supply directly.
4) After the high/low-temperature storage and vibration shock test, it has reliable stability. When the temperature is in the range of -10℃~55℃, it can work stably and continuously for 24 hours.
5) The scientific heat dissipation design, two-way temperature control, and perfect temperature protection function can extend the useful life of the laser module as much as possible.

Specifications
• Laser light shape: dot / line / cross
• Wavelength: 488 nm (cyan)
• Output power: 180-200mW
• Divergence angle: ≤ 1mRad
• Modulation mode: TTL / PWM
• Diode useful life: 8000 hours
• Diode input voltage: 7V
• Diode input current: < 390mA
• Rated power consumption: < 3.3W
• Operating temperature: -10℃~50℃
• Dimensions: 30mm x 30mm x 45mm

Precautions:
* This product should be used in a dry and static-free environment.
* Do not adjust the potentiometer on the power board (the warranty does not cover DIY).
* Overvoltage or overcurrent can damage the laser module (power supply is DC 12V).

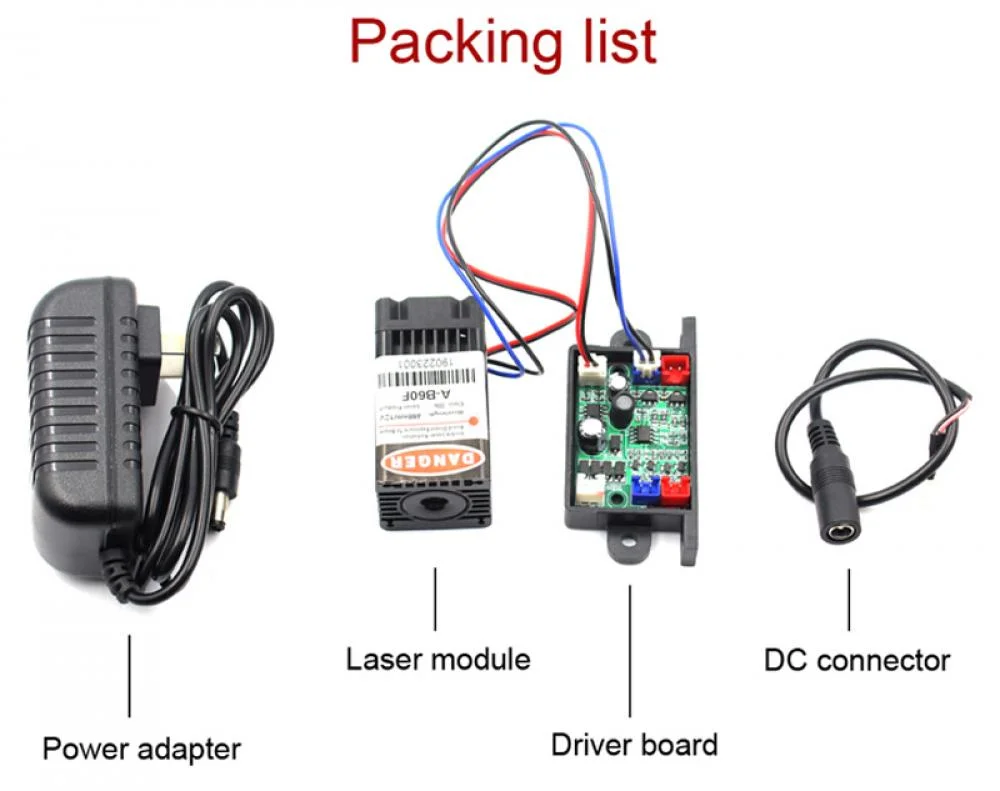

Packing List
• 1 x 488 nm Laser Module
• 1 x Driver Board
• 1 x Power Adapter
• 1 x DC Connector
