Sky-Blue 488nm Laser Module

Sky-Blue 488nm Laser Module 120mW with TTL

We can provide customers with optoelectronic solutions and design laser modules that meet customer needs.

Price: $125.83

Quantity:

Product Details

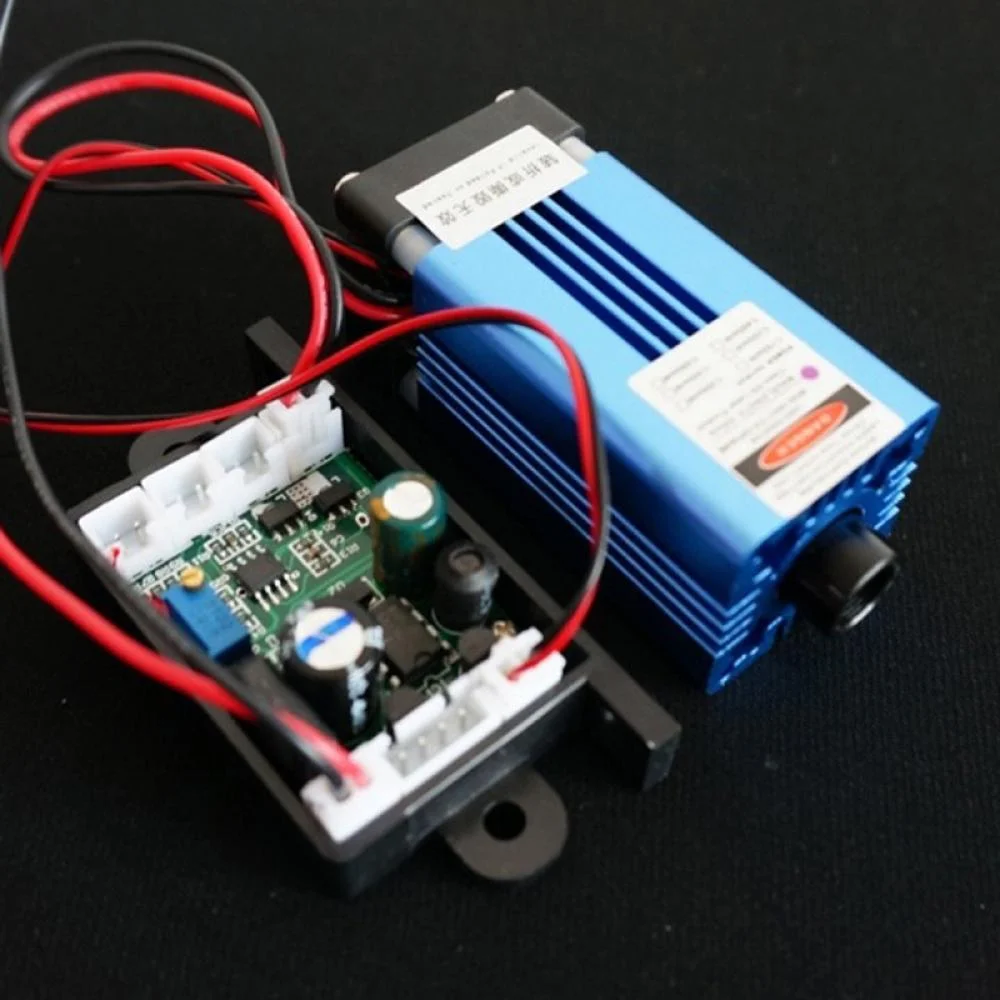

This laser module has high stability, high power, cooling fan, and TTL modulation. It can work continuously 24 hours a day, and you don't need to worry about overheating. The 488nm laser is sky-blue, and dot/line/cross is optional - you can choose according to your needs.

Notes
1) The input voltage is 12V. Overvoltage will cause damage to the circuit and module.
2) If you have any technical questions, please contact us.

Specifications
• Laser type: dot / line / cross
• Laser body size: 74mm x 30mm x 30mm
• Circuit board size: 71.5mm x 35mm x 20mm
• Output wavelength: 488nm (sky-blue)
• Output power: 120mW
• Housing material: aviation aluminum
• Circuit control: constant current
• Cooling method: fan cooling
• Modulation frequency: TTL 1-20K Hz
• Modulation voltage: 0-5V
• Reverse polarity protection: available
• Working voltage: DC=12V
• Warm-up time: none
• Working temperature: -10℃~+40℃
• Storage temperature: -10℃~+40℃

488nm Laser Module

Sky-Blue Laser Module
