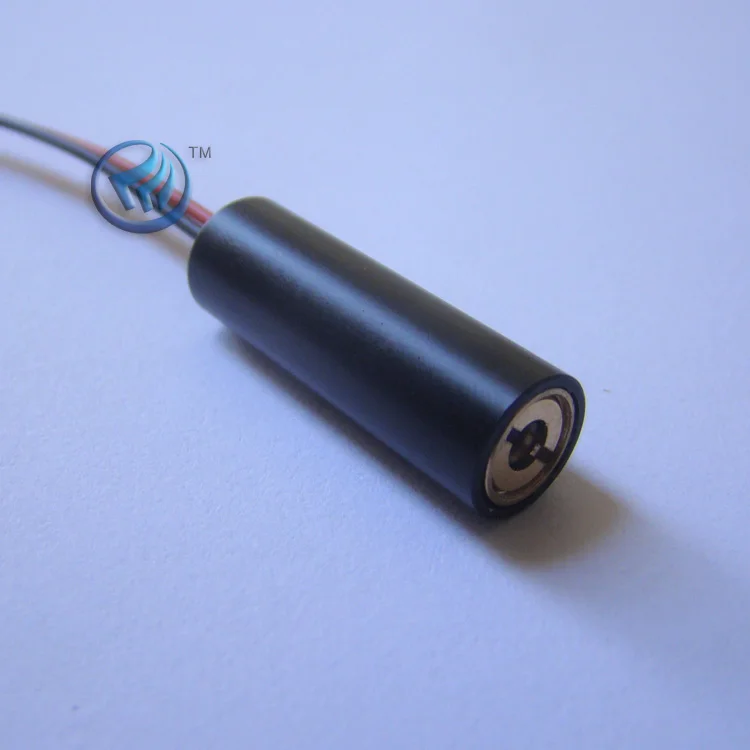

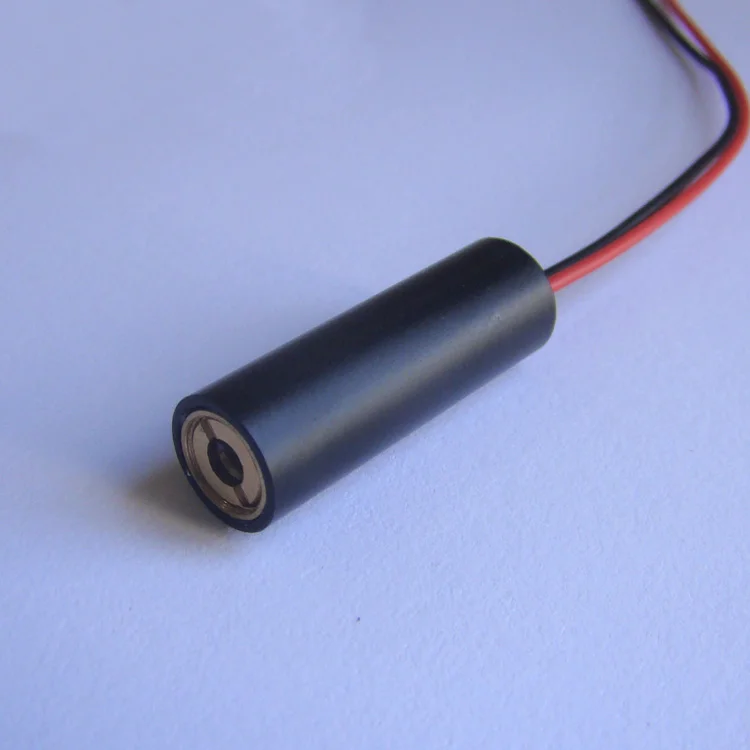

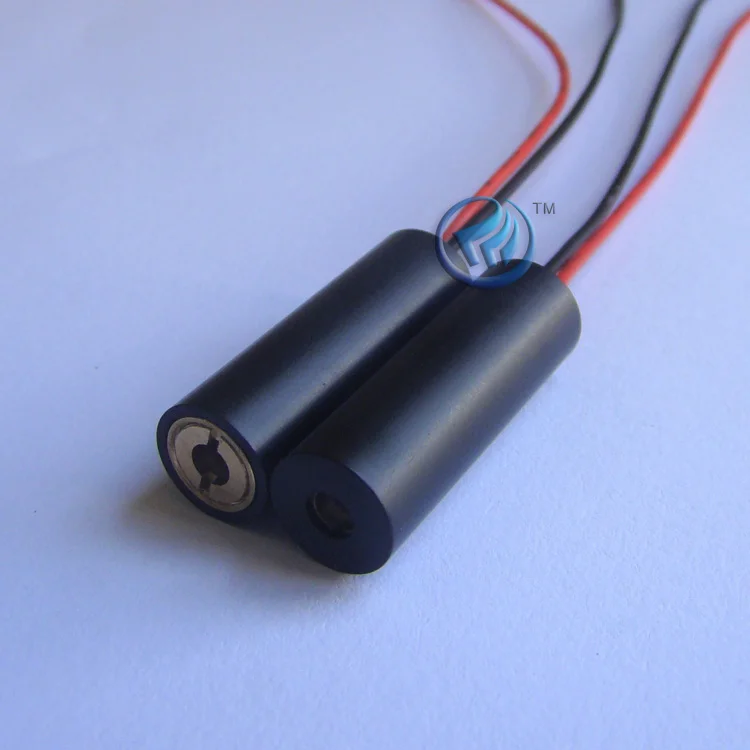

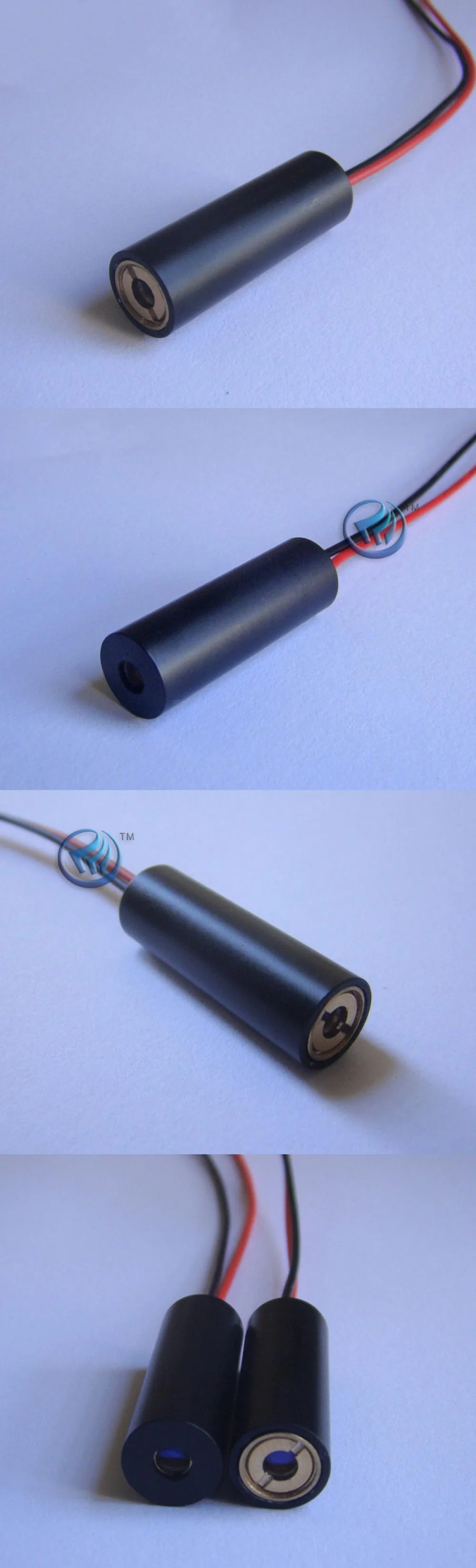

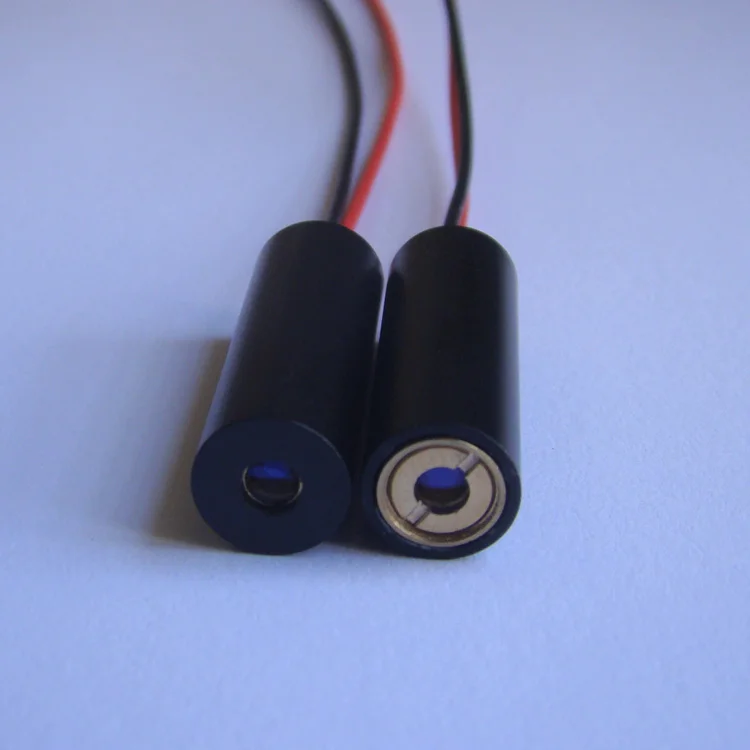

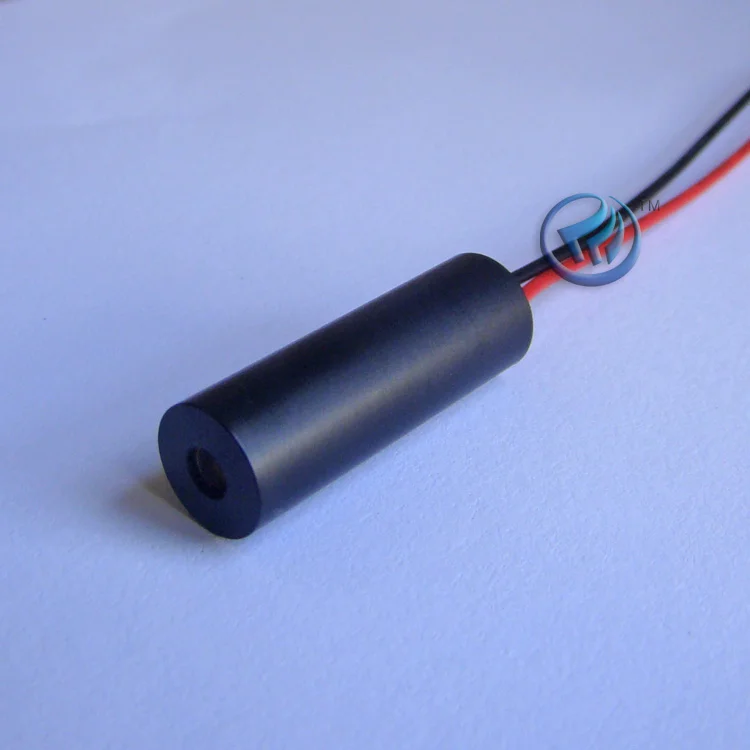

Small 405nm Violet Dot Laser Module 5mW-200mW

This laser module comes with a small size, sturdy housing, and durable structure design. If you choose the adjustable focus, you can change the size of the light spot. The 405nm violet laser spot is uniform and can work continuously 24 hours a day.

Buying Tips
1) The default operating voltage is 5.0V-7.0V. 12V/24V is customizable.
2) The module size can be customized: Φ9×26mm, Φ10×22mm, Φ10×30mm, Φ12×30mm, Φ12×50mm (size customization is free). We will send Φ10×30mm by default.

Specifications
• Wavelength: 405nm/±5nm
• Laser shape: dot
• Dimensions: Φ10 x 30 mm
• Power: 5mW/10mW/20mW/60mW/120mW/200mW

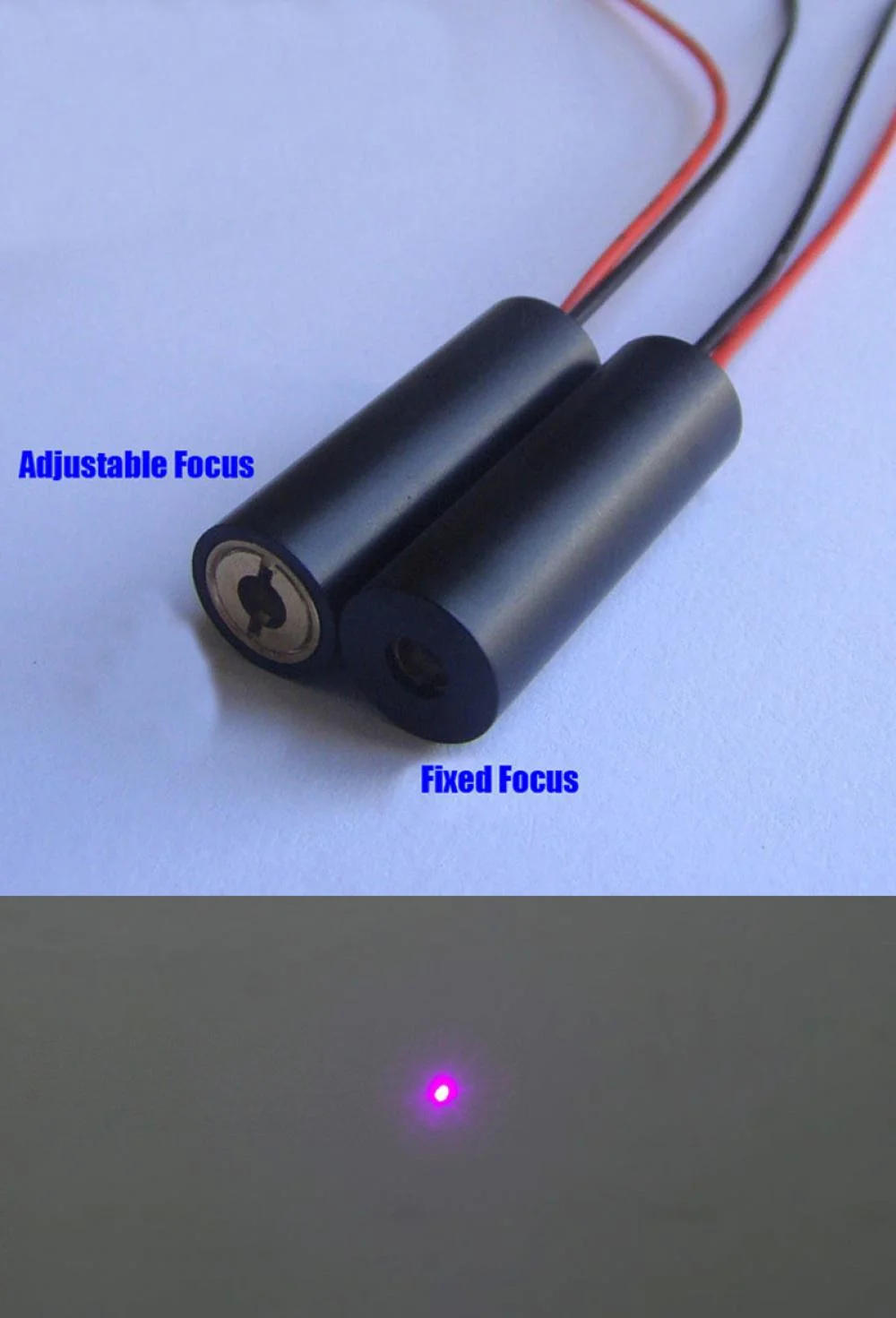

• Focus: adjustable/fixed (optional)
• Useful life: > 8000 hours (continuous output)
• Housing material: copper + aluminum
• Circuit control: APC line
• Operating voltage: DC= 5-7V (4 x AAA batteries)
• Operating temperature: 0℃～＋70℃
• Storage temperature: -40℃～＋80℃
