Small Green Dot Laser Module 520nm 1mW/5mW/10mW

This laser module comes with small sizes, high precision, and stable output. The green dot is uniform and bright, which can work 24 hours a day. It can be used for industrial laser positioning, sights, laser pointers, rangefinders, medical equipment, scientific research, etc. For product customizations, please contact us by email. We will reply to you within 24 hours.

Buying Tips

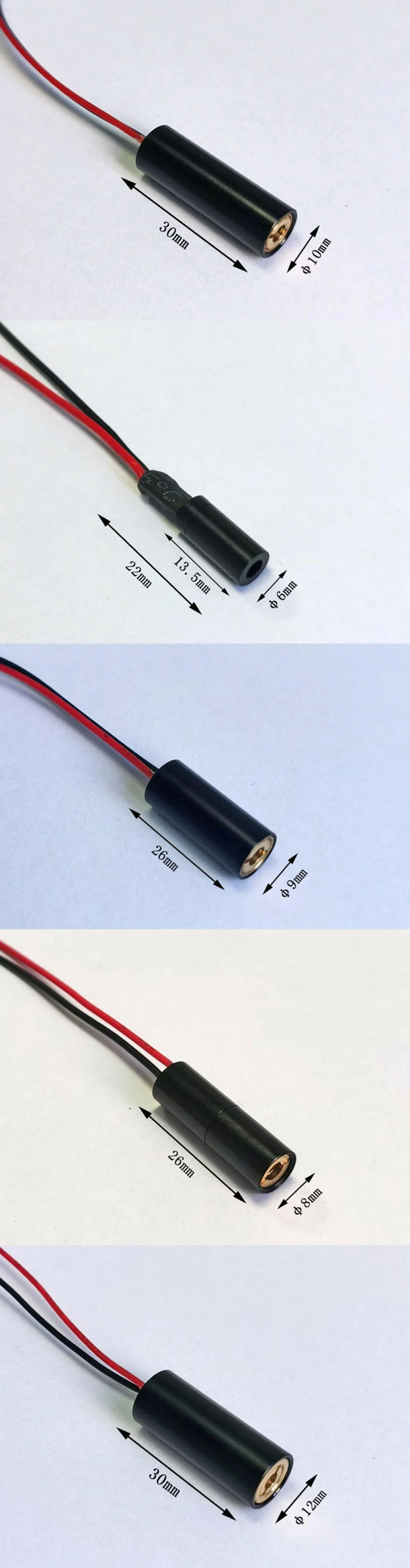

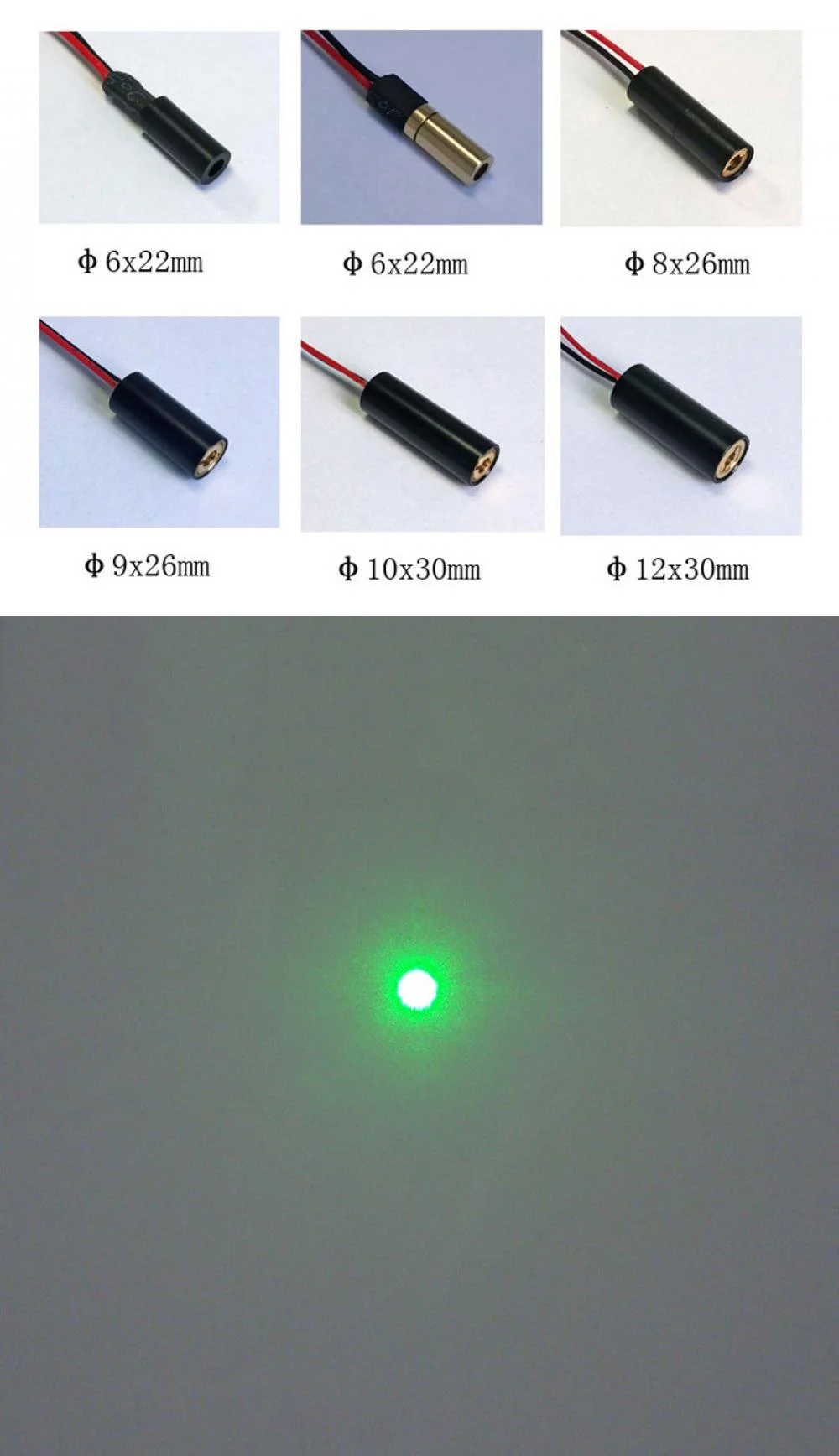

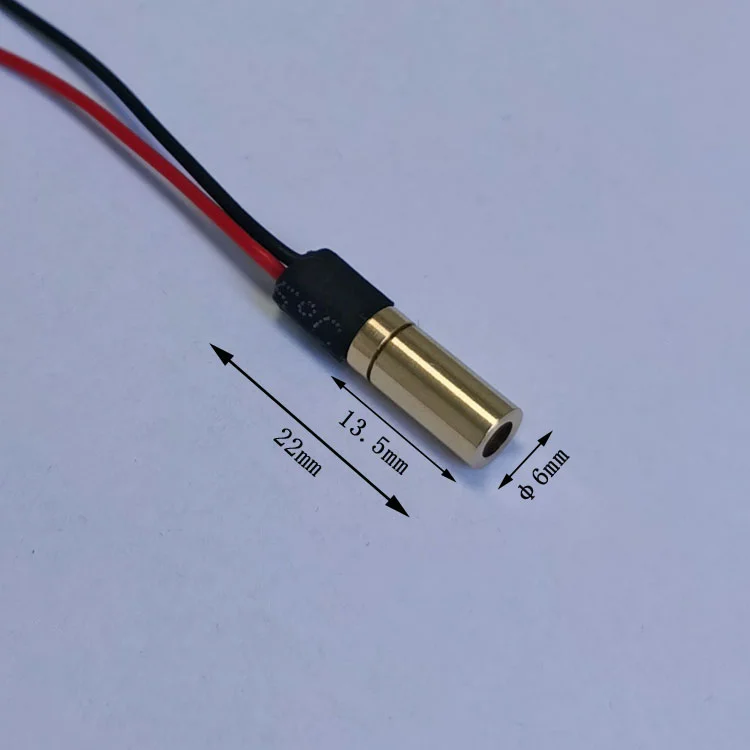

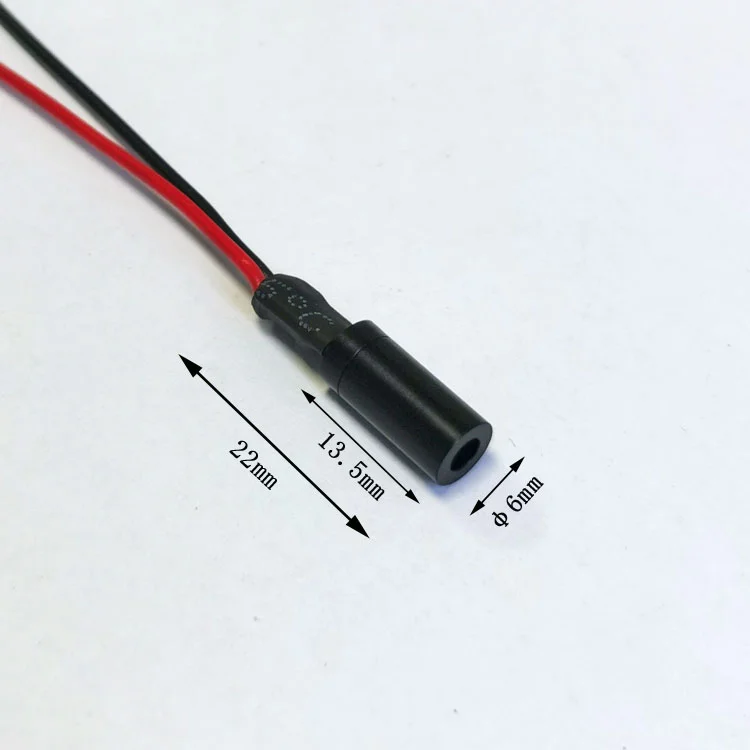

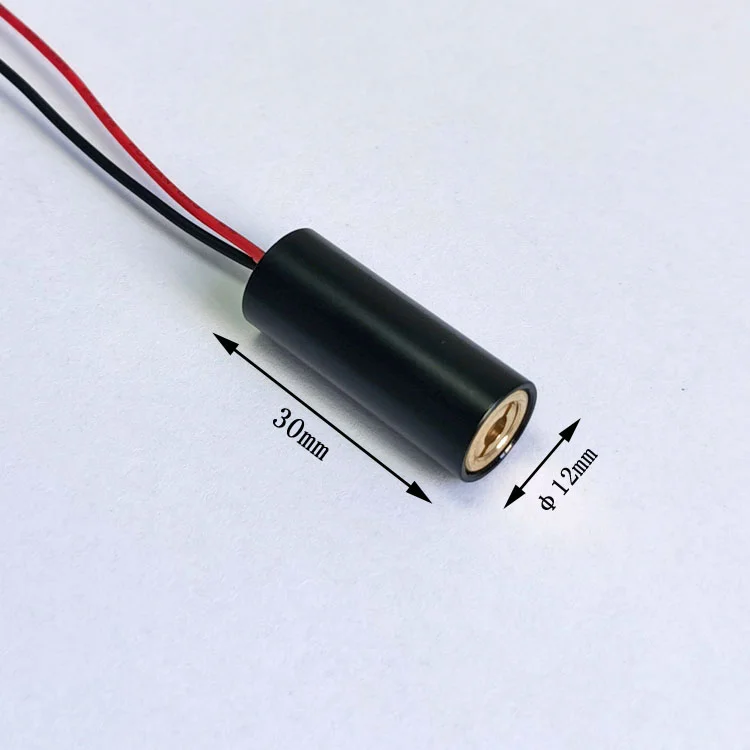

The module size can be customized: Φ6×22mm, Φ8×26mm, Φ9×26mm, Φ10×30mm, Φ12×30mm (size customization is free). We will send Φ10×30mm by default.

Specifications
• Wavelength: 520nm±10nm
• Output power: 1mW/5mW/10mW
• Laser shape: dot

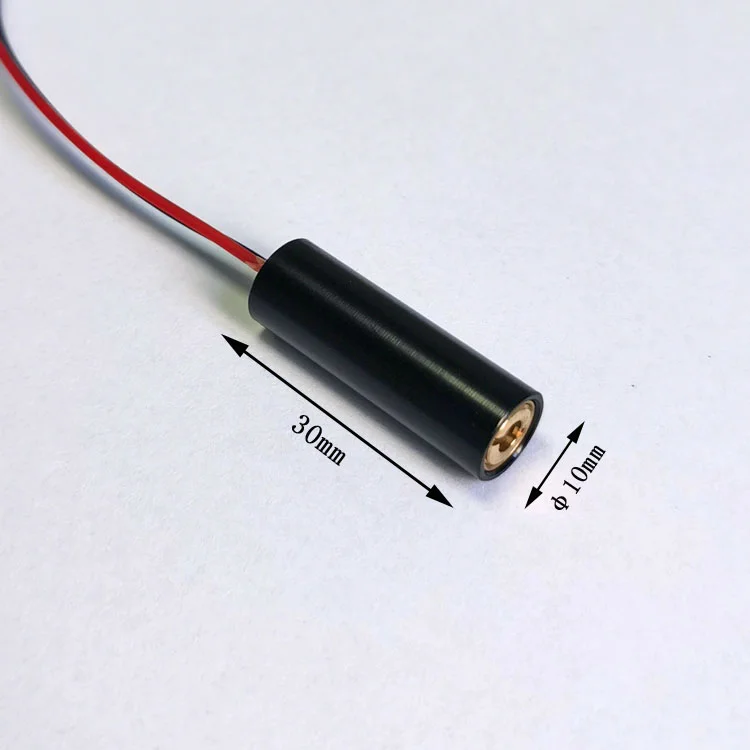

• Dimensions: Φ10 x 30 mm (customizable)

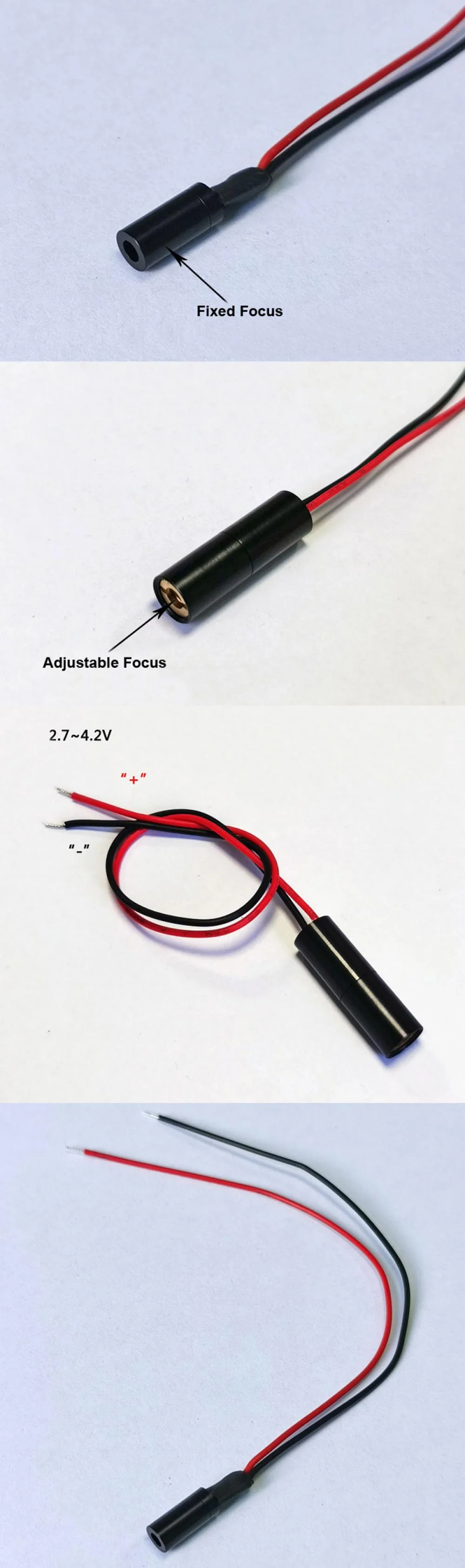

• Focus: adjustable/fixed focus (optional)
• Spot size: < 6mm from 10 meters away
• Useful life: > 10000 hours (continuous output)

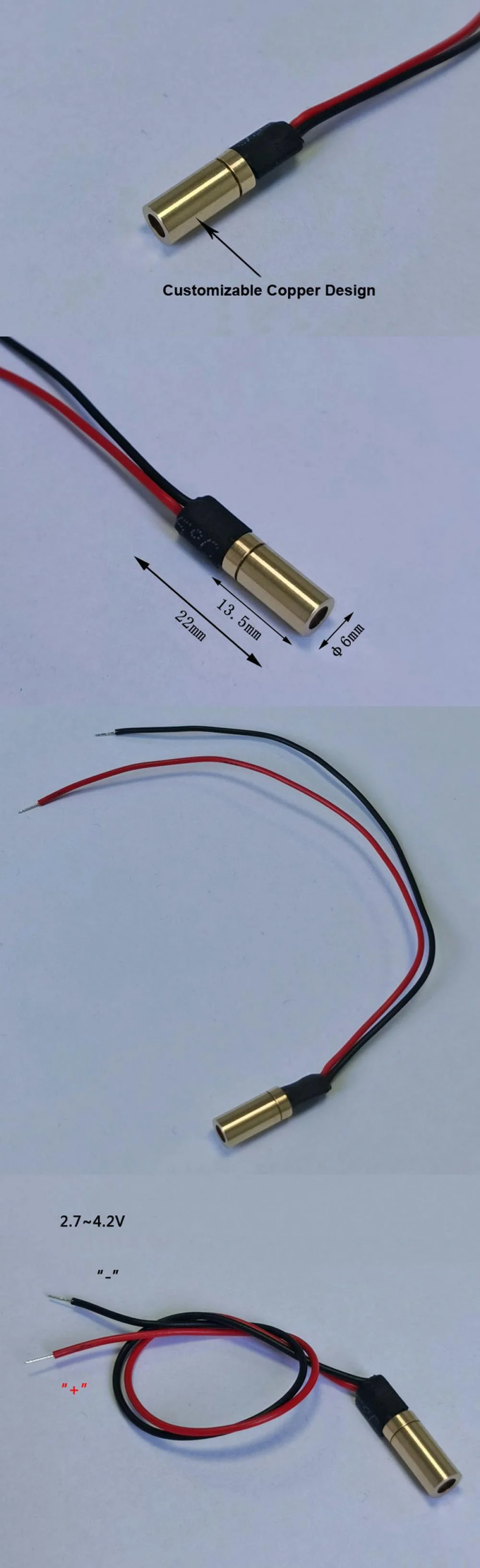

• Housing material: copper + aluminum
• Light spreading angle: 5°, 36°, 60°, 90°, 110°
• Circuit control: APC line
• Operating voltage: DC=2.6-4.2V
• Working current: I < 250mA
• Operating temperature: -10℃～＋50℃
• Storage temperature: -40℃～＋80℃
