Super Powerful 450nm Blue Laser Module for Engraving

For product customizations, please contact us by mail. We will reply to you within 24 hours.

Price: $118.99

Quantity:

Product Details

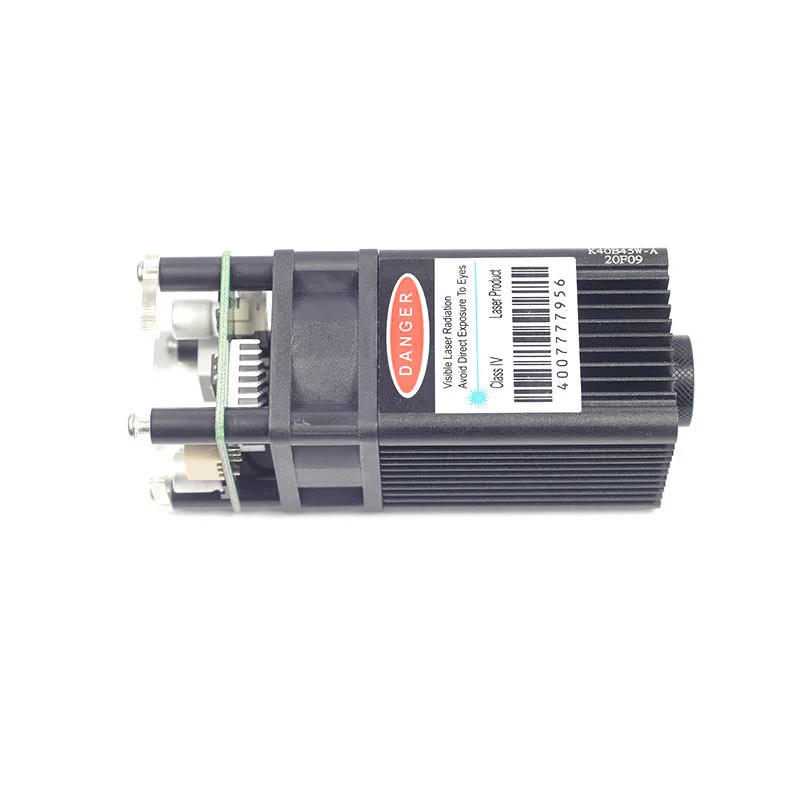

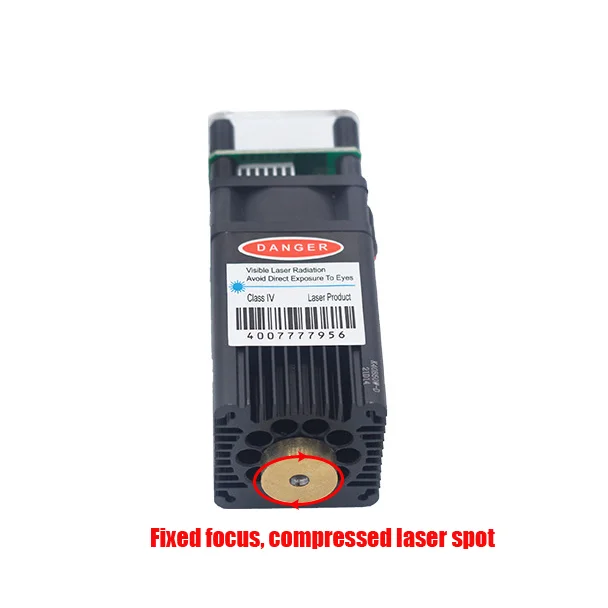

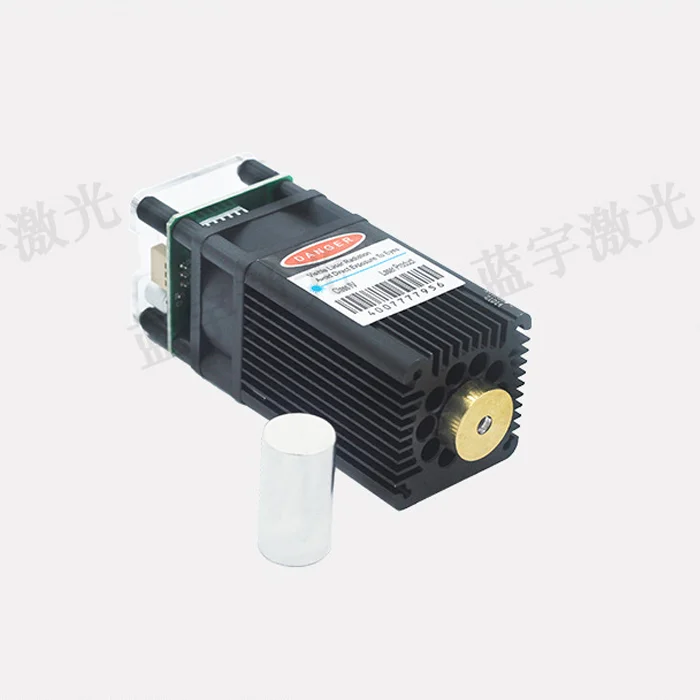

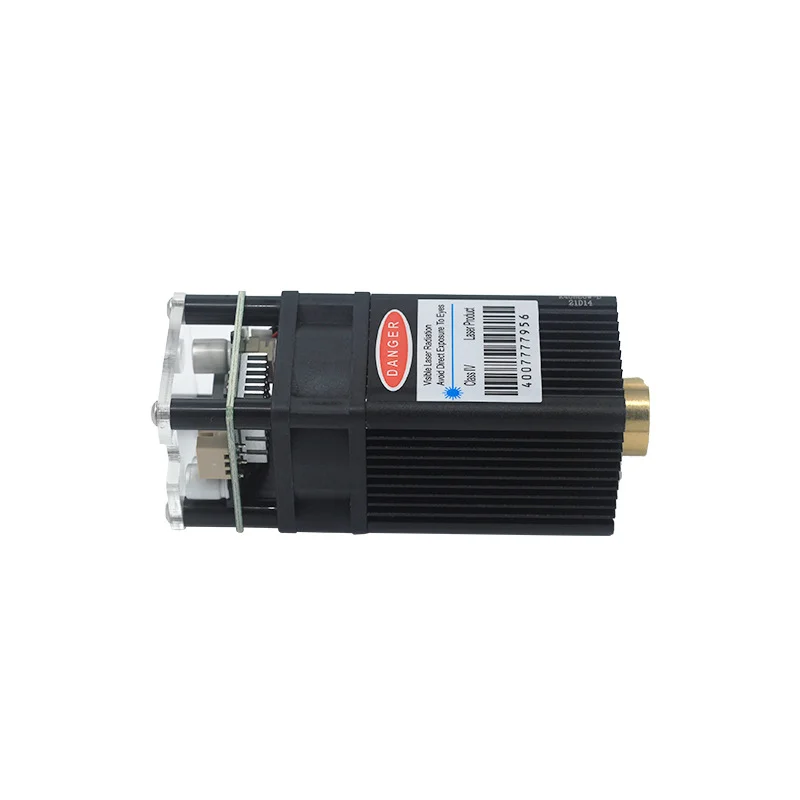

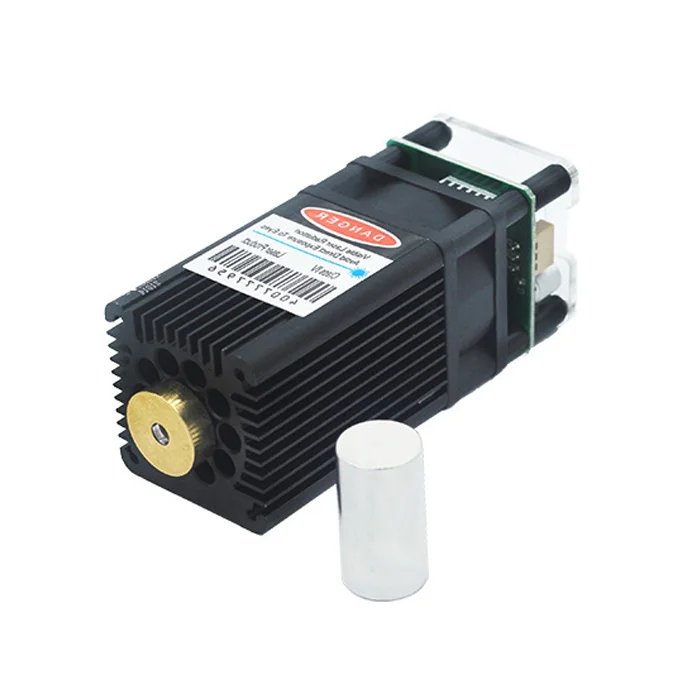

This blue laser module adopts spot compression technology and fixed focus, which is very suitable for engraving. It can cut wood and carve metal. The blue laser is stable and powerful, with a cooling fan, so you don't have to worry about heat dissipation. This model has passed aging tests, power tests, and quality tests.

Specifications
• Laser type: blue dot
• Output wavelength: 450nm
• Output power: 5W (5000mW)
• Laser spot size: 30mm < 1mm
• Housing material: 6061 aluminum
• Working voltage: DC=12V
• Working current: < 1.8A
• Electric power: 19.2W - 21.6W
• Working mode: pulse work
• Optical lens: φ6 / glass
• Cooling fan: 12V
• Circuit board: 24V / PWM modulation board
• Useful life: > 10000 hours
• Working temperature: 0℃~+70℃
• Storage temperature: -40℃~+85℃

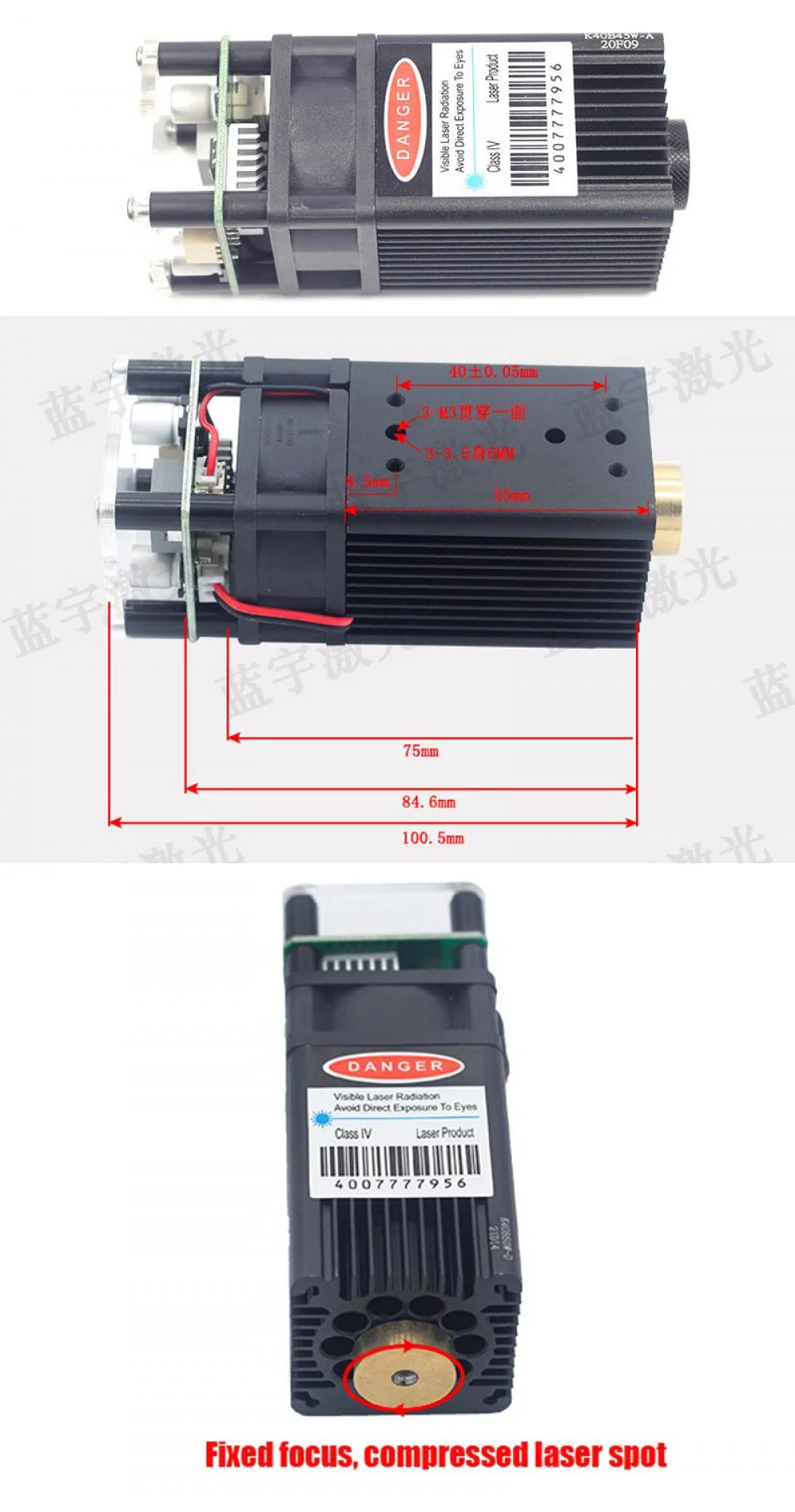

• Housing dimensions: 40 x 40 x 55 mm
• Circuit board dimensions: 40 x 40 mm
• Wire rod: 22# 2P 2.54 terminal reverse wire 90mm
• Net weight: 202.5 g

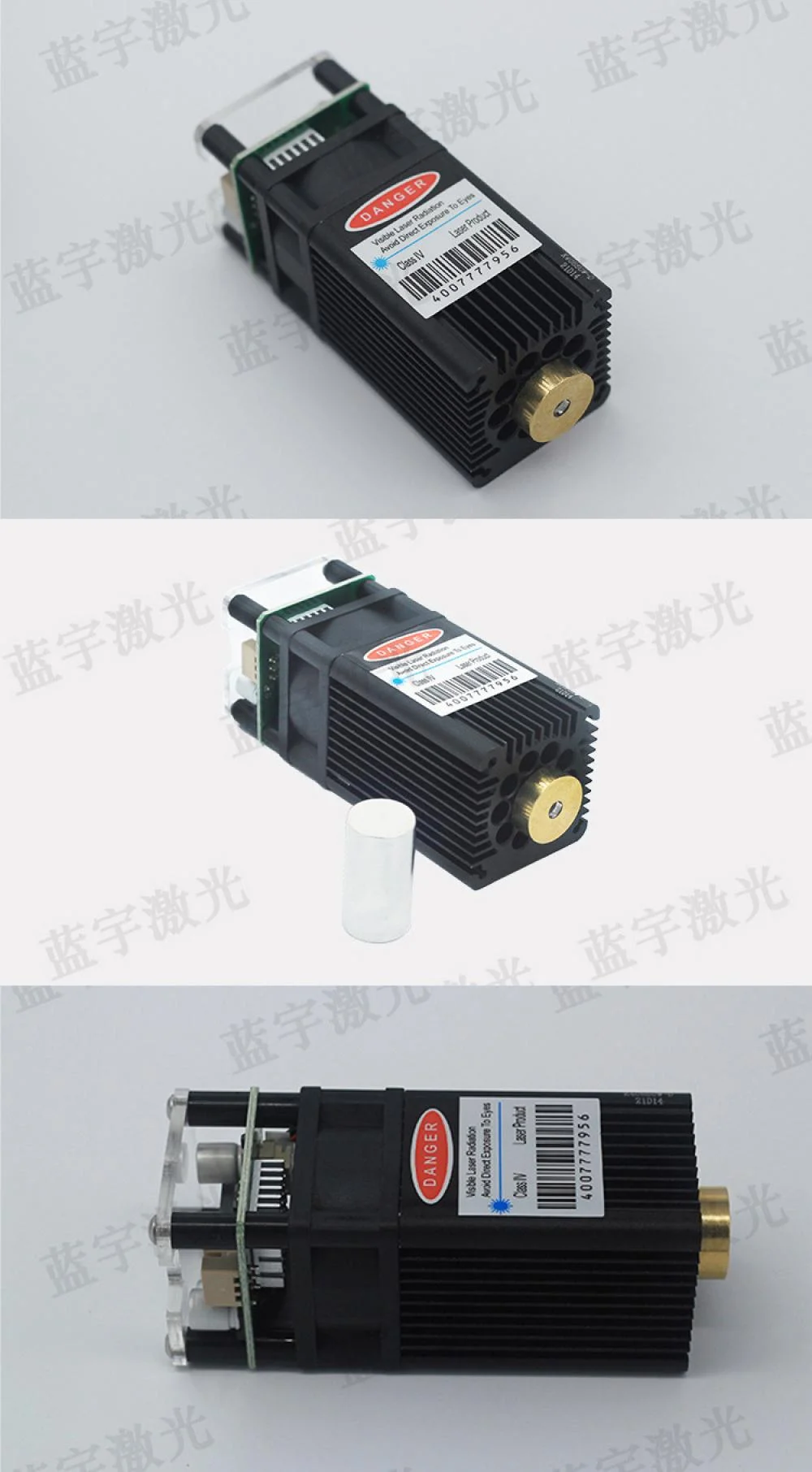

Powerful Blue Laser Module
