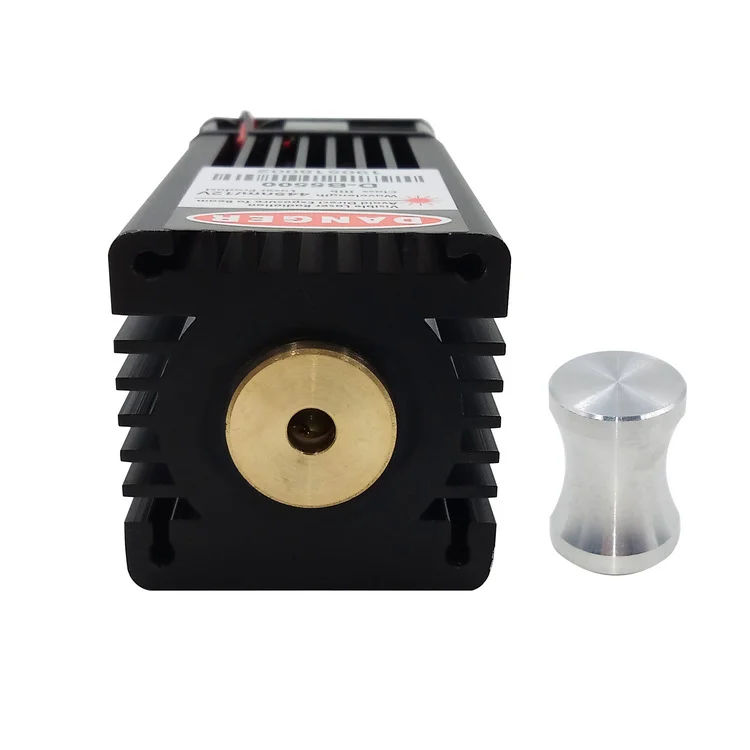

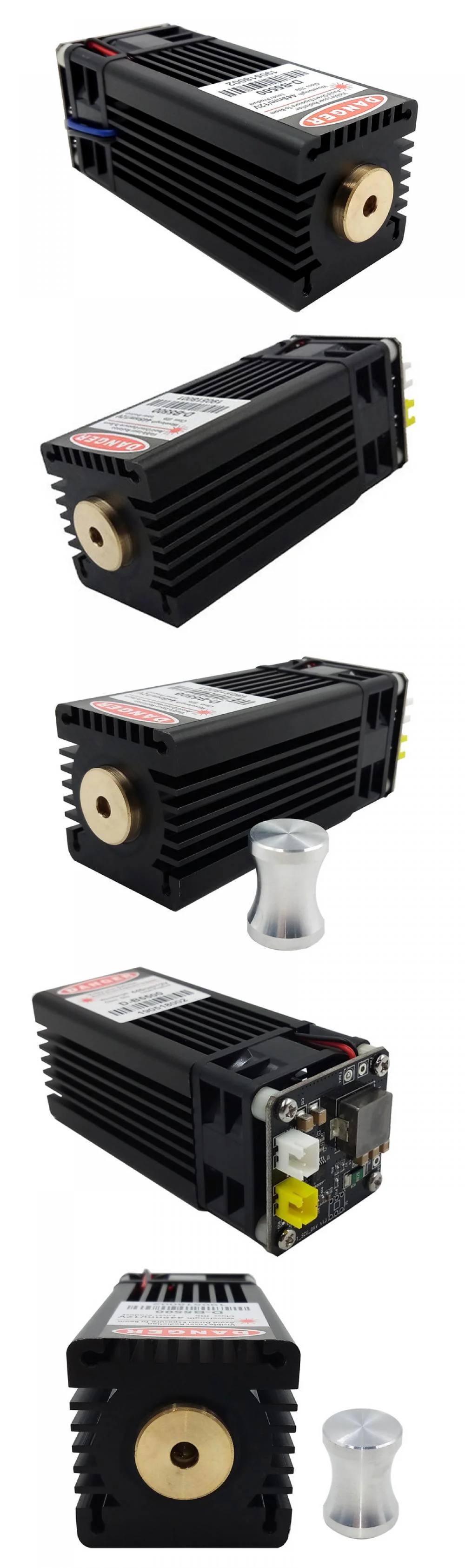

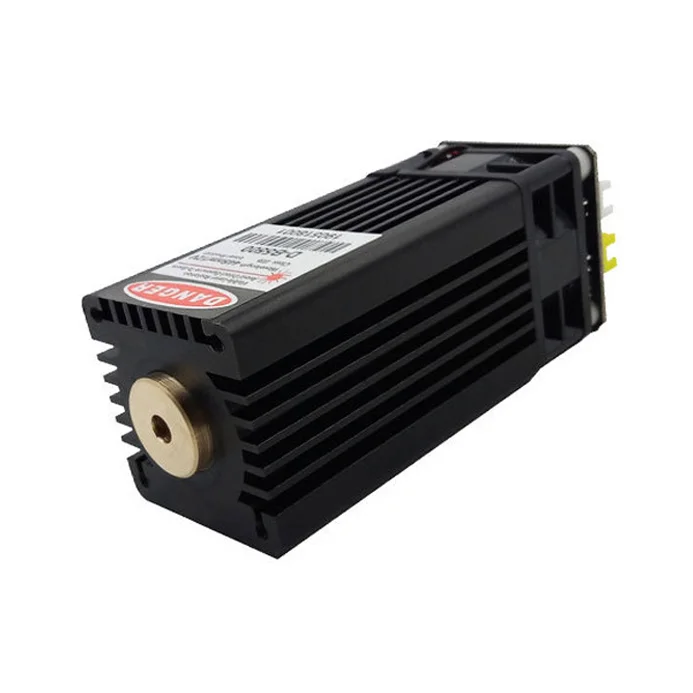

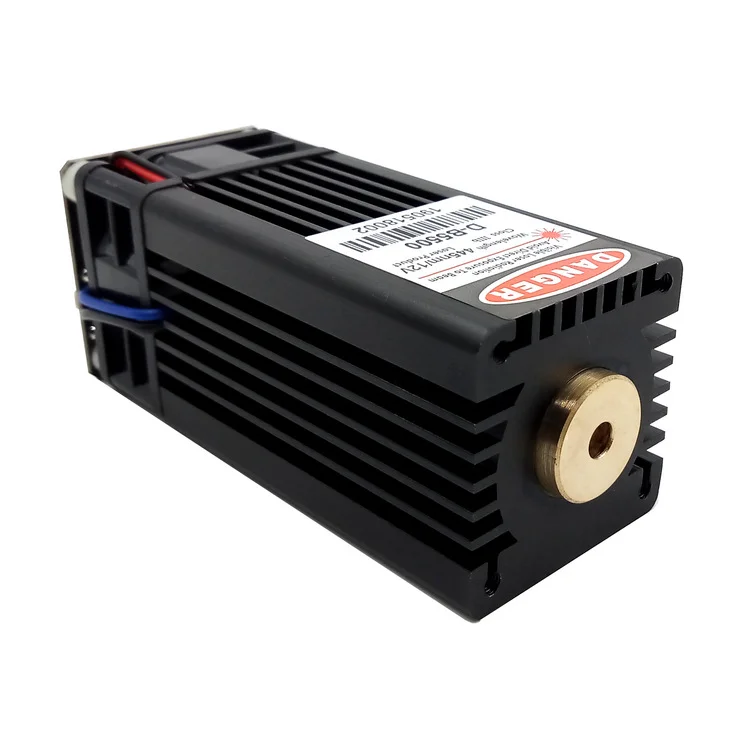

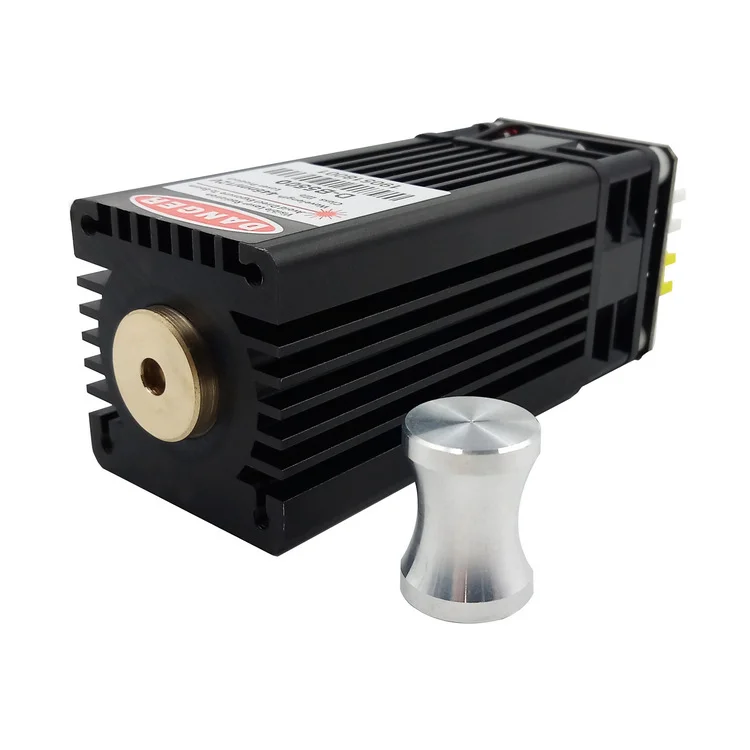

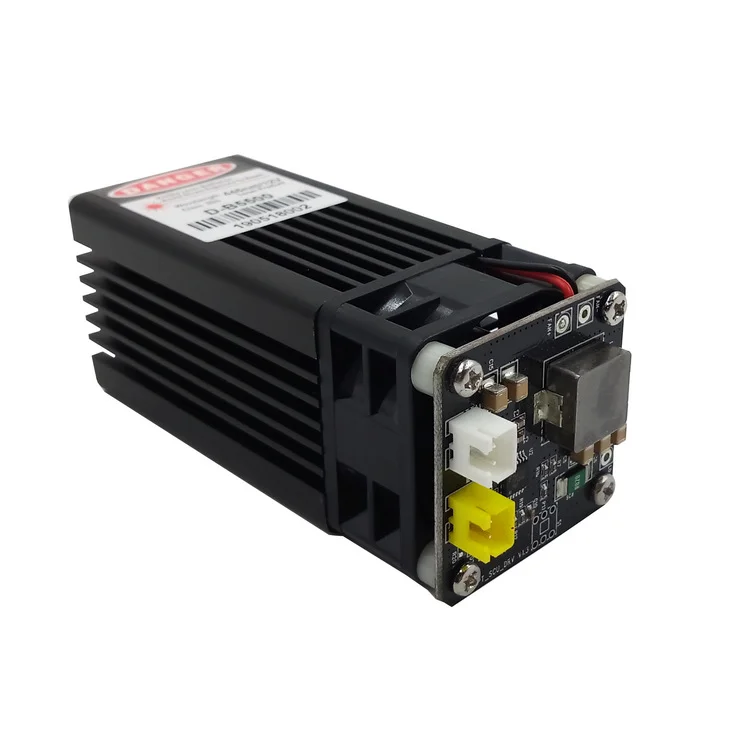

Super Powerful 6W (6000mW) 445nm Blue Laser Module for Engraving

This 6W laser module is one of our most popular products, with high power, high stability, adjustable focus, and a cooling system. It can work continuously 24 hours a day, which is ideal for engraving. It has the imported diode, a small laser spot, a low divergence angle, and good collimation. The scientific heat dissipation design, two-way temperature control, and perfect temperature protection function can prolong the life of the laser module as much as possible. The temperature control, driver, and powerful laser are perfectly integrated - you only need to provide DC power.

This model is tested for high/low-temperature storage and vibration shock. If you're looking for a super powerful blue laser module for engraving, it will be a cheap and reliable choice.

Specifications
• Laser wavelength: 445nm
• Output power: 6000mW (6W)
• Output stability: ±5%
• Laser class: class 4
• Spot shape: rectangle
• Fixed focus distance: 22mm
• Focus size: 0.2mm
• Lens material: professional focusing optical lens
• Input voltage: DC 12V
• LD input voltage: 5V
• LD input current: 4.2A

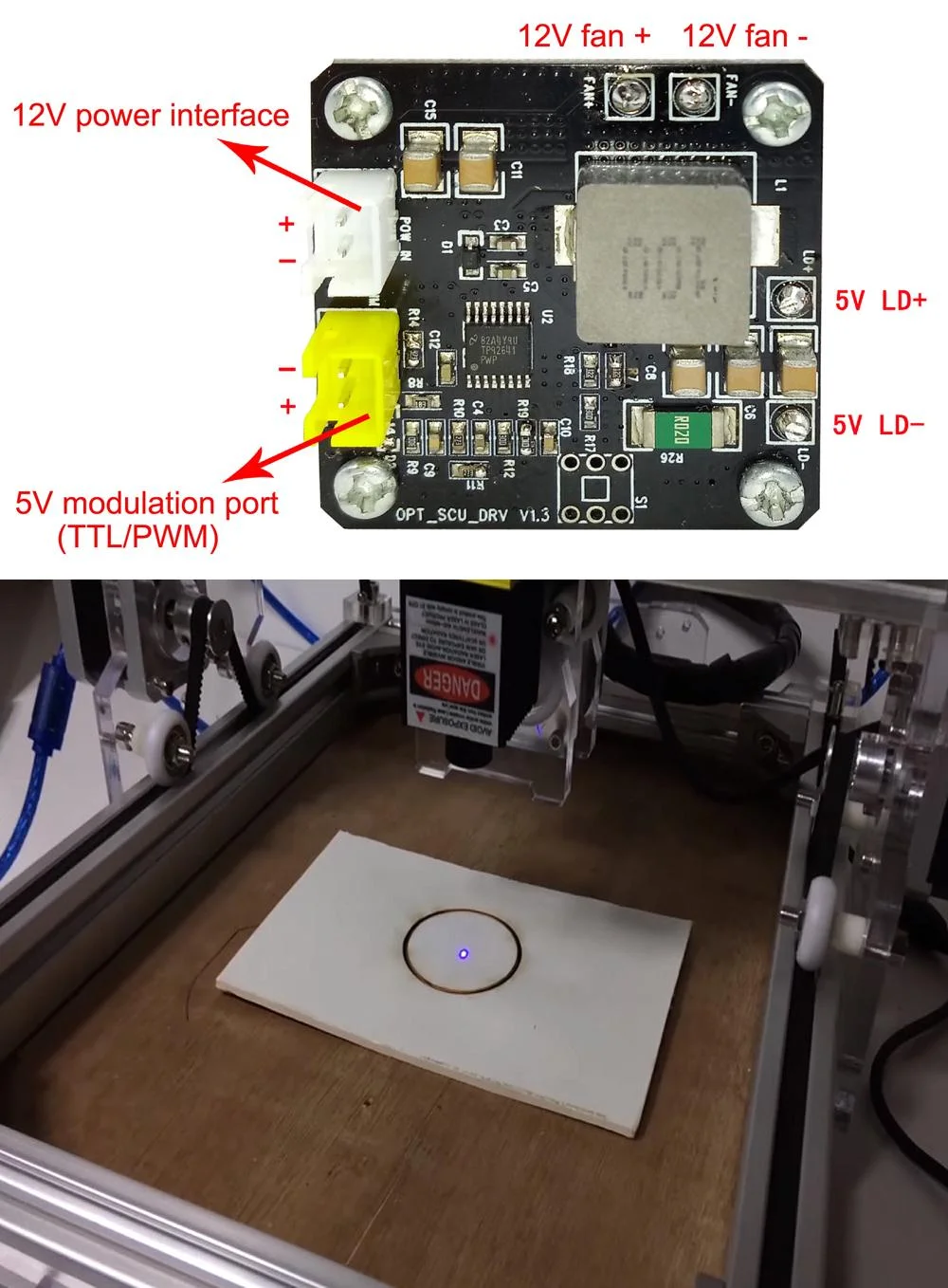

• Modulation mode: TTL/PWM control
• Input voltage control range: 0~5V
• Working frequency: ≤30KHz
• Recommended ambient temperature: -10~40℃
• Product size: 40x40x108mm
• Product weight: 245g
• Useful life: >8000 hours

Notice
1) The input voltage is 12V. Overvoltage will cause instantaneous damage to the circuit and module.
2) The 24V can be customized.
