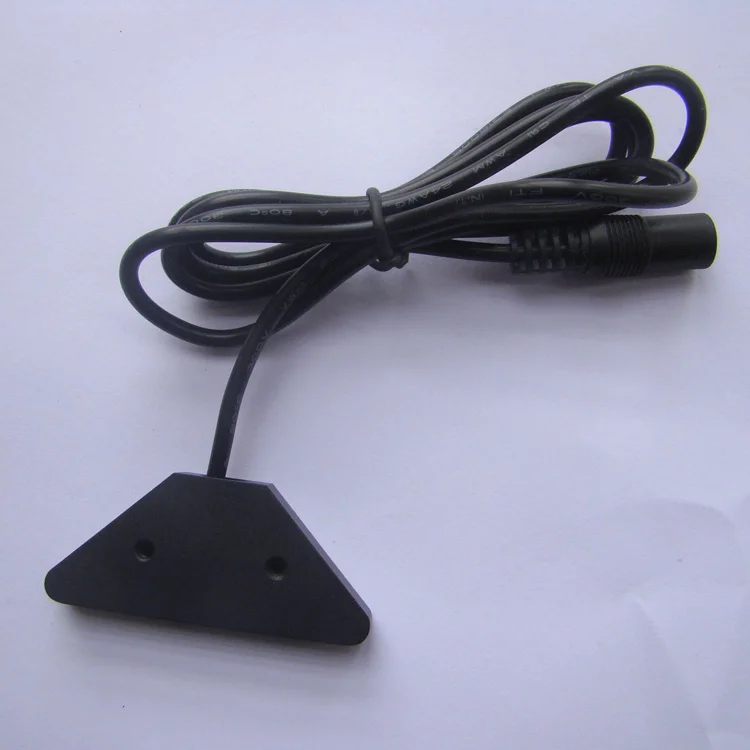

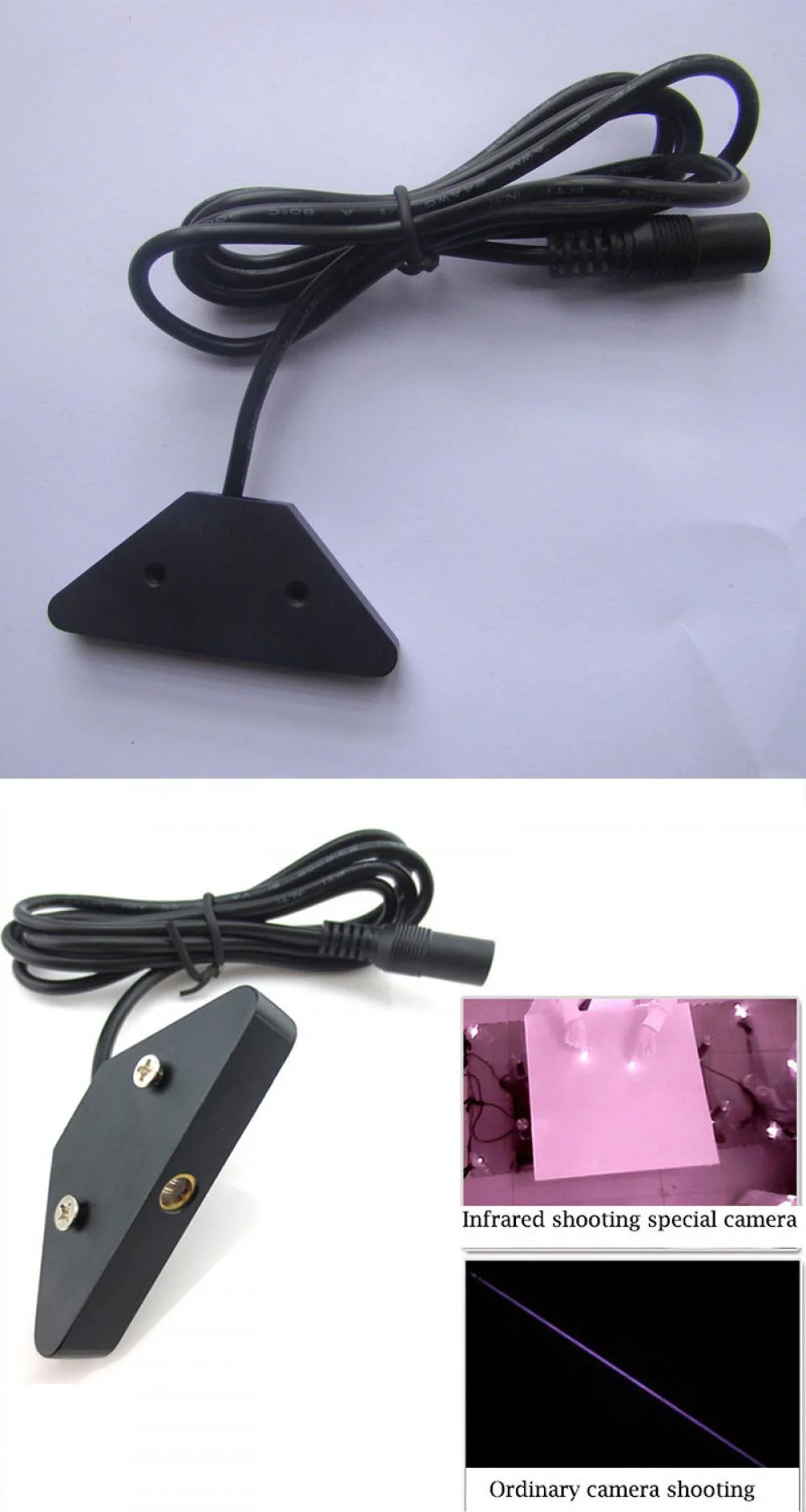

Touch Screen Infrared 808nm Line Laser Module 1000mW

This laser module adopts 808nm infrared light, intelligent driver board, imported diodes, high-quality lenses, internal heat dissipation structure, aviation aluminum housing, and insulating paint surface. It is ideal for large-screen touch applications.

Specifications
• Wavelength: 808nm (infrared laser)
• Light shape: line (fan-shaped surface)
• Output power: 1000mW
• Power supply voltage: DC 2.8-3.2 (V)
• Working current: ≤ 600mA
• Lens emission angle: ≤ 120°
• Line width: customizable
• Dimensions: 60 x 26.5 x 10 mm
• Working temperature: -20°C - +60°C
• Storage temperature: -40°C - +85°C
• Application: large touch screen

Buying Tips
1) Infrared line width can be customized from 0.4mm to several centimeters.
2) The angle of the inline lens can be customized from 5 degrees to 120 degrees.
3) The working voltage is customizable.

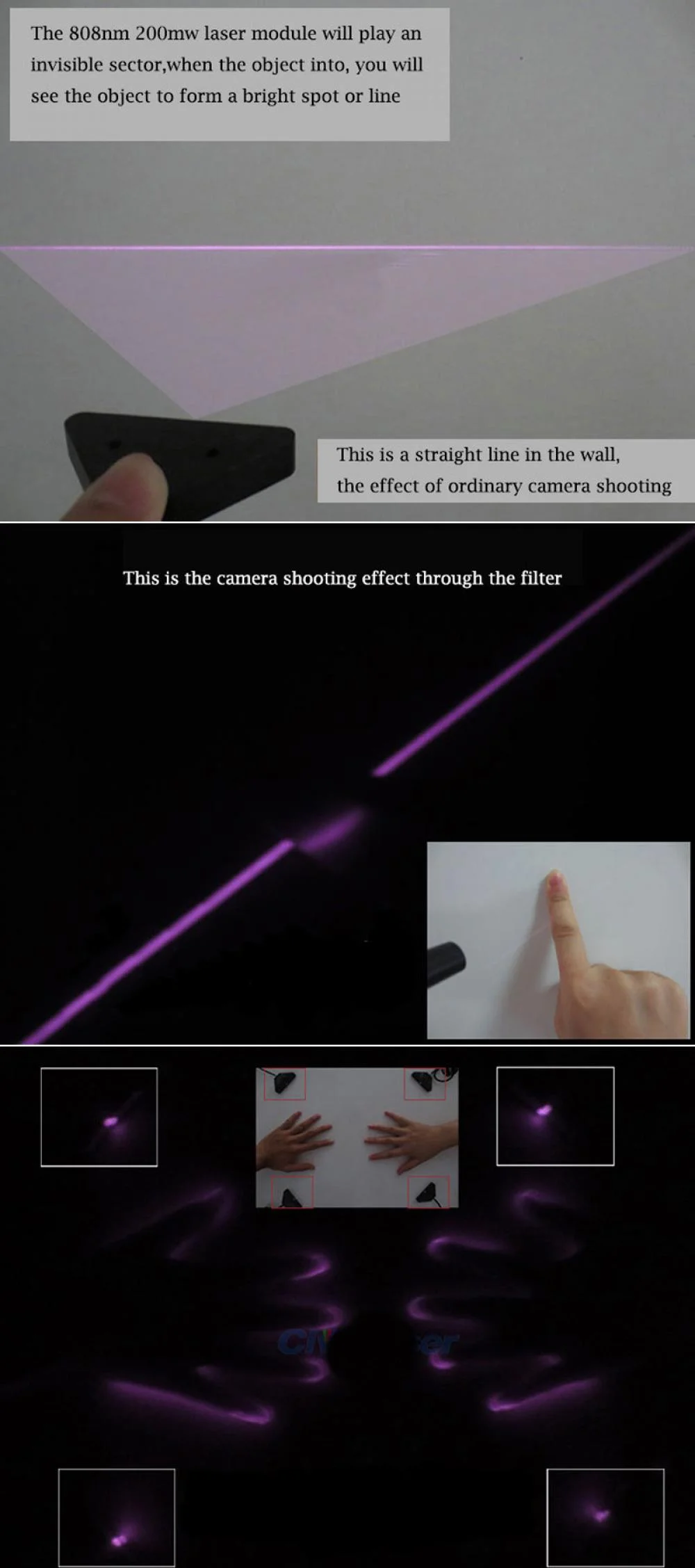

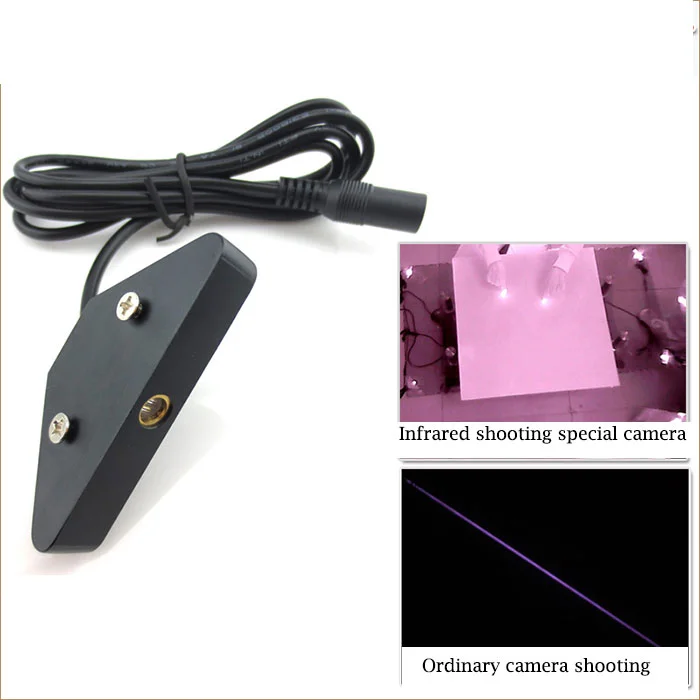

You can see the infrared laser line with the camera.

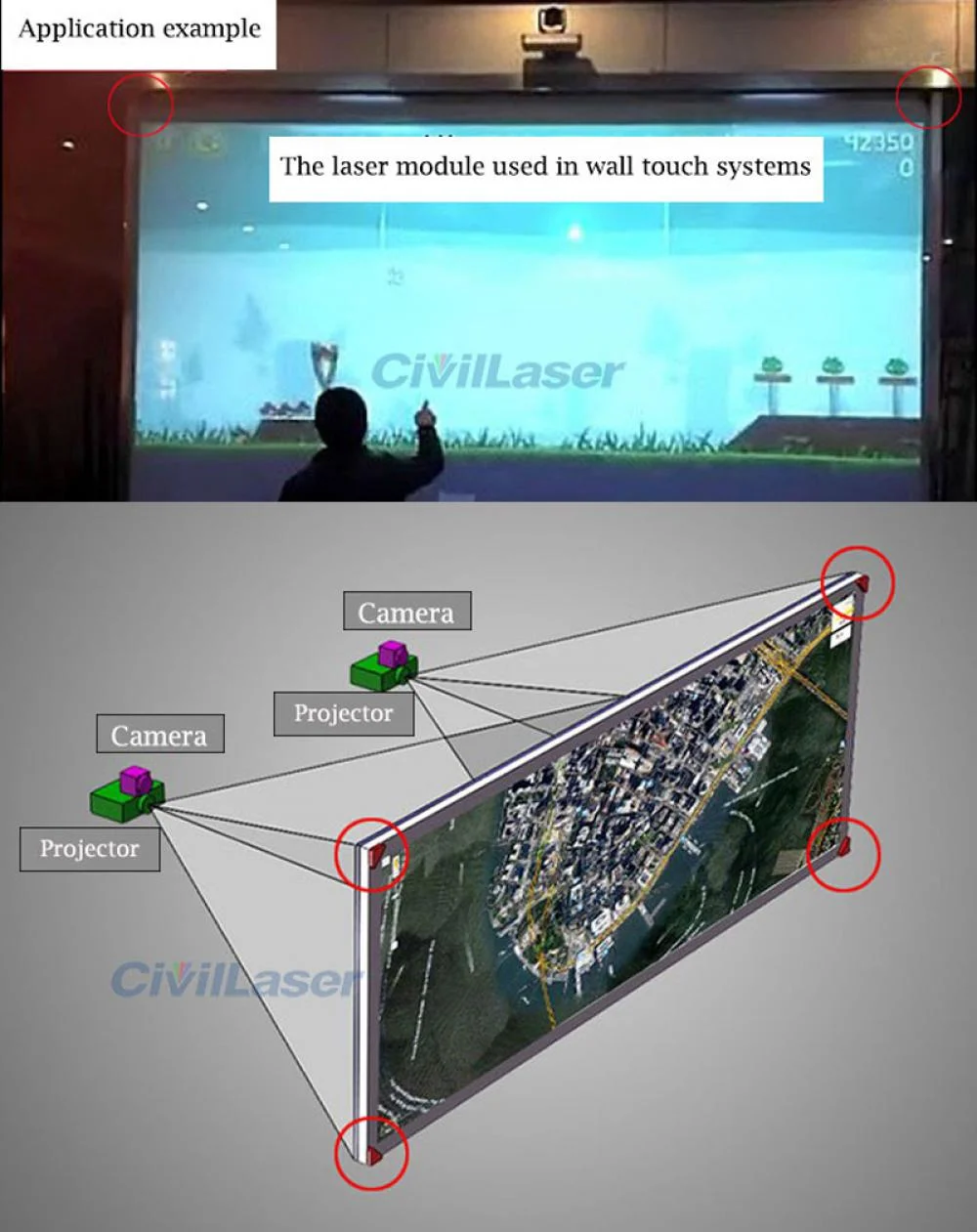

Touch Screen Application with Infrared Module
1) The infrared surface emitted by the line laser covers the entire screen. The thickness of the infrared surface is about 2mm. When a finger or other object is close to the touch screen, the infrared surface of the laser forms light spots. The infrared camera captures these light spots and transmits the image to a computer. The company processes and analyzes these screens through software, then recognizes the location and touch events.
2) Using laser plane multi-touch technology to realize multi-touch devices is a simple and inexpensive method. Most devices require 4-8 laser heads to illuminate the plane from the four corners and sides of the screen.
