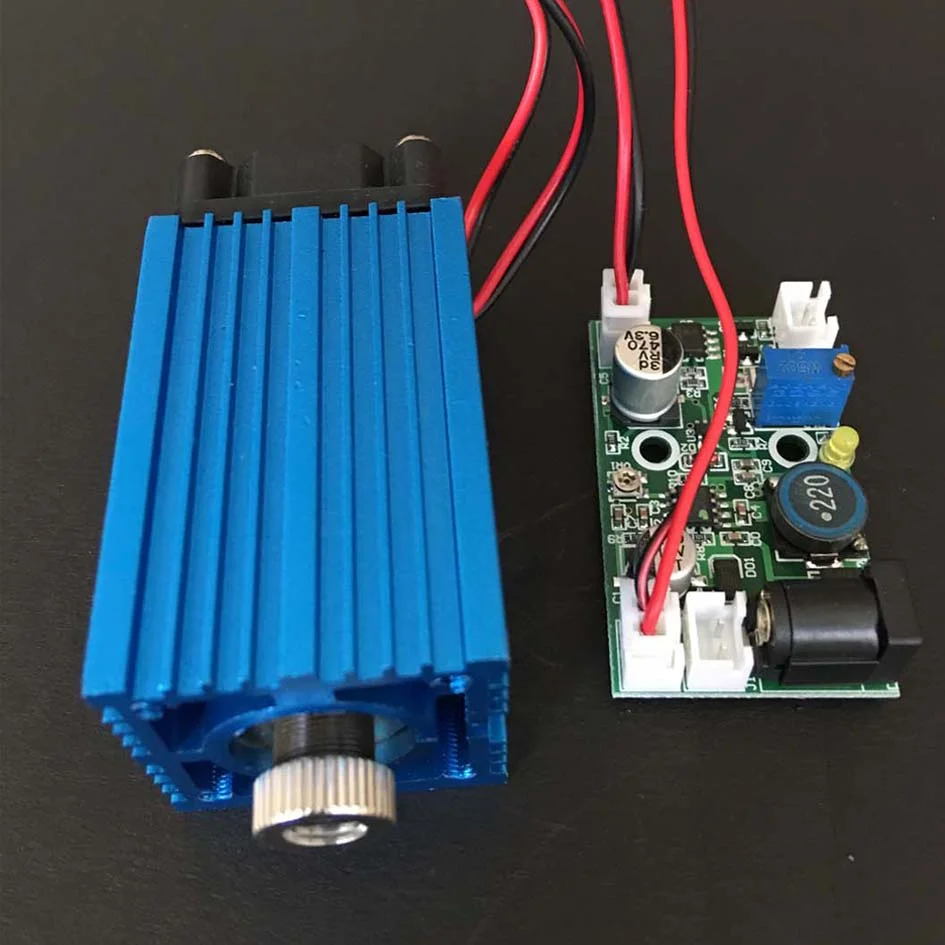

488nm 150mW Cyan Laser Module Dot / Line / Cross

For OEM, ODM, and wholesale, please contact us by email. We will reply to you in 24 hours.

Product Details

This laser module adopts the standard 488nm wavelength and sturdy structure design. It can work 24 hours a day, which is ideal for industrial applications. The output power of the cyan laser is up to 150mW, and three laser types are optional: dot/line/cross. This model has TTL modulation, adjustable focus, and an external power supply. It can be used in industry, stage, laser experiments, etc.

Specifications
• Module size: 65mm x 33mm x 33mm
• Board size: 45mm x 34mm x 16mm
• Output wavelength: 488nm
• Output power: 150mW
• Laser type: dot / line / cross
• Cooling method: aluminum cooling + fan
• TTL modulation: available
• Surface treatment: sky blue
• Housing material: aluminum
• Circuit control: constant current
• Reverse connection protection: automatic identification of positive and negative poles
• Working voltage: DC=12V
• Working current: I<145mA
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: -10℃～＋40℃

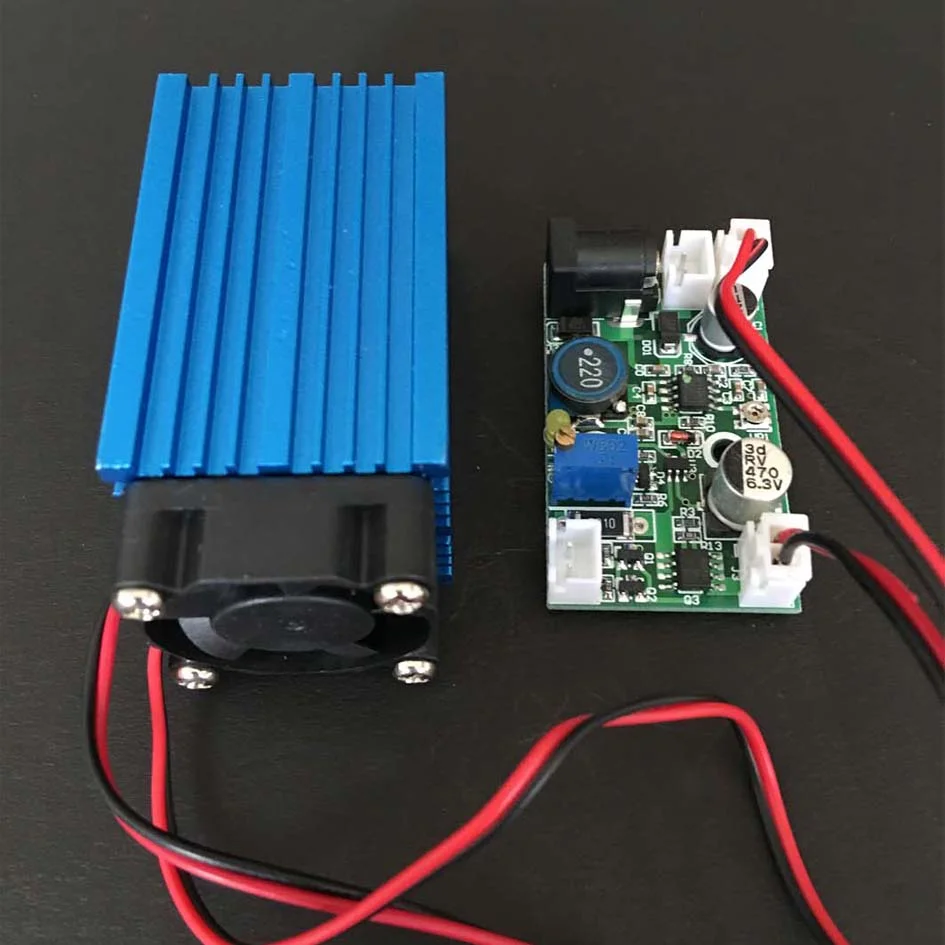

• Structure: laser part + lens + heat dissipation housing

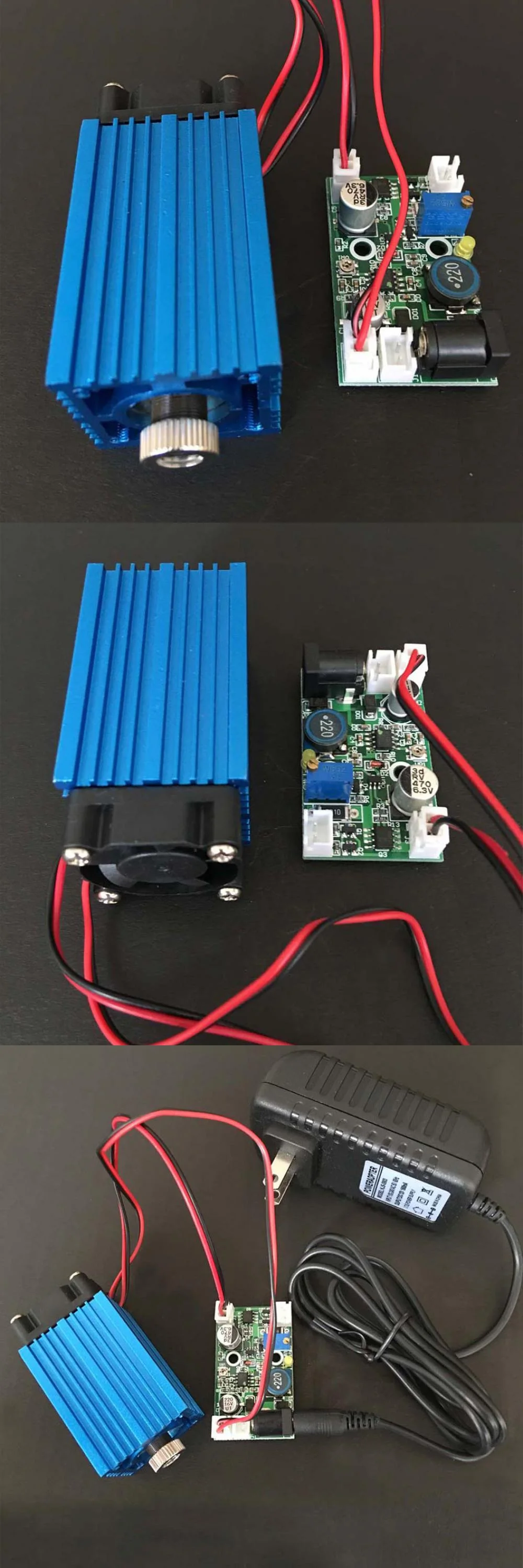

488nm Laser Module

488nm Cyan Laser

Notes:
* This product should work in a dry and static-free environment.
* Do not adjust the potentiometer on the power board (the warranty does not cover DIY).
* Overvoltage or overcurrent can damage this laser module.

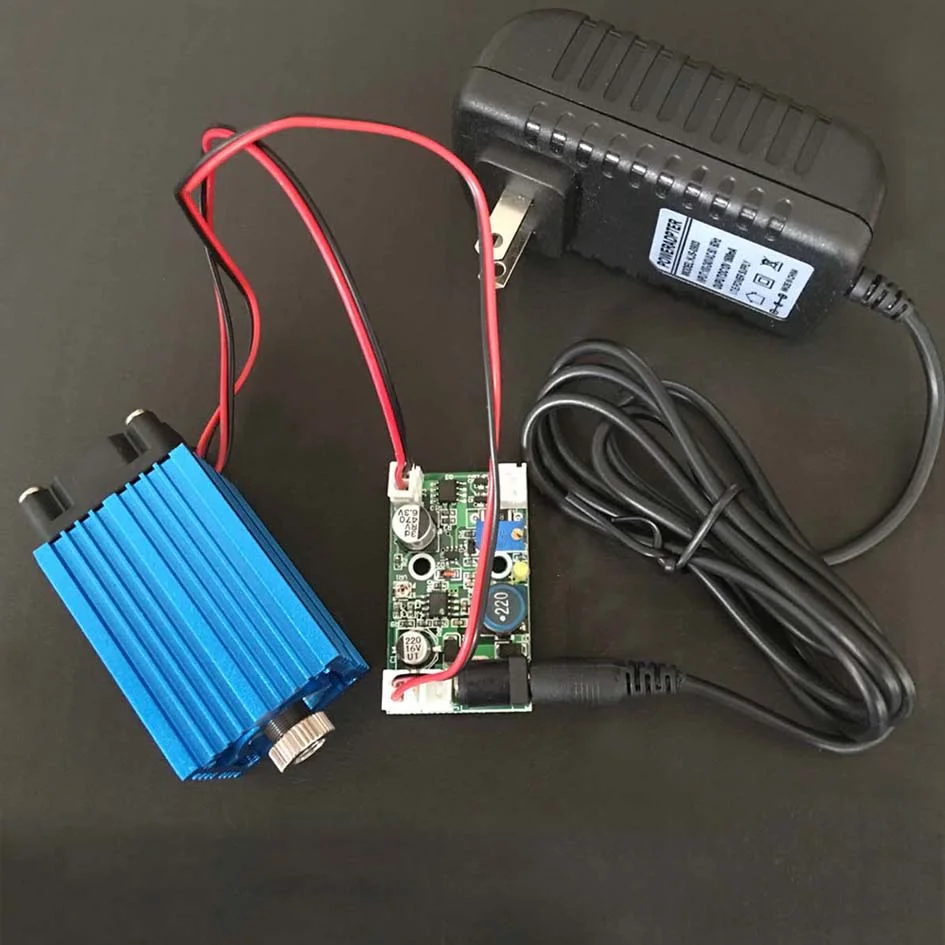

Packing List
• 1 x Dot/Line/Cross 488nm Cyan Laser Module
• 1 x 12V Power Adapter
