Strongest 520nm Green Laser Module 100mW / 200mW / 1000mW / 2000mW

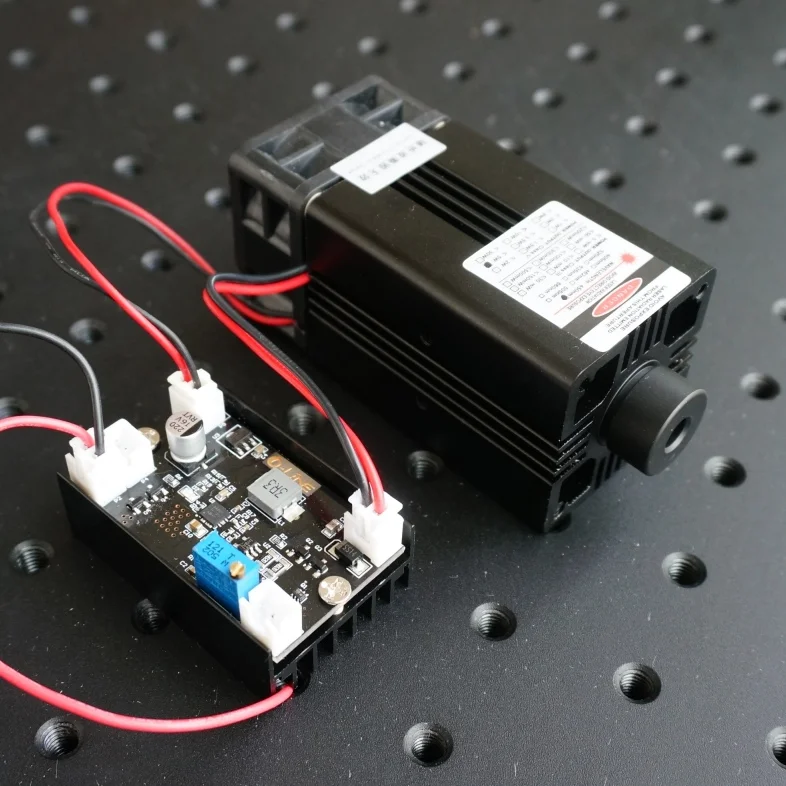

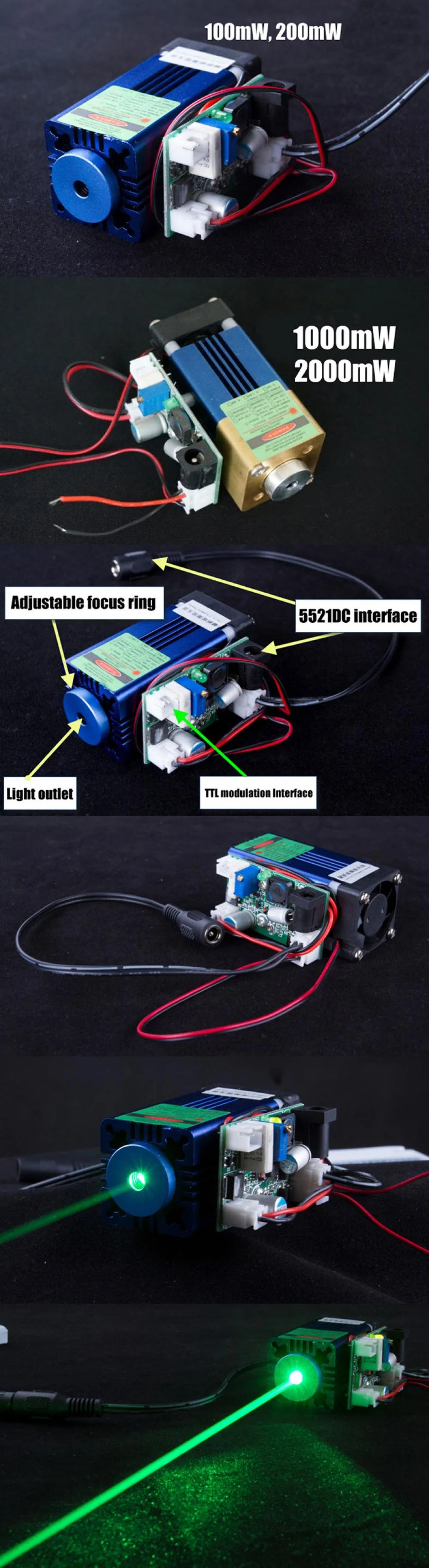

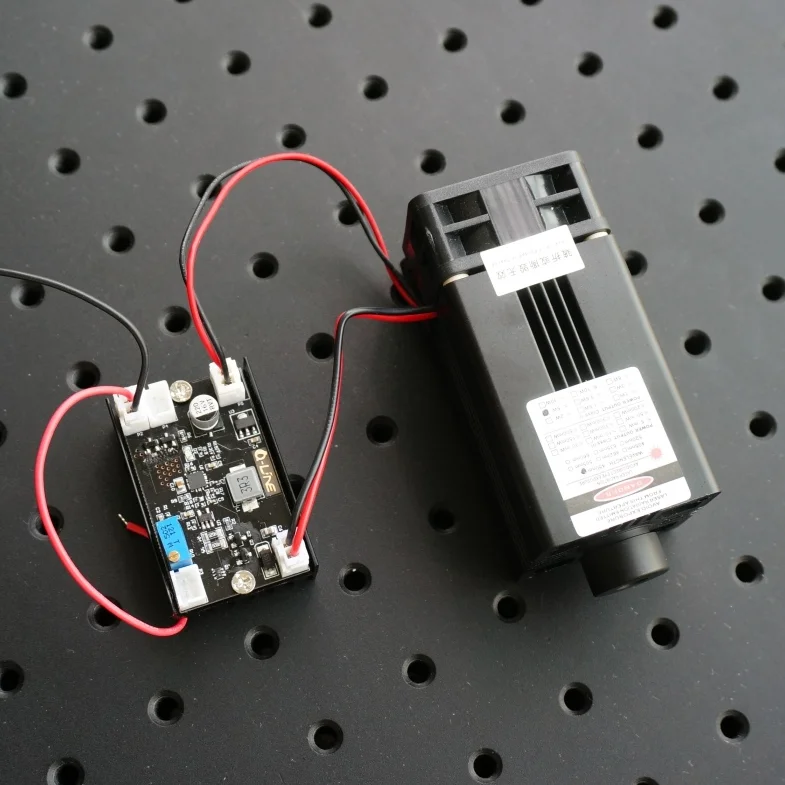

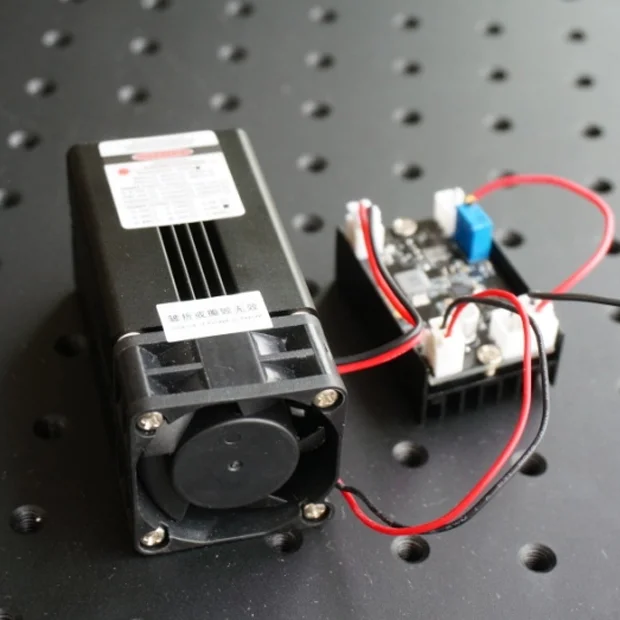

This laser module comes with a 520nm laser diode, with high power and good stability. It adopts an external power supply with a DC port. The circuit board and module body are fixed together. At the same power, the heat resistance of a 520nm laser is usually better than 532nm, and its start-up temperature is relatively low, which can instantly start working and reach maximum output power. Many other features are available, such as thermal design, circuit protections, TTL modulation, adjustable focus, etc. If you are looking for the strongest green laser module, this is a reliable choice.

Currently, the output power of this model power is optional at 100mW, 200mW, 500mW, and 1000mW. If you need customization in the higher power range (< 2W), please contact us directly via info@lasersea.com. We will provide you with the optimal solution and a reasonable quote.

Specifications
• Wavelength: 520nm (green)
• Output power: 100mW / 200mW / 1000mW / 2000mW

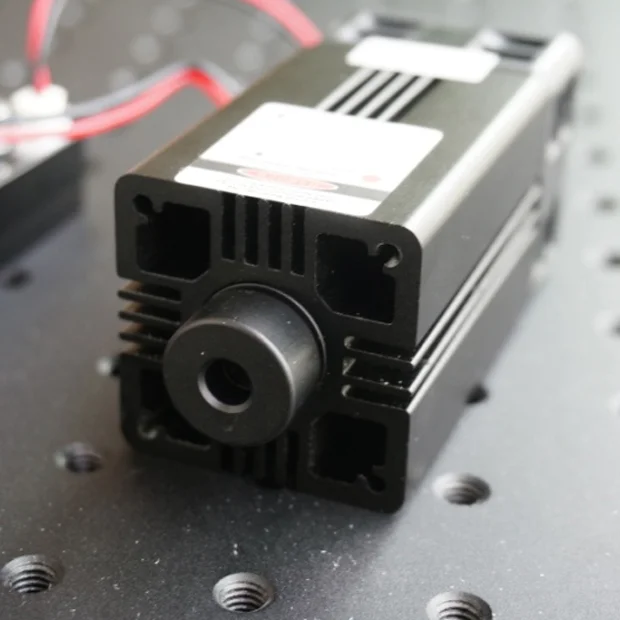

• Housing material: 7075 aircraft aluminum
• Output mode: CW (it can work continuously)
• Cooling method: forced air cooling, heat dissipation materials
• Control circuit: constant current
• TTL modulation: available
• Reverse polarity protection: available
• Operating voltage: DC = 12V
• Operating temperature: -10 ℃ - 50 ℃

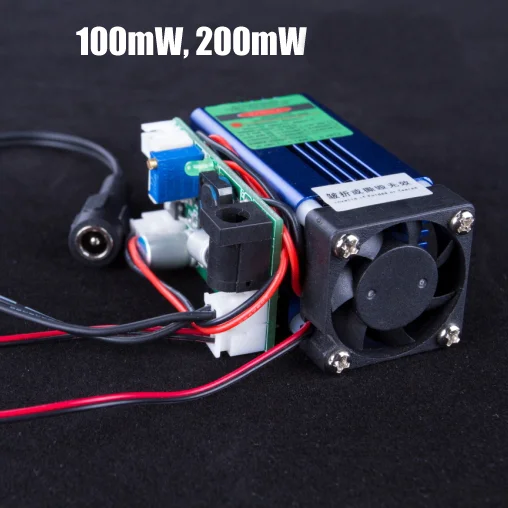

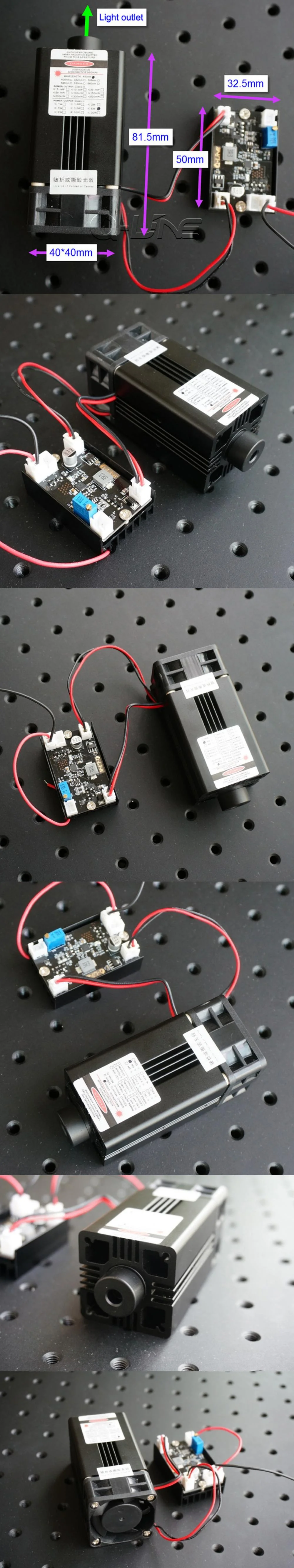

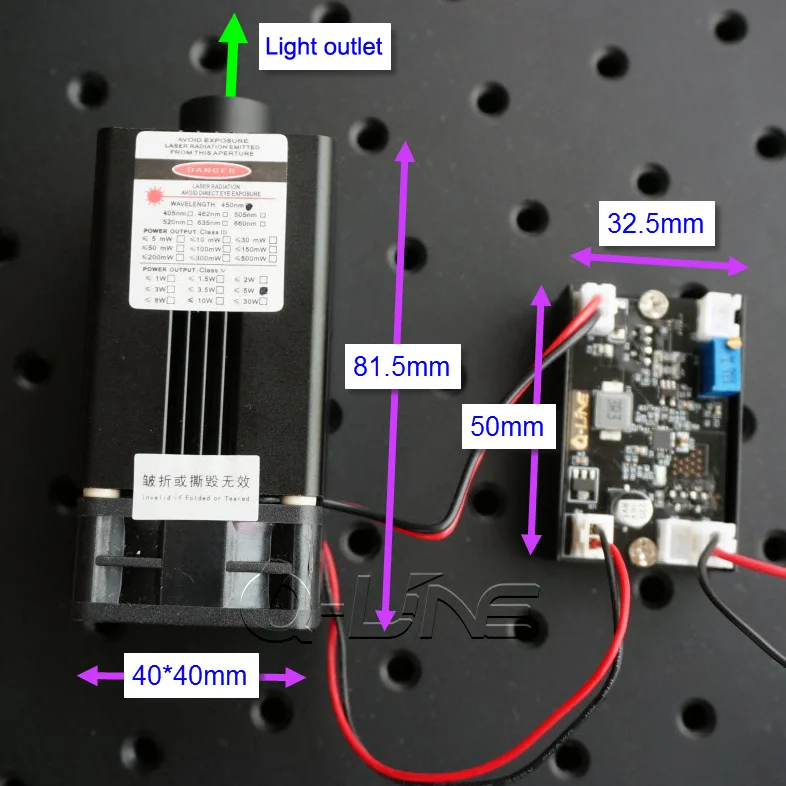

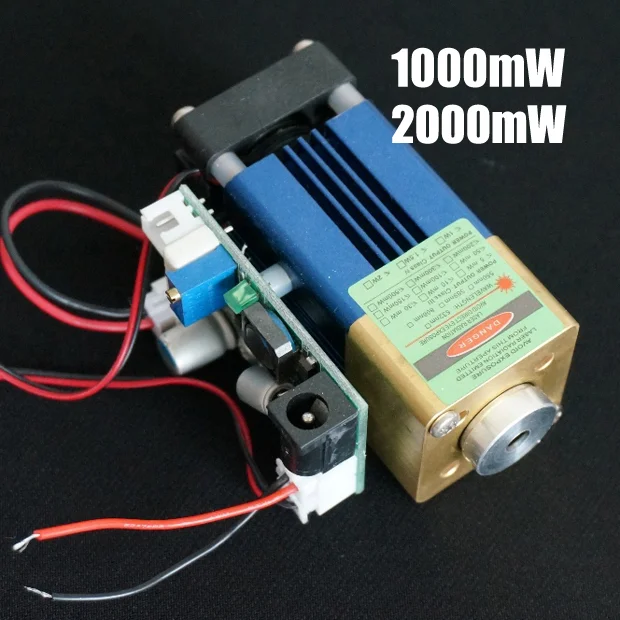

• Module dimensions: 30 x 30 x 69 mm (100mW/200mW), 40 x 40 x 81.5 mm (1000mW/2000mW)
• Dimensions of the circuit board: 15 x 32.5 x 50 mm
